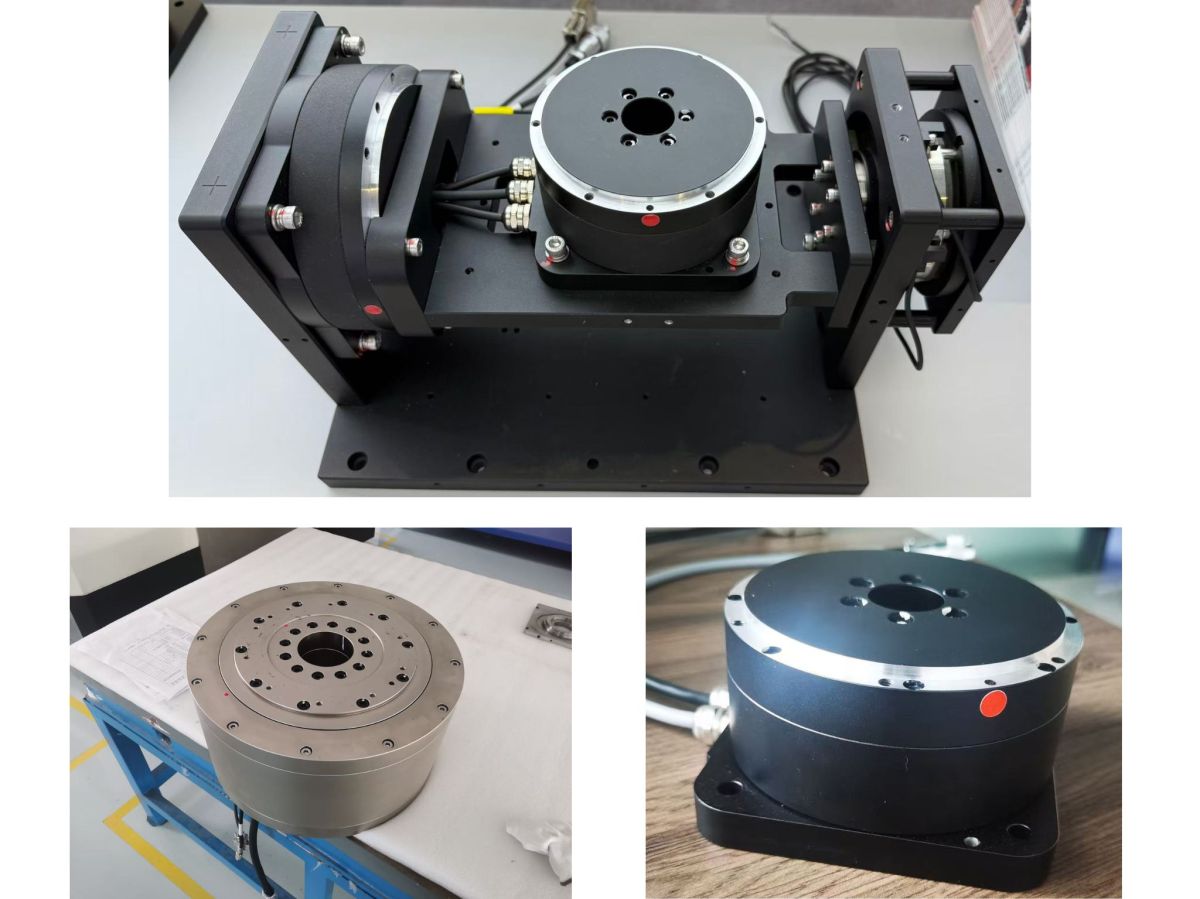

Hollow-Shaft Direct Drive Motor for Heavy-Duty Precision Positioning and Industrial Automation

Introduction

In heavy-duty automation, precision positioning is often limited not by the control system itself, but by the mechanical transmission used between the motor and the load. Traditional servo motors combined with gearboxes, belts, or other transmission mechanisms introduce additional mechanical components, which can create backlash, transmission errors, mechanical losses, and maintenance requirements. These limitations become increasingly noticeable when equipment needs to perform repeated indexing, continuous rotation, or high-precision positioning under heavy loads.

A Direct Drive Motor takes a fundamentally different approach. Instead of generating torque through a separate mechanical transmission stage, the motor drives the rotating load directly. This eliminates the need for intermediate gears and allows torque to be transferred directly to the output shaft. For applications requiring stable positioning, high repeatability, smooth low-speed motion, and continuous heavy-duty operation, a Direct Drive Torque Motorcan provide a more efficient mechanical architecture.

For industrial equipment designers, however, direct drive alone is not enough. The motor must also match the actual load, inertia, positioning requirements, installation space, cable routing, and operating cycle of the machine. This is why hollow-shaft direct drive motors are becoming particularly valuable in CNC equipment, lithium battery manufacturing, photovoltaic equipment, optical processing, semiconductor inspection, and other automated production systems.

Why Traditional Mechanical Transmission Can Become a Limitation?

When a conventional servo motor is connected to a gearbox or other transmission mechanism, the final positioning performance depends on the entire mechanical transmission chain rather than the motor alone. Every additional transmission component introduces potential sources of error, including backlash, elastic deformation, friction, assembly tolerance, and wear.

These effects may be manageable in conventional automation, but they become more significant when the machine repeatedly performs small-angle positioning or operates under high load for thousands of hours.

For example, a heavy workpiece may need to rotate to multiple processing positions during CNC machining. If the transmission system contains backlash or mechanical compliance, reversing the rotation direction can produce a small positioning error before the load actually begins moving. The controller may already have reached the commanded position while the workpiece has not completely followed it.

A Direct Drive Torque Motor removes much of this mechanical complexity because the motor torque is applied directly to the rotating load. With fewer mechanical transmission components between the motor and the workpiece, the system can achieve smoother motion, reduced mechanical error, and more direct control of the output position.

This is particularly important for equipment where repeatability and long-term positioning stability matter more than simply achieving a high rotational speed.

When a Direct Drive Motor Is More Suitable for Heavy Loads?

The biggest misconception about direct drive systems is that they are only suitable for small, high-precision mechanisms. In reality, large torque motors can be designed specifically for heavy loads and continuous industrial operation.

The key consideration is not simply motor power, but the relationship between output torque, load inertia, acceleration, duty cycle, and required positioning accuracy.

In a heavy-duty application, the motor may need to repeatedly accelerate a large fixture, stop at a defined angular position, reverse direction, and continue this cycle throughout the production process. A conventional motor with a high-ratio gearbox can provide sufficient output torque, but the gearbox also becomes a critical component in the transmission chain.

A properly sized Direct Drive Motor can generate torque directly at the rotating shaft, reducing the number of mechanical interfaces between the motor and the load. This can simplify the mechanical architecture while improving the responsiveness of the positioning system.

For equipment manufacturers, this means the design objective changes from simply asking, “What gear ratio should we use?” to a more useful question: “Can the direct drive motor provide the required continuous torque, peak torque, acceleration, and positioning performance for the actual load?”

That approach is especially valuable when designing customized automation equipment.

Hollow-Shaft Design Solves More Than Cable Routing

For industrial automation, the hollow shaft is not simply a structural feature. It can directly affect the overall architecture of the machine.

A conventional solid-shaft motor requires cables, pneumatic lines, vacuum tubes, sensors, or other utilities to be routed around the rotating mechanism. As the number of components increases, the external wiring becomes more complicated and can interfere with the movement of the equipment.

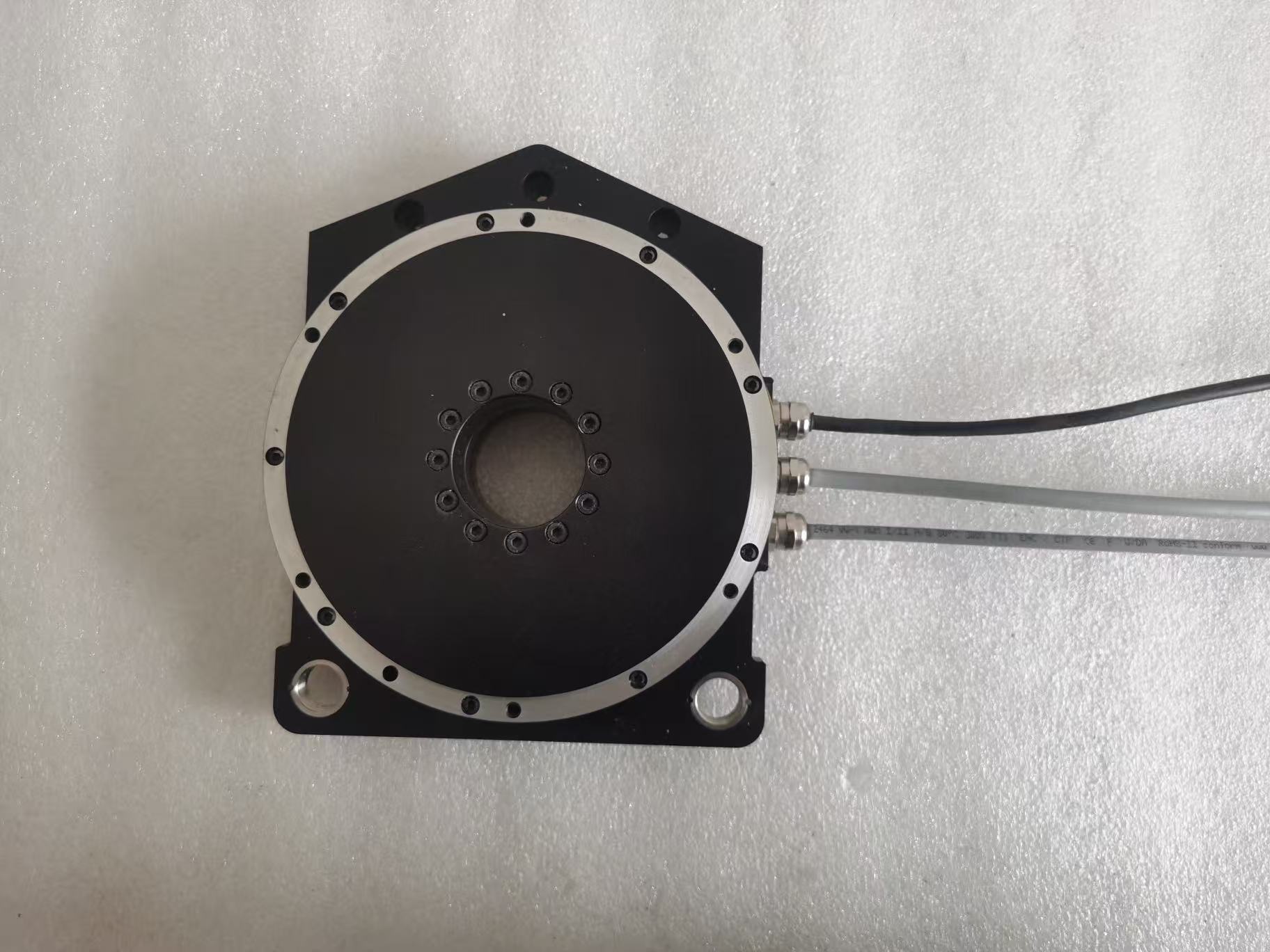

A Hollow Shaft Direct Drive Motor provides an internal passage through the rotating shaft. Cables, pneumatic tubing, vacuum lines, optical components, and other utilities can potentially pass through the center of the motor and directly reach the rotating tooling.

This becomes particularly valuable in equipment such as photovoltaic manufacturing systems, optical inspection equipment, heavy-duty indexing mechanisms, and automated assembly machines.

For example, in a large-format photovoltaic printing process, the rotating mechanism may need to change the orientation of the workpiece while maintaining precise positioning. With a hollow-shaft architecture, cables and pneumatic lines can be routed through the center rather than around the rotating mechanism. This can reduce external interference and make the overall equipment structure cleaner and easier to maintain.

The same principle applies to automated machining and inspection systems where vacuum fixtures, sensors, lighting systems, or other auxiliary components must be integrated around the rotating load.

Direct Drive Motors for Lithium Battery Manufacturing

Lithium battery production is a good example of an application where torque, repeatability, continuous operation, and mechanical reliability must be considered simultaneously.

During processes such as battery cell stacking and welding, production equipment may need to repeatedly position relatively heavy fixtures or battery modules at different angular positions. The rotation mechanism must maintain stable positioning throughout a large number of operating cycles.

A Direct Drive Motor can directly drive the rotating mechanism without relying on a conventional gearbox. This reduces the number of transmission components and allows the motor to respond directly to position commands.

For high-volume production lines, another advantage is long-term mechanical consistency. When the transmission chain contains gears, belts, or other wear components, mechanical performance can gradually change over time. A direct-drive architecture reduces these transmission elements, which can help simplify maintenance and improve long-term positioning stability.

For battery manufacturing equipment operating continuously, this difference can become important because even small positioning deviations can affect subsequent welding, assembly, or inspection processes.

Direct Drive Torque Motors for Photovoltaic Equipment

Photovoltaic manufacturing equipment often involves large workpieces, precision alignment, and continuous automated operation. The rotation mechanism therefore needs to combine high torque capacity with stable angular positioning.

A Direct Drive Torque Motor is particularly suitable when the rotating load is large and the machine requires frequent indexing or orientation changes.

The direct torque output allows the motor to control the rotating load without introducing an additional reduction stage. When combined with a hollow-shaft design, the center of the rotating mechanism can also be used for cable and pneumatic routing.

This architecture is useful for photovoltaic inspection, printing, alignment, and other automated processes where the workpiece needs to be accurately positioned before the next manufacturing operation.

Instead of designing the machine around an external gearbox and then finding a way to accommodate the wiring, equipment designers can integrate the motor directly into the rotating mechanism and use the hollow shaft as part of the machine's internal routing architecture.

Direct Drive Motor for CNC Machining and Heavy-Duty Positioning

CNC machining represents another important application for high-torque direct-drive systems.

During milling, drilling, grinding, or multi-angle machining, the workpiece or tooling may need to rotate repeatedly while maintaining a stable angular position. The rotation mechanism must withstand cutting forces while maintaining positioning accuracy.

Traditional geared systems can provide high output torque, but backlash and transmission compliance become increasingly important when the system frequently changes direction.

A Direct Drive Motor can provide a more direct connection between the motor and the rotating load. With no intermediate reduction gear, the system can respond rapidly to position commands and avoid conventional gearbox backlash.

For heavy-duty CNC positioning applications, however, motor selection must consider the complete load profile. The required continuous torque, peak torque, acceleration, stopping time, workpiece inertia, and external machining forces all need to be evaluated together.

This is where a customized direct-drive solution can provide greater value than simply selecting a motor according to rated torque.

Optical and Semiconductor Equipment: Precision Without Unnecessary Transmission

The requirements of optical inspection and semiconductor equipment are different from those of heavy machining, but the same direct-drive principle can be valuable.

In optical alignment, wafer inspection, defect detection, and precision calibration equipment, the mechanism may need to perform extremely small angular movements while maintaining smooth motion.

A conventional transmission system can introduce mechanical clearance and friction that make very small movements more difficult to control. A direct-drive architecture places the motor directly at the rotational axis, allowing the controller to regulate the actual rotational motion more directly.

For compact inspection equipment, the hollow-shaft configuration also provides another advantage. The center passage can be used to integrate cables, optical components, vacuum lines, or other system elements without significantly increasing the external dimensions of the mechanism.

This makes a Hollow Shaft Direct Drive Motor particularly interesting for compact precision automation where both mechanical integration and positioning performance are important.

How to Choose a Direct Drive Motor for Your Application?

Selecting a direct drive motor should start with the application rather than the motor specification sheet.

Evaluate Continuous and Peak Torque

The first question is the actual load torque. The motor must provide sufficient continuous torque for normal operation and sufficient peak torque for acceleration, deceleration, emergency stops, and transient loads.

Consider Load Inertia and Acceleration

The second consideration is load inertia. A heavy workpiece may require substantially more torque during acceleration than during steady-state rotation. Therefore, a motor with a high rated torque is not necessarily suitable if its dynamic response does not match the required acceleration profile.

Match the Positioning Requirements

Positioning requirements are equally important. If the equipment requires frequent direction changes and high repeatability, eliminating mechanical transmission backlash can provide a significant advantage.

Consider Hollow-Shaft Integration

Installation requirements should also be considered early in the design process. If cables, pneumatic lines, vacuum pipes, or optical components need to pass through the center of the rotating mechanism, a hollow-shaft direct drive motor can simplify the entire mechanical structure.

Evaluate Duty Cycle and Operating Environment

Finally, the operating environment and duty cycle should be evaluated. Continuous 24-hour production, heavy loads, high acceleration, and frequent indexing place very different demands on the motor compared with laboratory equipment.

From Motor Selection to Complete Motion Solutions

For equipment manufacturers, choosing a Direct Drive Motor is not simply a matter of replacing a servo motor and gearbox with another motor.

The real objective is to develop a motion system that matches the application's torque, inertia, positioning accuracy, speed, mechanical structure, and operating cycle.

This is where different drive architectures can be compared according to the actual machine requirements. A direct drive motor can be an excellent choice when the application benefits from direct torque transmission, low mechanical complexity, smooth motion, and high positioning stability. A harmonic actuator or planetary joint module may be more appropriate when the machine requires compact geared transmission, high torque multiplication, or integrated robot joint functionality.

For this reason, HONPINE does not focus on a single motion architecture. Its product portfolio covers direct drive motors, harmonic actuators, harmonic joint modules, and planetary joint modules, allowing engineers to select the appropriate motion solution according to the mechanical requirements of the equipment.

Why Work With HONPINE for Customized Motion Solutions?

Many automation projects do not fit neatly into a standard product category. A CNC positioning mechanism may require a high-torque direct drive motor, while a robotic axis may require a harmonic joint module with an integrated encoder and drive system. A compact medical mechanism may prioritize low weight and hollow-shaft integration, while a heavy industrial axis may prioritize continuous torque and rigidity.

This is why application-based selection is often more effective than simply choosing a product from a catalog.

HONPINE can evaluate the load characteristics, required speed, positioning accuracy, installation space, shaft configuration, communication requirements, and operating conditions to help customers determine the appropriate motion architecture.

For heavy-duty precision rotation, a hollow-shaft Direct Drive Motor can eliminate unnecessary transmission components while providing direct torque output. For robotic joints requiring compact integration, sensing, braking, and closed-loop control, an integrated harmonic joint module can provide a more complete solution. For applications requiring high reduction ratios and compact planetary transmission, a planetary joint module can offer another architecture.

The goal is not to use the same motor for every application. The goal is to select the right motion architecture for the machine.

Conclusion

As industrial automation continues to demand higher positioning accuracy, faster response, greater load capacity, and simpler mechanical integration, the role of the motor itself is becoming increasingly important.

A Direct Drive Motor eliminates the need for a conventional mechanical reduction stage and transfers torque directly to the load. For heavy-duty positioning, CNC machining, lithium battery manufacturing, photovoltaic equipment, optical inspection, semiconductor equipment, and other precision automation applications, this architecture can reduce mechanical complexity while improving motion responsiveness and long-term positioning stability.

When a hollow shaft is added, the motor becomes more than a drive component. It can become an important part of the machine's mechanical architecture, providing a central passage for cables, pneumatic lines, vacuum systems, and other auxiliary components.

For engineers developing customized automation equipment, the most important question is therefore not simply whether a Direct Drive Motor is powerful enough. The more important question is whether the complete motion architecture is optimized for the application's load, inertia, accuracy, speed, installation requirements, and production cycle.

HONPINE provides multiple motion solutions, from Direct Drive Motors and Direct Drive Torque Motors to harmonic joint modules and planetary joint modules, helping equipment manufacturers move from individual components toward application-specific motion solutions.
