  • HONPINE Robot Joint Motor Manufacturer

    HONPINE's Robot Joint Motor series products are divided into Harmonic Reducer Joint Motors and Planetary Reducer Joint Motors. On this page, HONPINE provides answers to frequently asked customer questions, covering topics such as communication protocols, voltage, encoders, brushless motors, and other common inquiries.



    On this page, you will gain a deeper understanding of HONPINE's strengths as a robot joint motor manufacturer, providing a reference for comparison when selecting your robot joint motor.









    Heavy-Duty Explosion-Proof Robotic Dog Planetary Joint Actuator Heavy-Duty Explosion-Proof Robotic Dog Planetary Joint Actuator

    Heavy-Duty Explosion-Proof Robotic Dog Planetary Joint Actuator

    HONPINE’s heavy-duty explosion-proof planetary joint actuators have officially entered mass production. This series of joints has been successfully integrated into multiple quadruped robot (robotic dog) platforms and deployed in hazardous environments such as petrochemical plants, natural gas inspection sites, and emergency rescue operations—areas that previously relied heavily on manual labor or imported components.
    Application-Specific Integration Support: Customized mechanical structures and control parameters tailored to different robot configurations and mission requirements.
    Explosion-Proof Certification Assistance: Support throughout the certification process, helping customers avoid common design pitfalls and accelerate compliance.
    Rapid Technical Support: Technical service centers located across major industrial regions nationwide, providing on-site response within 48 hours.

    Read More
    High Precision Encoders Robotic Harmonic Gear Motor with STO High Precision Encoders Robotic Harmonic Gear Motor with STO

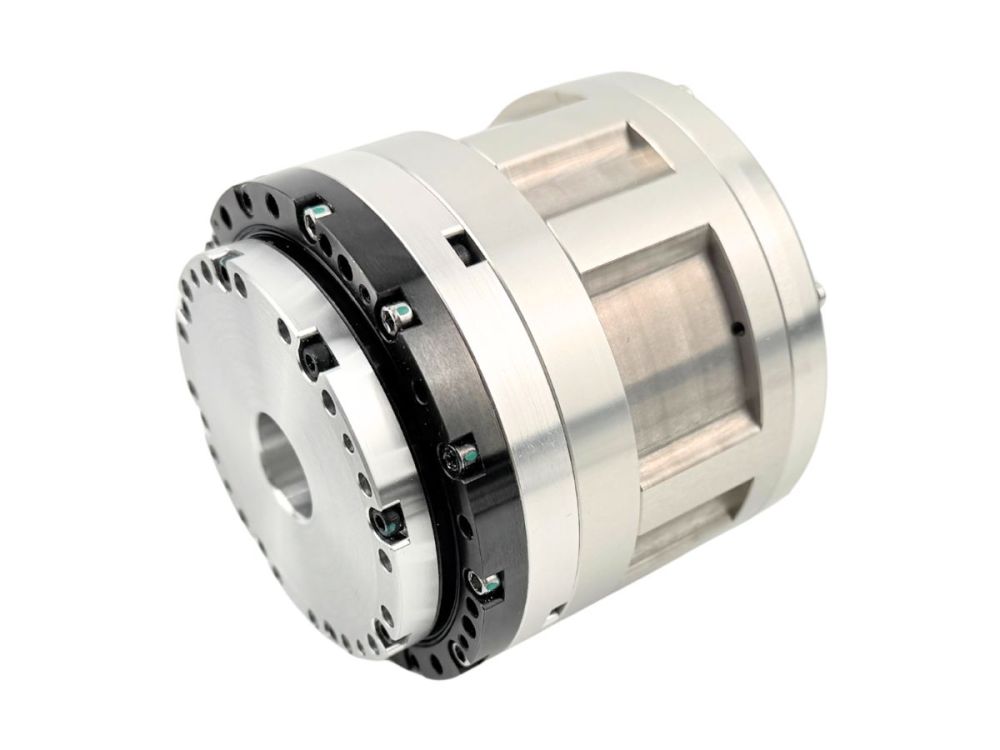

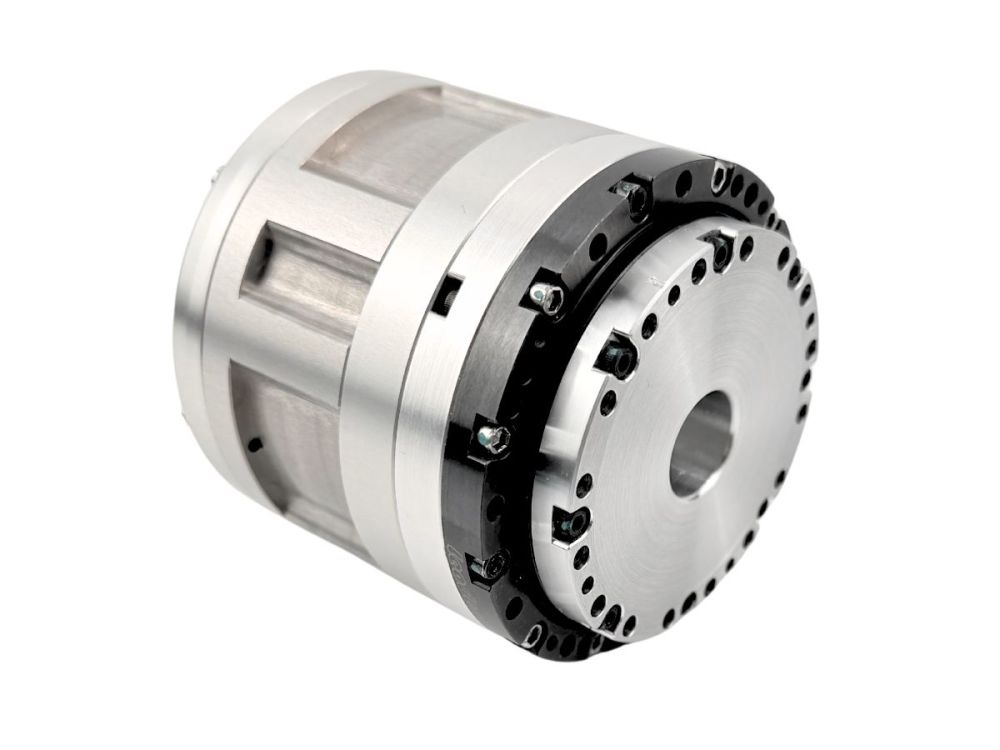

    High Precision Encoders Robotic Harmonic Gear Motor with STO

    HAG Robotic Harmonic Gear Motor is a robot joint actuator specifically designed for robotics applications. The built-in driver is integrated at the base of the gear motor, and it is equipped with high-precision encoders—20-bit resolution on the high-speed side and 19-bit on the output side—enabling full closed-loop control. Optional STO and brake functions are available to ensure safer operation of the equipment.

    Read More
    Highest Torque Output Light Weight Planetary Joint Modules Highest Torque Output Light Weight Planetary Joint Modules

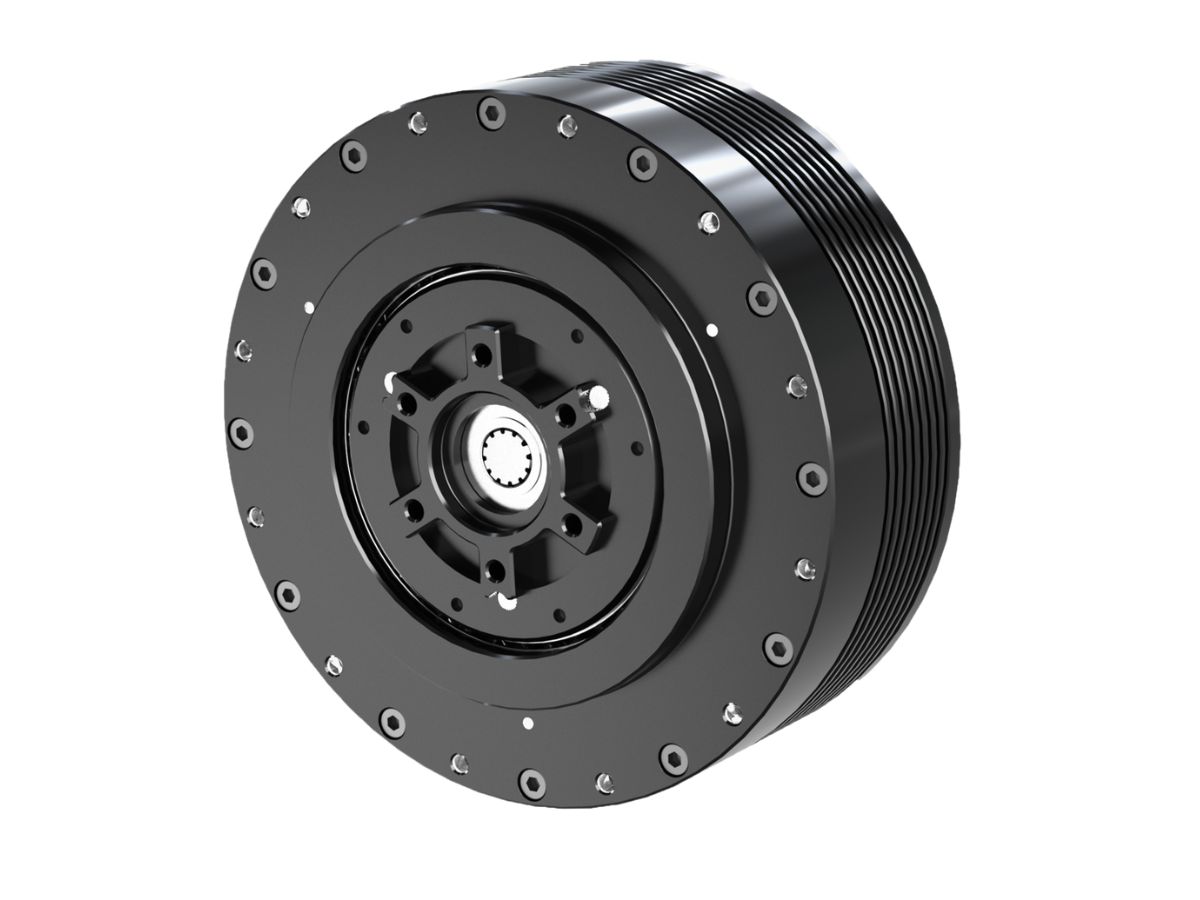

    Highest Torque Output Light Weight Planetary Joint Modules

    HONPINE PA Series Planetary Joint Modules feature three exclusive invention patents and seven utility model patents. With an ingenious structural design, they deliver the highest torque output among products of the same class, offering powerful and stable performance.
    HONPINE provides extensive product resources and technical support, enabling rapid deployment across various application scenarios while significantly reducing the time, effort, and cost required during the project pre-research stage.
    The modules adopt a power-and-signal shared input/output design, greatly simplifying the connection between drive units. Combined with a hollow-through wiring structure, the application and integration of the drive units become more convenient and efficient.

    Read More
    Human Robot Harmonic Joint Module with Torque Sensor and Integrated Cable Connector Human Robot Harmonic Joint Module with Torque Sensor and Integrated Cable Connector

    Human Robot Harmonic Joint Module with Torque Sensor and Integrated Cable Connector

    The TCHL Harmonic Joint Module is a harmonic joint module that integrates a torque sensor directly into the harmonic drive reducer. The torque sensor enables precise measurement of the drive system’s operating status and required torque values, allowing accurate load detection of the actuator. This helps prevent overload and enables safer human–robot interaction.
    The module features fully integrated cables and connectors, allowing fast, precise component connections and enabling safe, responsive motion control through a highly integrated design.

    Read More
    Cobots Robot Arm T type Harmonic Rotary Joint Module

    Cobots Robot Arm T type Harmonic Rotary Joint Module

    The T-type harmonic joint module is a highly integrated robotic joint unit that combines a harmonic reducer, torque motor, precision sensors, brake, and driver. It is called “T-type” because the output flange is perpendicular to the motor shaft, forming a T-shaped layout ideal for rotary robot joints.
    Designed for collaborative robots, the module simplifies development by integrating key components into one compact, plug-and-play unit. This greatly shortens the development cycle, lowers costs, and makes building a robotic arm almost as easy as assembling LEGO blocks. Its high integration also improves maintenance efficiency and expands the applicability of robotic-arm technology.

    Read More
    Sealing Design Robot Joint Module for Underwater Operation Special Robot Sealing Design Robot Joint Module for Underwater Operation Special Robot

    Sealing Design Robot Joint Module for Underwater Operation Special Robot

    The joint module achieves highly optimized volume and weight through fully integrated components including harmonic reducer, frameless torque motor, brake, encoder and driver, enabling precise motion control with greater torque output, higher accuracy, more compact size and lighter weight. We also provide customized solutions to meet specific requirements for personalized applications and special operating environments, with the most common customizations being waterproof versions (resistant to water splashes, sprays or underwater operation up to 1 meter depth) and low-temperature adaptations. This waterproof joint module is specifically designed for special robots operating underwater, developed as an enhanced version of our standard joint module with dedicated improvements to address waterproofing challenges in robotic joints.

    Read More
    Large Hollow Bore Harmonic Drive Rotary Actuator Large Hollow Bore Harmonic Drive Rotary Actuator

    Large Hollow Bore Harmonic Drive Rotary Actuator

    The large hollow bore rotary actuator typically integrates an internal rotor frameless torque motor with components such as a harmonic drive reducer, absolute encoder, and customized large hollow bore harmonic drive unit to form a complete rotary actuator assembly. Its control unit (drive system) is usually externally mounted, enabling high-precision motion control for connected equipment. Compared to standard rotary actuators, this series features a larger hollow bore diameter, allowing passage of lead screws, cables, and other components. It is designed for applications requiring large through-bore space, high precision, and compact integration, such as machine tool rotary tables, precision medical devices, 5-axis laser cutting systems, and semiconductor equipment.

    Read More
    High Speed Impact Resistance Compact Lightweight Planetary Joint Module High Speed Impact Resistance Compact Lightweight Planetary Joint Module

    High Speed Impact Resistance Compact Lightweight Planetary Joint Module

    The Standard Planetary Joint Module is a core component of robotic power systems. Through highly integrated design combining a planetary reducer, frameless torque motor, brake, encoder, and driver, it achieves significant optimization in volume and weight, enabling precise motion control of the joint. This results in greater torque, smaller size, and lighter weight. Compared to harmonic joint modules, the planetary joint module features a smaller reduction ratio, higher output speed, and greater torque density, making it more suitable for medium-to-low load applications. We also provide customization services tailored to clients’ specific requirements.
    With core advantages such as high-speed performance, impact resistance, and compact lightweight design, the Standard Planetary Joint Module has become the preferred solution for high-load drives in humanoid robots, specialized robots, logistics AGVs, and industrial automation, driving advancements in robotic performance and broader application scenarios.

    Read More
    Highly Integrated Compact Harmonic Drive Robot Joint Motor Highly Integrated Compact Harmonic Drive Robot Joint Motor

    Highly Integrated Compact Harmonic Drive Robot Joint Motor

    The Robot Joint Motor achieves highly precise motion control through integrated components including harmonic drive, frameless torque motor, brake, encoder, and drive unit, with optimized size and weight. It delivers greater torque, higher precision, more compact size and lighter weight. We also provide customization services according to customers' specific requirements.
    Robot Joint Motors typically support a wide voltage range of DC24V~DC48V. As a core component in robotics industry, the technological advancement of Robot Joint Motors will continue to promote the development of specialized robots and humanoid robots towards higher flexibility and broader application scenarios. Beyond robotics, Robot Joint Motors are also applied in semiconductor equipment, photovoltaic equipment, precision medical equipment, 3C equipment, optical equipment and other fields.

    Read More

  Why choose HONPINE as the supplier of robot joint motors?

Q：

What Are the Main Advantages of HONPINE Robot Joint Modules?

A：
HONPINE robot joint modules can be summarized in three words: Reliable, Cost-Effective, and Ready to Integrate.
Reliable
HONPINE operates its own precision manufacturing facilities with a monthly production capacity of over 5,000 robot joint modules. Every robot joint actuator undergoes strict quality inspection and calibration to ensure stable performance and excellent consistency for mass production.
Cost-Effective
Our harmonic actuators deliver performance comparable to leading international brands while significantly reducing overall system costs through vertically integrated manufacturing and optimized supply chains. This allows robot manufacturers to lower BOM costs without sacrificing performance.
Ready to Integrate
HONPINE offers more than 50 standard robot joint actuator models covering a wide range of torque, size, and application requirements. Each harmonic drive module is factory calibrated and supports mainstream communication protocols such as EtherCAT and CAN, enablin
Q：

How Does HONPINE Solve Heat Dissipation Challenges in Robot Joint Actuators?

A：
Heat generation is one of the biggest challenges affecting the long-term reliability of any robot joint actuator.
HONPINE adopts an integrated thermal management design by optimizing the internal structure of the harmonic actuator, allowing the robot joint motor, harmonic reducer, and drive electronics to dissipate heat more efficiently.
Compared with conventional transmission systems, our integrated harmonic motor solution significantly reduces heat generation during continuous operation, helping to:
Maintain stable positioning accuracy
Extend grease and bearing life
Reduce thermal drift
Support long-duration industrial operation
Improve overall actuator reliability
This makes HONPINE robot joint modules suitable for demanding applications requiring continuous, high-duty-cycle operation.
Q：

Will a Robot Joint Motor Manufacturer Provide Drawings?

A：
Yes. HONPINE provides all necessary 2D and 3D drawings to support your technical selection. We have extensive technical experience across many fields including humanoid robots, medical robots, collaborative robots, service robots, dual-arm robots, exoskeletons, industrial robots, and automation equipment. Just contact us to receive further technical support.
Q：

What Is a Robot Joint Motor?

A：
A robot joint motor (or joint module) is a highly integrated robotic component designed to enable precise motion control, torque output, and position holding within a robot joint.
It typically integrates multiple key elements, including:
Motor
Drive system
Transmission mechanism
Sensors
Robot joint modules are widely used in:
Industrial manufacturing
Medical systems
Humanoid robots
Service and consumer robotics
Q：

Can We Visit the HONPINE Robot Joint Motor Factory?

A：
Absolutely. Please contact us to schedule a visit. You are welcome to tour the HONPINE factory at any mutually agreed time.
Email: sales@honpine.com
Q：

Are HONPINE Robot Joint Modules Only Used in Humanoid Robots?

A：
No.
Although humanoid robotics is one of the fastest-growing markets, HONPINE robot joint actuators are widely used across many intelligent automation industries.
Typical applications include:
Humanoid robots
Quadruped robots (robot dogs)
Collaborative robots (Cobots)
Medical robots
Rehabilitation robots
Exoskeleton systems
Semiconductor equipment
Precision automation machinery
Inspection robots
Service robots
Thanks to their compact size, integrated design, and high torque density, HONPINE harmonic drive modules help manufacturers reduce system complexity while improving robot performance and reliability.
Q：

How to Conduct Technical Collaboration with a Robot Joint Motor Manufacturer?

A：
If your project is still in the R&D phase, technical communication and sample procurement are essential steps. When you contact HONPINE, simply provide basic application information and key technical requirements, and we will offer you dedicated one-on-one support.
Q：

HONPINE Offers More Than 100 Robot Joint Module Models. How Do I Choose the Right One?

A：
Selecting the right robot joint actuator depends on your robot's mechanical design and application requirements.
Key selection criteria include:
Required output torque
Robot payload
Joint speed
Positioning accuracy
Installation space
Robot weight
Communication protocol
Environmental conditions
With more than 50 standard robot joint modules, HONPINE provides solutions covering lightweight collaborative robots, humanoid robots, quadruped robots, industrial robots, and customized automation equipment. Our engineering team also assists customers in selecting the most suitable harmonic drive module based on their specific application requirements.
Q：

What Is the Lead Time for a Robot Joint Actuator Company?

A：
For most models, HONPINE can control the lead time within one month. A small portion of products may be under production scheduling due to surging order demand. We are continuously expanding our production scale to increase capacity.
Q：

Why Does a Small Robot Joint Module Account for Such a Large Portion of a Robot's Cost?

A：
Although compact in size, a robot joint module integrates multiple high-value precision components into a single unit, including the robot joint motor, harmonic drive reducer, dual encoders, servo drive, brake, and sensors.
Each component requires micron-level machining, precision assembly, and strict calibration. The harmonic actuator itself is one of the most technically demanding transmission components in modern robotics, directly influencing positioning accuracy, torque output, and motion smoothness.
For humanoid robots and collaborative robots, robot joint actuators often represent one of the largest cost contributors because they determine the robot's overall motion performance and reliability.
Q：

What Is the Difference Between Low-Cost Robot Joint Modules and High-Performance Joint Actuators?

A：
The biggest difference lies in overall performance rather than appearance.
A high-quality robot joint actuator offers:
Higher torque density
Lower backlash
Better positioning accuracy
Faster dynamic response
Longer service life
Greater structural rigidity
More stable continuous operation
In contrast, lower-cost joint modules often suffer from larger backlash, lower rigidity, inconsistent motion accuracy, and reduced durability under continuous industrial operation.
For applications such as humanoid robots, collaborative robots, medical robots, and semiconductor automation, selecting a premium harmonic actuator helps improve motion quality, reduce maintenance costs, and increase long-term system reliability.
Q：

Why Are HONPINE Robot Joint Modules More Cost-Effective Than Imported Brands?

A：
HONPINE achieves competitive pricing through advanced manufacturing rather than compromising on quality.
Our advantages include:
Vertically integrated production
Precision in-house manufacturing
Optimized supply chain management
Large-scale production capacity
Continuous process improvement
As a result, HONPINE robot joint actuators deliver performance comparable to international brands while significantly reducing overall procurement costs.
For robot manufacturers, this means access to high-performance harmonic drive modules and robot joint motors that help lower the total cost of ownership without sacrificing precision or reliability.
Q：

Why Can a Robot Fall Cause Serious Damage to the Joint Actuators?

A：
A robot joint actuator is a highly precise mechanical transmission system designed for controlled motion rather than extreme impact loads.
During an unexpected fall or collision, impact torque can exceed the actuator's rated capacity, potentially damaging internal components such as:
Harmonic drive reducers
Bearings
Motor shafts
Encoder systems
Structural housing
While HONPINE harmonic actuators are engineered with high rigidity and robust structural design, excessive external impact may still reduce service life or require maintenance.
To maximize the lifespan of any robot joint module, manufacturers should implement appropriate overload protection, collision detection, emergency stop strategies, and intelligent motion control within the robot system. These measures help protect both the robot joint motor and the harmonic transmission system during real-world operation.
Q：

How to Choose a Robot Joint Motor Manufacturer?

A：
When selecting a robot joint motor manufacturer, the first priority is technical compatibility — whether the supplier can meet your R&D and design requirements. Only after that should you evaluate factors such as price, lead time, and production capacity.
Q：

How to Conduct Technical Collaboration with a Robot Joint Motor Manufacturer?

A：
If your project is still in the R&D phase, technical communication and sample procurement are essential steps. When you contact HONPINE, simply provide basic application information and key technical requirements, and we will offer you dedicated one-on-one support.
Q：

What Is the Lead Time for a Robot Joint Actuator Company?

A：
For most models, HONPINE can control the lead time within one month. A small portion of products may be under production scheduling due to surging order demand. We are continuously expanding our production scale to increase capacity.
Q：

What Is the Lead Time for a Robot Joint Actuator Company?

A：
For most models, HONPINE can control the lead time within one month. A small portion of products may be under production scheduling due to surging order demand. We are continuously expanding our production scale to increase capacity.
Q：

Will a Robot Joint Motor Manufacturer Provide Drawings?

A：
Yes. HONPINE provides all necessary 2D and 3D drawings to support your technical selection. We have extensive technical experience across many fields including humanoid robots, medical robots, collaborative robots, service robots, dual-arm robots, exoskeletons, industrial robots, and automation equipment. Just contact us to receive further technical support.
Q：

Can We Visit the HONPINE Robot Joint Motor Factory?

A：
Absolutely. Please contact us to schedule a visit. You are welcome to tour the HONPINE factory at any mutually agreed time.
Email: sales@honpine.com

HONPINE Robot Joint Motor Wiki

Throughout years of manufacturing, HONPINE has increasingly recognized that a joint module is not merely an assembly of components, but an integrated design that achieves a more compact structure and delivers performance—such as torque accuracy—that better aligns with user requirements.

Looking for a Custom Design Robot Joint Motor ？

1,HONPINE's integrated joint modules are divided into several product lines and R&D directions tailored to different fields such as robotics, CNC, and industrial automation. Contact us for recommendations on the most suitable joint module based on your specific application.



3,The original design intention of HONPINE integrated joint modules is to leverage China's well-established supply chain to deliver products with enhanced modularity and cost-effectiveness.



3,The original design intention of HONPINE integrated joint modules is to leverage China's well-established supply chain to deliver products with enhanced modularity and cost-effectiveness.
