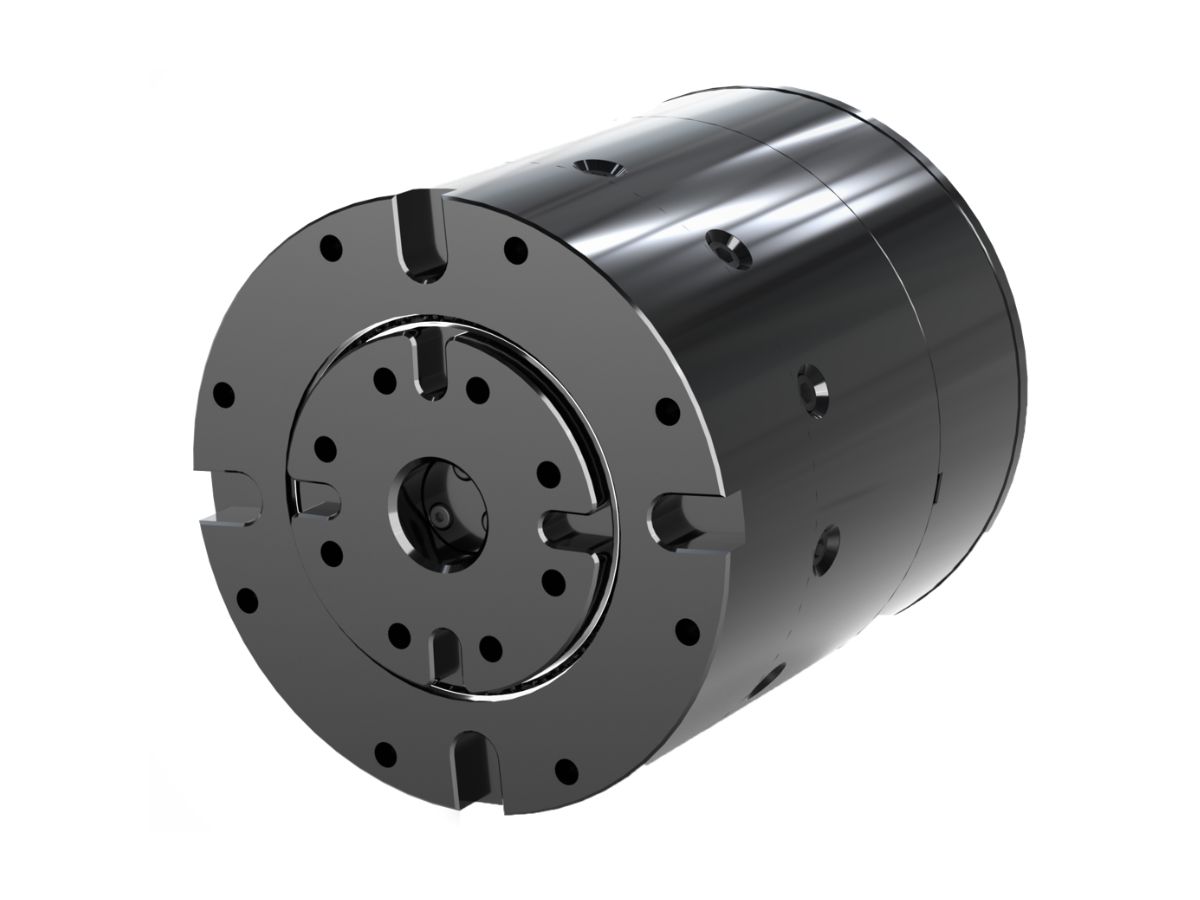

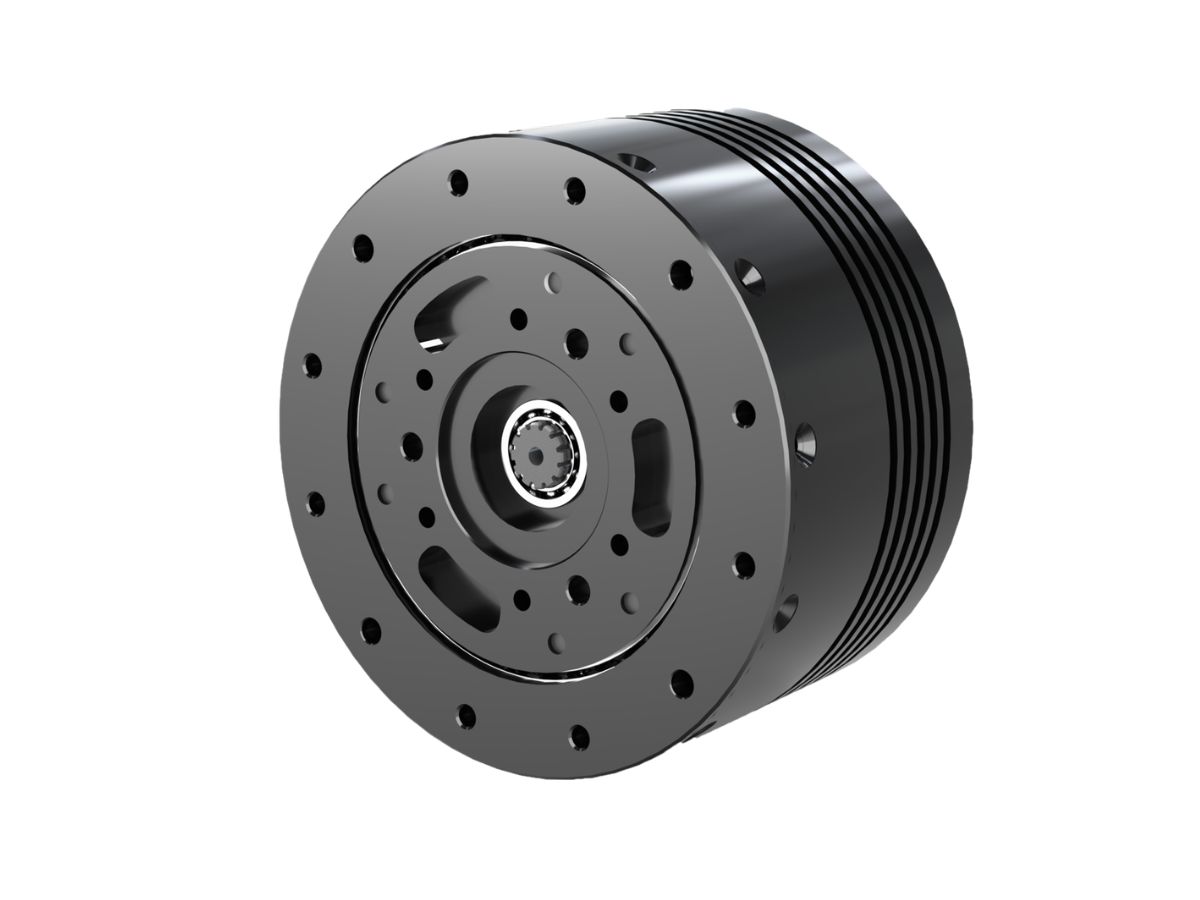

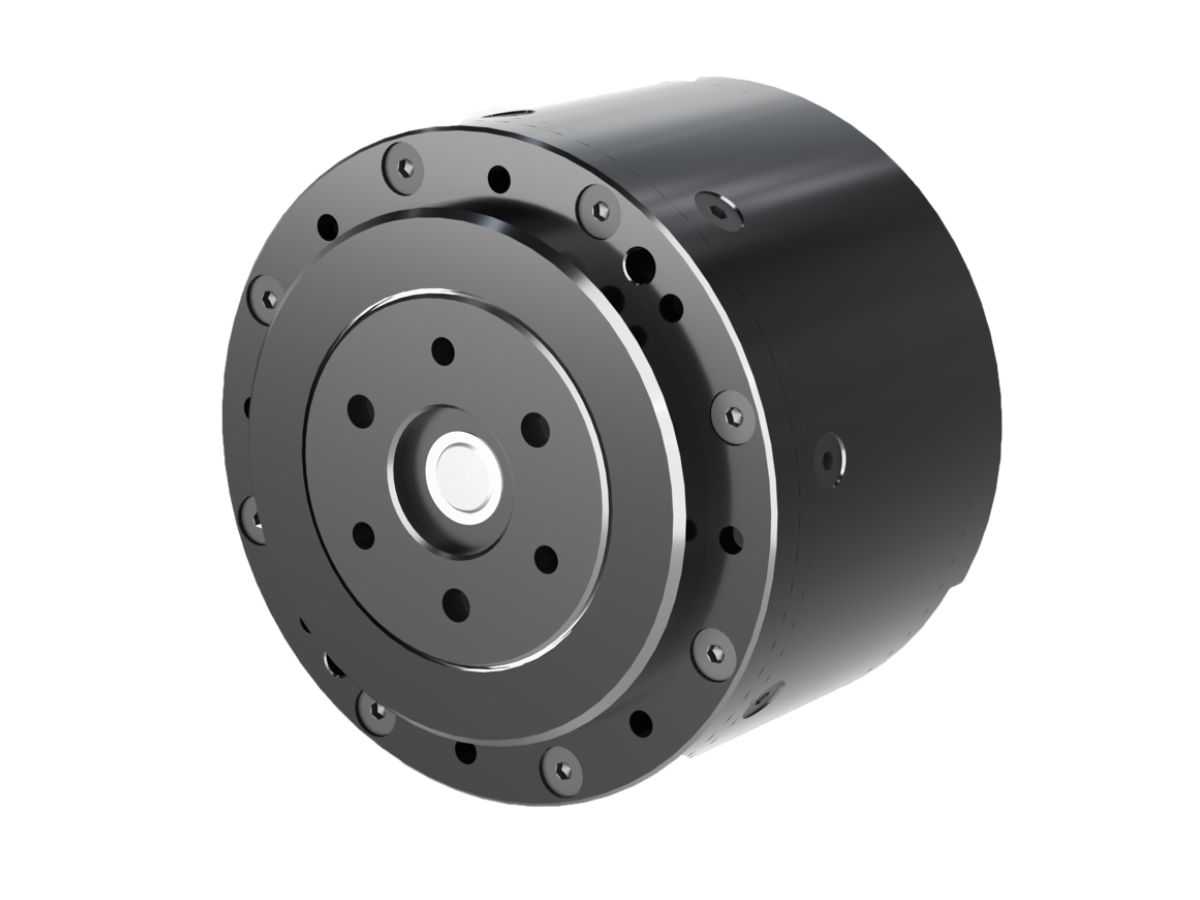

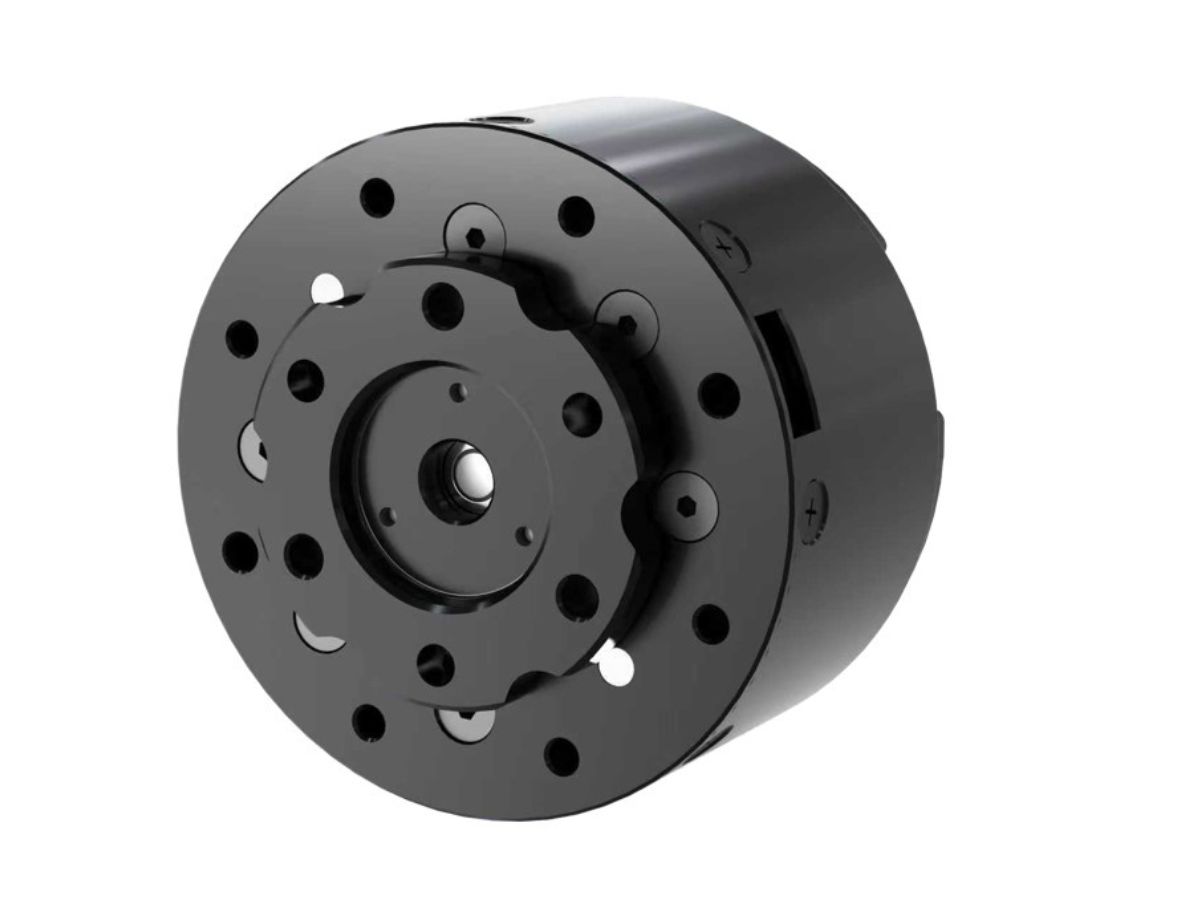

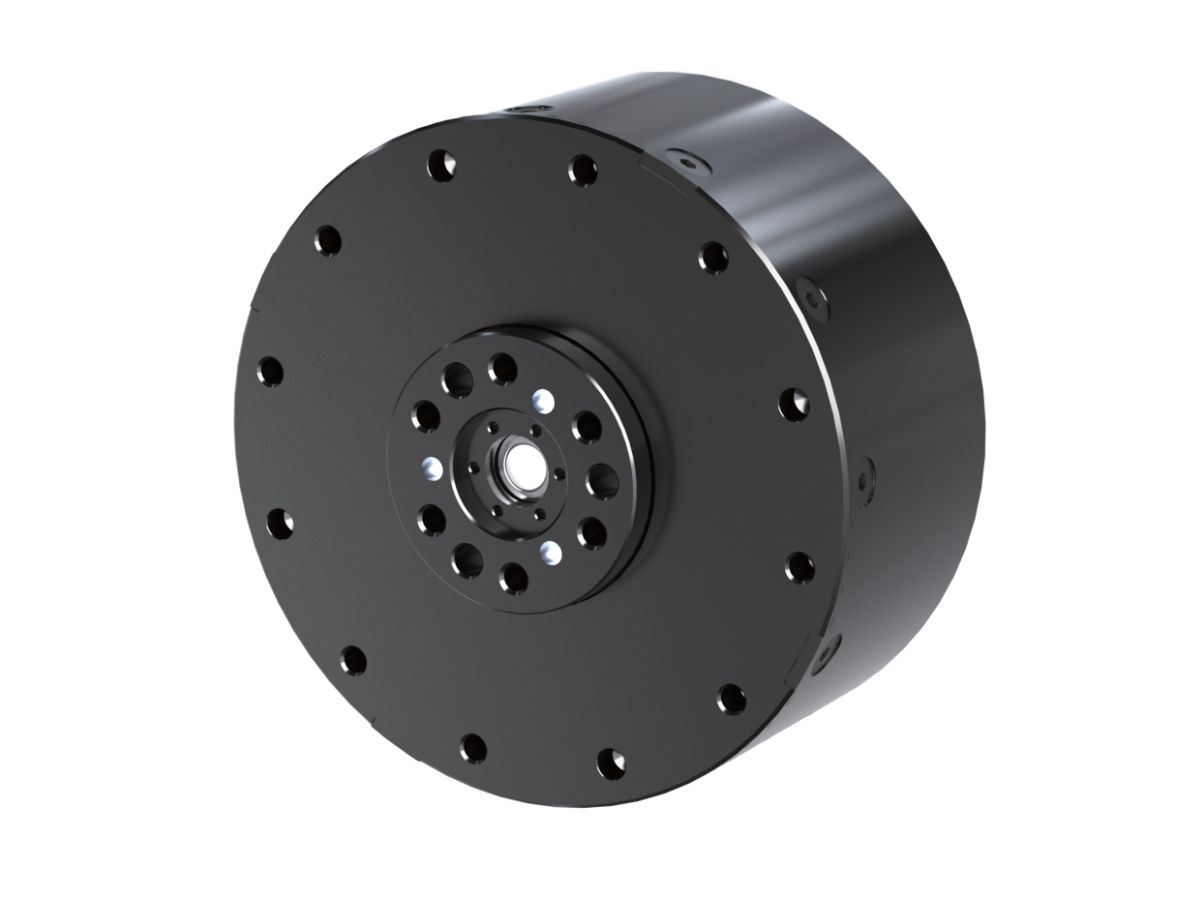

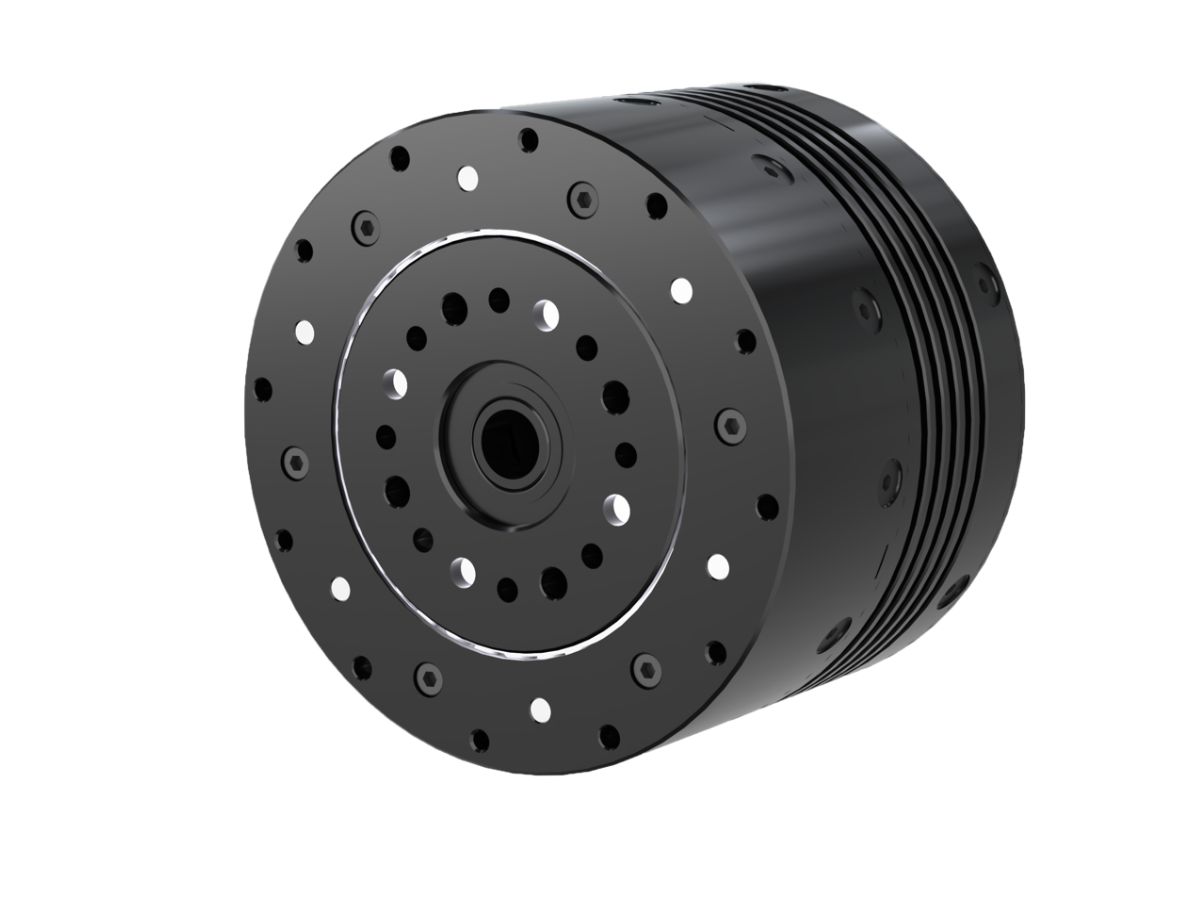

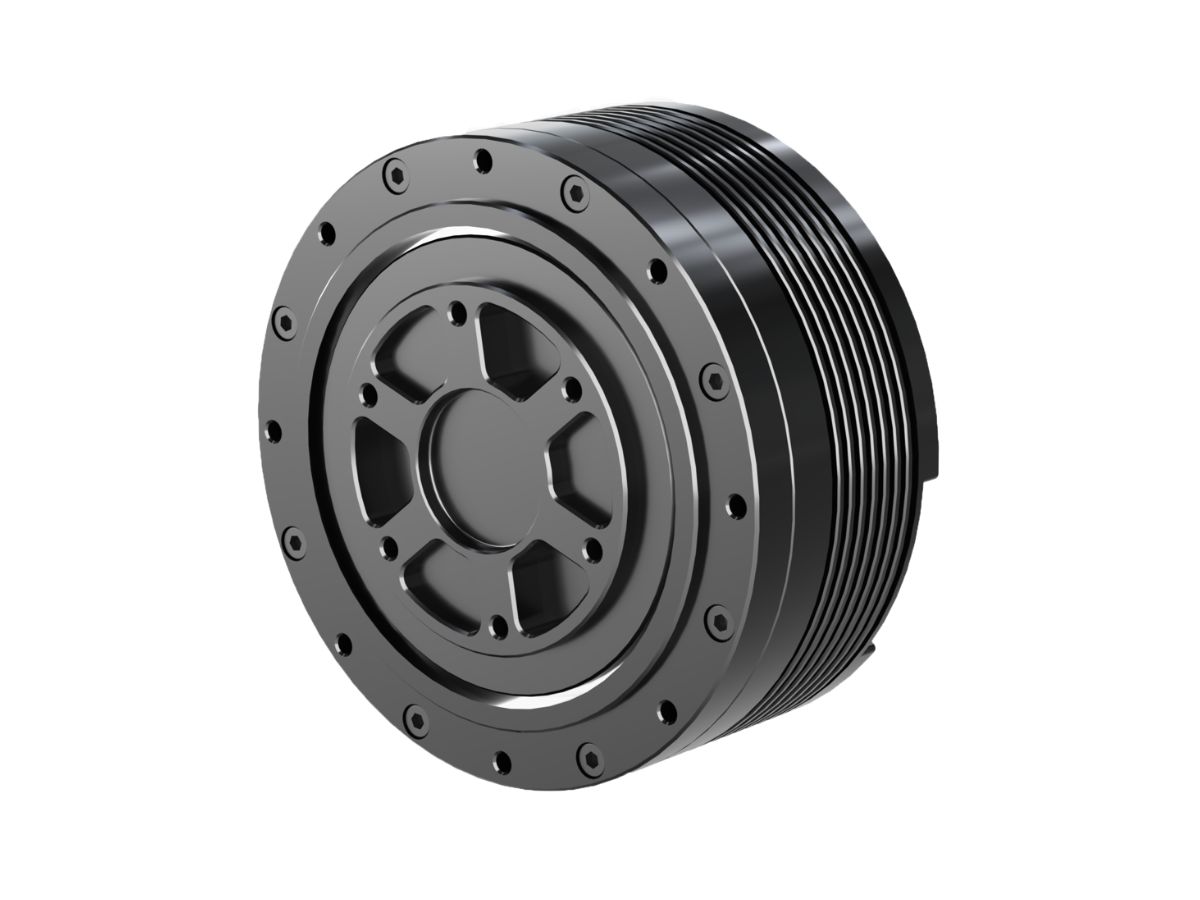

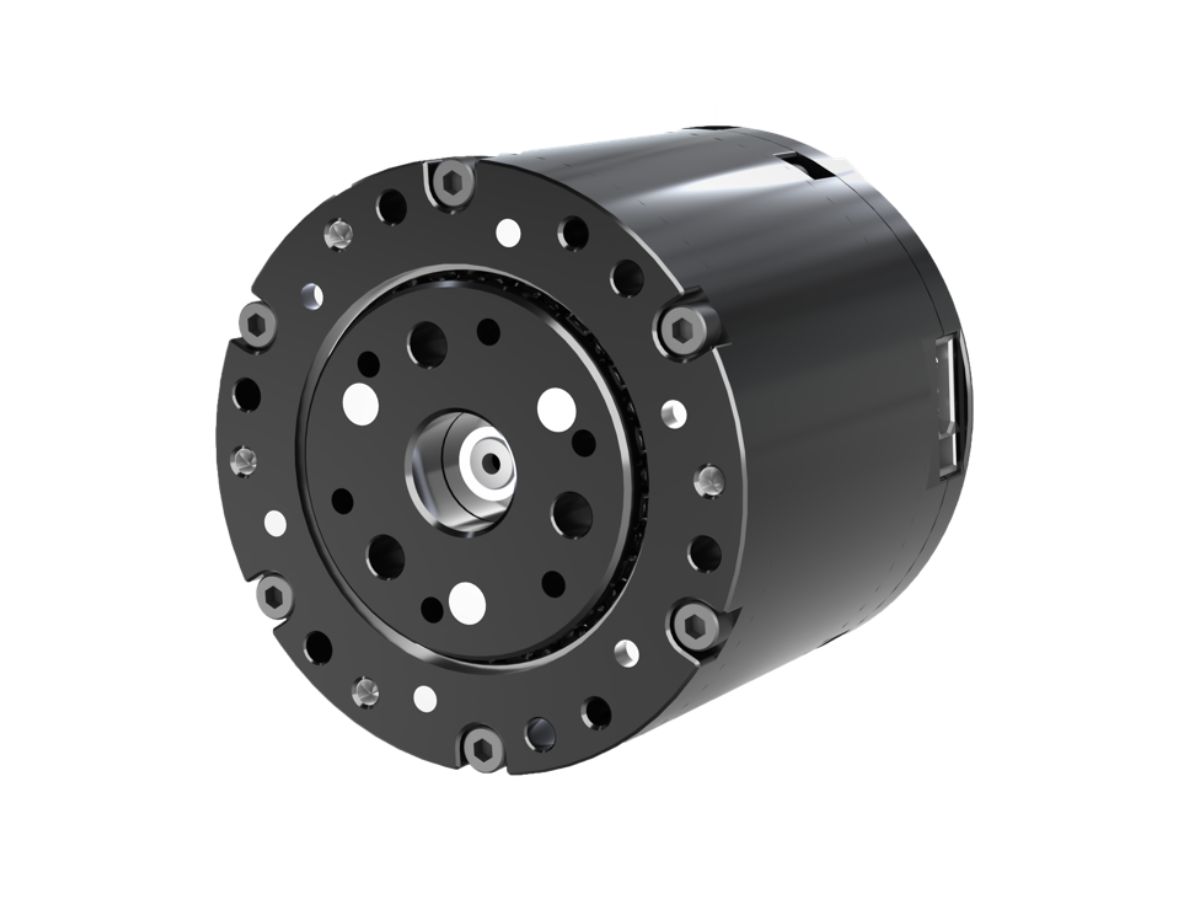

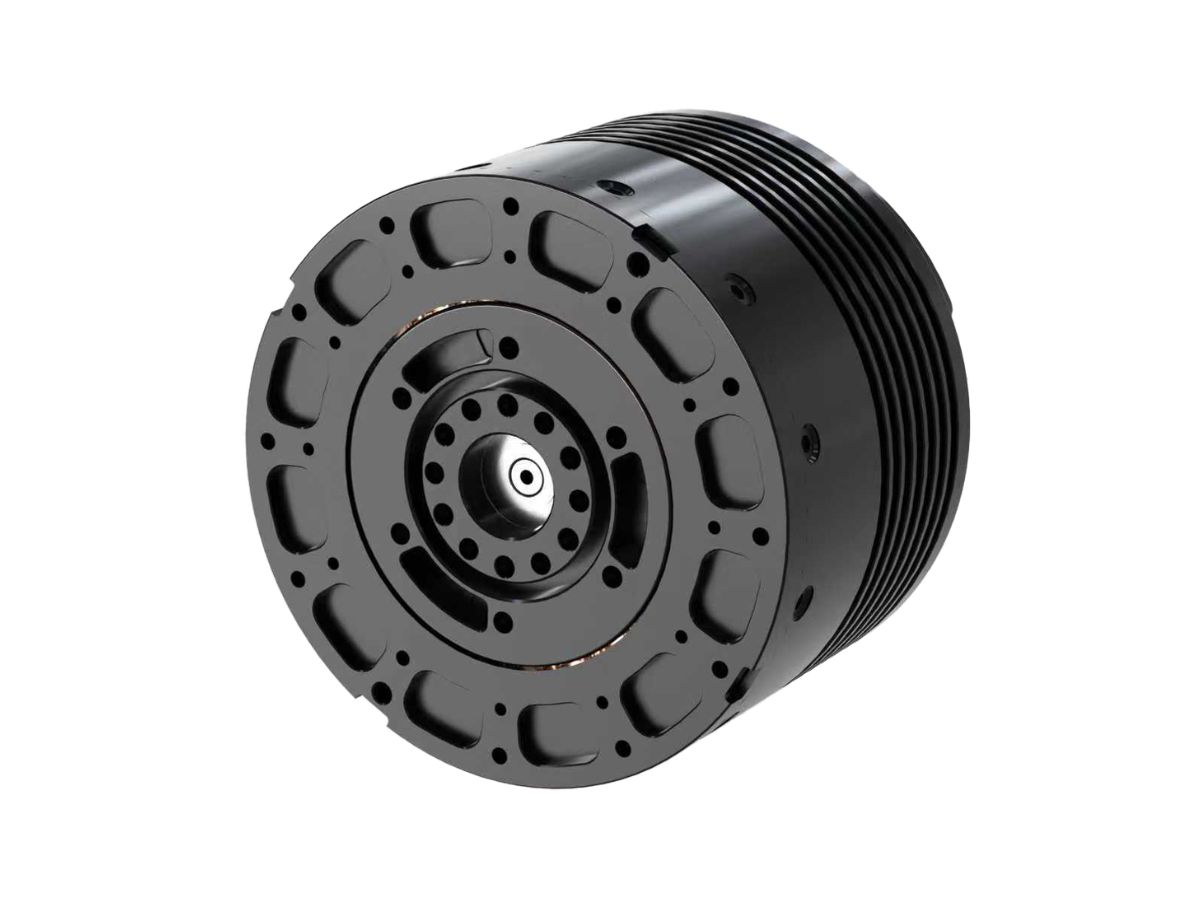

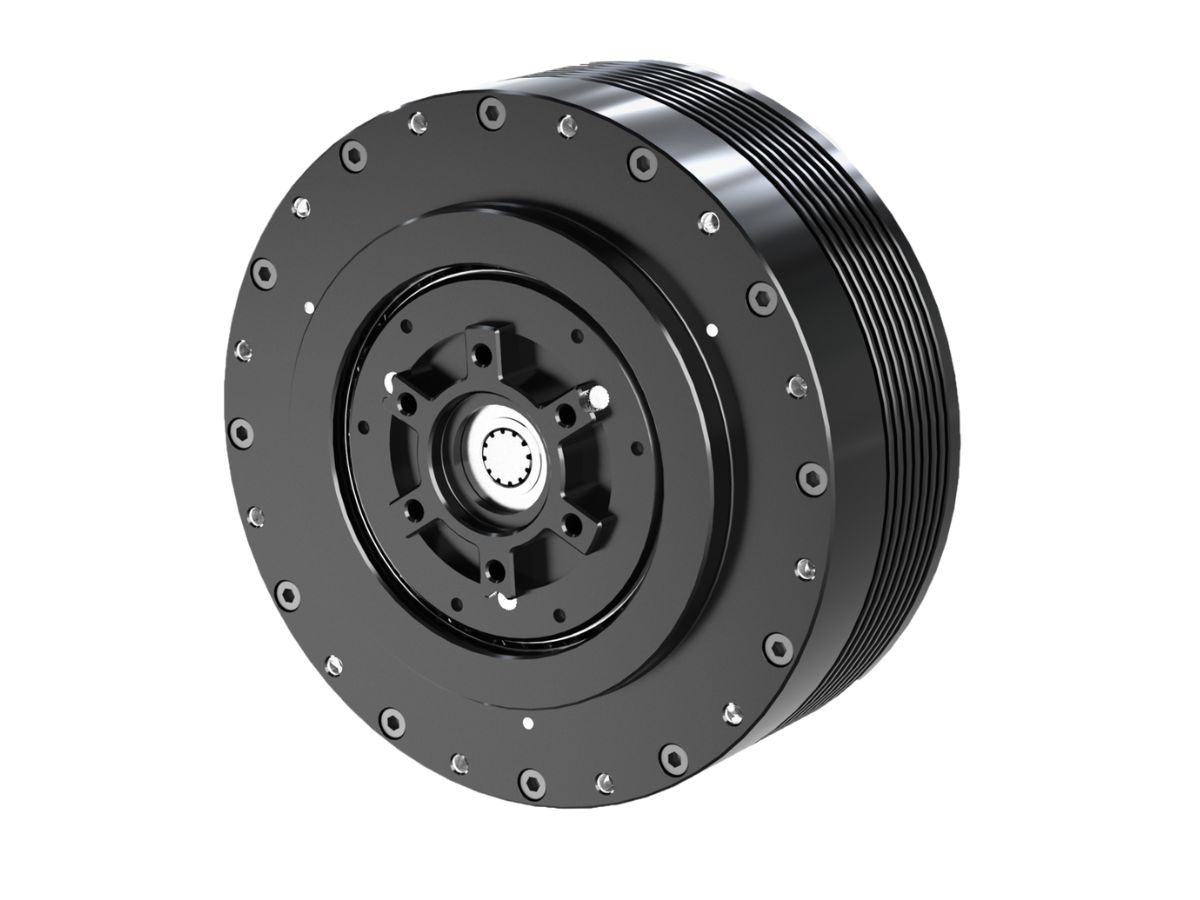

High-Precision EtherCAT CAN Large Hollow Dual-Encoder Planetary Robot Joint Actuator
● Introduction
The planetary joint module integrates a high-efficiency planetary reducer, precision driver, and 24-bit high-precision dual encoders, while adopting an extra-large hollow shaft design and supporting CAN and EtherCAT communication protocols.
It provides an ideal drive solution for humanoid robots, industrial robots, collaborative robots, and industrial automation equipment.
Features
● Extra-Large Hollow Shaft Design
The HONPINE HPJM-RE planetary joint module series adopts a large hollow shaft design across the entire product line, with the hollow ratio exceeding 11%, enabling easier internal cable routing and improved system integration.
● Self-Developed High-Precision 24-Bit Dual Encoder
HONPINE’s self-developed 24-bit dual encoder enables higher motion accuracy, more stable motion performance, more precise torque control, and improved closed-loop feedback control.
● Backlash < 10 Arc-minutes
The ultra-low backlash design ensures smoother operation and higher positioning accuracy during equipment operation, significantly improving the repeatability and precision of automated systems.
● Stable Operation up to ≤67°C
Designed with durability and thermal stability in mind, the module can operate continuously within a temperature range of 0–67°C while maintaining stable performance, making it suitable for demanding industrial environments.
Specification
Sheet 1
