Walking Robot AGV Servo Wheel Motor

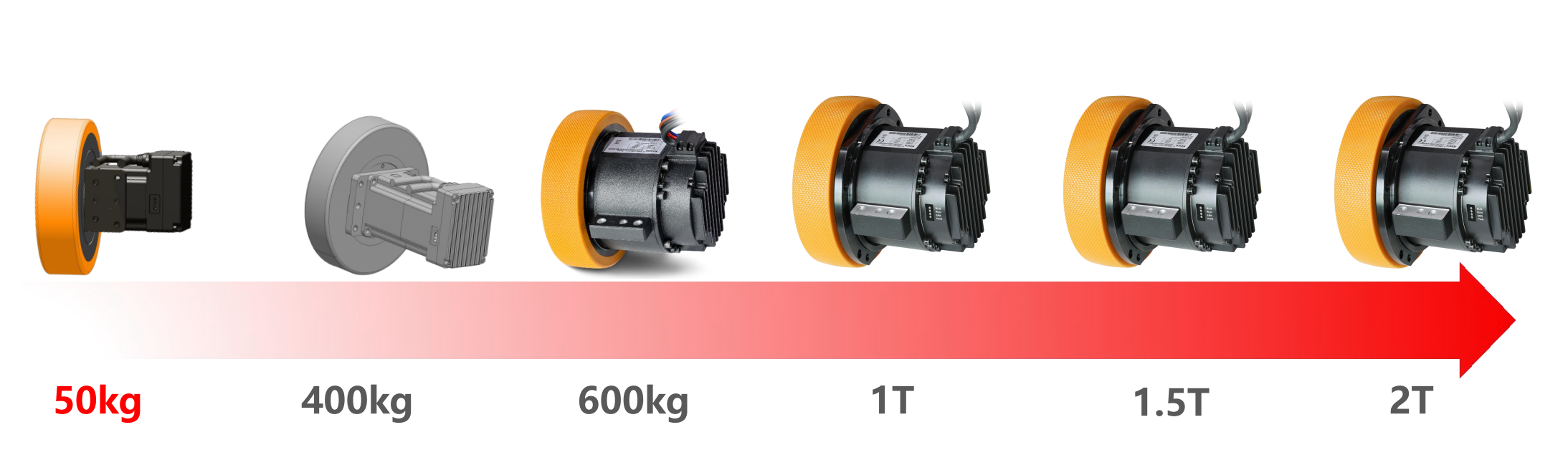

This page from HONPINE will introduce the Servo Wheel Motor System solution for 50kg, 400kg, 600kg, 1T, 1.5T, and 2T AGV Walking Robots.• Integrated Servo Driving Wheels that combine four core components – drive, motor, reducer, and wheel – into a single unit, reducing installation space by 35% and lowering the customer's Total Cost of Ownership (TCO).

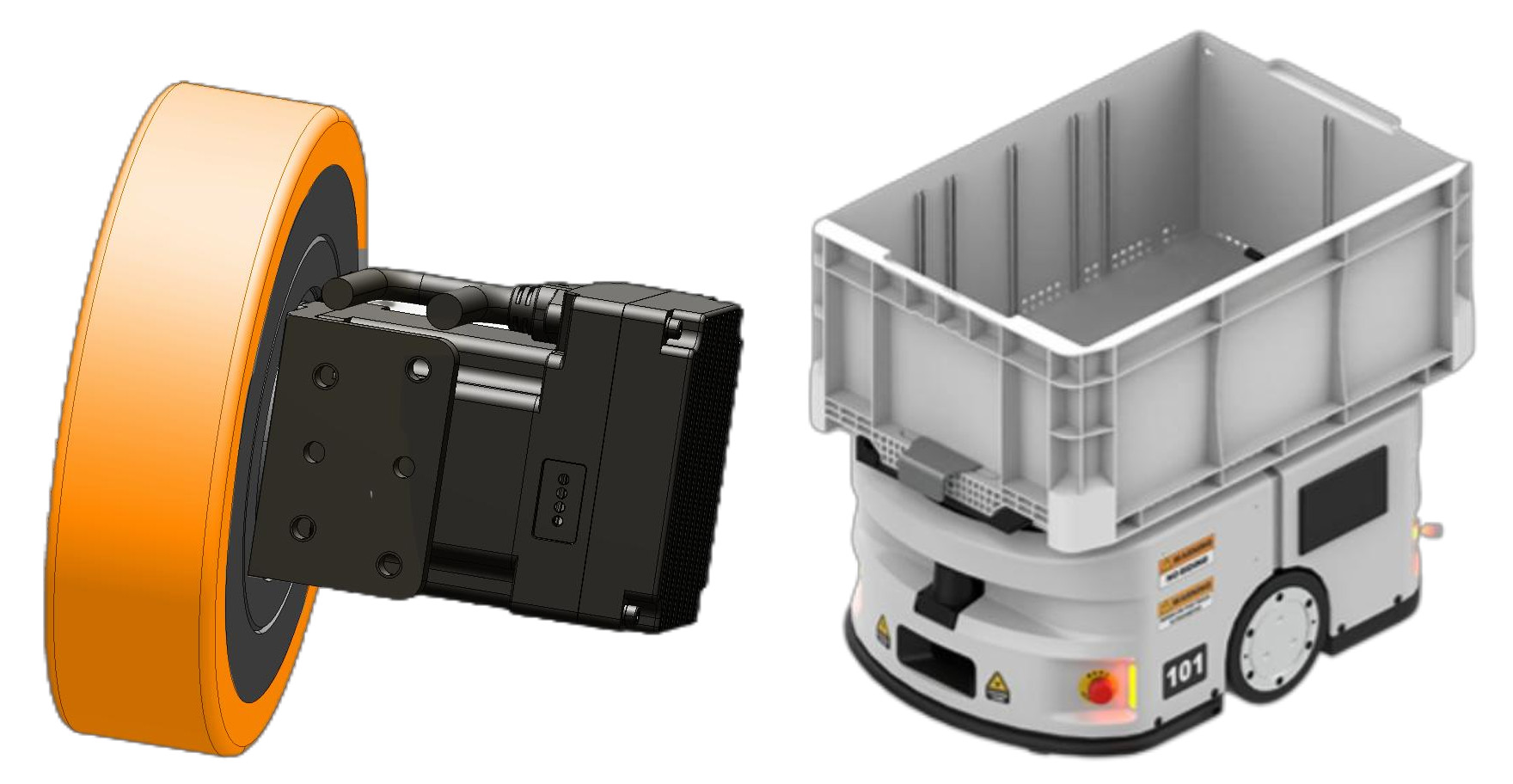

50KG AGV Mobile Robot AGV Wheel Motor
Locomotion Wheel:
HONPINE Integrated Solution: Model iWMC05606-00450-A150-MADT-L
HONPINE Modular Solution: OD Drive + Geek+ 400W Motor
Lifting Axis:
HONPINE Integrated Solution: Model iGMK60D-040-DMBK-AA-000-G010
HONPINE Modular Solution: OD Drive + Geek+ 400W Motor
Weight Range: Under 60kg
Payload Capacity: Up to 50kg
Publicly Adopted by Leading Brands: Hikrobot, Hai Robotics, Huarui, Geek+, Muxin, JD, Lanjian
400KG AGV Robot AGV DC Reduction Wheel Motor
Drive Wheel:
HONPINE Integrated Solution: iWMC05710-01230-A150-MADT-R
HONPINE Modular Solution: FD1x5 + SMK400W
Lifting Module:
HONPINE Integrated Solution: iGMK60D-040-DMBK-AA-000-G050
HONPINE Modular Solution: FD1x5 + SMK400W
Rotation Module:
HONPINE Integrated Solution: iGMK60D-040-DMAK-AA-000-G010
HONPINE Modular Solution: FD1x5 + SMK400W
Weight Range: Under 100kg
Payload Capacity: Up to 400kg
Publicly Adopted by Leading Brands: Hikrobot, Lanxin, Yifei, Muxin, Youai, Jingzhi, KUKA, JAZHI, MIR

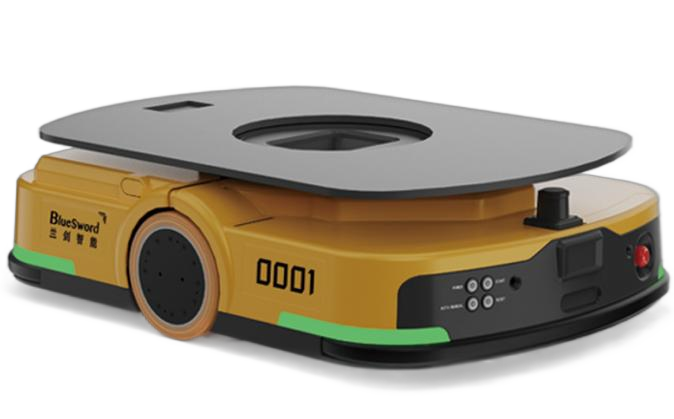

600KG AGV Robot Integrated Servo Motor
Drive Wheel:
HONPINE Integrated Solution: iWMC10409-02222-A165-MADT
HONPINE Modular Solution: FD1X5 + 750W
Lifting Axis:
HONPINE Integrated Solution: iGMK80-040-DMBK-AA-000-G245
HONPINE Modular Solution: FD1×5 + 750W
Rotation Axis:
HONPINE Integrated Solution: iGMK60D-040-DMAK-AA-000-G035
HONPINE Modular Solution: FD1×5 + 400W
HMI: MR043H
Weight Range: Under 200kg
Payload Capacity: Up to 600kg
Publicly Adopted by Leading Brands: Hikrobot, Standard Robots, Lanjin, Yifei, Lanxin

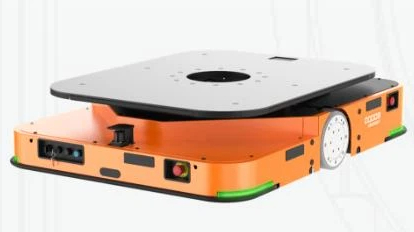

1T AGV Walking Wheel Solution
Drive Wheel:
HONPINE Integrated Solution: iWMC10411-04023-A180-MADT
HONPINE Modular Solution: FD1X5 + 750W
Lifting Axis:
HONPINE Integrated Solution: iGMK80-040-DMBK-AA-000-G245
HONPINE Modular Solution: FD1X5 + 750W
Rotation Axis:
HONPINE Integrated Solution: iGMK60D-040-DMAK-AA-000-G035
HONPINE Modular Solution: FD1X5 + 400W
Weight Range: Under 300kg
Payload Capacity: Up to 1000kg
Publicly Adopted by Leading Brands: Hikrobot, Standard Robots, Lanjin, Yifei, Lanxin, Quicktron, Zhongli, MIR

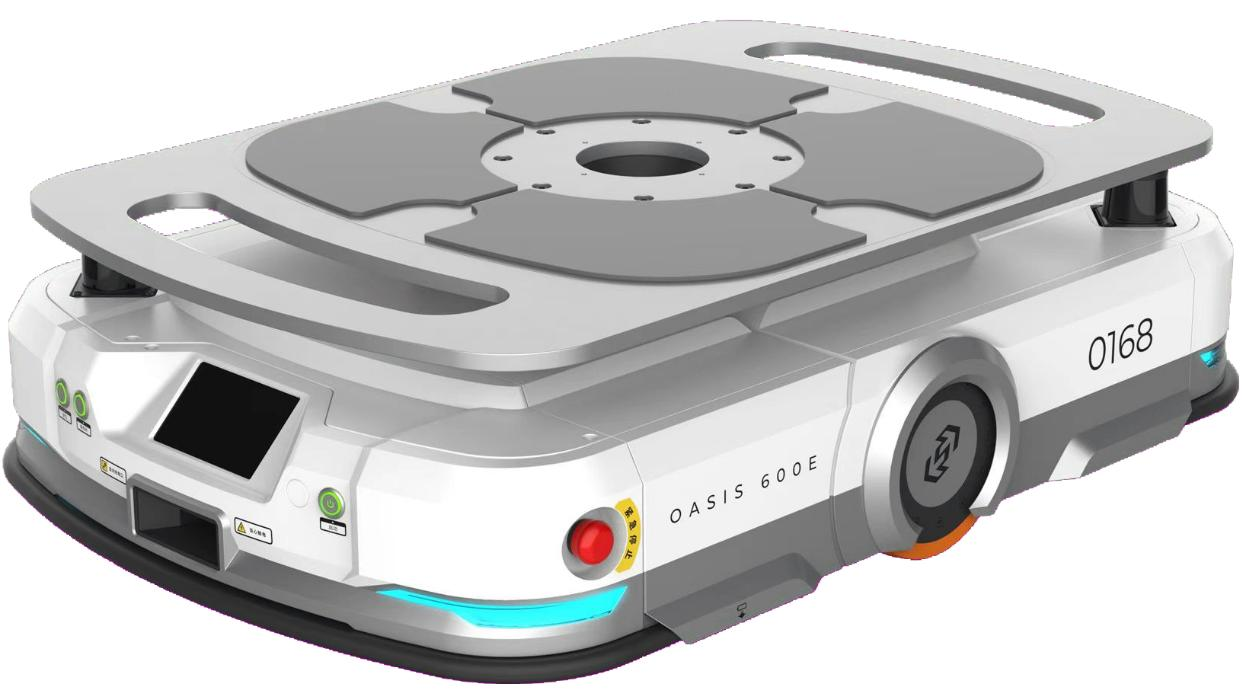

1.5T AGV Pallet Wheel Servo Motor
Drive Wheel:
HONPINE Integrated Solution: iWMC10415-06017-A180-MADT
HONPINE Modular Solution: FD1×5 + 750W
Lifting Axis:
HONPINE Integrated Solution: iGMK80-040-DMBK-AA-000-G245
HONPINE Modular Solution: FD1X5 + 750W
Rotation Axis:
HONPINE Integrated Solution: iGMK60D-040-DMAK-AA-000-G035
HONPINE Modular Solution: FD1X5 + 400W
Weight Range: Under 400kg
Payload Capacity: Up to 1500kg
Publicly Adopted by Leading Brands: Hikrobot, Lanjin, Yifei, Lanxin
2T Automatic Robot AGV Servo Wheel and Motor
-
Drive Wheel:
HONPINE Integrated Solution: iWMC10420-08012-A180-MBDT-01
HONPINE Modular Solution: FD1x5 + 1.5kw
Lifting Axis:
HONPINE Integrated Solution: Typically customer-provided hydraulic lifting systems
HONPINE Modular Solution: Typically customer-provided hydraulic lifting systems
Weight Range: Under 500kg
Payload Capacity: Up to 2000kg
Publicly Adopted by Leading Brands: Hikrobot, Lanjin, MIR
