Mini Harmonic Reducer for Small Robot Arms and Desktop 6-Axis Robots

The development of smaller and lighter robotic systems is creating new requirements for robot joint components. Small robot arms, desktop robot arms, and compact 6-axis robotic arms are increasingly used in electronics assembly, laboratory automation, education, research, and other space-constrained applications. These robots need to provide flexible multi-axis movement without becoming too large or too heavy for their intended workspace.

A small 6-axis robot arm typically uses six rotary joints to control both the position and orientation of its end effector. This architecture gives the robot excellent flexibility, but it also makes joint design more challenging. Each joint must provide sufficient output torque and positioning accuracy while keeping its size and weight under control.

For this type of robotic arm, the reducer is more than a simple transmission component. Its size, backlash, reduction ratio, torque density, and mechanical configuration can directly affect the design of the entire robot. A Mini Harmonic Reducer provides a compact transmission solution for robot joints that require high reduction ratios, low backlash, high torque density, and, in hollow configurations, internal cable routing.

For manufacturers developing small 6-axis robot arms, desktop robotic arms, lightweight collaborative robot arms, and compact automation equipment, these characteristics make Mini Harmonic Reducers particularly relevant to modern robot joint design.

Why Small Robot Arms Need Mini Harmonic Reducers？

A small robot arm cannot simply be designed by scaling down a conventional industrial robot. The smaller the robot becomes, the more important the relationship between joint size, joint weight, motor torque, and available installation space becomes.

A typical 6-axis robotic arm contains multiple rotary joints arranged in series. The weight of a joint is carried by the joints located closer to the base. If the shoulder or elbow joint becomes unnecessarily heavy, the upstream joints require greater torque to move the robot. This can lead to larger motors, larger structural components, and a heavier overall robot.

For a desktop robot arm, this problem becomes even more obvious because the entire system needs to remain compact enough to operate on a workbench or inside a small automation cell.

A compact reducer with high torque density can therefore contribute to more than a smaller gearbox. It can help engineers reduce joint dimensions, control robot weight, and optimize the mechanical structure of the complete small 6-axis robot arm.

This is one of the key reasons Mini Harmonic Reducers are considered for compact robotic joints.

What Is a Mini Harmonic Reducer for a Small Robot Arm?

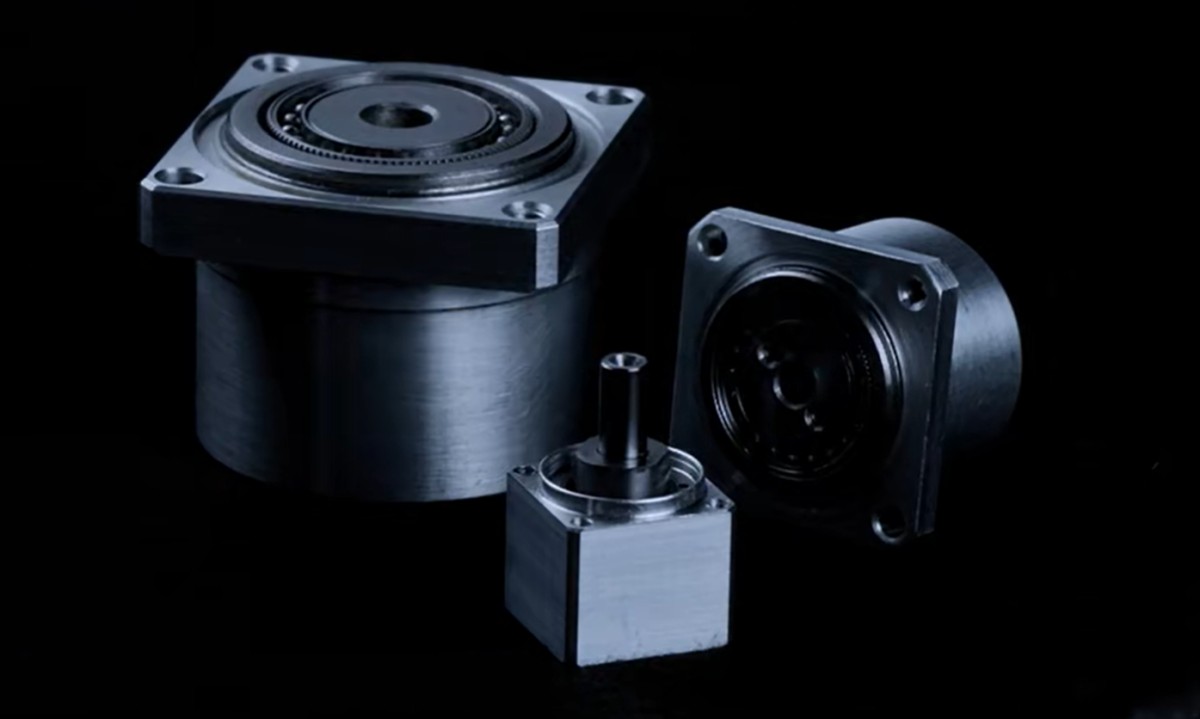

A Mini Harmonic Reducer is a compact precision gearbox based on harmonic transmission technology. Its primary function is to convert the high-speed rotation of a motor into lower-speed, higher-torque output motion for a robot joint.

The high reduction ratio available from harmonic transmission allows a relatively compact reducer to achieve substantial speed reduction without requiring multiple gear stages. Typical reduction ratios for robotic applications can include 30:1, 50:1, 80:1, and 100:1, depending on the specific model.

For a small robotic arm, the basic transmission system can consist of a motor, Mini Harmonic Reducer, and output joint. When combined with a frameless torque motor, encoder, and brake, the reducer can also become part of a more integrated robotic joint actuator.

This architecture is particularly relevant to small robot arms, desktop robot arms, desktop 6-axis robots, small collaborative robot arms, and compact robotic joints, where available installation space is limited and every component must be carefully integrated.

Key Advantages of Mini Harmonic Reducers for Small Robot Arms

Compact Size and High Reduction Ratio

One of the most important advantages of a Mini Harmonic Reducer is the ability to achieve a relatively high reduction ratio within a compact transmission structure.

Reduction ratios such as 30:1, 50:1, 80:1, and 100:1 can allow the motor and reducer to achieve the required joint speed and torque without relying on multiple reduction stages.

For a small 6-axis robot arm, reducing the number of transmission stages can simplify the joint structure and help control the external diameter of the joint. This is particularly important for desktop robotic arms, where oversized joints can increase the overall footprint and limit the available workspace.

A compact high-ratio reducer therefore gives robot designers more freedom to develop smaller links and more integrated joints.

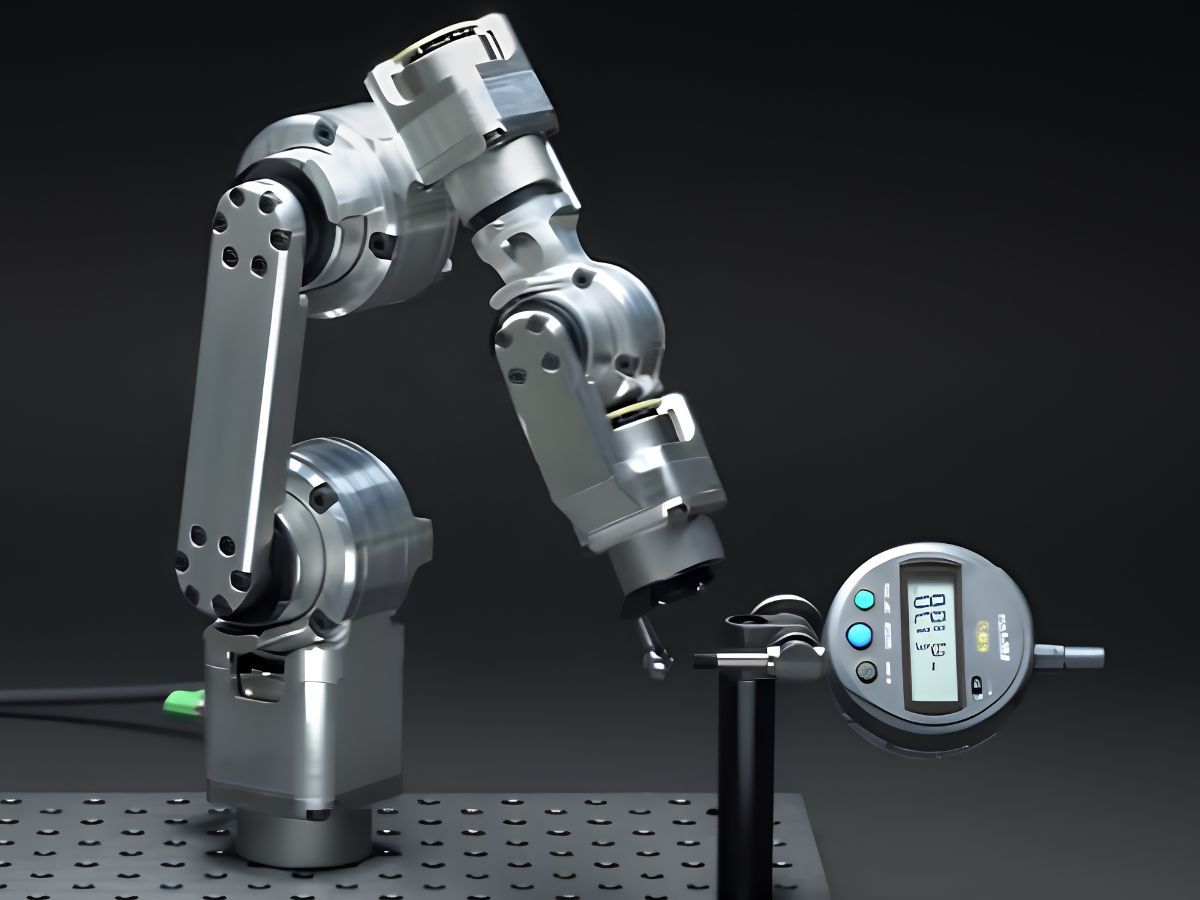

Low Backlash for Precise Robot Joint Motion

Low backlash is particularly important in a six-axis robotic arm because the final position of the end effector depends on the coordinated movement of multiple joints.

Backlash can create lost motion when the direction of rotation changes. If this error occurs repeatedly across several joints, it can affect the positioning performance of the end effector.

Mini Harmonic Reducers are designed for precision transmission and can provide very low backlash. Depending on the precision grade and model, backlash can reach approximately ≤1 arcmin, with higher-precision configurations available at the level of tens of arcseconds.

For small 6-axis robot arms, this characteristic can support repeatable positioning and controlled trajectory movement in applications such as PCB assembly, screwdriving, dispensing, soldering, component handling, and inspection.

High Torque Density for Lightweight Robot Arms

For a lightweight robot, output torque must be considered together with the weight and dimensions of the joint.

A reducer that can provide the required torque within a compact package allows engineers to control joint mass without sacrificing the mechanical capability of the robot.

This is especially important for serial 6-axis robot arms. A lighter elbow or wrist joint reduces the load carried by the shoulder and other upstream joints. As a result, the entire robot can potentially be optimized around smaller motors, lighter structural components, and more compact joints.

For desktop robot arms and lightweight collaborative robot arms, this relationship between joint weight and overall robot performance makes torque density an important design consideration.

Hollow Shaft for Internal Cable Routing

Cable management is another important consideration when developing a small robotic arm.

A six-axis robot may need to accommodate motor cables, encoder wiring, sensor cables, pneumatic tubing, and end-effector connections. External cable routing can increase the risk of cable bending, twisting, pulling, and interference during continuous joint movement.

A hollow-shaft Mini Harmonic Reducer provides a central passage that can be used for internal cable and tubing routing, depending on the specific configuration.

For a desktop 6-axis robot arm, this can simplify the mechanical layout and create a cleaner joint structure. Internal routing also reduces the amount of wiring exposed around the outside of the robot arm, giving manufacturers greater freedom when designing compact robot links and joint housings.

Coaxial Integration with Frameless Torque Motors

The coaxial input and output configuration of harmonic transmission is well suited to robotic joint architectures.

When a Mini Harmonic Reducer is combined with a frameless torque motor, the motor components can be integrated directly into the robot joint housing rather than relying on a conventional motor enclosure.

The resulting joint can incorporate the motor, reducer, encoder, brake, bearings, and housing into a single compact assembly.

This approach is particularly useful for manufacturers developing their own small robot arm because the joint can be designed around the available mechanical space rather than being constrained by the external dimensions of a standard servo motor.

Mini Harmonic Reducers for Small 6-Axis Robot Arms

A small 6-axis robot arm is one of the most suitable applications for a compact precision reducer because each axis requires controlled rotary motion while the entire mechanical structure must remain lightweight.

The six-axis configuration allows the robot to control both the position and orientation of its end effector. This makes it suitable for tasks where the tool needs to approach a workpiece from different directions.

However, the performance of the complete robot depends on the combined behavior of all six joints.

Low backlash can help maintain positioning consistency. High torque density can help control joint weight. A high reduction ratio can provide the torque multiplication required for the joint. A hollow structure can simplify cable routing.

For this reason, Mini Harmonic Reducers can play an important role in the mechanical architecture of compact six-axis robots.

Mini Harmonic Reducers for Desktop Robot Arms

The requirements of a desktop robot arm are slightly different from those of a large industrial robot.

A desktop robotic arm may need to fit on a workbench, operate in a limited workspace, and remain light enough to be easily installed or repositioned.

This makes compact joint design particularly important.

A Mini Harmonic Reducer can help manufacturers create smaller rotary joints without sacrificing the reduction ratio and precision required for controlled robotic motion.

This makes the technology relevant to desktop automation systems, educational robot arms, laboratory robots, research platforms, and compact manufacturing equipment.

For these applications, the combination of compact dimensions, low backlash, high torque density, and internal cable routing can be more important than extremely high continuous output speed.

Mini Harmonic Reducers in 3C Electronics Automation

The 3C electronics industry is an important application area for small robot arms and desktop 6-axis robots.

Electronics manufacturing often involves small components, compact workspaces, frequent product changes, and precise assembly operations. A six-axis robot can provide the flexibility required to position tools and components from different angles.

PCB Screwdriving

A small six-axis robot can carry a screwdriver and move it between different fastening positions on a PCB or electronic assembly. Low backlash and repeatable joint movement help maintain consistent tool positioning during repeated operations.

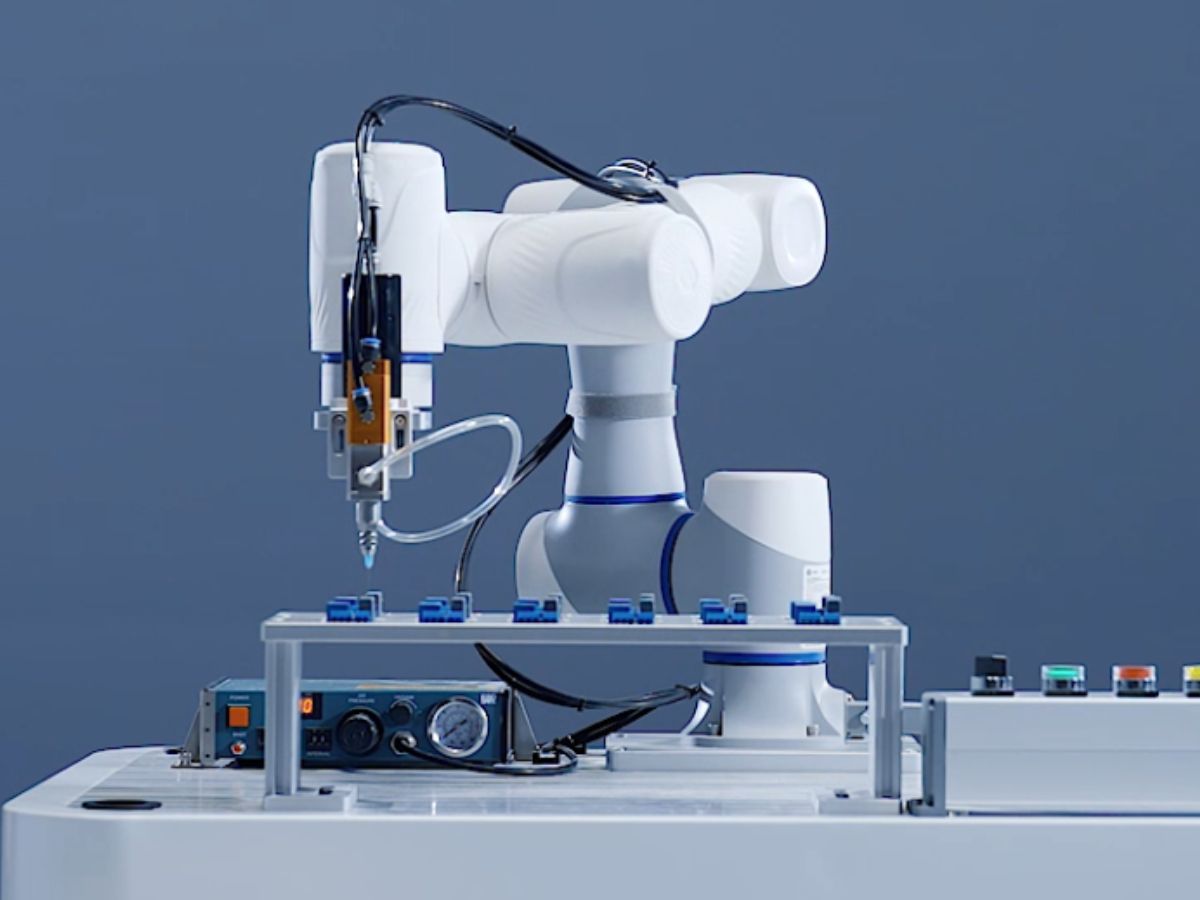

PCB Dispensing

Dispensing applications require the tool to follow controlled paths around electronic components. The positioning performance of each robot joint can influence the accuracy and consistency of the dispensing trajectory.

Soldering

A compact six-axis robotic arm can position a soldering tool around a PCB and approach components from different orientations. This flexibility is particularly useful when the workpiece contains components in different locations and orientations.

Component Handling and Assembly

Small robot arms can perform pick-and-place and assembly operations within compact workstations. Their lightweight structure and small joint dimensions make them suitable for automation systems where installation space is limited.

Visual Inspection

A desktop robot arm can carry a camera or inspection sensor and move around a product to capture images from different positions and angles. Six-axis movement provides greater flexibility for inspection than simple linear positioning systems.

Limitations of Mini Harmonic Reducers

A Mini Harmonic Reducer is not designed to be the best transmission solution for every application. Its advantages are most valuable when a robot joint requires compactness, precision, high reduction, and high torque density.

Shock Loads Require Careful Consideration

Harmonic transmission uses a flexible transmission element as part of its operating principle. This enables a compact structure and high reduction ratio, but severe impact loads and repeated uncontrolled collisions should be carefully considered during robot design.

For a small collaborative robot or desktop robot arm, the reducer should be selected according to the expected rated torque, peak torque, external load, acceleration, and collision conditions.

Not Intended Primarily for Continuous High-Speed Output

A Mini Harmonic Reducer is primarily designed to provide high reduction and precise output motion rather than continuous high-speed output rotation.

This makes it well suited to robot joints, where the motor typically operates at a higher speed while the joint requires controlled, lower-speed movement with higher output torque.

Applications requiring continuous high-speed output rotation may require a different transmission architecture.

Correct Sizing Remains Essential

The compact size of a Mini Harmonic Reducer does not mean that load requirements can be ignored.

Robot manufacturers should evaluate rated torque, peak torque, output speed, load inertia, acceleration, duty cycle, external moment loads, and operating environment when selecting the reducer.

For a six-axis robot, the reducer must also be evaluated according to the position of the joint within the robot structure because shoulder, elbow, and wrist joints can experience significantly different loads.

Mini Harmonic Reducer vs. Planetary Reducer for Small Robot Arms

Mini Harmonic Reducers and planetary gearboxes can both be used in robotic motion systems, but their mechanical characteristics are different.

For small robot arms and desktop 6-axis robots, a Mini Harmonic Reducer is particularly attractive when the design prioritizes compact joint dimensions, high reduction ratios, low backlash, and high torque density.

A planetary gearbox can be advantageous when the application places greater emphasis on high-speed operation, efficiency, or specific load characteristics.

The selection should therefore be based on the actual requirements of the robot rather than assuming that one transmission type is universally better.

For a compact six-axis robot joint that requires a high reduction ratio and very low backlash within a limited installation space, a Mini Harmonic Reducer can provide a strong fit. For applications requiring continuous high-speed output or different transmission characteristics, a planetary gearbox may be more appropriate.

When Should You Choose a Mini Harmonic Reducer for a Small Robot Arm?

A Mini Harmonic Reducer is worth considering when the robot joint needs to combine a compact mechanical envelope with precision motion and high output torque.

It is particularly relevant when developing a small 6-axis robot arm, desktop robot arm, or lightweight collaborative robot arm where joint diameter and weight directly influence the overall robot design.

It is also a strong candidate when the robot requires low backlash for repeatable positioning, a high reduction ratio in a compact package, or a hollow structure for internal cable routing.

For manufacturers developing an integrated robot joint with a frameless torque motor, encoder, and brake, the Mini Harmonic Reducer can also serve as the central precision transmission component.

Conclusion

The development of small robot arms, desktop robot arms, and small 6-axis robotic arms is changing the requirements for robot joint transmissions. A compact robotic arm needs more than sufficient output torque. Its joints must balance size, weight, precision, reduction ratio, cable routing, and mechanical integration.

A Mini Harmonic Reducer addresses these requirements through a compact transmission structure, high reduction ratio, low backlash, high torque density, coaxial configuration, and hollow-shaft options in suitable models.

For small six-axis robots, these characteristics can help manufacturers develop compact and lightweight joints without sacrificing the precision required for applications such as 3C electronics assembly, PCB screwdriving, dispensing, soldering, component handling, and visual inspection.

The technology does have limitations. Severe shock loads, continuous high-speed output requirements, and demanding external loads require careful engineering evaluation and appropriate sizing. A Mini Harmonic Reducer should therefore be selected according to the complete operating conditions of the robot rather than simply its physical dimensions.

For manufacturers looking to build compact robot joints for small 6-axis robot arms and desktop robotic arms, the combination of compact size, low backlash, high torque density, and internal cable routing makes the Mini Harmonic Reducer a practical precision transmission solution.
