The working principle of a harmonic drive reducer
It utilizes the elastic deformation of the flexible spline and the meshing motion of the gear teeth. Specifically, the wave generator deforms the flexible spline, and the outer teeth of the flexible spline sequentially engage with the inner teeth of the rigid spline to achieve speed reduction.
The core components of a harmonic drive reducer
Rigid Spline (Circular Spline):
A rigid gear with an internal gear ring. It has slightly more teeth than the flexible spline; the common tooth difference is 2 teeth, which is key to achieving a high reduction ratio. The rigid spline is made of high-hardness alloy steel to ensure that its shape and precision remain unchanged during long-term meshing.
Flexible Spline (Flexspline):
A flexible gear with an external gear ring. Its wall thickness is typically only 1-2 millimeters. It is made of special alloy steel through heat treatment and precision machining, requiring both sufficient elasticity to produce controllable deformation and high strength to withstand repeated stress cycles.
Wave Generator:
This is the key component that generates controllable elastic deformation waves. The most common wave generator is an elliptical cam. When the wave generator is inserted into the inner bore of the flexible spline, it causes the flexible spline to undergo regular elastic deformation, enabling meshing and motion transmission between the gears.
HONPINE is Harmonic Drive Reducer Manufacturer

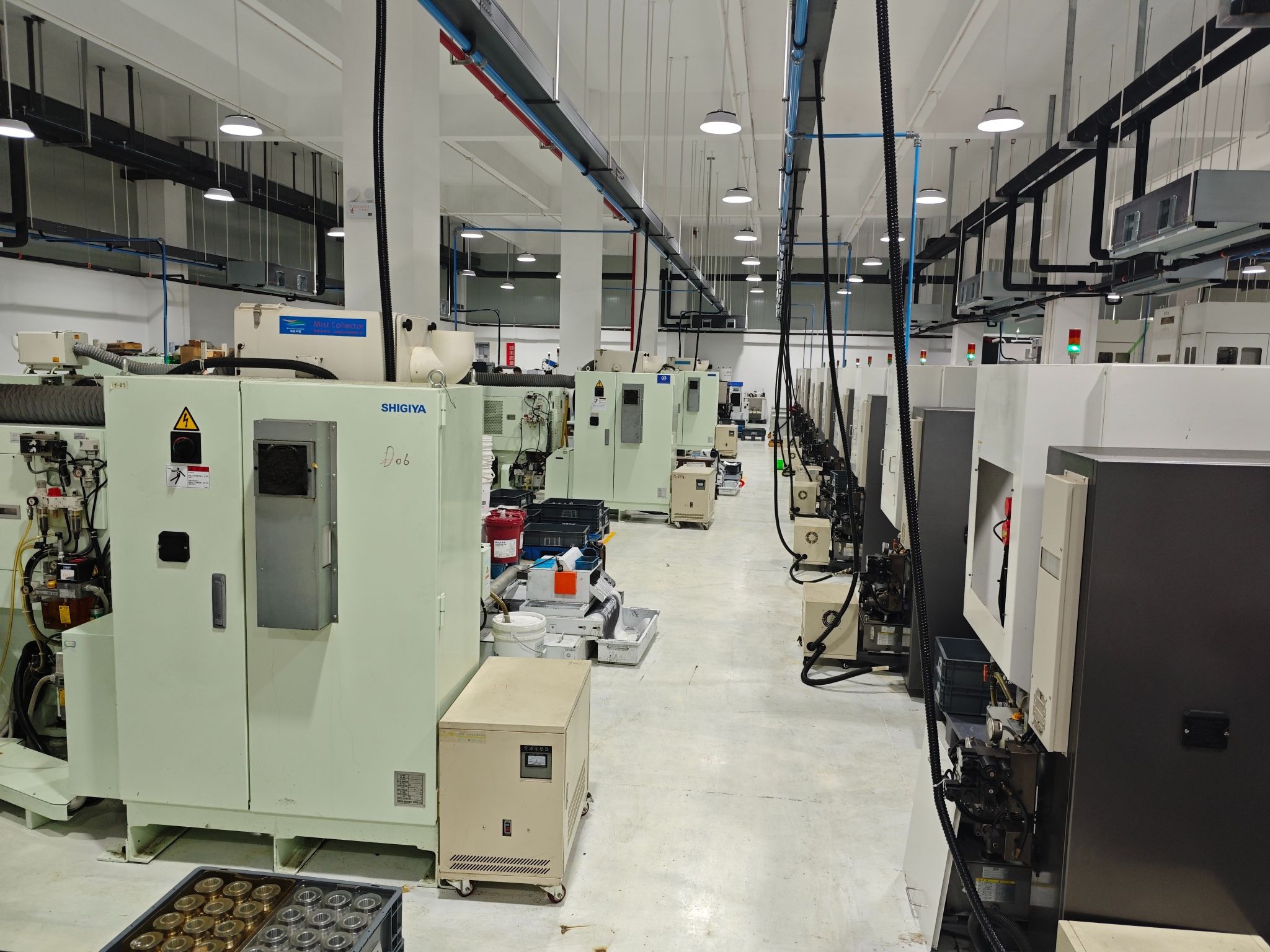

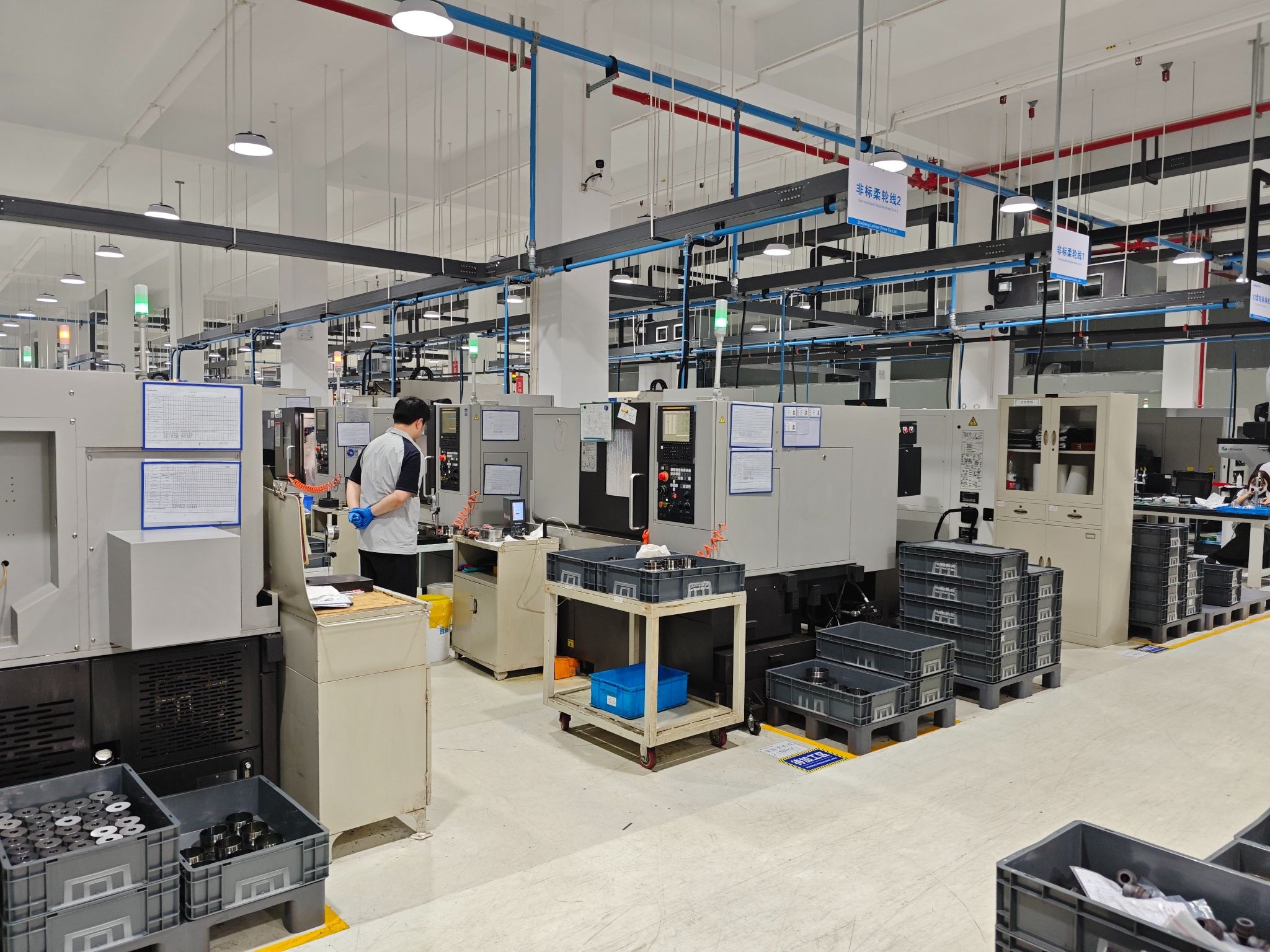

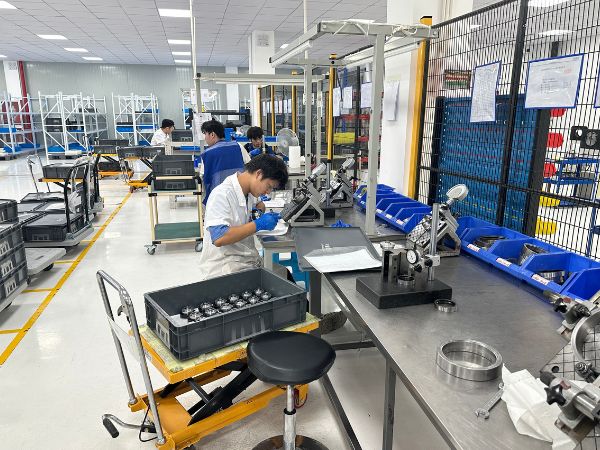

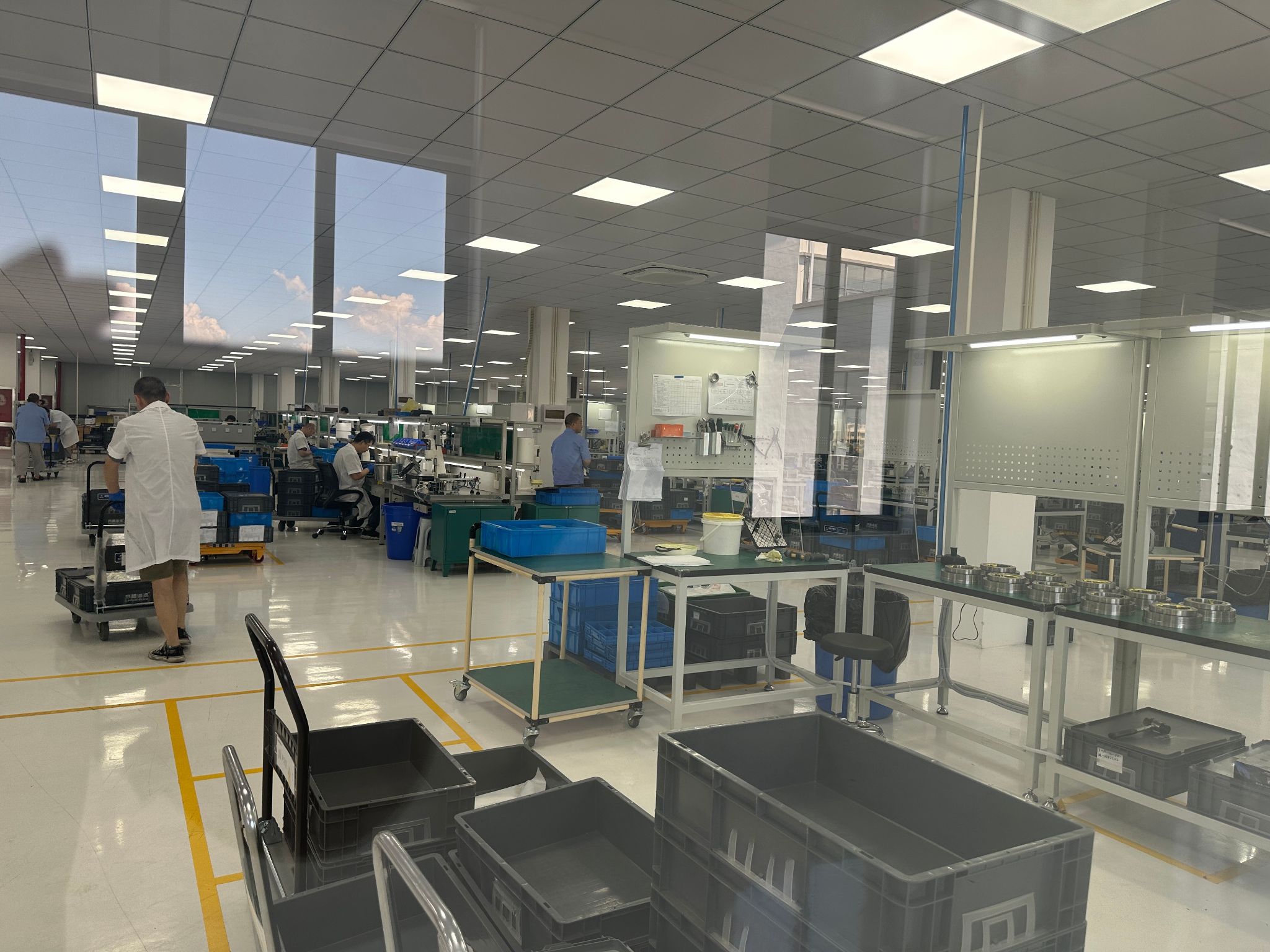

HONPINE is a manufacturer and supplier of harmonic reducers, and we offer the most comprehensive range of harmonic reducer tooth profiles and sizes in China. We have introduced advanced high-precision forming machines, peeling machines, gear hobbing machines, and grinding machines. We prioritize quality above all else, and every harmonic reducer undergoes rigorous testing using coordinate measuring machines, profile projectors, and gear testing equipment before leaving the factory.
![How High-Precision Reducers Drive the Development of Intelligent Manufacturing Technology]( "How High-Precision Reducers Drive the Development of Intelligent Manufacturing Technology")
How High-Precision Reducers Drive the Development of Intelligent Manufacturing TechnologyPrecision reducers are key enablers in intelligent manufacturing, providing the critical link between digital algorithms and physical motion. They ensure high-accuracy positioning in laser/visual navigation systems, enable precise wheel control in mobile robots, and guarantee repeatable motion in robotic arms. Their near-zero backlash characteristics allow manufacturers to achieve unprecedented levels of automation precision and reliability.![What is the Difference Between RV Reducer and Harmonic Reducer?]( "What is the Difference Between RV Reducer and Harmonic Reducer?")
What is the Difference Between RV Reducer and Harmonic Reducer?This article provides an in-depth comparison between RV reducers and harmonic reducers, analyzing their differences from multiple perspectives, including working principles, performance characteristics, application fields, installation methods, and long-term maintenance.![HONPINE Harmonic Gear Reducer Manufacturer VS Laifual VS Leaderdrive]( "HONPINE Harmonic Gear Reducer Manufacturer VS Laifual VS Leaderdrive")
HONPINE Harmonic Gear Reducer Manufacturer VS Laifual VS LeaderdriveThis article explores how HONPINE, as a harmonic gear reducer manufacturer, is building brand recognition in China. For many years, the Chinese harmonic reducer market was dominated by giants such as Leaderdrive and Laifual. However, as market competition intensifies and performance requirements for harmonic gear reducers continue to rise, competition among all major brands has become increasingly fierce.![Is the Harmonic Drive Reducer too flexible? HONPINE Harmonic Drive Actuator achieves 3× higher rigidity!]( "Is the Harmonic Drive Reducer too flexible? HONPINE Harmonic Drive Actuator achieves 3× higher rigidity!")
Is the Harmonic Drive Reducer too flexible? HONPINE Harmonic Drive Actuator achieves 3× higher rigidity!Still struggling with low rigidity and torsional deformation in harmonic drive reducers? HONPINE has developed the upgraded HAT-G Series Rotary Actuator to address this industry-wide pain point. Standard reducers tend to deform and rebound easily under load, while our actuator—enhanced by a specialized software algorithm—boosts rigidity by more than three times. Under the same force, the dial gauge barely moves. A high-precision encoder is also available, delivering positioning accuracy of ≤5 arc-seconds.
![High Torque Hat Style Large Hollow Shaft Harmonic Reduction Gear]( "High Torque Hat Style Large Hollow Shaft Harmonic Reduction Gear")
High Torque Hat Style Large Hollow Shaft Harmonic Reduction GearThe FHG-AH series harmonic reduction gear is engineered for high-torque, large hollow shaft, and heavy-load applications. Featuring a top-hat style flexspline and a wave generator cam with an oversized hollow shaft structure, this series enables effortless routing of cables, lead screws, and optical pathways through its central cavity, effectively addressing challenges associated with passing large components. It delivers an optimized solution for such requirements. The series typically employs synchronous pulley connections or large hollow shaft gear structures for input integration.![High Rigidity Motor Shaft Flange Harmonic Drive Reducer]( "High Rigidity Motor Shaft Flange Harmonic Drive Reducer")
High Rigidity Motor Shaft Flange Harmonic Drive ReducerThe LHSG-RDP series harmonic drive reducer is developed on the high-rigidity FHG-I platform to accommodate customers requiring direct motor integration. It incorporates pre-machined motor shaft connection holes and motor mounting flanges, with the gear unit factory-sealed with specialized lubricating grease. This series typically adopts a fixed flexspline end and an output circular spline end directly coupled to the motor during operation. It offers exceptional convenience for applications demanding both direct motor connection and enhanced harmonic drive rigidity – customers can achieve immediate usability by simply aligning the motor shaft and tightening the fasteners post-purchase. This design optimizes installation efficiency while maintaining structural robustness for high-stiffness direct-drive scenarios.![Direct Motor Connection Flange Harmonic Reduction Gear]( "Direct Motor Connection Flange Harmonic Reduction Gear")
Direct Motor Connection Flange Harmonic Reduction GearThe LCSG-RDB harmonic reduction gear series is designed based on the FSG-I platform to facilitate direct motor connection for customers. It features pre-designed motor shaft connection holes and motor mounting flanges, with the gear reducer internally sealed with special lubricating grease at the factory. This series typically employs a fixed circular spline end and an output flexspline end directly coupled to the motor during operation. It provides exceptional convenience for applications requiring direct motor connection and custom sealing flanges - customers can simply secure the motor connection with screws for immediate use after procurement. This design streamlines integration while maintaining sealing integrity for users with direct-drive requirements.![Ultra Thin Compact Design Hat Shape Light Weight Harmonic Reducer]( "Ultra Thin Compact Design Hat Shape Light Weight Harmonic Reducer")
Ultra Thin Compact Design Hat Shape Light Weight Harmonic ReducerThe FHD Series harmonic reducer employs an ultra-short top-hat flexspline design, designed for applications demanding extreme compactness and lightweight performance.The FHD Combined Type pursues the ultimate flat-profile design. Compared to the FHG series, its axial length is reduced by approximately 50%. Equipped with high-rigidity cross roller bearings on the output side, it is ideally suited for applications requiring space-constrained designs.
