How to Choose the Right Robot Joint Actuator for Specialized Robotic Applications?

Why Choosing a Robot Joint Is Becoming an Engineering Challenge？

The development of robotics is moving beyond standardized industrial robot arms. Humanoid robots, collaborative robots, mobile manipulators, surgical robots, inspection robots, special-purpose robotic arms, and intelligent automation equipment are creating increasingly diverse requirements for robot joint systems.

For a conventional industrial robot, engineers may be able to select a relatively standardized combination of servo motor, precision gearbox, encoder, and drive. However, this approach becomes much more difficult when developing a new or highly customized robotic platform.

A compact robotic wrist may require extremely low weight and a small installation envelope. A humanoid robot leg may need high torque density, high stiffness, rapid dynamic response, and reliable position feedback. A collaborative robot may require torque sensing and collision detection. A surgical robot may prioritize precision, smooth motion, compact dimensions, and low transmission error.

These requirements cannot always be solved by simply selecting a larger motor or a higher-ratio gearbox.

The real engineering challenge is to determine what type of robot joint architecture can provide the right combination of torque, speed, precision, stiffness, weight, feedback, safety, and integration for the complete robotic system.

This is where an integrated robot joint actuator can provide a practical solution.

Rather than treating the motor, harmonic reducer, encoder, drive, brake, and torque sensor as completely separate components, an integrated joint modulecombines the key functions into a coordinated unit that can be designed around the requirements of the robot.

Start With the Robot Problem, Not the Actuator Specification

One of the most common mistakes in robot joint selection is starting with a product specification.

Engineers may begin by asking:

How much torque does this actuator provide?

But torque alone does not determine whether an actuator is suitable.

A better approach is to start with the actual problem that the robot needs to solve.

What is the payload?

How long is the robot link?

What is the maximum joint speed?

How frequently does the joint accelerate and decelerate?

What is the required positioning accuracy?

How much installation space is available?

How much weight can the joint add to the robot?

Does the joint need to support external force sensing?

Does the robot require an absolute encoder?

Does the controller use EtherCAT, CANopen, or CAN-FD?

Does a vertical axis require a holding brake?

Does the robot need internal cable routing?

Will the actuator operate in a low-temperature, dusty, or other demanding environment?

These questions describe the actual engineering problem.

Only after these requirements are understood should the appropriate harmonic actuator, motor configuration, encoder architecture, communication interface, and mechanical structure be selected.

Problem 1 — The Robot Joint Is Too Heavy

For multi-axis robots, joint weight creates a problem that becomes increasingly serious as the number of axes increases.

A heavier actuator does not simply increase the total robot weight. It can also increase the load on the previous joint.

For example, additional weight at the wrist can increase the torque requirement of the elbow. The increased elbow torque can then increase the requirement of the shoulder joint.

This creates a cascading effect throughout the robot structure.

For humanoid robots and lightweight robotic arms, the problem is even more significant because every additional kilogram can influence dynamic performance, energy consumption, payload capability, and control response.

Solution: Increase Joint-Level Torque Density

A high torque density robot joint actuator can help engineers achieve the required output torque without unnecessarily increasing joint size and weight.

This is one reason harmonic transmission is widely considered for compact robot joints.

By combining a high torque-density frameless motor with a compact harmonic reducer, the actuator can generate substantial output torque within a relatively small installation envelope.

For applications where every gram matters, an integrated joint architecture can also reduce the additional mechanical components, mounting structures, couplings, and external transmission components required around the actuator.

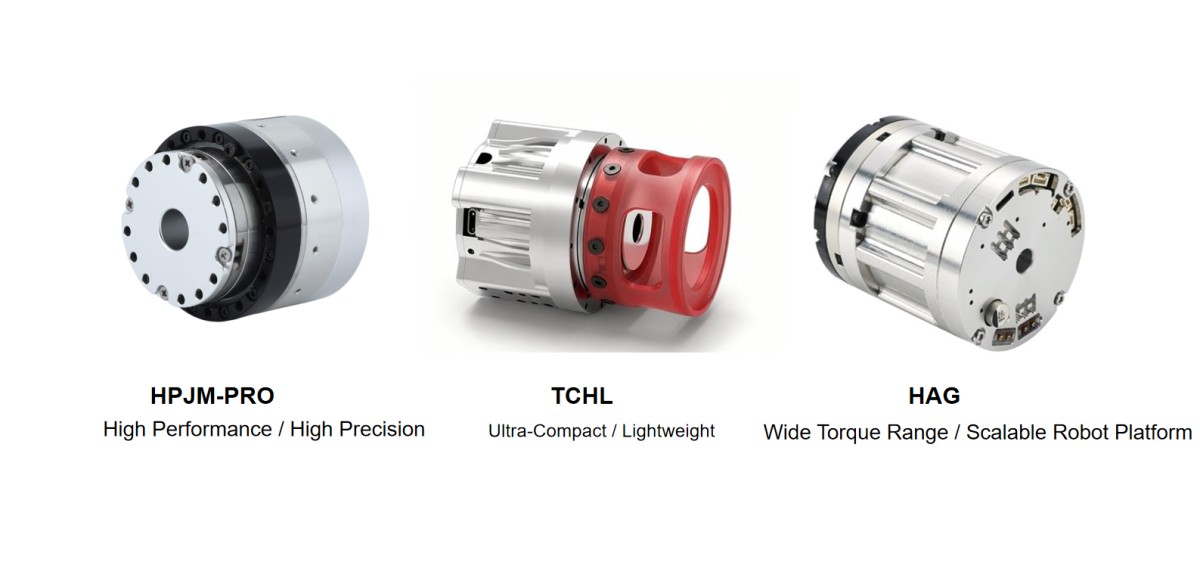

HONPINE provides different joint platforms according to the required balance between torque, size, weight, and performance.

For ultra-compact robotic joints, the TCHL platform focuses on minimizing joint dimensions and weight while retaining substantial output capability.

For higher-performance applications requiring a broader torque range and greater customization, HPJM-PRO provides another configuration.

For applications ranging from lightweight to high-load robotic joints, HAG provides a scalable platform.

The purpose is not to recommend the largest actuator.

It is to find the smallest and lightest joint that can reliably satisfy the robot's actual load and dynamic requirements.

Problem 2 — The Robot Needs High Torque but Has Limited Installation Space

A common challenge in special-purpose robotic arms is the lack of available space.

The mechanical designer may have sufficient space for the robot link but only a very limited diameter or axial length for the joint.

Increasing motor size may solve the torque problem but create another mechanical integration problem.

Adding an external gearbox may increase the overall length.

Adding an external encoder may further complicate the structure.

External cables can interfere with adjacent joints.

Solution: Use an Integrated Harmonic Joint Architecture

A compact harmonic drive actuator can integrate the motor, reducer, encoder, and drive electronics into one joint-level solution.

This allows the mechanical designer to consider the joint as a functional module instead of designing every component independently.

Hollow-shaft architecture can provide another important advantage.

Instead of routing cables and pneumatic lines around the outside of the joint, the internal space can be used for cable routing.

This can be particularly valuable for multi-axis robotic arms, humanoid robots, surgical robots, and compact manipulation systems.

The objective is not simply to make the actuator smaller.

The objective is to reduce the space and mechanical complexity required to build the complete robot joint.

Problem 3 — High Positioning Accuracy Is Required but Transmission Error Cannot Be Ignored

Many robotic applications require more than simply moving from point A to point B.

Precision assembly, dispensing, grinding, welding, semiconductor handling, optical equipment, and medical robotics may require accurate trajectory tracking and repeatable positioning.

In these applications, transmission characteristics become important.

Backlash, torsional deformation, encoder resolution, structural stiffness, and control response can all influence the final position of the robot end effector.

Solution: Combine Precision Harmonic Transmission With High-Resolution Feedback

A precision harmonic gear motor can provide a high reduction ratio and low backlash within a compact structure.

However, the reducer itself is only part of the solution.

The feedback architecture also matters.

For high-precision robot joints, an absolute encoder can provide direct position information to the control system.

In more demanding applications, motor-side and output-side encoders can be combined to provide additional information about the behavior of the transmission and the actual joint output.

This creates a more complete closed-loop control architecture.

For applications requiring high repeatability, the goal should therefore be to evaluate the entire transmission and feedback chain, rather than looking at reducer backlash or encoder resolution independently.

Problem 4 — The Robot Needs to Interact With Its Environment

Position control alone is not sufficient for every robot.

Consider a robot polishing a surface.

The robot needs to maintain a specific contact force while following a trajectory.

Consider a collaborative robot.

The robot needs to recognize unexpected external forces and respond appropriately.

Consider a humanoid robot.

Its joints may need to react dynamically to contact with the ground, objects, or humans.

In these applications, the robot needs more information than position and speed.

It needs to understand force and torque.

Solution: Add Output-Side Torque Sensing

An integrated torque sensor can turn a conventional motion actuator into a more capable force-control interface.

When the torque sensor is positioned appropriately within the joint architecture, the controller can receive information about the torque acting at the output.

This information can support:

• force-position control

• collision detection

• compliant motion

• contact detection

• drag teaching

• precision assembly

• polishing and grinding

• human-robot interaction

HONPINE's TCHL and HAG platforms can be configured with torque sensing for applications where force feedback is part of the robot's functional requirements.

The important point is that torque sensing should be considered at the beginning of the robot architecture, rather than added as an afterthought.

Mechanical integration, sensor position, wiring, sampling rate, control bandwidth, and controller compatibility all influence the final force-control performance.

Problem 5 — The Robot Needs Fast Dynamic Response

Humanoid robots and highly dynamic robotic arms place different demands on joint actuators than conventional low-speed automation mechanisms.

Frequent acceleration and deceleration can create high instantaneous loads.

The actuator must respond quickly while handling changing inertia and transient torque.

This means that rated torque alone is not sufficient for actuator selection.

Engineers also need to consider peak torque, allowable load torque, rotor inertia, thermal capacity, transmission stiffness, motor characteristics, and control bandwidth.

Solution: Match the Joint to the Dynamic Load Profile

A suitable robot joint motor should be selected according to the actual motion profile rather than simply the maximum static load.

For example, a joint that continuously holds a high load may require a different configuration from a joint that operates with short bursts of high acceleration.

The correct actuator therefore needs to balance:

continuous torque + peak torque + speed + inertia + thermal performance + transmission stiffness.

HONPINE's different harmonic joint platforms provide different performance ranges so that engineers can select an actuator according to the dynamic characteristics of each individual joint.

This approach is particularly important for humanoid robots, high-speed robotic arms, and other systems with frequent acceleration and deceleration.

Problem 6 — The Robot Requires Both Compactness and High Stiffness

Reducing actuator size can sometimes create a structural challenge.

A robotic joint must not only produce torque. It must also resist deformation caused by external loads.

If joint stiffness is insufficient, the robot may experience end-effector positioning errors even when the encoder itself has very high resolution.

This becomes particularly important for long-reach robotic arms, heavy payload applications, precision machining, welding, and force-controlled manipulation.

Solution: Evaluate Torque Density and Mechanical Stiffness Together

A high-performance harmonic joint module should therefore be evaluated according to both torque density and mechanical stiffness.

The reducer, bearings, housing, output structure, and mounting interface all contribute to the final joint stiffness.

For demanding robotic applications, engineers should consider the complete load path from the motor through the harmonic transmission to the robot link.

HONPINE's different joint platforms cover different load levels and structural requirements, allowing engineers to select a suitable configuration rather than using the same joint architecture throughout the entire robot.

Problem 7 — Different Robot Joints Have Completely Different Requirements

A common misconception is that one robot should use the same actuator specification for every joint.

In reality, the shoulder, elbow, wrist, waist, knee, ankle, and other joints may have completely different requirements.

For example, a humanoid robot's shoulder may require high torque and a relatively large operating range, while its wrist may prioritize compactness and low inertia.

Similarly, the base axis of an industrial robotic arm may require high load capacity, while its end joint may require a much smaller actuator.

Solution: Build a Joint-Level Actuator Architecture

Instead of selecting one actuator for the entire robot, engineers can divide the robot into different joint categories.

A typical design process may consider:

High-load joints

Require high continuous torque, high peak torque, high stiffness, and robust mechanical construction.

Medium-load joints

Require a balance between torque, speed, weight, and installation dimensions.

Lightweight wrist and end joints

Prioritize low weight, compact dimensions, low inertia, and high responsiveness.

Force-controlled joints

Require output torque sensing and appropriate feedback architecture.

Vertical joints

May require an integrated holding brake for safety.

This approach allows the robot manufacturer to optimize each joint according to its actual function.

Problem 8 — External Drives and Multiple Components Increase Integration Complexity

A traditional robot joint may consist of a servo motor, gearbox, encoder, external servo drive, brake, cables, connectors, and additional mechanical interfaces.

Each component must be selected and integrated separately.

This creates more mechanical interfaces, more wiring, more potential failure points, and more engineering work.

For robot manufacturers developing a new platform, this can significantly increase development time.

Solution: Use an Integrated Robot Joint Motor

An integrated robot joint motor combines multiple core functions into a single module.

Depending on the configuration, the joint can integrate:

• frameless torque motor

• harmonic reducer

• absolute encoder

• drive electronics

• brake

• torque sensor

• communication interface

• internal connectors

This approach allows engineers to treat the actuator as a standardized functional module.

The benefit is not simply saving installation space.

It can also simplify mechanical design, electrical wiring, software integration, testing, and maintenance.

For companies developing new robot platforms, this can help shorten the transition from prototype to production.

Problem 9 — The Robot Controller Uses Different Communication Architectures

Different robot manufacturers may use different control architectures.

Some systems use EtherCAT for high-speed real-time motion control.

Others may use CANopen or CAN-FD for distributed actuator control.

Some applications may require additional digital or analog interfaces.

If the actuator does not match the controller architecture, engineers may need to develop additional communication hardware or software.

Solution: Select the Communication Interface Together With the Joint

Communication should therefore be considered as part of the actuator selection process.

HONPINE's different joint platforms support communication options including EtherCAT, CANopen, and CAN-FD, depending on the model and configuration.

This allows the actuator architecture to be matched to the robot's overall control system rather than forcing the robot manufacturer to redesign the controller around the actuator.

For OEM robot developers, this compatibility can be particularly important during the transition from prototype systems to production systems.

Problem 10 — Special Robots Cannot Always Use Standard Actuators

This is perhaps one of the most important challenges for new robotics companies.

A standard actuator may have the correct torque but the wrong diameter.

It may have the correct dimensions but insufficient peak torque.

It may fit mechanically but lack the required communication protocol.

It may meet the torque requirement but add too much weight.

It may provide position feedback but not the torque sensing required by the application.

This is why specialized robotic systems often require customized joint actuators.

Solution: Match the Actuator to the Robot, Not the Robot to the Actuator

For specialized robotic arms, the actuator should be evaluated together with the mechanical structure and control architecture.

Potential customization requirements may include:

Mechanical configuration: outer diameter, axial length, hollow shaft, mounting interface and connector position.

Performance: rated torque, peak torque, speed, reduction ratio and stiffness.

Feedback: encoder resolution, motor-side/output-side encoder configuration and torque sensing.

Control: EtherCAT, CANopen, CAN-FD and other communication requirements.

Safety: holding brake, STO and other protection functions.

Environment: operating temperature, protection requirements and application-specific environmental conditions.

This is where a joint module supplier with both product platforms and engineering customization capabilities can provide greater value than a supplier offering only a standard gearbox.

How to Match the Right Harmonic Joint Module to Different Robot Applications?

Instead of asking which product is "best", engineers can start by identifying which problem they need to solve.

For Ultra-Compact Robotic Arms and Lightweight Joints

When the primary challenge is limited space and excessive joint weight, the priority should be compact dimensions, low mass, low inertia, and sufficient torque density.

A highly integrated and compact joint architecture such as HONPINE's TCHL platform can be considered for these applications.

Typical applications include compact collaborative robots, desktop robotic arms, robotic wrists, medical mechanisms, and precision automation.

For High-Performance Robotic Arms

When the robot requires higher torque, higher precision, broader configuration options, and stronger dynamic performance, the joint needs to be selected around the complete load and motion profile.

The HPJM-PRO platform can be considered when the application requires high torque density, precision harmonic transmission, absolute encoder feedback, industrial communication, and customization.

For Humanoid Robots and Industrial Robot Platforms

Humanoid robots and industrial robots typically require a much broader range of joint performance.

Different joints may require substantially different torque levels, speeds, stiffness, feedback systems, and safety functions.

The HAG platform provides a scalable joint architecture covering a broad torque range, with options such as absolute encoders, torque sensors and brakes.

The key advantage is not simply the maximum torque.

It is the ability to build a joint-level actuator platform that can be adapted to different positions within the same robot.

A Practical Robot Joint Selection Process

For robot manufacturers, actuator selection can be simplified by following a structured process.

Step 1 — Define the Mechanical Load

Determine payload, link length, gravity load, external force, inertia, and maximum allowable joint torque.

Do not calculate only the nominal operating torque. Include acceleration, deceleration, emergency stops, and potential impact loads.

Step 2 — Define the Motion Profile

Determine required speed, acceleration, deceleration, duty cycle, operating frequency, and continuous versus intermittent loading.

This helps determine whether the joint should be optimized for continuous torque, peak torque, or high-speed dynamic response.

Step 3 — Define the Physical Constraints

Determine the maximum joint diameter, axial length, total allowable weight, hollow-shaft requirement, mounting method, and internal cable-routing requirements.

For compact robots, these constraints should be defined before selecting the actuator.

Step 4 — Define the Accuracy and Feedback Requirements

Determine positioning accuracy, repeatability, encoder resolution, and whether motor-side and output-side feedback are required.

If the application requires force control, determine whether an integrated output torque sensor is necessary.

Step 5 — Define the Control Architecture

Confirm the communication protocol, controller compatibility, voltage, feedback interface, control modes, and required safety functions.

This prevents mechanical selection from creating electrical integration problems later.

Step 6 — Select the Appropriate Joint Platform

Only after the previous requirements have been defined should the appropriate actuator platform be selected.

This is where different HONPINE platforms can be matched to different requirements rather than applying one standard actuator to every application.

Why an Application-Based Approach Is Better Than a Product-Based Approach？

For robot manufacturers, the most valuable actuator supplier is not necessarily the supplier with the largest product catalog.

The more important question is whether the supplier can understand the relationship between the actuator and the robot.

A joint actuator affects:

robot weight → joint torque → structural design → energy consumption → dynamic response → control performance → payload → overall robot architecture.

Therefore, selecting a robot joint is a system-level engineering decision.

HONPINE's approach is to provide different harmonic joint platforms for different application requirements while supporting customization when a standard configuration cannot meet the robot's design requirements.

This allows customers to begin with the actual application problem and work backward toward the appropriate joint architecture.

One Engineering Partner for Different Robot Joint Requirements

A new robotic platform may require several different types of joints.

The shoulder may need high torque.

The elbow may need a balance between torque and weight.

The wrist may require an ultra-compact design.

A force-controlled joint may need an integrated torque sensor.

A vertical joint may require a brake.

Another joint may require a specific hollow-shaft dimension or communication interface.

Instead of treating these as completely independent projects, a common actuator platform and engineering partner can help simplify the development process.

HONPINE's HPJM-PRO, TCHL, and HAG platforms provide different starting points for these requirements, while customization allows the joint architecture to be adapted to the specific robot.

The goal is not to make every robot use the same actuator.

The goal is to help every robot find the actuator configuration that fits its own mechanical and control requirements.

From Robot Concept to Production: Building the Right Joint Architecture

For robotics companies developing a new product, the actuator decision can have a long-term impact on the entire robot.

Changing the joint after the mechanical structure, controller, software, and wiring have already been developed can be expensive and time-consuming.

This is why the actuator should be considered during the early architecture stage.

A suitable harmonic robot joint actuator can provide the mechanical transmission, motor, feedback, control interface, and optional sensing required by the robot in one integrated platform.

For companies developing humanoid robots, collaborative robots, industrial robotic arms, special-purpose robotic arms, medical robots, mobile manipulators, and advanced automation equipment, this can reduce the complexity of developing the robot from the joint level upward.

Find the Right Harmonic Robot Joint Solution for Your Application

There is no universal robot joint actuator that is ideal for every robotic system.

The right solution depends on the relationship between load, speed, precision, weight, stiffness, installation space, feedback, force control, communication, safety, and environmental requirements.

A lightweight robotic wrist may need a completely different actuator from a humanoid robot's knee.

A precision medical robot may require different feedback from a heavy-duty industrial arm.

A collaborative robot may prioritize torque sensing, while an industrial robot may prioritize stiffness and continuous torque.

This is why HONPINE provides multiple harmonic joint actuator platforms rather than a single standardized configuration.

HPJM-PRO, TCHL, and HAG provide different technical foundations for different robot architectures, while customization helps adapt the actuator to application-specific mechanical and control requirements.

If you are developing a humanoid robot, collaborative robot, industrial robotic arm, special-purpose robotic arm, medical robot, AGV/AMR manipulator, or precision automation system, the best starting point is not necessarily a product catalog.

Start with the engineering problem.

Define the required torque, speed, weight, dimensions, precision, stiffness, feedback, communication, and safety requirements.

Then select the joint architecture that solves those requirements.

HONPINE helps robotics engineers move from "Which actuator should we buy?" to "What joint solution does our robot actually need?"
