Transmission Accuracy Analysis of Integrated Robot Joint Modules: Key Error Factors and Optimization Methods for High-Precision Robotics

This article focuses on the transmission accuracy of integrated robot joint modules, which are core actuators in industrial robots and humanoid robotic systems. The module integrates a servo motor, precision reducer, and control system into a compact structure, significantly improving motion efficiency, stiffness, and positioning accuracy. As robotics evolves toward higher precision and dynamic performance, transmission accuracy becomes a critical factor determining overall system reliability. The study provides a systematic framework for modeling and optimizing transmission errors in high-performance robotic joints.

Introduction: Why Transmission Accuracy Matters in Robot Joint Modules

With the rapid development of industrial robots, humanoid robots, and intelligent automation systems, high-precision integrated robot joint modules have become core components of modern robotic motion systems.

Integrated joint modules typically combine a servo motor, precision reducer (harmonic or planetary), and control system into a compact structure. This integrated design improves:

• Motion efficiency

• Structural stiffness

• Transmission reliability

• Positioning accuracy

However, robot joint transmission accuracy directly determines positioning precision, repeatability, and motion smoothness, making it one of the most critical performance indicators in robotic actuator design.

Key insight: Transmission accuracy is a system-level performance metric driven by coupled mechanical errors.

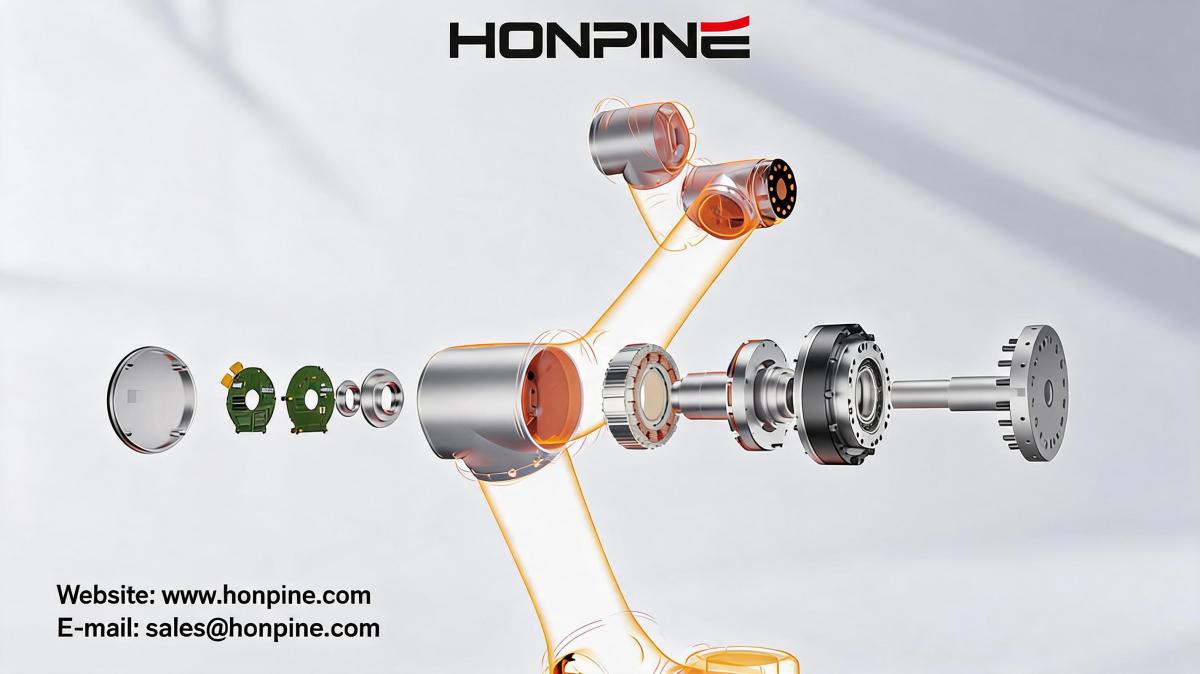

Structure of Integrated Robot Joint Modules

An integrated robot joint module generally consists of:

• Servo motor

• Input shaft coupling system

• Precision reducer (harmonic or planetary)

• Output shaft and bearing system

The motor output shaft directly drives the reducer input shaft, reducing intermediate transmission links and minimizing cumulative errors.

Common reducer types:

Harmonic reducers: ultra-high precision, near-zero backlash

Planetary reducers: high torque density, strong durability

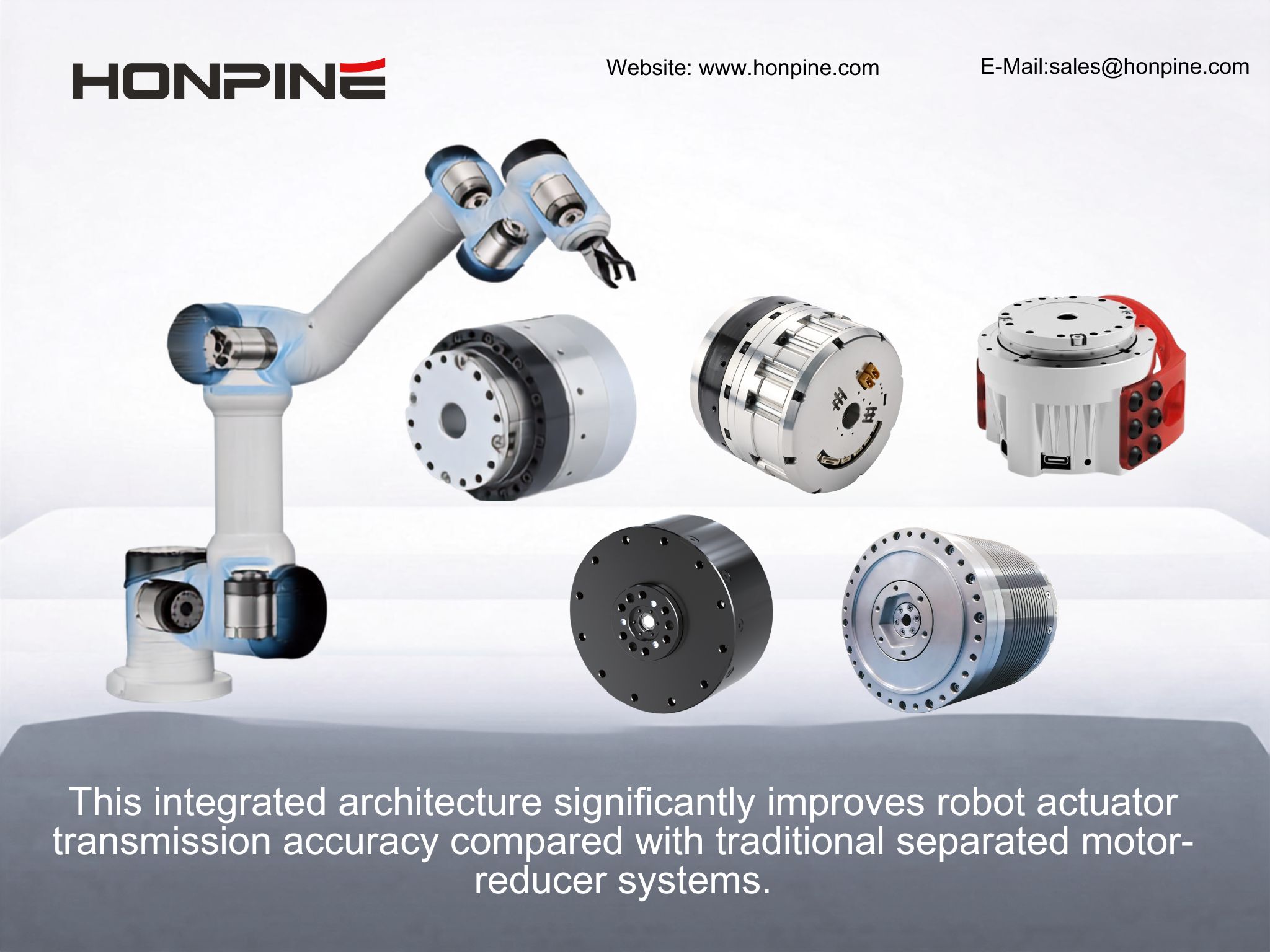

This integrated architecture significantly improves robot actuator transmission accuracy compared with traditional separated motor-reducer systems.

Transmission Accuracy Modeling Method

To analyze accuracy degradation mechanisms, a numerical transmission accuracy model was developed.

The model considers multiple real-world error sources, including:

• Manufacturing tolerances

• Assembly misalignment

• Concentricity deviation

• Positional errors

• Installation inaccuracies

Key modeling insight:

Transmission error is not caused by a single factor, but by the superposition and coupling of multi-source mechanical deviations across the system.

Key Error Factors Affecting Transmission Accuracy

1. Input-Side Errors (Moderate Impact)

Input-side errors include:

• Motor shaft installation deviation

• Reducer input shaft misalignment

• Assembly positioning errors

Although partially attenuated through the transmission chain, these errors can:

• Disturb gear meshing conditions

• Increase system-level transmission deviation

• Reduce motion stability

Conclusion: Input-side accuracy is essential for maintaining stable transmission performance.

2. Eccentricity Errors (Most Critical Factor)

Eccentricity error is the most influential factor affecting robot joint transmission accuracy.

It directly impacts internal reducer behavior by:

• Changing load distribution among moving components

• Generating periodic transmission fluctuations

• Reducing dynamic balance stability

As eccentricity increases:

• Transmission error increases significantly

• Output fluctuations become more severe

• System stability decreases

Conclusion: Eccentricity control is the most critical design priority in integrated joint modules.

3. Output-Side Errors (Low Impact)

Output-side errors mainly originate from:

• Bearing tolerances

• Structural assembly deviations

Simulation results show:

• Minimal variation in transmission accuracy

• Nearly identical error curves under different conditions

Conclusion: Output-side errors have limited influence compared with input-side and eccentricity errors.

Simulation and Experimental Validation

A prototype integrated robot joint module was tested to validate the numerical model.

Optimization condition:

• Improved machining accuracy of input-side components

• Input-side error reduced from 33 μm → 5 μm

Experimental results:

• Transmission error reduced from 30 arcseconds → 23 arcseconds

• Overall improvement: approximately 23%

The experimental results closely matched simulation predictions, confirming the reliability of the transmission accuracy model.

Key Optimization Strategy for High-Precision Robot Joints

Based on simulation and experimental analysis, the following optimization priorities are recommended:

• Priority 1: Control eccentricity machining accuracy (highest impact factor)

• Priority 2: Improve input shaft alignment and machining precision

• Priority 3: Enhance reducer assembly accuracy

• Priority 4: Maintain acceptable output-side tolerances

Key conclusion: Input-side precision optimization is the most cost-effective method for improving overall transmission accuracy.

Frequently Asked Questions about Robot Joint Modules Transmission Accuracy

Q1: What is the main factor affecting robot joint transmission accuracy?

Eccentricity error is the dominant factor because it directly affects internal reducer motion and load distribution.

Q2: How can transmission accuracy in robot joint modules be improved?

The most effective method is improving input-side machining precision and strictly controlling eccentricity errors.

Q3: Why is eccentricity more critical than output-side error?

Because eccentricity directly participates in internal transmission mechanics and cannot be attenuated by downstream components.

Q4: How much improvement can be achieved through optimization?

In this study, improving input-side accuracy reduced transmission error by approximately 23%.

Conclusion

This study presents a comprehensive transmission accuracy analysis model for integrated robot joint modules, identifying key mechanical error sources and their effects on system performance.

Key findings:

• Eccentricity error is the most influential factor

• Input-side error is the second most important factor

• Output-side error has minimal impact

By improving input-side machining accuracy, transmission performance was improved by approximately 23%, demonstrating a practical and effective optimization approach for high-precision robotic systems
