Why Choose an Integrated Harmonic Drive Actuator? Benefits, Features and Applications

Traditional robot joint systems require engineers to select, source, assemble, and tune dozens or even hundreds of individual components, including motors, reducers, encoders, bearings, brakes, sensors, couplings, housings, and control electronics. A HONPINE Harmonic Drive Integrated Actuator combines these critical components into a single compact module, significantly reducing engineering effort, procurement complexity, assembly time, and overall development costs. The integrated design also provides lightweight construction, high positioning accuracy, compact dimensions, simplified maintenance, improved reliability, low noise, and optimized system efficiency. By using standardized robot joint actuators, manufacturers can accelerate robot development while improving consistency across large-scale production.

Compact Integrated Design

The integrated structure enables Harmonic Drive Actuators to fit easily into space-constrained applications. By combining multiple functional components into one compact unit, engineers can maximize available installation space, simplify mechanical layouts, and increase overall system integration.

High Torque Density

Integrated Harmonic Drive Actuators deliver high output torque without increasing the actuator size. This high torque density improves energy utilization, motion control performance, and machine compactness, making these actuators ideal for humanoid robots, mobile robots, inspection robots, collaborative robots, and dental automation equipment where powerful yet compact joints are essential.

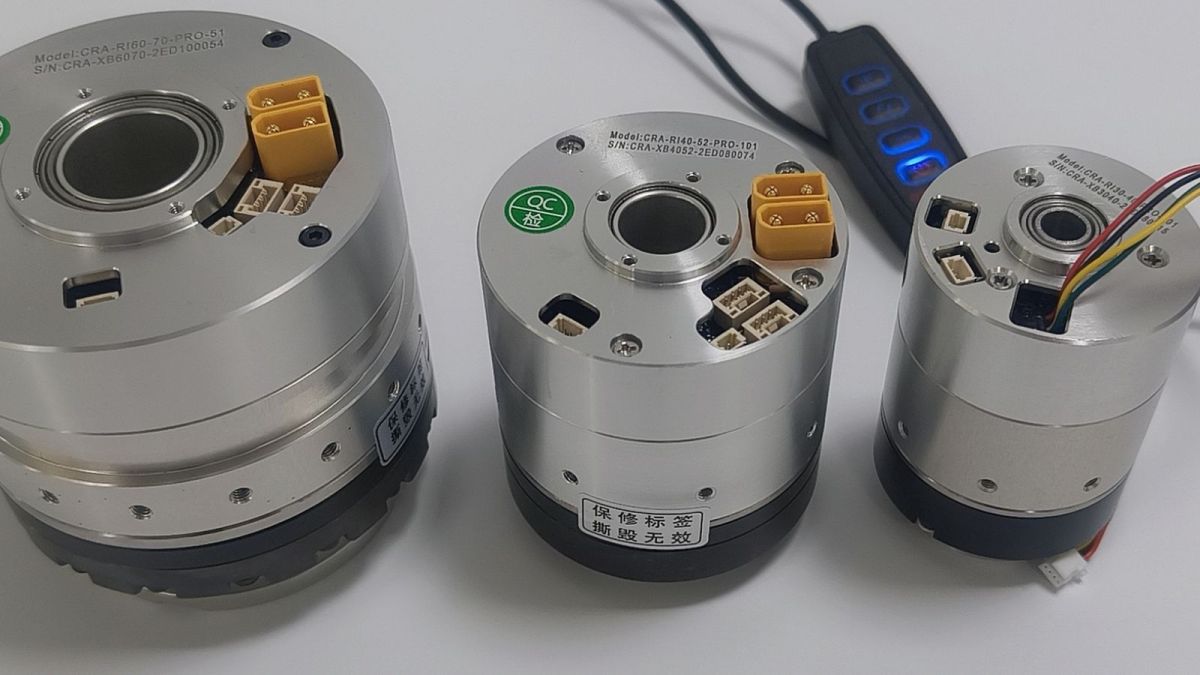

Hollow Shaft Design for Simplified Cable Routing

Modern humanoid robots and industrial robots often contain dozens of moving joints that require power cables, communication lines, pneumatic tubes, or optical fibers to pass through the actuator. The hollow shaft design of a Harmonic Drive Actuator enables internal cable routing, improving reliability, reducing cable interference, simplifying robot assembly, and supporting more compact, biomimetic robot designs.

Faster Assembly and Shorter Time-to-Market

Factory-integrated Harmonic Drive Actuators eliminate much of the engineering work associated with selecting compatible components, mechanical assembly, wiring, testing, and commissioning. This significantly shortens product development cycles, reduces engineering risks, and enables faster production scaling, helping manufacturers accelerate robot development and reduce time-to-market.

High-Precision Motion Control

Even a small positioning error at a single robot joint can accumulate across multiple axes, causing the end effector to deviate by several millimeters. Such errors directly affect welding quality, assembly accuracy, visual inspection, engraving, material handling, and precision automation. By integrating a precision harmonic drive reducer with a frameless torque motor and high-resolution encoder, HONPINE Harmonic Drive Actuators deliver the positioning accuracy and repeatability required for demanding multi-axis robotic applications.

Improved Reliability and Production Consistency

Beyond simplifying machine design, integrated Harmonic Drive Actuators also address common industry challenges such as thermal management, long-term reliability, lifetime consistency, and batch-to-batch quality control. Every HONPINE actuator is validated using professional laboratory equipment before shipment, ensuring that prototype performance can be consistently replicated across small production runs or high-volume manufacturing.
