Direct Drive Actuator vs Precision Rotary Actuator vs Harmonic Reducer: Complete Comparison Guide

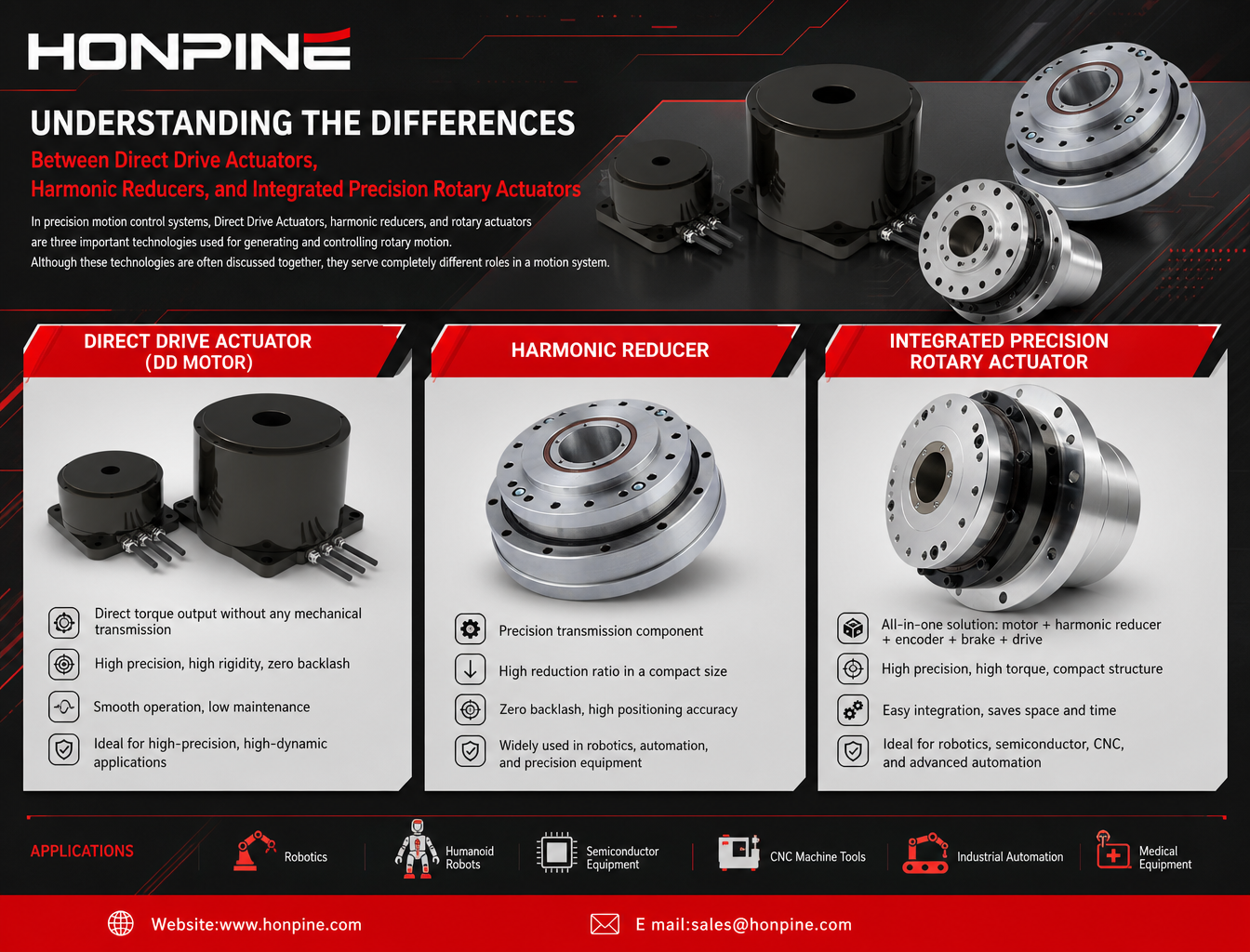

Understanding the Differences Between Direct Drive Actuators, Harmonic Reducers, and Integrated Precision Rotary Actuators

In precision motion control systems, Direct Drive Actuators, harmonic reducers, and rotary actuators are three important technologies used for generating and controlling rotary motion.

Although these technologies are often discussed together, they serve completely different roles in a motion system.

A harmonic reducer is a precision transmission component commonly used inside many rotary actuators. A Direct Drive Actuator (DD Motor) provides rotary motion through direct torque transmission without a mechanical reduction mechanism. Meanwhile, a harmonic rotary actuator is an integrated motion module that combines a motor, harmonic reducer, encoder, brake, and control components into a complete rotary drive solution.

Understanding the differences between these technologies is essential when selecting the right motion solution for:

• Robotics

• Humanoid robots

• Semiconductor equipment

• CNC machine tools

• Industrial automation

• Medical equipment

Different Positions in a Motion System

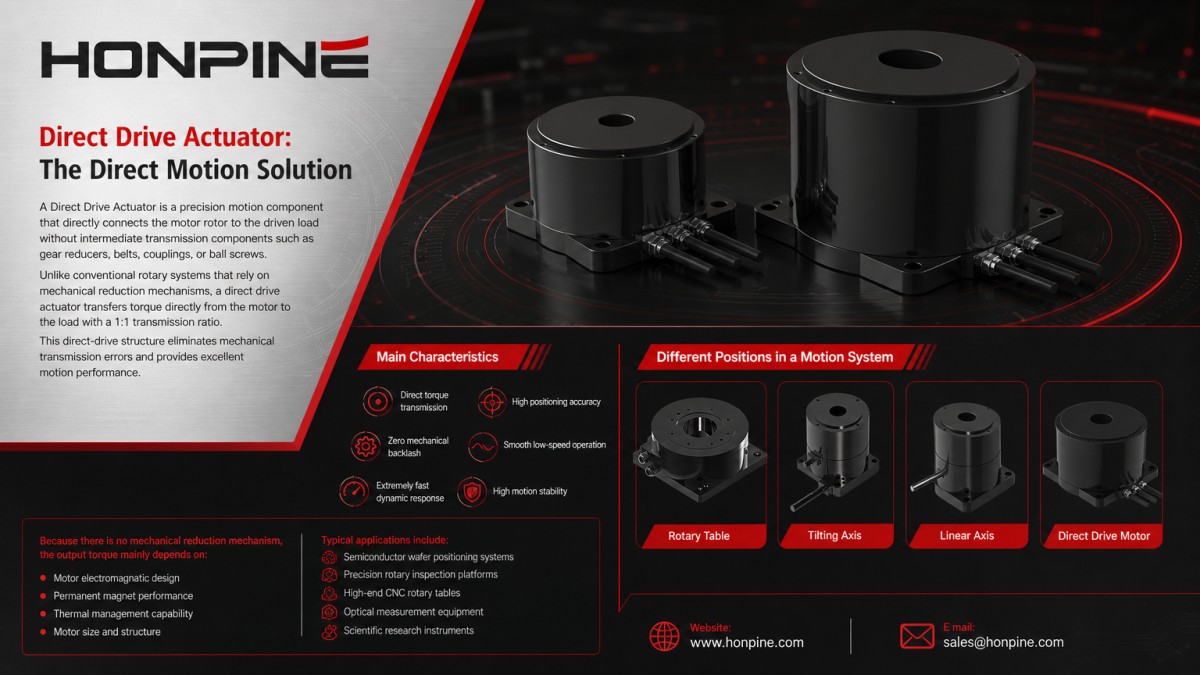

Direct Drive Actuator: The Direct Motion Solution

A Direct Drive Actuator is a precision motion component that directly connects the motor rotor to the driven load without intermediate transmission components such as gear reducers, belts, couplings, or ball screws.

Unlike conventional rotary systems that rely on mechanical reduction mechanisms, a direct drive actuator transfers torque directly from the motor to the load with a 1:1 transmission ratio.

This direct-drive structure eliminates mechanical transmission errors and provides excellent motion performance.

The main characteristics of direct drive actuators include:

• Direct torque transmission

• Zero mechanical backlash

• Extremely fast dynamic response

• High positioning accuracy

• Smooth low-speed operation

• High motion stability

Because there is no mechanical reduction mechanism, the output torque mainly depends on:

• Motor electromagnetic design

• Permanent magnet performance

• Thermal management capability

• Motor size and structure

Direct drive actuators are especially suitable for applications requiring extreme precision and rapid response.

Typical applications include:

• Semiconductor wafer positioning systems

• Precision rotary inspection platforms

• High-end CNC rotary tables

• Optical measurement equipment

• Scientific research instruments

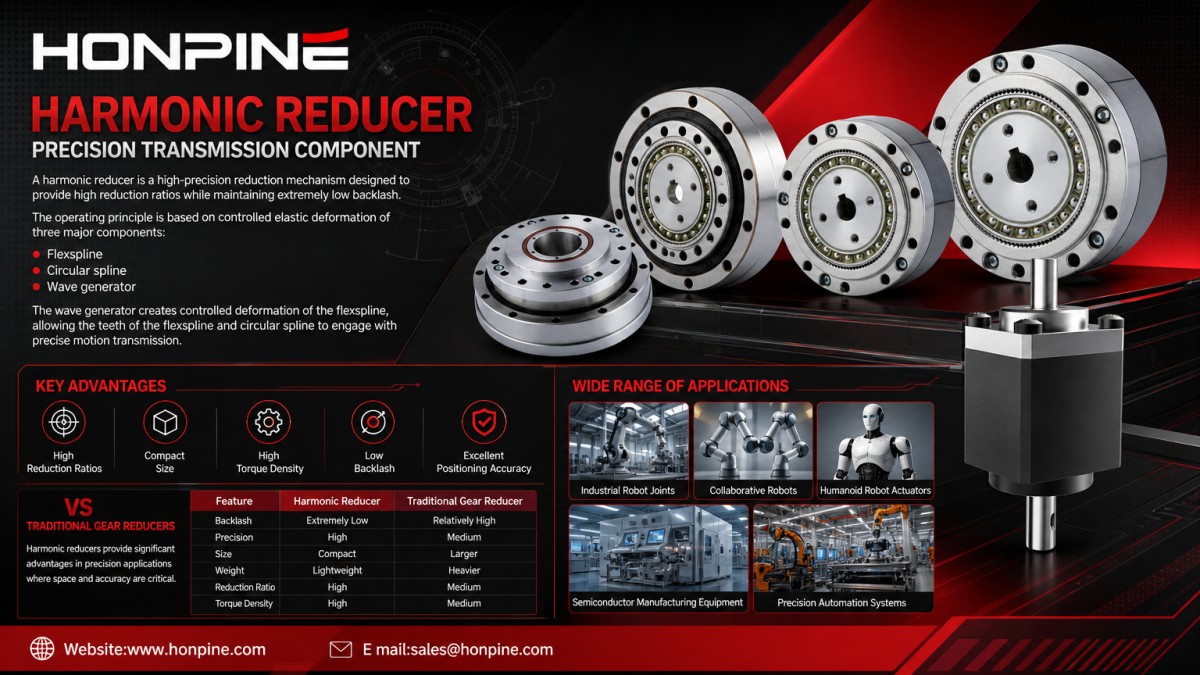

Harmonic Reducer: Precision Transmission Component

A harmonic reducer is a high-precision reduction mechanism designed to provide high reduction ratios while maintaining extremely low backlash.

The operating principle is based on controlled elastic deformation of three major components:

• Flexspline

• Circular spline

• Wave generator

The wave generator creates controlled deformation of the flexspline, allowing the teeth of the flexspline and circular spline to engage with precise motion transmission.

This unique mechanism enables harmonic reducers to achieve:

• High reduction ratios

• Compact size

• High torque density

• Low backlash

• Excellent positioning accuracy

Compared with traditional gear reducers, harmonic reducers provide significant advantages in precision applications where space and accuracy are critical.

Common applications include:

• Industrial robot joints

• Collaborative robots

• Humanoid robot actuators

• Semiconductor manufacturing equipment

• Precision automation systems

Rotary Actuator: Integrated Motion Module

A rotary actuator is a complete motion component designed to provide controlled rotary output.

Unlike a single motor or reducer, a rotary actuator integrates multiple components into one compact module.

A typical rotary actuator may include:

• Motor

• Reducer

• Encoder

• Brake

• Servo drive

• Communication interface

A harmonic rotary actuator combines a harmonic reducer with a motor and control components to create a compact, ready-to-install motion solution.

This integrated design provides several advantages:

• Simplified mechanical design

• Reduced wiring complexity

• Faster installation

• Improved system reliability

• Easier maintenance

For robotics and automation applications, integrated rotary actuators reduce development time and allow engineers to focus on overall system performance.

Direct Drive Actuator vs Harmonic Reducer vs Rotary Actuator Comparison

How to Choose Between Direct Drive Actuator, Harmonic Reducer, and Rotary Actuator?

The correct choice depends on the application's requirements, including:

• Required accuracy

• Output torque

• Response speed

• Installation space

• Control requirements

• Operating environment

Different technologies provide different advantages.

Direct Drive Actuator: The Ultimate Solution for Extreme Precision and Speed

Direct drive actuators are designed for applications where maximum dynamic performance and positioning accuracy are required.

Since there is no mechanical transmission system, direct drive actuators provide:

• Direct torque control

• Ultra-fast response

• Zero backlash

• Excellent motion smoothness

• High positioning stability

Typical applications include:

• Semiconductor wafer stages

• Precision optical inspection platforms

• Ultra-high precision rotary tables

• Advanced scientific instruments

For example, next-generation semiconductor lithography systems require extremely accurate wafer positioning and rapid switching between high-speed positioning and ultra-low-speed scanning operations.

Direct drive actuator technology provides the response speed and positioning accuracy required for these demanding applications.

Future Applications of Direct Drive Actuators

Next-Generation Semiconductor Lithography Systems

Semiconductor manufacturing requires increasingly precise wafer positioning technology.

Future lithography equipment will demand motion systems capable of:

• High-speed positioning

• Ultra-low vibration operation

• Extremely accurate scanning movement

• Long-term positioning stability

Direct drive actuators are highly suitable for these applications because they eliminate mechanical transmission errors and provide direct, precise motion control.

Space Optical Systems and Precision Pointing Mechanisms

Space applications require motion components with:

• High reliability

• Long service life

• Low maintenance requirements

• Stable precision performance

Because direct drive actuators do not rely on mechanical gears or traditional lubrication systems, they offer advantages in applications such as:

• Space optical instruments

• Satellite pointing mechanisms

• Precision aerospace equipment

Ultra-Precision CNC Machine Tools

As manufacturing requirements continue moving toward higher accuracy, advanced CNC machines require more precise rotary motion systems.

Direct drive actuators can support:

• Precision rotary axes

• High-speed machining

• Optical component manufacturing

• Ultra-precision mold processing

By eliminating transmission errors, direct drive technology helps improve:

• Machining accuracy

• Surface quality

• Rotary positioning performance
