What Is the Difference Between a Harmonic Drive Reducer and a Harmonic Rotary Actuator?

A Harmonic Drive Reducer is a precision transmission component that provides high reduction ratios, near-zero backlash, and exceptional torsional stiffness. It is one of the core mechanical elements used in industrial robots, semiconductor equipment, medical devices, and precision automation systems.

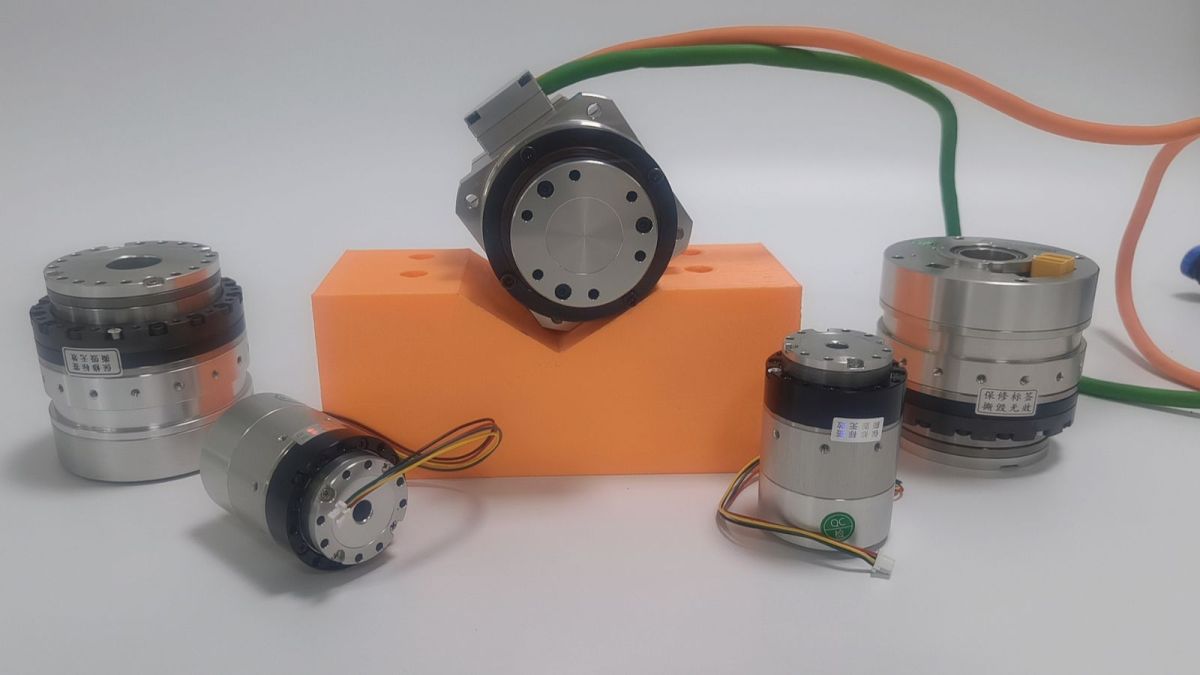

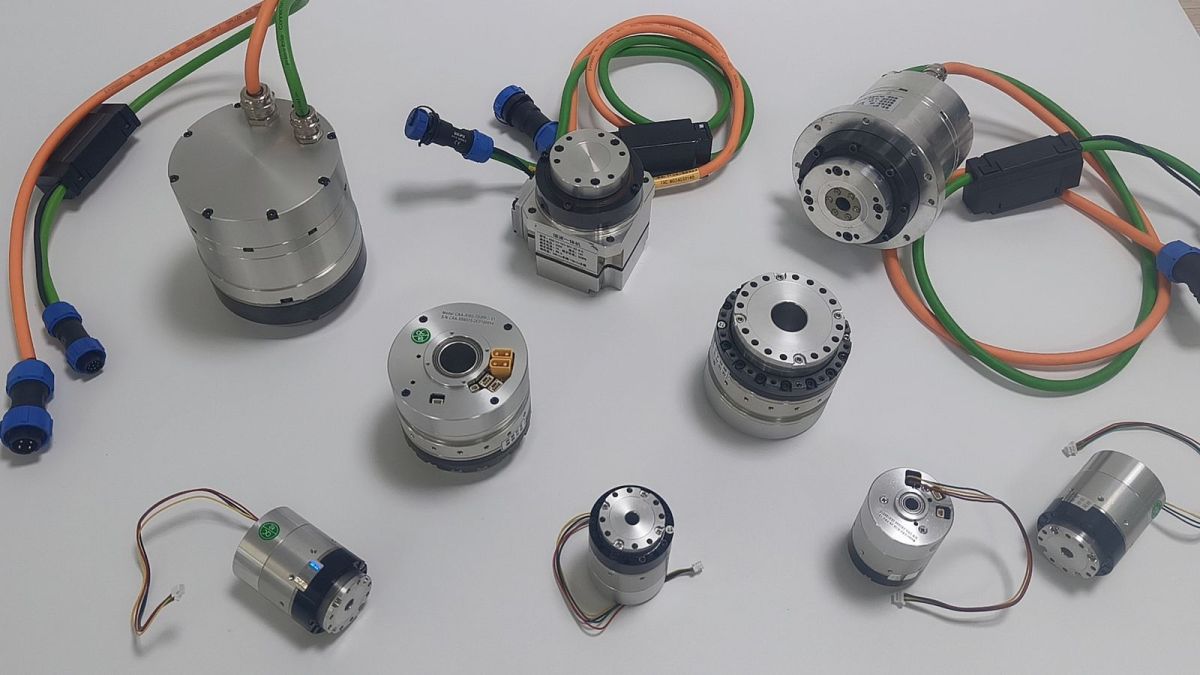

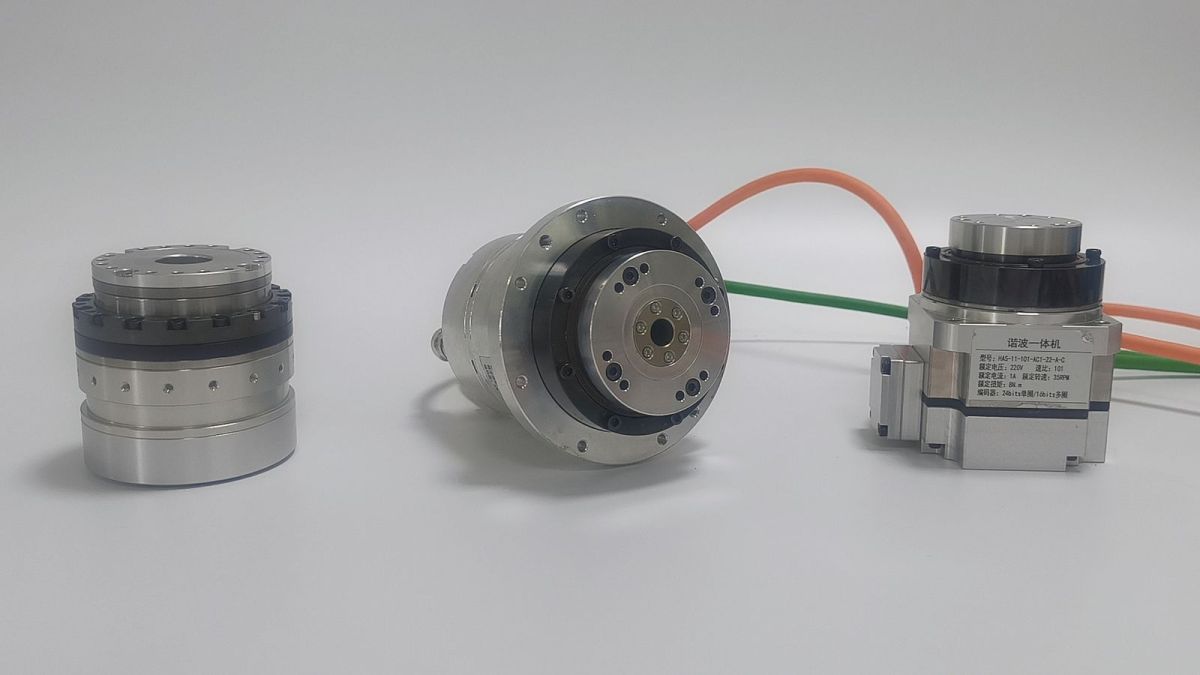

A Harmonic Rotary Actuator is a complete rotary motion solution that integrates a frameless torque motor, harmonic drive reducer, encoder, brake, bearings, and servo electronics into a compact module. Rather than being a single transmission component, it is a fully integrated actuator designed for precise motion control and simplified machine integration.

In short, a harmonic drive reducer provides precision transmission, while a harmonic rotary actuator delivers complete rotary motion.

What Are the Advantages and Limitations of a Harmonic Drive Reducer?

Advantages

• Near-zero backlash for highly precise motion transmission.

• High reduction ratios in a compact, lightweight design.

• Excellent torque density for space-constrained robotic applications.

• High torsional stiffness for accurate motion control.

Limitations

• The flexspline is more sensitive to shock loading than planetary gear systems.

• Mechanical transmission efficiency is generally lower than planetary reducers.

• Long-term cyclic deformation of the flexspline may gradually increase lost motion over extended service life.

• Precision manufacturing results in relatively higher production costs.

What Are the Advantages and Limitations of a Harmonic Rotary Actuator?

Advantages

Integrates the motor, harmonic reducer, encoder, brake, bearings, and servo drive into a single compact unit.

Reduces machine design complexity and installation time.

Factory-matched components improve reliability and motion performance.

Delivers high positioning accuracy, compact size, and high torque density.

Simplifies wiring, commissioning, and maintenance

Limitations

Maximum output speed is limited by the selected reduction ratio.

Overall performance depends on the quality of the integrated harmonic drive reducer and servo system.

Initial investment is generally higher than purchasing individual components separately.

Should You Choose a Harmonic Drive Reducer or a Harmonic Rotary Actuator?

Neither product replaces the other.

A harmonic drive reducer is a precision transmission component.

A harmonic rotary actuator is a complete motion system built around that transmission component.

If your machine manufacturer develops its own servo system, motor selection, encoder integration, and mechanical assembly, purchasing a harmonic drive reducer may be the best choice.

If you want to shorten development time, simplify assembly, reduce engineering risk, and obtain a ready-to-install motion solution, a harmonic rotary actuator is usually the better option.

Why Choose HONPINE Harmonic Rotary Actuators?

HONPINE combines precision harmonic drive technology with integrated servo motion control to deliver compact, high-performance Harmonic Rotary Actuators for robotics and industrial automation.

Each actuator integrates a frameless torque motor, precision harmonic drive reducer, absolute encoder, precision bearings, brake, and servo electronics into a single module. Every published specification—including torque output, transmission efficiency, positioning accuracy, repeatability, and angular transmission accuracy—is verified through laboratory testing using high-precision power analyzers and laser interferometers. By combining the precision of harmonic drive technology with the convenience of an integrated actuator, HONPINE provides a reliable motion solution for humanoid robots, collaborative robots, semiconductor equipment, medical automation, and other demanding precision applications.
