12 Tips for Choosing the Right CNC Rotary Table Transmission: Harmonic Reducer, Harmonic Rotary Actuator, DD Motor and Planetary Reducer

Introduction

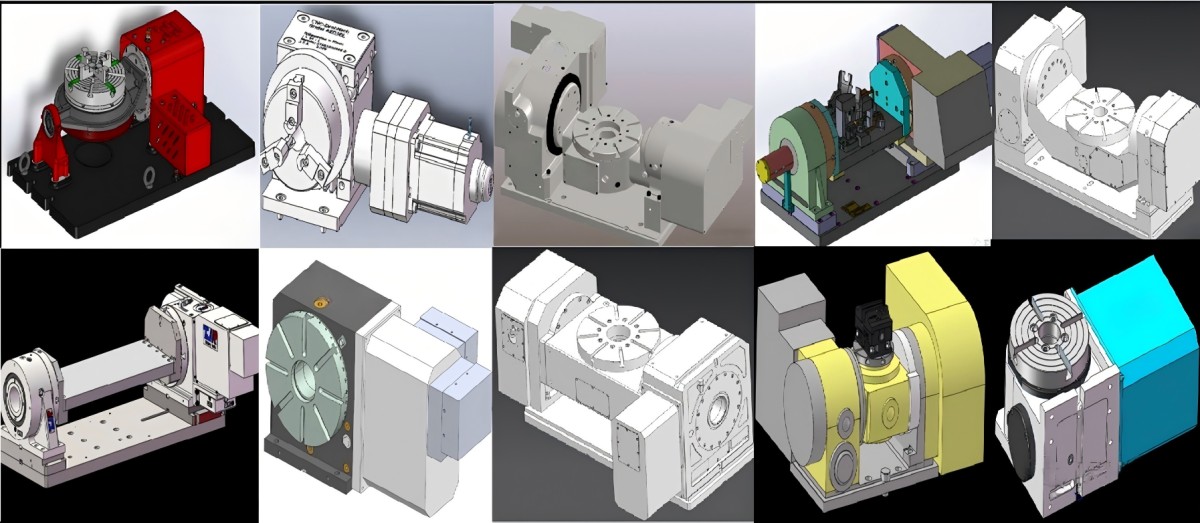

There is no single transmission technology that is suitable for every CNC rotary table. Worm gears, roller cam mechanisms, harmonic reducers, RV reducers, planetary reducers and direct-drive motors all have their own advantages and application boundaries.

For machine tool manufacturers, the more important question is not which technology is simply “better,” but which transmission architecture best matches the load, speed, accuracy, rigidity, installation space and operating conditions of the rotary axis.

A harmonic reducer can provide low backlash, a high reduction ratio and a compact structure, but it is not necessarily the best solution for every heavy-duty cutting application. A harmonic rotary actuator can simplify mechanical integration, but its integrated design also requires consideration of serviceability and thermal management. A DD motor eliminates the conventional mechanical reduction stage and can provide excellent dynamic response, but motor dimensions, continuous torque and heat generation need to be carefully evaluated.

This guide explains 12 important factors for selecting a CNC rotary table transmission, with a focus on harmonic reducers, harmonic rotary actuators, DD motors, RV reducers and planetary reducers.

1. Define the Accuracy Requirements of Your CNC Rotary Table Transmission

The first step in selecting a CNC rotary table transmission is to define the actual accuracy requirements of the rotary axis.

Positioning accuracy and repeatability are important, but they are not the only factors. Engineers also need to consider backlash, torsional rigidity, bearing accuracy, encoder resolution, structural deformation and thermal stability.

For example, a rotary table may use a low-backlash harmonic reducer, but if the bearing arrangement or mechanical structure lacks sufficient rigidity, the final system accuracy can still be limited.

This means that the transmission should be evaluated as part of the complete rotary-axis system rather than as an isolated component.

For precision CNC machining, the relationship between the transmission, encoder, spindle, bearings and control system is particularly important.

2. Consider Backlash When Choosing a CNC Rotary Table Transmission

Backlash can have a direct influence on rotary-axis positioning, particularly when the axis frequently changes direction.

When a rotary table reverses its direction, mechanical clearance within the transmission can contribute to positioning errors. This is one reason low-backlash transmission technologies are attractive for precision CNC applications.

Harmonic reducers are well known for their low-backlash characteristics and can therefore be considered when angular positioning accuracy is an important requirement.

However, low backlash does not automatically mean that the entire rotary axis will achieve high positioning accuracy.

Encoder resolution, bearing clearance, structural rigidity, machining tolerances and servo control performance all influence the final result.

For this reason, engineers should evaluate the complete mechanical and control architecture instead of selecting a transmission based on backlash alone.

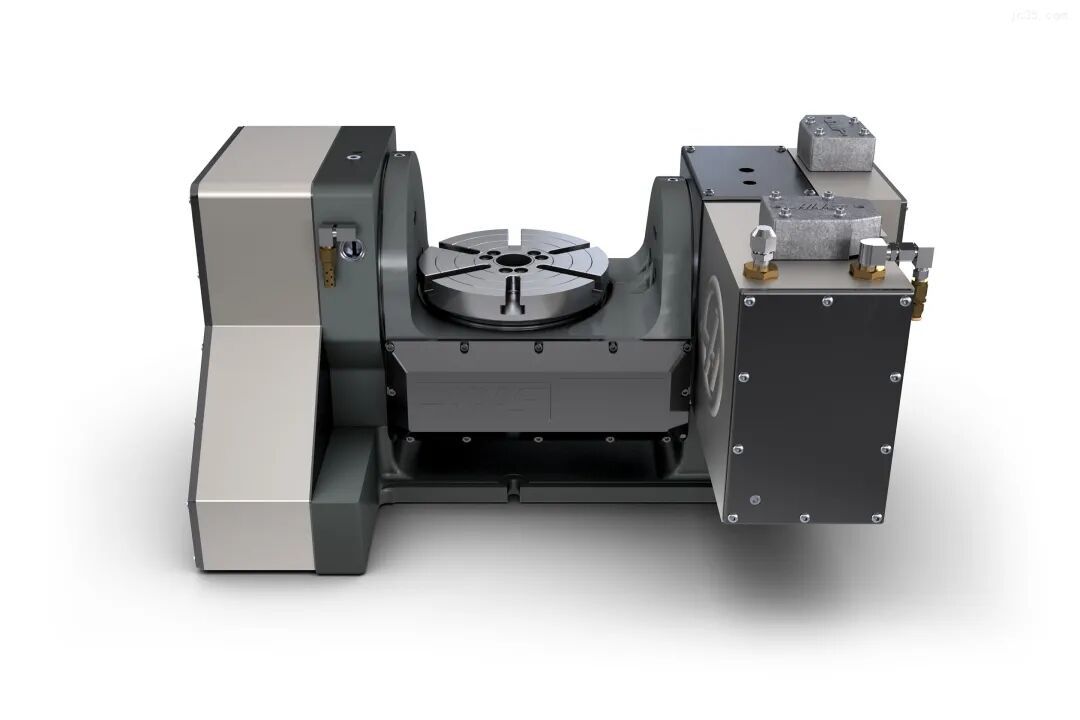

3. Choose a Harmonic Reducer for Compact, Low-Backlash CNC Rotary Table Transmission

A harmonic reducer can be a strong option when a CNC rotary axis requires a combination of compact dimensions, high reduction ratio and low backlash.

Compared with many conventional reduction mechanisms, harmonic transmission can achieve a relatively high reduction ratio in a compact package.

This allows a servo motor to operate at a higher input speed while the reducer converts the speed and torque to levels suitable for the rotary axis.

The compact structure is particularly useful for CNC equipment where installation space is limited.

Harmonic reducers can also be attractive for precision rotary mechanisms used in electronic manufacturing equipment, inspection systems, laser processing equipment and compact machining systems.

However, engineers should not assume that a harmonic reducer is automatically the best choice for heavy-duty machining.

Applications involving severe shock loads, high cutting forces or extremely high rigidity requirements need to be evaluated based on the actual load conditions, torsional rigidity, bearing capacity and peak torque requirements.

The more accurate conclusion is that harmonic reducers are particularly attractive when low backlash, compactness and high reduction ratios are important design requirements.

4. Consider Reduction Ratio and Output Torque in Harmonic CNC Rotary Table Transmission

Reduction ratio is another important factor when selecting a harmonic reducer for a CNC rotary table.

A high reduction ratio allows the motor to operate at a higher speed while providing lower rotational speed and higher torque at the output.

However, the required reduction ratio should not be selected independently from the motor, load inertia and required rotary speed.

A ratio that is too high may limit the maximum output speed, while an inappropriate motor and reducer combination can affect acceleration and dynamic response.

Engineers should therefore consider the complete relationship between motor speed, reduction ratio, output torque, load inertia and required rotary-axis speed.

Peak torque is also important.

CNC rotary tables may experience short periods of higher torque during acceleration, deceleration or machining. The selected harmonic reducer therefore needs to be evaluated against both continuous and peak operating conditions.

This is particularly important when the rotary table carries a large workpiece or operates with frequent acceleration and deceleration.

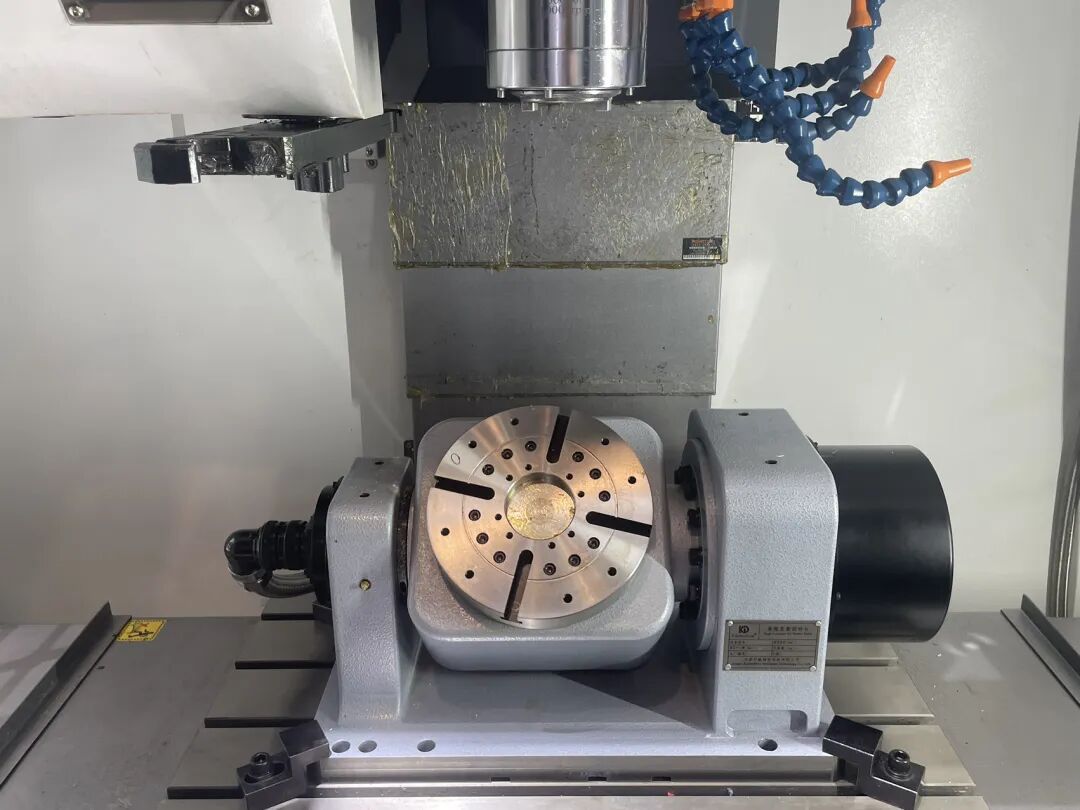

5. Choose a Harmonic Rotary Actuator for Integrated CNC Rotary Table Transmission

A harmonic rotary actuator takes the concept of harmonic transmission further by integrating multiple drive components into a compact rotary module.

A conventional rotary axis may require separate selection and integration of the servo motor, reducer, encoder, bearing and housing.

An integrated harmonic rotary actuator can simplify this architecture and reduce the amount of mechanical integration required from the machine builder.

For equipment manufacturers, this can shorten development time and reduce the number of mechanical interfaces that need to be designed and assembled.

Harmonic rotary actuators can be particularly attractive for compact CNC rotary axes, precision rotary equipment, inspection machines, laser processing equipment and automated manufacturing systems.

The integrated structure can also help reduce installation space, which is valuable when the machine has strict dimensional constraints.

However, integration also introduces considerations that should not be ignored.

Machine builders should evaluate module serviceability, encoder configuration, bearing life, thermal management and replacement requirements before selecting an integrated actuator.

In other words, a harmonic rotary actuator is not automatically better than a conventional motor and reducer combination. Its main advantage is that it can simplify mechanical integration when compactness and modularity are important design requirements.

6. Evaluate Integration and Installation Space in CNC Rotary Table Transmission

Installation space can have a significant influence on the transmission architecture of a CNC rotary table.

Traditional motor and reducer combinations may require additional couplings, mounting structures and mechanical interfaces.

In compact equipment, these components can increase the overall dimensions of the rotary axis.

A harmonic rotary actuator can reduce the number of separate components and provide a more integrated mechanical solution.

This can be especially useful for compact multi-axis equipment where several rotary mechanisms need to be installed within a limited machine envelope.

However, a smaller mechanical package should not be evaluated only by external dimensions.

The engineer also needs to consider heat dissipation, bearing capacity, encoder installation, cable routing and maintenance access.

A compact rotary-axis design is successful only when these factors are considered together.

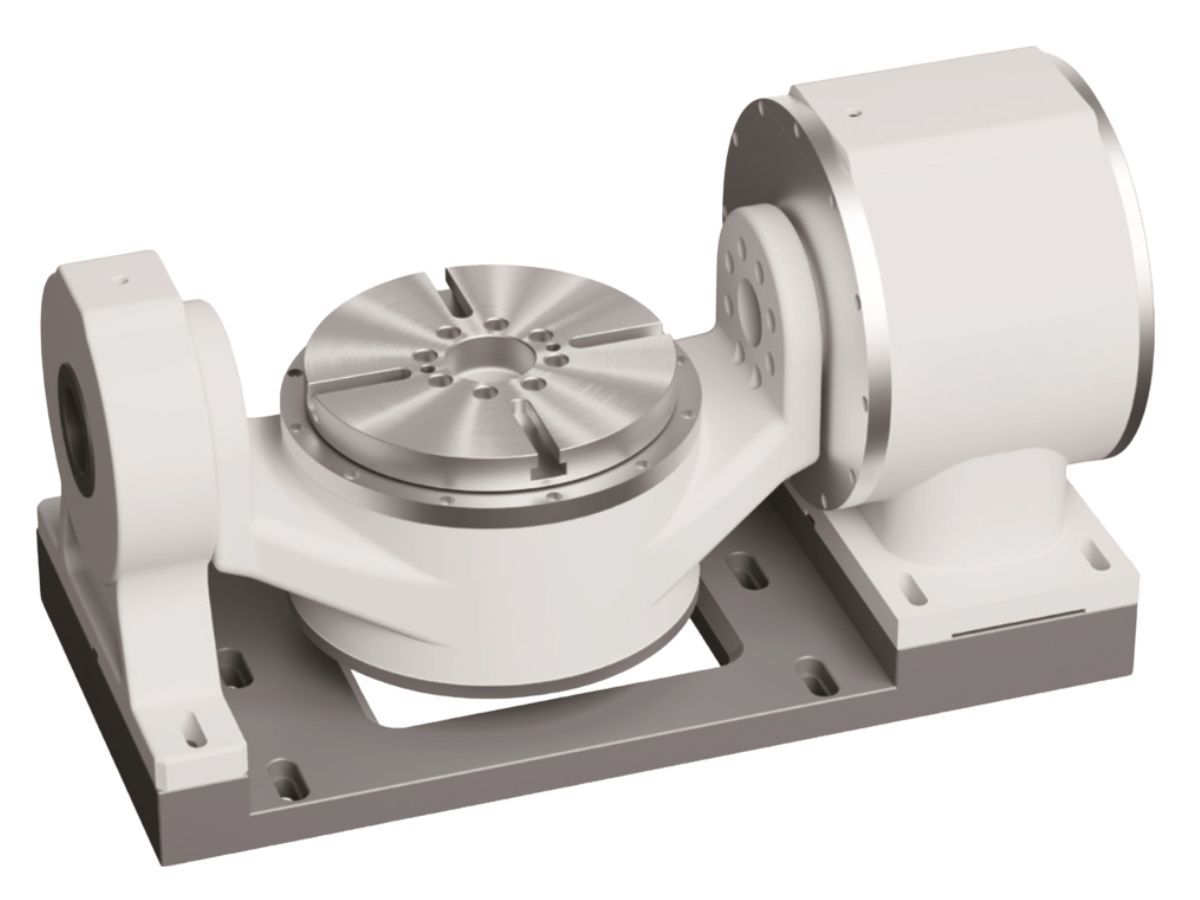

7. Choose a DD Motor for High-Speed CNC Rotary Table Transmission

A DD motor, or direct-drive motor, uses a fundamentally different transmission architecture from a reducer-based system.

Instead of using a servo motor and mechanical reducer, the motor directly drives the rotary load.

One of the most obvious advantages is the elimination of the conventional mechanical reduction stage.

This reduces the number of mechanical transmission components and avoids gear backlash associated with conventional reduction mechanisms.

DD motors can therefore provide excellent dynamic response and are particularly attractive for applications involving continuous rotation, rapid acceleration and deceleration, and high-speed operation.

They can be considered for high-speed CNC rotary tables, five-axis machining systems and other precision rotary applications where dynamic response is important.

However, direct drive also means that the motor itself must provide the required output torque.

This makes motor diameter, torque density, bearing capacity and thermal performance important design factors.

8. Consider Dynamic Response When Selecting DD Motor CNC Rotary Table Transmission

Dynamic response is one of the most important reasons to consider a DD motor for a CNC rotary axis.

When the rotary table needs to accelerate and decelerate frequently, the reduction of mechanical transmission components can provide a very direct response between the motor and the load.

This can be beneficial for simultaneous five-axis machining and other applications where the rotary axis is continuously changing speed and position.

A DD motor can also be attractive for continuous rotary motion because there is no conventional mechanical reduction stage between the motor and the load.

However, direct drive does not eliminate all system limitations.

The motor must provide sufficient continuous torque and peak torque, while the rotary structure must be capable of handling the load and maintaining thermal stability.

Heat generation can become particularly important during continuous operation.

For high-precision machining, thermal expansion of the motor and surrounding mechanical structure can influence positioning accuracy.

Therefore, engineers should evaluate dynamic response together with continuous torque, peak torque, thermal management and structural rigidity.

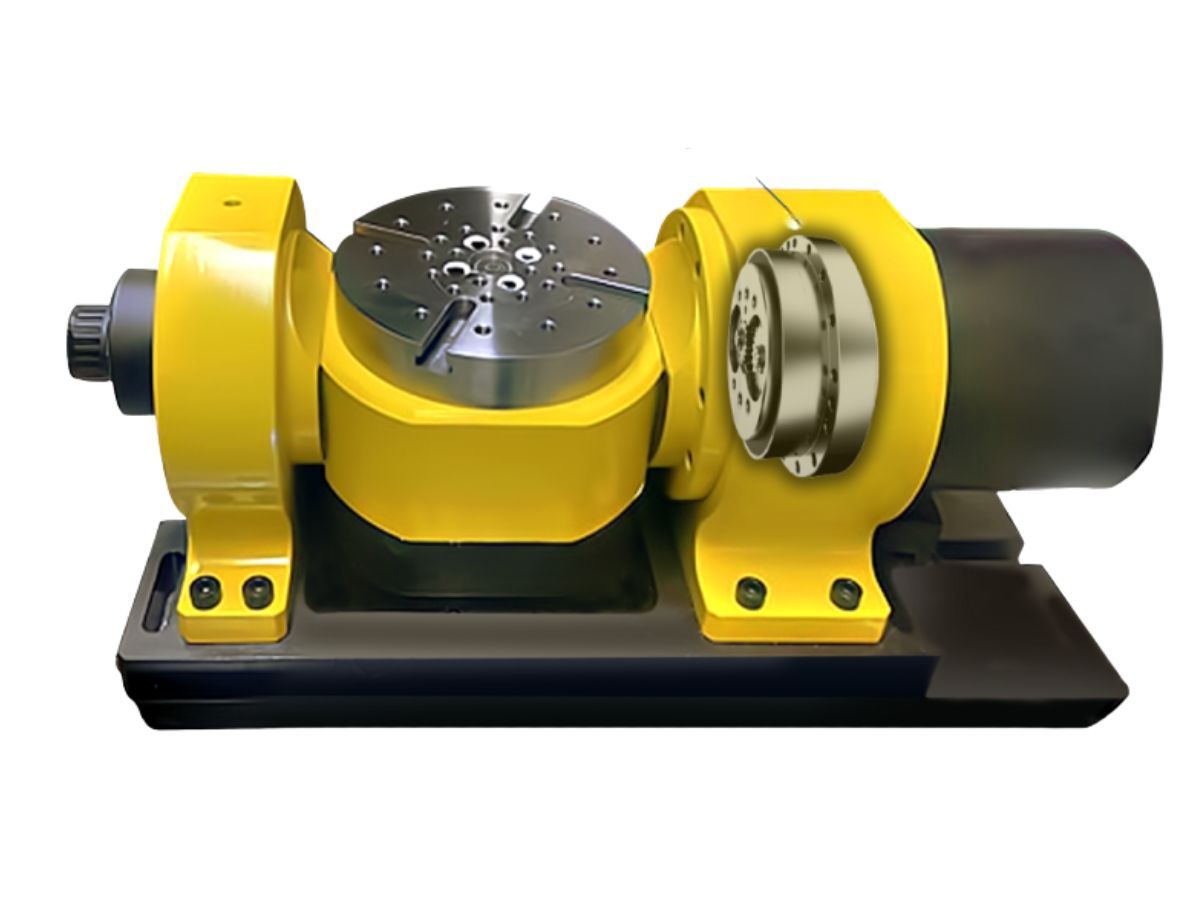

9. Consider an RV Reducer for Heavy-Duty CNC Rotary Table Transmission

Harmonic reducers should not be presented as a universal replacement for RV reducers.

RV reducers can be particularly attractive when the rotary axis needs high rigidity, high torque and resistance to shock loads.

For large CNC rotary tables carrying heavy workpieces, cutting forces and load inertia can become major design considerations.

In such cases, rigidity may be more important than achieving the smallest possible transmission package.

An RV reducer can therefore be a practical option for heavy-duty machining applications where the rotary axis must withstand significant mechanical loads.

This does not mean that RV reducers are always superior.

They generally involve a different mechanical architecture and may have different requirements in terms of size, weight and system integration.

The appropriate choice depends on the actual application.

When compactness, low backlash and high reduction ratio are the dominant requirements, a harmonic reducer may be more attractive.

When heavy loads, high rigidity and shock resistance dominate, an RV reducer may be more appropriate.

10. Consider a Planetary Reducer for High-Speed Servo CNC Rotary Table Transmission

Planetary reducers provide another practical option for CNC rotary-axis applications.

Their main advantages include high input speed, good efficiency, flexible reduction ratios and high power density.

These characteristics make planetary reducers suitable for various high-speed servo systems and automated rotary mechanisms.

Compared with harmonic reducers, however, planetary reducers should not simply be described as a higher-speed or better alternative.

Backlash, efficiency, rigidity and service life depend on the specific design, gear stages, load conditions and product specifications.

A planetary reducer can be particularly attractive when high input speed and efficiency are important, while extremely low backlash is not the primary design requirement.

For machine builders, this makes planetary transmission another option that can be evaluated according to the actual operating conditions of the CNC rotary axis.

11. Evaluate Encoder Feedback, Thermal Stability and Rigidity in CNC Rotary Table Transmission

A precision CNC rotary table is more than a motor and transmission.

Encoder feedback, thermal stability and mechanical rigidity can have a significant impact on the final performance of the rotary axis.

An encoder provides position feedback to the control system. Its resolution and installation position can affect the accuracy and response of the system.

Thermal stability is equally important.

Continuous motor operation, friction and machining heat can cause temperature changes within the rotary structure. Thermal expansion may then introduce positioning errors.

Mechanical rigidity is another critical factor.

Even when the transmission itself has low backlash, deformation of the housing, bearings, spindle or machine structure can influence the final position of the workpiece.

For this reason, machine builders should evaluate the complete system, including the transmission, motor, encoder, bearings, spindle, housing and control system.

This system-level approach is particularly important when designing precision CNC rotary axes.

12. Select the Complete CNC Rotary Table Transmission System, Not Just One Component

The final transmission selection should be based on the complete operating requirements of the CNC rotary table.

A harmonic reducer may be suitable when low backlash, compact dimensions and a high reduction ratio are required.

A harmonic rotary actuator may be more attractive when the machine builder wants a compact and highly integrated rotary module.

A DD motor may be preferable when high dynamic response and continuous direct rotation are important.

An RV reducer may be more appropriate for heavy-duty applications requiring high rigidity and shock-load resistance.

A planetary reducer can be considered for high-speed servo applications where efficiency and input speed are important.

The key point is that these technologies should not be evaluated in isolation.

The performance of a CNC rotary axis is determined by the interaction between the motor, transmission, encoder, bearing, spindle, mechanical structure, controller and actual machining conditions.

For this reason, the best CNC rotary table transmission is not necessarily the one with the highest specification in one category. It is the one that provides the most appropriate combination of torque, speed, accuracy, rigidity, thermal stability, integration and service life for the application.

Conclusion

Choosing a CNC rotary table transmission requires more than comparing rated torque or backlash.

Harmonic reducers are particularly attractive for compact precision rotary axes that require low backlash and high reduction ratios, although heavy shock loads and extreme rigidity requirements need to be carefully evaluated.

Harmonic rotary actuators can simplify mechanical integration and reduce installation space, but machine builders should also consider serviceability, thermal management and long-term maintenance.

DD motors provide direct drive and excellent dynamic response, making them suitable for high-speed and continuous rotary applications, while motor dimensions, continuous torque and thermal performance remain important considerations.

RV reducers continue to be valuable for heavy-duty applications where rigidity, torque and shock-load resistance are priorities. Planetary reducers can provide a practical solution for high-speed servo systems where efficiency and flexible reduction ratios are important.

For CNC machine builders, the right approach is not to ask which transmission technology is universally the best. The more useful question is:

Which CNC rotary table transmission best matches the actual requirements of the rotary axis?

When the application requires a combination of high precision, low backlash, compact dimensions, high dynamic response and system integration, HONPINE's harmonic reducers, harmonic rotary actuators, DD motors and planetary reducers provide different options for building precision rotary motion systems.
