Why Are Harmonic Drive Reducers the Core Component of Modern Robots?

As the core transmission component inside robotic joints, the design, manufacturing quality, and selection of a harmonic drive reducer directly determine a robot's motion accuracy, reliability, and service life. Whether in industrial robots, collaborative robots, or next-generation humanoid robots, harmonic drives have become one of the most critical enabling technologies for high-performance motion control.

This article explains why harmonic drive reducers are indispensable in robotics, how they work, the key design parameters engineers should understand, and how to select the right reducer for different robotic applications.

Why Is the Harmonic Drive Reducer the Precision Power Transmission Hub of a Robot?

The primary function of a harmonic drive reducer is to convert high-speed, low-torque rotation from a servo motor into low-speed, high-torque output while maintaining virtually zero backlash within an extremely compact installation space.

Its performance directly influences several key robot characteristics, including:

• Repeat positioning accuracy

• Joint torque density

• Dynamic response

• Motion smoothness

• Payload capacity

For advanced robotic systems such as humanoid robots and collaborative robots, the performance of the harmonic drive often represents the technological boundary between premium and conventional robotic platforms.

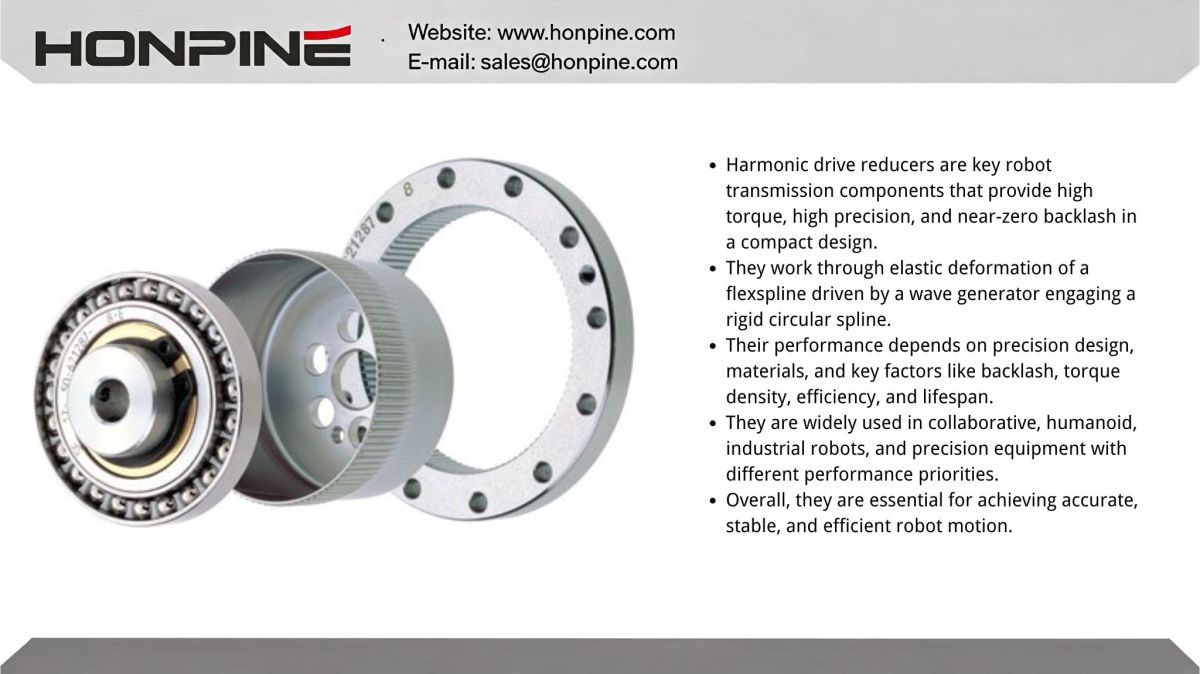

Understanding the Structure of a Harmonic Drive Reducer

A harmonic drive reducer consists of three essential components:

• Wave Generator

• Flexspline

• Circular Spline

The design precision and manufacturing accuracy of these components largely determine transmission performance.

Wave Generator (Input Component)

The wave generator consists of an elliptical cam and a flexible bearing.

The most critical engineering considerations include:

• Cam profile accuracy

• Flexible bearing fatigue life

The cam profile is typically designed using involute or smooth arc transitions, with ellipticity tolerances controlled within approximately ±0.002 mm. Larger deviations can cause uneven loading on the flexspline, accelerating localized wear.

Flexible bearings are usually manufactured from high-strength bearing steels such as GCr15SiMn, offering excellent wear resistance and fatigue performance.

Grease lubrication is generally preferred for sealed robotic joints, and the bearing speed rating must match the rated speed of the servo motor to prevent overheating during high-speed operation.

Flexspline (Core Transmission Component)

The flexspline is a thin-walled elastic gear with a wall thickness typically ranging from 0.3 mm to 1 mm.

It is both the most critical and the most fatigue-sensitive component of the reducer.

Key design considerations include:

• Tooth profile optimization

• Uniform wall thickness

• Material selection

• Fatigue resistance

Most manufacturers adopt modified involute tooth profiles to reduce meshing impact, minimize noise, increase tooth contact area, and improve torque capacity.

Wall thickness tolerance is generally maintained within ±0.005 mm. Larger variations may increase backlash and reduce positioning accuracy.

Circular Spline (Fixed or Output Component)

The circular spline is a rigid internal gear containing exactly two more teeth than the flexspline.

Its manufacturing accuracy is equally important.

Typical engineering requirements include:

• Roundness tolerance ≤0.003 mm

• Cumulative pitch error ≤±5 arc-seconds

The circular spline is normally mounted using an interference fit to eliminate movement during operation.

Gear mesh clearance is carefully controlled between 0.001 mm and 0.003 mm.

Excessive clearance increases backlash, while insufficient clearance accelerates wear and increases operating noise.

How Does a Harmonic Drive Reducer Work?

The operating principle is based on controlled elastic deformation.

The process follows four steps:

• The wave generator rotates.

• The wave generator elastically deforms the flexspline into an elliptical shape.

• Teeth engage along the major axis while disengaging along the minor axis.

• Because the circular spline contains two more teeth than the flexspline, continuous rotation produces a large speed reduction and torque multiplication.

The reduction ratio is approximately:

Reduction Ratio = Number of Flexspline Teeth ÷ 2

The primary engineering challenge is balancing two competing requirements:

• Sufficient elastic deformation for precise gear engagement

• Long fatigue life under millions of deformation cycles

This challenge largely determines material selection, heat treatment, and tooth profile optimization.

For example, a humanoid robot elbow driven by a servo motor operating at 3000 rpm may require an output speed of 30–60 rpm, corresponding to a reduction ratio of approximately 50:1 to 100:1.

In such applications, engineers generally prioritize harmonic drives offering:

• High torque density

• Backlash below one arc-minute

• Lightweight construction

Key Parameters Every Engineer Should Understand

Selecting the optimal harmonic drive requires balancing multiple performance parameters instead of maximizing a single specification.

Backlash

Backlash is one of the most important indicators of transmission precision.

It represents the angular movement at the input while the output remains fixed.

Typical recommendations include:

• ≤1 arc-minute for humanoid robots and precision assembly

• 1–3 arc-minutes for industrial robot arms

• 3 arc-minutes for general automation

Dynamic backlash deserves even greater attention because flexspline deformation changes during motion.

Servo control algorithms such as PID compensation are commonly used to minimize its influence on positioning accuracy.

Torque Density

Torque density describes the rated output torque produced per unit weight or volume.

For humanoid robots where installation space is extremely limited, engineers generally target:

• Torque density ≥20 N·m/kg

• Overload factor ≥1.5

This combination balances lightweight design with impact resistance.

Service Life

Service life is usually defined as cumulative operating hours under rated load.

Typical engineering targets include:

Industrial robots:

• ≥10,000 hours

Collaborative and humanoid robots:

• ≥20,000 hours

Operating life depends heavily on:

• Lubrication quality

• Rotational speed

• Load variation

• Operating temperature

Regular lubrication maintenance remains essential for many harmonic drives to prevent premature wear.

Transmission Efficiency

Typical transmission efficiency ranges from 75% to 85%.

Efficiency directly affects:

• Energy consumption

• Heat generation

• Motor sizing

Humanoid robots generally prioritize efficiencies above 80% to maximize battery life.

Industrial robots operating continuously often require additional cooling systems to prevent lubricant degradation and thermal accuracy drift.

Selecting Harmonic Drive Reducers for Different Robotic Applications

Different robotic systems prioritize different performance characteristics.

Engineers should evaluate four primary factors:

• Load type

• Motion speed

• Positioning accuracy

• Available installation space

Collaborative Robots

Primary requirements:

• Lightweight construction

• Low noise

• Smooth backdrivability

• High positioning accuracy

• Compact joint size

Typical recommendations:

• Backlash ≤1 arc-minute

• Torque density ≥20 N·m/kg

• Efficiency ≥80%

• Noise below 60 dB

Shoulder joints generally require higher torque density, while wrist joints demand maximum positioning precision.

Humanoid Robots

Humanoid robots impose the industry's most demanding requirements.

Typical priorities include:

• Ultra-lightweight design

• Extremely high torque density

• Long service life

• Excellent impact resistance

• Low power consumption

Recommended specifications:

• Static backlash ≤1 arc-minute

• Dynamic backlash ≤15 arc-seconds

• Torque density ≥22 N·m/kg

• Service life ≥20,000 hours

• Overload factor ≥2.0

Torque sensors are commonly integrated into joints to monitor real-time loading and protect the flexspline from overload damage.

Industrial Robots

Industrial robots emphasize durability and continuous operation.

Typical requirements include:

• Backlash between 1 and 3 arc-minutes

• Torque density ≥18 N·m/kg

• Service life ≥10,000 hours

• Efficiency ≥75%

Large shoulder and base joints often employ RV reducers, while harmonic drives are preferred for forearm and wrist joints where precision and compactness are more important.

Semiconductor and Precision Equipment

These applications demand the highest possible positioning accuracy.

Typical specifications include:

• Backlash ≤10 arc-seconds

• Efficiency ≥80%

• Service life ≥50,000 hours

• Clean lubrication suitable for contamination-sensitive environments

Regular calibration of backlash and transmission efficiency is recommended approximately every 1,000 operating hours.

Conclusion

As humanoid robots move toward large-scale commercial deployment, engineering requirements for harmonic drive reducers will continue to increase.

Future development will focus on three major objectives:

• Lightweight construction

• Higher positioning accuracy

• Longer service life

Advances in artificial intelligence, new materials, precision manufacturing, and lubrication technology will further improve harmonic drive performance and enable the next generation of intelligent robotic systems.
