How to Select a Precision Planetary Gearbox: A Complete Guide to Gear Ratio, Torque and Servo Motor Matching

Introduction: Why Planetary Gearbox Selection Requires More Than Choosing a Gear Ratio

Selecting the right planetary gearbox is an important step when designing automation equipment, robotic systems, CNC machines, and servo-driven motion systems.

A planetary gearbox does more than reduce motor speed and increase output torque. Its performance can directly affect positioning accuracy, motion response, transmission efficiency, operating stability, and service life.

For equipment manufacturers, selecting a precision planetary gearbox should therefore not be based on gear ratio alone. Engineers need to evaluate the actual operating conditions, input and output speed, required torque, load characteristics, transmission efficiency, backlash, rotational inertia, servo motor specifications, and installation dimensions.

A properly selected planetary gearbox should work as part of the complete motion system, matching the servo motor and driven load to achieve the required speed, torque, precision, and dynamic performance.

This guide explains the key factors engineers should consider when selecting a precision planetary gearbox.

Step 1: Determine the Actual Operating Conditions

The first step in planetary gearbox selection is to understand how the gearbox will actually be used.

Different machines have different load characteristics and operating cycles. A gearbox used under a smooth and continuous load may require different specifications from one used in frequent acceleration, deceleration, reversing, or impact-load applications.

The application should therefore be evaluated according to factors such as:

• Load type

• Operating cycle

• Input speed

• Required output speed

• Required output torque

• Acceleration and deceleration

• Frequency of forward and reverse rotation

• Operating environment

The actual working conditions are particularly important for precision motion systems because dynamic loads can be significantly different from static loads.

A suitable planetary gearbox should therefore be selected according to the complete operating cycle rather than simply the maximum static load.

How to Determine the Gear Ratio of a Planetary Gearbox？

Gear ratio is one of the most important parameters in planetary gearbox selection.

The basic relationship between input speed and output speed can be expressed as:

• i = n₁ / n₂

• Where:

• i = gear ratio

• n₁ = input speed

• n₂ = output speed

For example, a servo motor may operate at a relatively high speed while the machine requires a much lower output speed. In this case, a planetary gearbox reduces the output speed while increasing the available output torque.

However, a higher gear ratio is not necessarily better.

Changing the gear ratio and number of reduction stages can affect output speed, transmission efficiency, inertia matching, and dynamic response. Engineers should therefore select a gear ratio according to the actual speed and torque requirements of the application.

For high-speed servo systems, an excessively high reduction ratio may also affect the dynamic response of the overall system.

Single-Stage or Multi-Stage Planetary Gearbox?

Planetary gearboxes can use different numbers of reduction stages to achieve different reduction ratios.

Increasing the number of stages generally allows a higher total reduction ratio, but it also adds additional transmission elements to the system.

Therefore, engineers should select the appropriate number of stages based on the required gear ratio rather than simply choosing the highest available reduction ratio.

For automation equipment and servo motion systems, the ideal solution is to achieve the required output speed and torque while maintaining an appropriate balance between:

• Gear Ratio

• Transmission Efficiency

• Dynamic Response

• Torque Capacity

• System Size

A properly selected planetary gearbox can provide the required reduction without unnecessarily compromising system performance.

Why Output Torque Is Critical in Planetary Gearbox Selection？

One of the main functions of a planetary gearbox is to convert high-speed motor rotation into lower-speed, higher-torque output.

After determining the required gear ratio, engineers must confirm the actual torque required at the gearbox output.

Several torque conditions should be considered, including:

• Rated operating torque

• Actual working torque

• Peak torque during acceleration and deceleration

• Instantaneous or impact torque

If a machine frequently starts, stops, reverses direction, or drives a high-inertia load, selecting a gearbox based only on static load may not be sufficient.

For high-dynamic automation systems, the gearbox must be capable of handling the dynamic loads generated during acceleration, deceleration, and repeated changes in direction.

Why Transmission Efficiency Matters？

Transmission efficiency is another important factor when comparing precision planetary gearboxes.

Under the same input power, higher transmission efficiency means less energy is lost within the transmission system.

For equipment operating continuously, transmission efficiency can affect:

• Heat generation

• Energy consumption

• Continuous operating stability

• Overall system efficiency

Therefore, planetary gearbox selection should not focus only on gear ratio and rated torque. Engineers should also consider transmission efficiency under the actual operating conditions of the application.

Why Backlash Affects Positioning Accuracy？

For precision motion control systems, backlash is an important performance parameter.

When the output shaft changes direction, mechanical clearance inside the transmission can cause a difference between the input movement and the actual output movement.

Excessive backlash can affect:

• Positioning accuracy

• Repeatability

• Forward and reverse motion consistency

• Trajectory control

• Motion response

This is particularly important for CNC machines, robots, precision automation equipment, and servo positioning systems that frequently perform forward and reverse movements.

For applications requiring precise positioning and frequent direction changes, a low-backlash precision planetary gearbox can help improve overall motion consistency.

Rotational Inertia and Servo System Dynamic Response

Rotational inertia is another parameter that should not be overlooked during planetary gearbox selection.

In a servo motion system, the relationship between motor inertia, gearbox characteristics, and load inertia can influence the dynamic performance of the system.

An unsuitable inertia relationship may affect:

• Acceleration performance

• Deceleration performance

• Response speed

• Control stability

• Positioning performance

For this reason, a planetary gearbox should not be selected as an isolated mechanical component.

The servo motor, planetary gearbox, and driven load should be evaluated as one complete motion system.

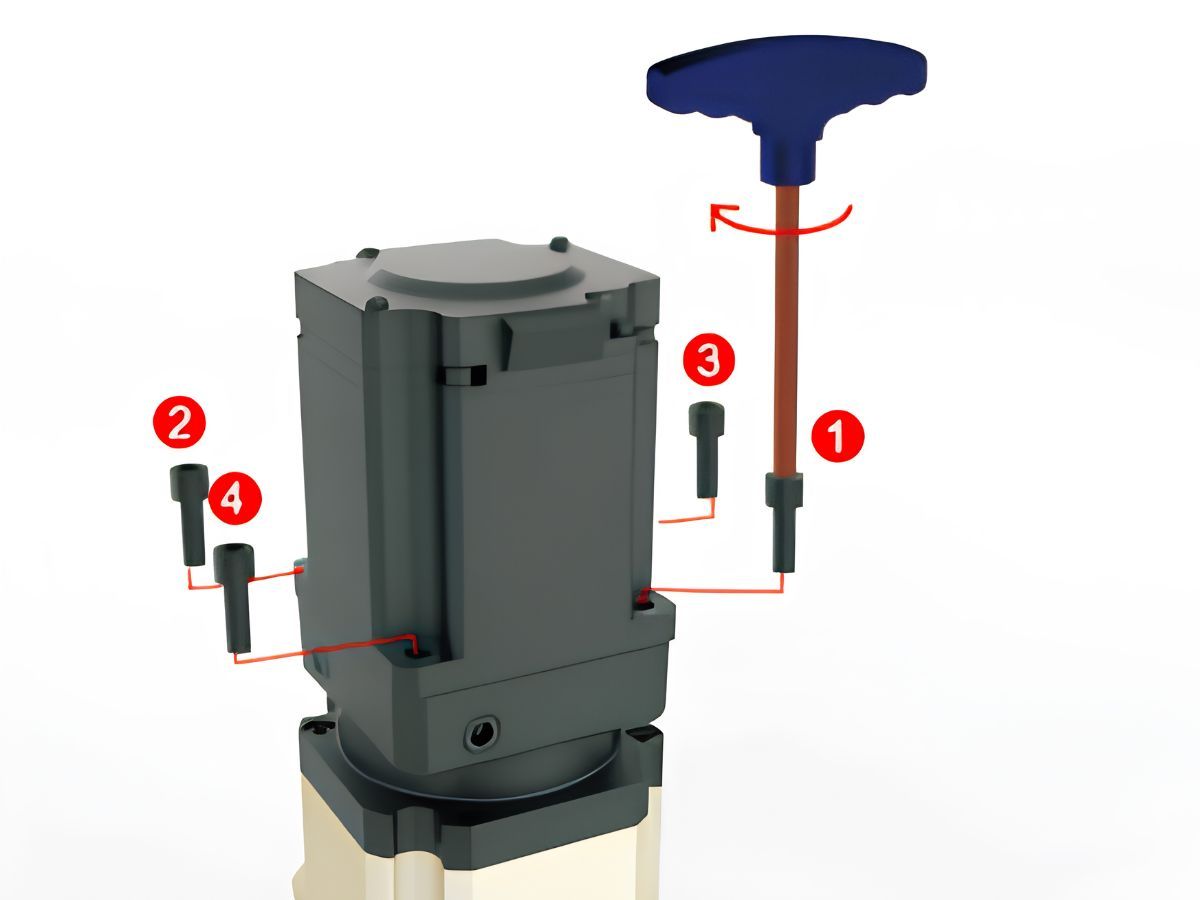

How to Match a Planetary Gearbox with a Servo Motor？

After determining the gearbox requirements, engineers also need to confirm compatibility with the servo motor.

The motor specifications that should be considered include:

• Rated torque

• Maximum torque

• Rated speed

• Maximum speed

• Motor shaft dimensions

• Mounting flange dimensions

• Installation space

The gearbox input interface must be compatible with the selected motor.

The selection process should therefore connect the gearbox specification with the actual servo motor model instead of selecting the gearbox independently.

Proper motor and gearbox matching helps create a complete and reliable servo drive system.

Why Mechanical Dimensions and Interfaces Matter？

Even when the torque, gear ratio, and precision meet the application requirements, a planetary gearbox cannot be directly installed if its mechanical interfaces do not match the equipment.

Engineers should therefore confirm:

• Input flange dimensions

• Motor shaft dimensions

• Output flange dimensions

• Mounting holes

• Center hole

• Outer diameter

• Overall length

• Installation direction

CAD drawings and technical drawings are particularly important at this stage.

Before placing an order, equipment manufacturers should verify the final gearbox model and mechanical dimensions against the actual machine design.

This can help prevent installation conflicts and unnecessary mechanical modifications during equipment assembly.

How Operating Conditions Affect Planetary Gearbox Selection？

In addition to mechanical and transmission parameters, the working environment should also be considered.

The reference material specifies operating conditions including:

Operating Temperature: -10°C to +90°C

Protection Rating: IP54/IP65

Lubrication and mounting conditions should also be evaluated according to the application.

Before selecting a precision planetary gearbox, engineers should confirm:

Whether the operating temperature is within the specified range

Whether the equipment is exposed to dust, moisture, or other contaminants

Whether the installation direction is suitable

Whether the lubrication method is appropriate for the application

These factors can directly affect gearbox reliability and long-term operating performance.

Why Noise Matters in Precision Planetary Gearboxes？

Noise is another performance factor that may be important for certain applications.

High-speed servo systems, medical equipment, laboratory equipment, and precision automation machines may have stricter requirements for operating noise and motion smoothness.

Gearbox noise can be influenced by factors such as:

• Gear manufacturing accuracy

• Assembly accuracy

• Bearing condition

• Lubrication

• Input speed

Therefore, when comparing precision planetary gearboxes, engineers should evaluate noise performance together with torque, gear ratio, precision, and operating speed.

HONPINE Precision Planetary Gearbox Solutions

For robots, automation equipment, CNC machines, and servo-driven motion systems, selecting the right planetary gearbox requires a balance between gear ratio, output torque, efficiency, backlash, inertia, installation dimensions, and operating conditions.

HONPINE provides precision planetary gearbox solutions for motion control and industrial automation applications.

The selection process can be structured around the following steps:

Determine the operating conditions

↓

Determine input and output speed

↓

Calculate the required gear ratio

↓

Confirm output torque

↓

Evaluate efficiency and inertia matching

↓

Confirm backlash and positioning requirements

↓

Match the servo motor

↓

Verify mechanical dimensions

↓

Confirm the operating environment

This systematic approach helps equipment manufacturers select a planetary gearbox that is properly matched to the complete servo motion system.

Conclusion: Start Planetary Gearbox Selection with the Complete System

Selecting a precision planetary gearbox is not simply a matter of choosing a gear ratio or rated torque.

For precision automation equipment and servo motion systems, the key is to evaluate the complete transmission system.

From input and output speed to gear ratio and output torque, from backlash and positioning accuracy to transmission efficiency, rotational inertia, noise, motor compatibility, and operating conditions, each parameter can influence the final motion performance.

The most suitable planetary gearbox is therefore not necessarily the one with the highest individual specification. It is the one that provides the best match for the machine's operating conditions and servo system.

With experience in precision motion transmission, HONPINE provides planetary gearbox solutions for robotics, industrial automation, CNC equipment, and other servo-driven applications, helping equipment manufacturers develop more accurate, efficient, and reliable motion systems.
