How Harmonic Joint Actuators Solve the Challenges of Modern Robot Design？

Introduction: The Evolution of Robot Joint Design

The rapid development of robotics is changing the requirements for motion systems. Industrial robots are becoming more precise, collaborative robots are becoming more compact, and humanoid robots are moving toward more complex and human-like movements. Behind these developments, robot joint technology has become one of the most critical factors determining overall robot performance.

For robot manufacturers, designing a high-performance joint is no longer simply about selecting a motor and gearbox. A modern robotic joint must achieve multiple goals at the same time, including high torque output, compact size, accurate positioning, smooth motion, reliable operation, and easy integration.

Traditional robot joint designs usually combine multiple independent components, including servo motors, reducers, encoders, brakes, and control systems. Although this approach provides flexibility, it also creates challenges during mechanical design, electrical integration, calibration, and production.

As robot structures become more compact and intelligent, many manufacturers are turning to integrated solutions such as Harmonic Joint Actuators. By combining precision transmission technology with motor and feedback systems, these actuators provide a more efficient approach for developing next-generation robotic joints.

The Increasing Challenges in Modern Robot Joint Development

Limited Space Inside Compact Robot Joints

One of the biggest challenges faced by robot designers is the limited installation space inside each joint.

This problem is especially obvious in humanoid robots and collaborative robots. A single joint may need to accommodate:

• high-performance motor

• precision reducer

• encoder system

• brake mechanism

• wiring and communication components

At the same time, the robot must remain lightweight and energy efficient.

Traditional solutions often require engineers to design additional mechanical structures to connect individual components. This increases the size and weight of the joint while making the overall system more complex.

A Harmonic Joint Actuator provides an integrated approach by combining the major motion components into one compact unit. This allows robot manufacturers to reduce the occupied space inside the joint and create more streamlined mechanical designs.

For humanoid robots, where every joint must achieve high torque within a limited volume, compact actuator design has become a key factor in improving walking performance, balance control, and energy efficiency.

Reducing Robot Development Time with Integrated Motion Solutions

For many robot companies, the biggest challenge is not choosing individual components, but integrating them into a reliable system.

A traditional robot joint development process may involve several stages:

• Motor selection

• Reducer matching

• Mechanical interface design

• Encoder configuration

• Control parameter adjustment

• Performance testing

Each step requires engineering resources and repeated validation.

When components come from different suppliers, compatibility issues may appear between mechanical structures, electrical systems, and control algorithms. These problems can significantly extend product development cycles.

An Integrated Harmonic Joint Actuator simplifies this process by combining the key components into a pre-designed motion module.

Instead of developing every part separately, engineers can focus more on robot architecture, software algorithms, and application optimization.

For startups and OEM manufacturers entering the robotics market, reducing development time can become a major competitive advantage. Faster development allows companies to test prototypes earlier, improve designs more quickly, and bring products to market faster.

Improving Robot Motion Performance Through Precision Transmission

The quality of robot movement depends heavily on the performance of the transmission system inside each joint.

Modern robots require more than simple rotation. They need:

• Accurate positionin

• Smooth acceleration and deceleration

• Stable force control

• Repeatable movement

• Low vibration

These requirements are particularly important for applications such as humanoid robots, collaborative robots, medical robots, and precision automation equipment.

Harmonic Joint Actuators use harmonic reducer technology, which provides high reduction ratios, excellent positioning accuracy, and very low backlash.

Low backlash is especially important for robot joints because robots frequently perform movements involving forward and reverse rotation. Any mechanical clearance can affect trajectory accuracy and reduce motion consistency.

By integrating a harmonic reducer with a high-performance servo motor and encoder system, a Harmonic Joint Actuator enables more precise and responsive robotic motion.

Supporting the Development of Humanoid Robots and Intelligent Machines

The growth of humanoid robots and embodied AI has created new requirements for robot joint technology.

Unlike traditional industrial robots, humanoid robots need to replicate complex human movements. Their joints must provide:

• High torque density

• Lightweight structure

• Fast dynamic response

• Precise position control

• Reliable continuous operation

For example, walking requires continuous adjustment of hip, knee, and ankle joints. Hand and arm movements require accurate control of smaller joints for manipulation tasks.

These requirements make compact integrated actuators an important technology for humanoid robot development.

Harmonic Joint Actuators provide the combination of size, precision, and performance required for advanced robotic applications.

They enable robot manufacturers to build smaller and lighter joints while maintaining the output capability needed for intelligent motion.

Applications of Harmonic Joint Actuators in Robotics

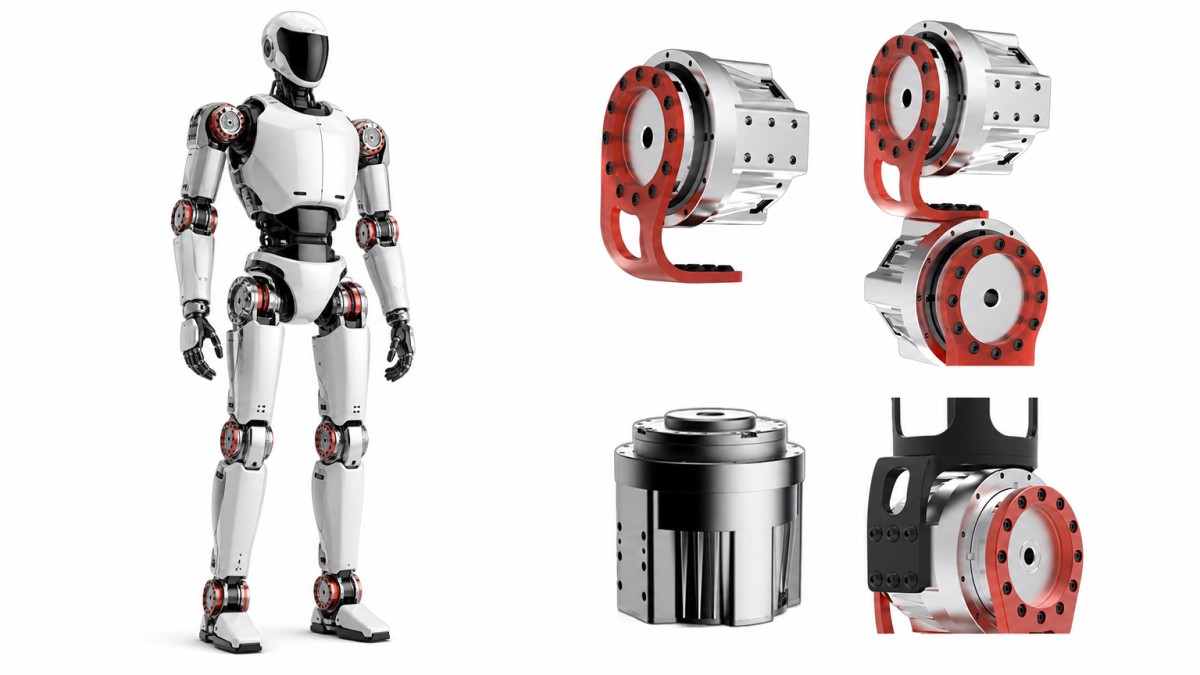

Humanoid Robots

Humanoid robots require lightweight and highly integrated joint systems. Harmonic Joint Actuators help achieve compact joint designs while providing accurate motion control for walking, balancing, and manipulation.

Collaborative Robots

Collaborative robots work closely with humans and require smooth, precise, and reliable movement. The low backlash and high positioning accuracy of harmonic actuator systems support safer and more flexible operation.

Industrial Robot Arms

Industrial robots used in assembly, inspection, and precision manufacturing require consistent repeatability. Harmonic Joint Actuators provide stable motion performance for high-precision robotic applications.

AGV and AMR Systems

Mobile robots require compact and efficient drive solutions. Integrated actuator designs simplify system integration and help manufacturers reduce mechanical complexity.

Why Robot OEMs Choose Integrated Harmonic Joint Actuators？

For robot manufacturers, the value of an integrated harmonic actuator is not only its mechanical performance. More importantly, it provides a complete development solution.

Compared with traditional component-based joint development, integrated actuators offer:

• Simplified mechanical design

• Reduced integration workload

• Shorter development cycles

• Improved system reliability

• Easier production scaling

As robotics moves toward higher intelligence and mass adoption, manufacturers need motion solutions that can accelerate innovation while maintaining performance.

Integrated Harmonic Joint Actuators represent a new approach to robot joint development by combining precision transmission, compact design, and simplified integration.

HONPINE Harmonic Joint Actuator Solutions

HONPINE develops high-performance harmonic motion solutions for advanced robotics and industrial automation applications.

The HONPINE Harmonic Joint Actuator integrates a precision harmonic reducer, servo motor, encoder, brake, and other key components into a compact robotic joint solution.

Designed for applications requiring high accuracy, high torque density, and reliable motion performance, HONPINE actuator solutions support:

• Humanoid robots

• Collaborative robots

• Industrial robotic arms

• AGV and AMR systems

• Precision automation equipment

With extensive experience in harmonic transmission technology and integrated joint development, HONPINE provides customized motion solutions to help robot manufacturers accelerate product development and achieve higher system performance.

HONPINE — Precision Motion Solutions for the Future of Intelligent Automation.
