Harmonic Rotary Actuator vs. Harmonic Reducer vs. Direct Drive Torque Motor for Semiconductor Packaging Equipment

Introduction

The expansion of advanced semiconductor packaging is putting simultaneous pressure on placement accuracy, equipment throughput, repeatability, and long-term motion stability. As die bonding, wafer alignment, chip inspection, and high-density packaging processes move toward tighter tolerances and shorter cycle times, the rotary axis is no longer simply a mechanism for changing angular position.

For packaging equipment manufacturers, the more relevant engineering question is:

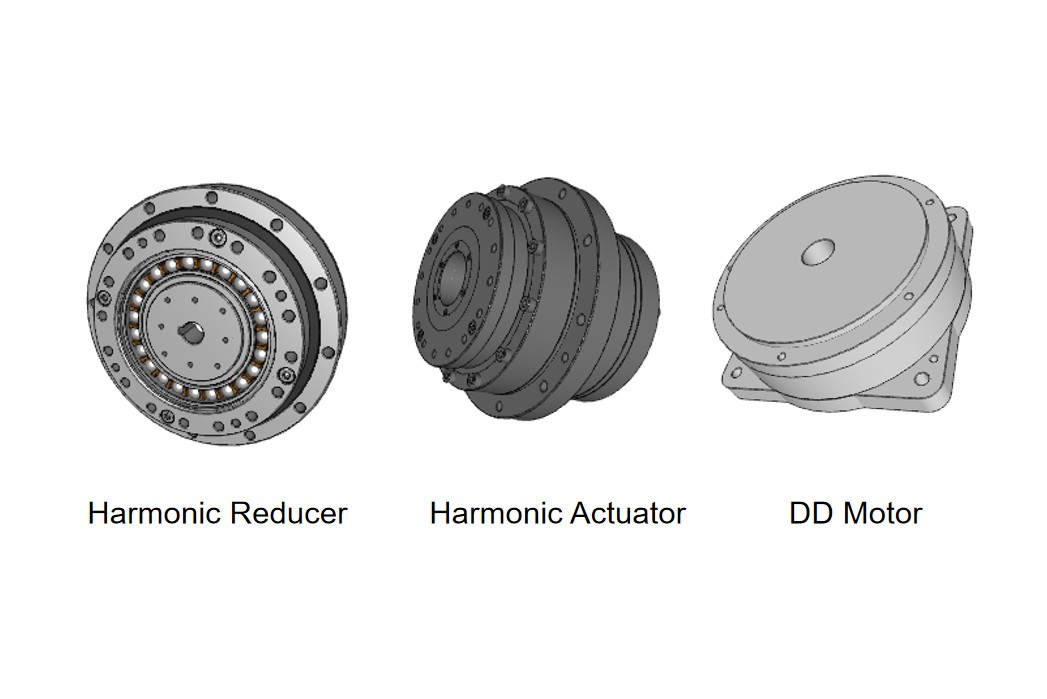

When a precision rotary axis is required, should the machine use a Harmonic Rotary Actuator, a Harmonic Reducer with a servo motor, or a Direct Drive Torque Motor?

The answer depends on how the rotary axis is expected to handle load inertia, acceleration, settling time, angular positioning, torsional rigidity, thermal drift, mechanical integration, and continuous-cycle stability.

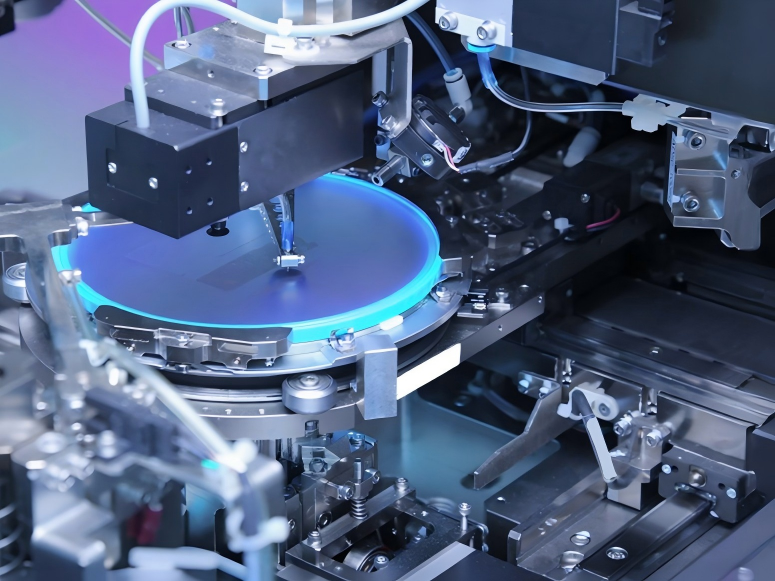

This is particularly important in die bonding and advanced packaging equipment. A rotary axis may only need to make a small angular correction, but it may have to repeat that movement thousands of times while maintaining stable positioning performance. A nominal accuracy specification alone therefore cannot determine whether a motion solution is suitable for production equipment.

1. Why Rotary Motion Has Become More Critical in Advanced Packaging

The precision requirements of semiconductor packaging are increasingly being transferred to the motion system underneath the process.

In conventional packaging, positioning tolerances can be relatively large. In flip-chip, advanced substrate packaging, Chiplet integration, and other high-density packaging processes, however, the alignment window becomes much narrower.

The motion system must therefore maintain:

• High positioning repeatability

• Low angular error

• High torsional rigidity

• Stable dynamic response

• Low vibration

• Short settling time

• Low thermal drift

Consistent performance during long production cycles

More importantly, accuracy and throughput cannot be evaluated separately.

A rotary axis that reaches its target position accurately but requires excessive settling time may reduce UPH. Conversely, increasing acceleration without sufficient structural rigidity can introduce vibration and extend the actual settling time.

This creates a more practical engineering target:

The objective is not simply higher accuracy, but maintaining required accuracy at the target cycle time over continuous production.

This is where the selection of the rotary transmission or motor architecture becomes important.

2. What Actually Determines Rotary Positioning Performance?

For semiconductor packaging equipment, it is easy to focus on the specification of a single component.

For example:

• Encoder resolution

• Harmonic reducer backlash

• Motor torque

• Platform repeatability

But the final rotary-axis performance is determined by the complete motion chain.

A simplified system can be viewed as:

Motor → Transmission → Bearing → Rotary Structure → Encoder → Servo Control

Any weakness in this chain can become the limiting factor.

The first parameter to establish is the total rotational inertia:

• Jtotal = Jplatform + Jworkpiece + Jfixture + Jother

• During acceleration:

• Tacc = Jtotal × α

• where:

• Tacc = acceleration torque

• Jtotal = total rotational inertia

• α = angular acceleration

This becomes particularly important for indexing applications.

A semiconductor packaging machine may not require continuous high-speed rotation. Instead, it may repeatedly perform:

accelerate → rotate → decelerate → settle → process → restart

Under these conditions, acceleration torque and settling behavior can be more important than nominal maximum speed.

3. The Real Trade-Off: Precision, Throughput and Mechanical Architecture

The original industry material you provided makes an important point:

Precision does not equal yield.

A specification such as ±3 μm @ 3σ is only a static or specified performance indicator. In production equipment, the more difficult problem is maintaining that performance under:

• High-frequency operation

• Thermal changes

• Repeated acceleration and deceleration

• Changing loads

• Long operating periods

This is why semiconductor equipment designers increasingly pay attention to thermal stability, structural rigidity, feedback architecture, and motion compensation.

The same principle applies to the rotary axis.

A rotary solution should therefore be evaluated not simply by:

“How small is the backlash?”

but by:

How quickly and repeatedly can the axis reach the required angular position and remain stable under production conditions?

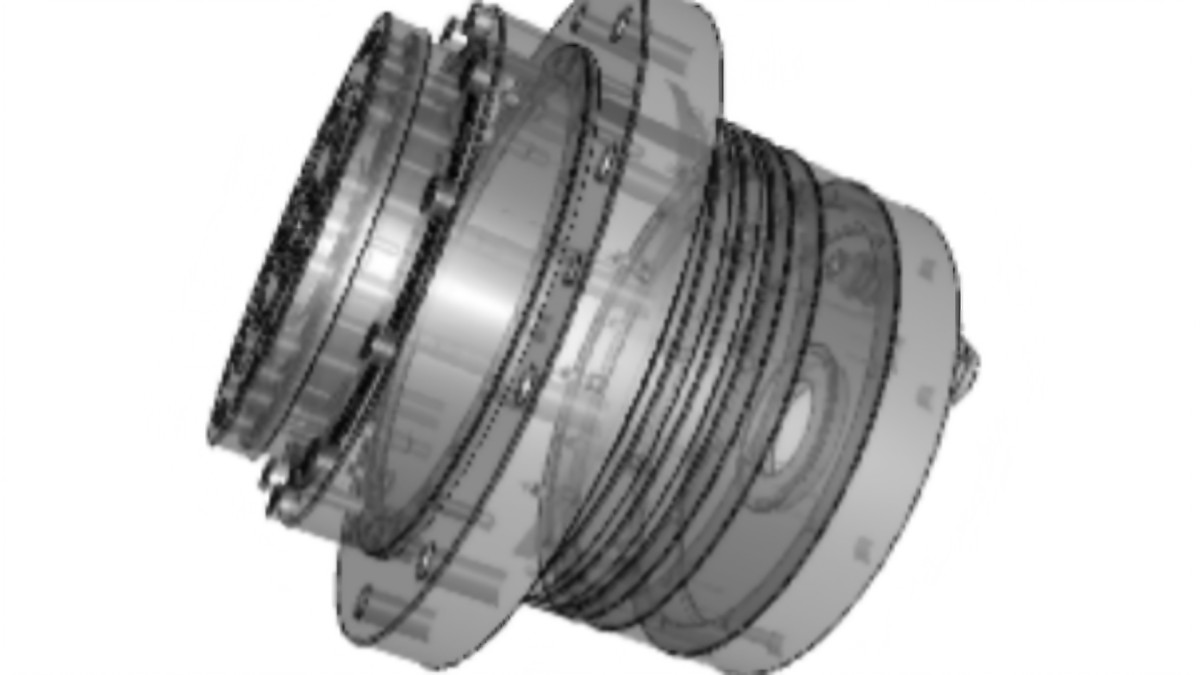

4. Harmonic Rotary Actuator: When Integration and Torque Density Matter

For semiconductor equipment, a Harmonic Rotary Actuator is particularly interesting when the rotary axis needs to combine high torque density, low backlash, compact installation, and integrated motion control.

Unlike a conventional motor-plus-reducer architecture, an integrated actuator can reduce the number of mechanical interfaces within the rotary axis.

This can be valuable in:

• Die bonding equipment

• Wafer positioning

• Chip alignment

• Rotary inspection

• Precision indexing

• Packaging inspection

• Compact semiconductor automation modules

The key advantage is not simply that the actuator contains multiple components.

The more important question is:

Can the integrated architecture simplify the mechanical error chain while maintaining the required dynamic performance?

For compact packaging equipment, this can be a significant advantage.

5. Harmonic Reducer: More Freedom for OEM Motion-System Design

A Harmonic Reducer takes a different approach.

Instead of integrating the motor and transmission, the reducer becomes part of the OEM's own motion architecture.

This allows engineers to independently select:

• Servo motor

• Motor inertia

• Encoder

• Servo drive

• Control platform

• Reduction ratio

• Bearing arrangement

• Mechanical housing

This flexibility can be particularly useful for semiconductor equipment manufacturers that already have standardized servo platforms.

For example, if an equipment platform uses a 400 W or 750 W servo motor family across multiple axes, a Harmonic Reducer can be matched to that motor according to the actual inertia and torque requirements.

The engineering advantage is therefore system flexibility rather than integration.

This makes the Harmonic Reducer particularly suitable for customized rotary axes and OEM equipment platforms.

6. Direct Drive Torque Motor: Eliminating the Reduction Stage

The Direct Drive Torque Motor approaches the same problem from the opposite direction.

Instead of increasing output torque through a reduction ratio, the motor directly generates the required rotary torque.

This eliminates the mechanical reduction stage.

For semiconductor equipment, this can be attractive when the rotary axis requires:

• High dynamic response

• Smooth rotation

• Minimal mechanical transmission error

• Fast acceleration and deceleration

• Continuous rotary motion

• High angular resolution

However, the elimination of the reducer does not automatically eliminate all motion errors.

The final performance remains dependent on:

Motor + Encoder + Bearing + Rotary Structure + Control + Thermal Stability

A direct-drive architecture therefore needs to be evaluated as a complete system.

7. Which Architecture Is Better for Die Bonding?

This is where the three technologies should be compared from an actual equipment-design perspective.

A die bonding machine may use several motion axes.

The X/Y system performs fine positioning, while a θ-axis may compensate for angular error between the die and substrate.

The θ-axis typically needs:

• Small angular correction

• High repeatability

• Fast settling

• Low vibration

• Stable performance over repeated cycles

For this type of axis, a Harmonic Rotary Actuator can provide a useful balance between torque density, compactness, reduction ratio, and positioning performance.

A Harmonic Reducer becomes attractive when the OEM already has a preferred servo motor and wants complete control over the motor-transmission combination.

A Direct Drive Torque Motor may be preferred when dynamic response and direct rotary control are more important than torque multiplication.

Therefore, the correct decision depends on the machine architecture rather than the technology name alone.

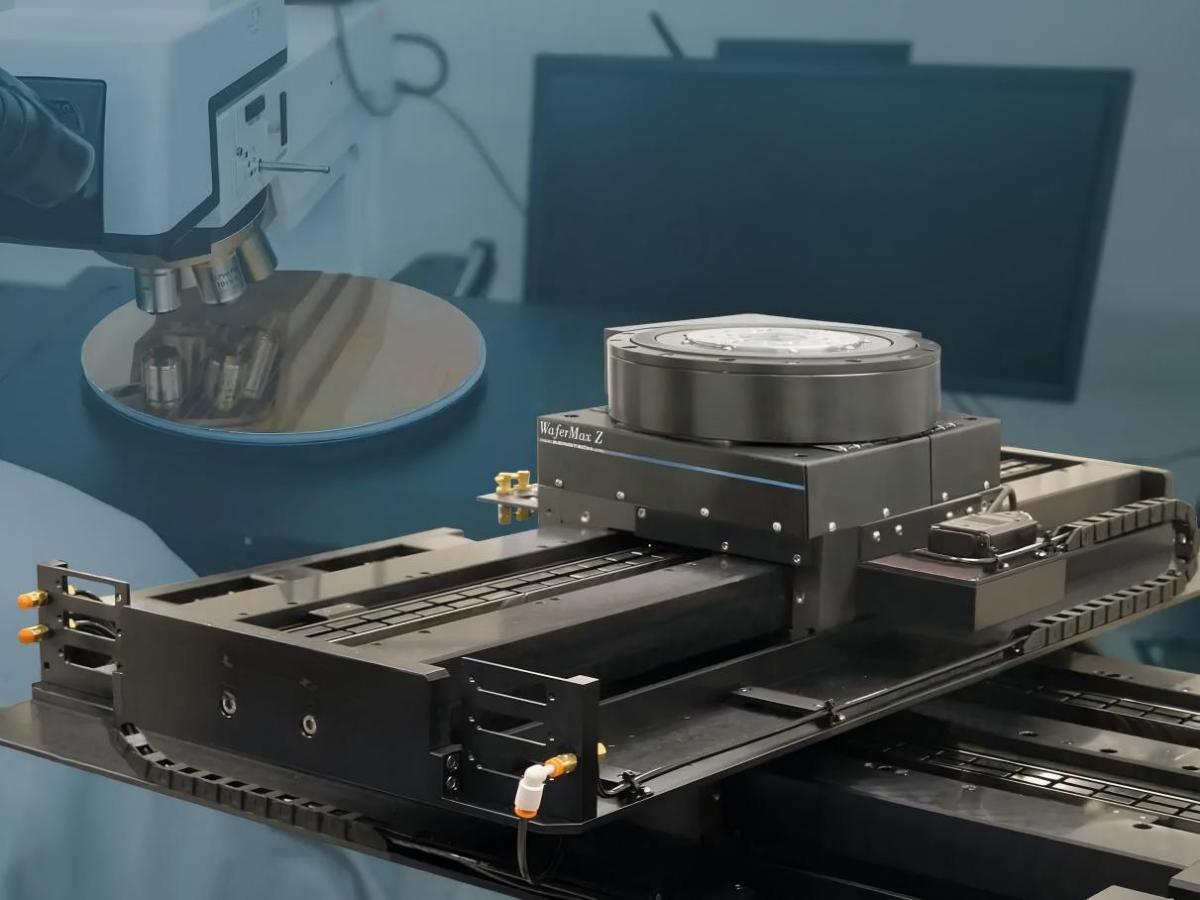

8. Rotary Motion in Wafer Alignment and Inspection

Wafer alignment and inspection introduce another set of requirements.

The rotary axis may need to work together with:

Vision → Position Calculation → Rotary Correction → Servo Feedback

The correction angle may be small, but the movement may occur repeatedly throughout the production cycle.

Here, the important parameters include:

• Angular positioning accuracy

• Repeatability

• Settling time

• Encoder resolution

• Mechanical rigidity

• Thermal drift

A Harmonic Rotary Actuator can be advantageous when the axis requires high reduction and compact integration.

A Direct Drive Torque Motor can be advantageous when the application requires high dynamic response and continuous smooth rotation.

A Harmonic Reducer can provide a flexible solution when the equipment manufacturer wants to integrate its own motor and servo architecture.

9. Precision Indexing: Don't Ignore Acceleration Torque

Your original material's calculation logic is particularly valuable here.

For an indexing rotary table:

Tacc = J × α

The required motor torque is not determined by load mass alone.

The designer must consider:

• Rotary table inertia

• Workpiece distribution

• Fixture inertia

• Rotation angle

• Acceleration time

• Deceleration time

• Cycle time

For example, a rotary table carrying multiple semiconductor components may have a relatively high moment of inertia even when the total mass is not particularly large.

If the equipment attempts to shorten the cycle time by increasing acceleration, the required acceleration torque rises accordingly.

This creates a direct relationship:

Shorter cycle time → higher acceleration → higher torque demand → higher structural and control requirements

Therefore, simply selecting a reducer based on rated output torque is insufficient.

10. Harmonic Reducer and Harmonic Rotary Actuator: Inertia Matching Matters

When using a servo motor with a Harmonic Reducer or Harmonic Rotary Actuator, the load inertia reflected to the motor side is approximately:

• Jmotor-side = Jload / i²

• where i is the reduction ratio.

This is one of the reasons a high reduction ratio can be useful in precision rotary systems.

However, designers should not interpret a higher reduction ratio as automatically better.

An excessively high ratio can affect:

• Maximum output speed

• Dynamic response

• Transmission efficiency

• Motor operating range

The correct ratio should therefore be selected by balancing:

Torque + Inertia + Speed + Settling Time + Cycle Time

rather than choosing the highest available reduction ratio.

11. Direct Drive vs. Harmonic Transmission: The Key Engineering Difference

The comparison becomes clearer when viewed from the motion chain.

Harmonic transmission

Servo Motor → Harmonic Reducer → Rotary Load

or

Integrated Motor → Harmonic Reducer → Rotary Load

The reduction stage provides torque multiplication and allows a smaller, higher-speed motor to drive a larger load.

Direct drive

Torque Motor → Rotary Load

The motor directly drives the load.

This means:

• Harmonic solution

Better suited to:

• High torque

• High reduction ratio

• Compact installation

• Precision indexing

• High-load rotary axes

• Direct-drive solution

Better suited to:

• High dynamic response

• Continuous rotation

• Smooth motion

• High-speed positioning

Applications where mechanical reduction is undesirable

Neither architecture should be considered universally superior.

12. What About Hollow Rotary Tables?

The original material also highlights an important application: hollow rotary platforms.

Semiconductor equipment frequently has to route:

• Cables

• Pneumatic tubes

• Vacuum lines

• Sensor wiring

• Optical components

• through the center of a rotary axis.

A hollow rotary architecture can therefore provide significant mechanical advantages.

For applications where the rotary axis also requires:

• High reduction ratio

• Low backlash

• High torque

• Compact integration

a Harmonic Rotary Actuator with a hollow structure can become an alternative to a conventional hollow rotary table.

The key selection parameters should include:

• Hollow diameter

• Output torque

• Radial load

• Axial load

• Allowable moment

• Repeatability

• Maximum speed

This is particularly relevant to semiconductor equipment where cable routing and internal sensor integration can directly affect machine layout.

13. What Should Semiconductor Equipment Engineers Compare?

Instead of comparing only catalog specifications, engineers should build a system-level evaluation matrix.

The important conclusion is:

The correct solution is determined by the required motion profile, not simply by the nominal accuracy specification.

14. How Thermal Stability Changes the Selection

This is one part of your original material that I think should be emphasized much more in the HONPINE article.

In semiconductor packaging, the machine may operate continuously for many hours.

Even if the rotary axis reaches its target position accurately at startup, thermal expansion can gradually change:

• Bearing position

• Mechanical dimensions

• Encoder reference

• Motor characteristics

• Transmission behavior

Therefore, engineers should evaluate:

Initial accuracy + thermal drift + long-term repeatability

rather than initial accuracy alone.

This is especially important when equipment targets micrometer-level placement accuracy.

For this reason, the rotary actuator or reducer should be evaluated together with:

• Mechanical structure

• Heat generation

• Motor selection

• Encoder location

• Control compensation

• Machine thermal design

15. How to Choose Between the Three Solutions?

A practical engineering decision can be summarized as follows.

Choose a Harmonic Rotary Actuator when:

• The rotary axis needs to be compact

• High output torque is required

• Low backlash is important

• High reduction ratio is useful

• Integrated architecture can simplify the machine

• The equipment has limited installation space

• Choose a Harmonic Reducer when:

• The OEM already has a preferred servo motor

• Motor selection needs to remain flexible

• The rotary axis is highly customized

The manufacturer wants independent motor and transmission design

Multiple motor sizes need to be supported

Choose a Direct Drive Torque Motor when:

• High dynamic response is critical

• Continuous rotation is required

• Smooth motion is important

• Mechanical reduction should be eliminated

• The motor can provide the required output torque directly

16. A Better Selection Principle for Semiconductor Packaging Equipment

For semiconductor equipment, the selection process should follow this sequence:

Process requirement

↓

Accuracy and repeatability

↓

Motion profile

↓

Load inertia

↓

Required torque

↓

Settling time

↓

Thermal stability

↓

Mechanical architecture

↓

Motor / reducer / actuator selection

This is more reliable than starting with:

“Which reducer has the highest precision?”

Because the highest component-level precision does not necessarily produce the best machine-level performance.

17. HONPINE's Role in Precision Rotary Motion

This is where HONPINE can naturally enter the article without turning it into a product advertisement.

For semiconductor packaging equipment, HONPINE can provide three complementary rotary motion approaches.

Harmonic Rotary Actuator

For compact integrated rotary axes requiring:

precision + torque density + low backlash + integration

Precision Harmonic Reducer

For OEMs requiring:

flexible motor matching + customized transmission architecture + precision positioning

Frameless Torque Motor

For applications requiring:

direct drive + high dynamic response + smooth rotary motion

The three solutions are not intended to replace one another.

They address different engineering priorities within the same precision motion market.

Conclusion

The development of advanced semiconductor packaging is pushing equipment manufacturers to improve not only placement accuracy but also UPH, settling time, thermal stability, and long-term repeatability.

For rotary motion systems, the choice between a Harmonic Rotary Actuator, Harmonic Reducer, and Direct Drive Torque Motor should therefore be based on the complete motion profile rather than a single catalog specification.

A Harmonic Rotary Actuator is particularly suitable when high torque density, compactness, low backlash, and system integration are important.

A Harmonic Reducer provides greater flexibility when OEMs want to select their own servo motor and design a customized transmission system.

A Direct Drive Torque Motor is attractive when high dynamic response, smooth motion, and direct load control are the primary requirements.

For die bonding, wafer alignment, precision indexing, rotary inspection, AOI, and semiconductor packaging equipment, the final selection should be based on:

load inertia + torque + speed + acceleration + settling time + repeatability + rigidity + thermal stability + installation space.

The goal is not simply to select the component with the highest nominal precision.

The goal is to build a rotary axis that can maintain the required precision at the required production speed, continuously and reliably.
