Why Laser Wobble Welding Systems Need a High-Precision Harmonic Rotary Actuator?

Introduction

Laser wobble welding is increasingly used in automated welding equipment because controlled beam oscillation can help improve weld width, gap tolerance, heat distribution, and molten pool stability. However, achieving a consistent wobble trajectory is not only a matter of laser power or welding parameters. The mechanical motion system inside the wobble welding head also plays an important role.

When a laser wobble head uses a mechanical rotary mechanism to generate beam oscillation, the actuator must repeatedly accelerate, decelerate, and reverse the rotating load while maintaining accurate angular motion. If the transmission system has excessive backlash, insufficient rigidity, poor dynamic response, or inadequate load capacity, the actual beam trajectory can deviate from the programmed path.

This becomes particularly important in automated laser welding applications such as battery manufacturing, EV components, busbar welding, precision electronics, medical devices, and robotic welding systems, where weld consistency depends on repeatable beam positioning.

A harmonic rotary actuator combines a motor with a high-ratio harmonic transmission and can integrate bearings, encoders, and other feedback components into a compact rotary motion assembly. For mechanical laser wobble heads that require low backlash, high torque density, high rigidity, and precise rotary positioning, this type of actuator can provide a practical motion solution.

The key question is therefore not simply how to make the laser beam wobble.

It is how to make the beam wobble accurately, repeatedly, and consistently under real mechanical loads.

Why Does a Laser Wobble Head Need Precision Rotary Motion?

In a mechanically driven laser wobble head, the rotary actuator is responsible for controlling the motion of the mechanism that changes the laser beam position.

Unlike a simple continuous rotary application, a wobble mechanism may repeatedly change direction according to a programmed trajectory. Circular, figure-eight, infinity, spiral, and transverse trajectories all require controlled angular motion.

During this process, the actuator may experience continuous acceleration and deceleration, dynamic torque, inertial loads, vibration, and mechanical reaction forces.

The motion system therefore needs to maintain:

• Accurate angular positioning

• Low backlash during direction reversal

• High torsional rigidity

• Stable dynamic response

• Sufficient continuous and peak torque

• Repeatable motion

• Compact installation dimensions

For this reason, selecting the rotary actuator should be treated as part of the laser processing system design rather than simply as a motor selection problem.

What Happens When the Rotary Motion System Is Not Accurate Enough?

The relationship between the actuator and the laser beam is direct.

If the rotary output moves differently from the commanded trajectory, the optical mechanism driven by the actuator will also move differently. This can change the actual beam path and therefore the distribution of laser energy inside the welding zone.

For example, excessive backlash can become particularly noticeable when the wobble trajectory repeatedly reverses direction. The controller may command an immediate change in direction, while the mechanical output experiences a small amount of lost motion before the load begins moving in the opposite direction.

This can influence the accuracy of:

• Wobble amplitude

• Beam trajectory

• Oscillation symmetry

• Position repeatability

• Energy distribution

• Weld width consistency

In high-volume automated welding, these small mechanical deviations can accumulate into process variation.

A high-precision rotary actuator therefore helps create a more predictable relationship between the programmed trajectory and the actual mechanical motion.

Why Low Backlash Is Important for Laser Wobble Mechanisms？

Laser wobble motion frequently involves direction reversal.

This is especially obvious in figure-eight, infinity, sinusoidal, and transverse trajectories.

Every time the motion direction changes, any mechanical clearance in the transmission can influence the relationship between motor rotation and output movement.

A harmonic transmission is designed to provide extremely low backlash, making it suitable for applications where accurate reversing motion is required.

For a laser wobble head, low backlash can help maintain:

Commanded Motion → Rotary Output → Optical Motion → Beam Trajectory

with less mechanical uncertainty between each stage.

This is particularly valuable when the welding process requires a stable wobble amplitude or a repeatable beam trajectory over thousands or millions of operating cycles.

Why High Torque Density Matters in a Laser Wobble Head？

A laser welding head has limited internal space.

At the same time, the mechanical wobble mechanism may need to drive optical components, mirrors, lens assemblies, rotating structures, or other mechanical loads.

The challenge is therefore to generate sufficient output torque without significantly increasing the size and weight of the welding head.

A harmonic rotary actuator can combine a compact motor with a high reduction ratio to produce relatively high output torque from a small installation envelope.

This is particularly useful when the mechanical wobble mechanism has:

• A relatively large rotating load

• High load inertia

• Frequent acceleration and deceleration

• Limited installation space

• Strict weight requirements

For example, in an automated laser welding head used for EV battery components, the available mechanical space can be restricted by the optical path, protective structure, cooling system, and gas delivery components. A compact integrated rotary actuator can reduce the space required by the motion assembly.

High Rigidity for Rapid Beam Direction Changes

Torque alone does not determine the performance of a wobble mechanism.

When the actuator rapidly accelerates and reverses a rotating load, the mechanical system experiences dynamic forces. If the transmission or supporting structure is not sufficiently rigid, deformation and vibration can affect the actual output position.

This can become important for high-frequency wobble welding.

A high-rigidity harmonic rotary actuator can help maintain the position of the output mechanism under dynamic loads.

The objective is not simply to reach a high rotation speed.

The objective is to maintain stable and repeatable angular motion while the load is accelerating, decelerating, and reversing.

This distinction is important when selecting an actuator for a laser wobble system.

Harmonic Rotary Actuator as an Integrated Motion Solution

One of the advantages of a harmonic rotary actuator is that the motor and transmission are designed as an integrated rotary motion system.

Depending on the product architecture, the actuator can also incorporate:

• Harmonic reduction mechanism

• Output bearing

• Encoder

• Motor

• Feedback interface

• Housing

• Brake or safety functions

Compared with building a rotary axis from a separate motor, gearbox, coupling, bearing, encoder, and housing, an integrated actuator can simplify mechanical design.

This can be particularly valuable for laser welding head manufacturers developing compact and modular equipment.

Instead of designing around multiple independent components, the actuator can become a standardized rotary module inside the wobble mechanism.

Harmonic Rotary Actuator for Different Laser Wobble Mechanisms

A major advantage of using a programmable rotary actuator is that the same motion platform can support different beam trajectories through software and control parameters.

For example, a mechanical wobble head can be designed around a rotary actuator and then programmed to generate different motion profiles depending on the welding application.

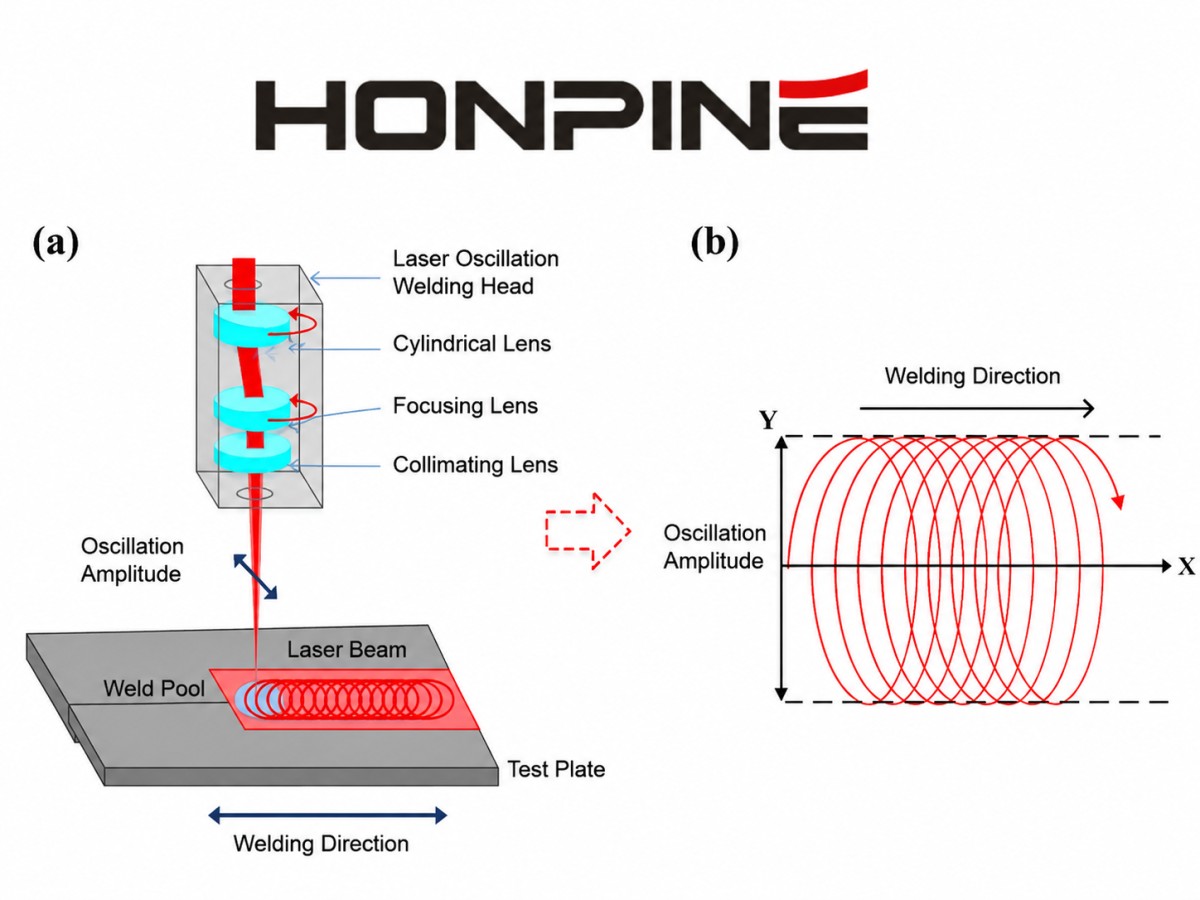

Circular Wobble Welding

Circular wobble requires continuous rotary movement around the nominal welding position.

The actuator must provide stable rotational motion while maintaining the required amplitude and frequency.

This can be useful for applications where the objective is to enlarge the effective weld area and create a more evenly distributed heat input.

Potential applications include:

• Battery tab welding

• Electrical terminal welding

• Metal sheet joining

• Lap joint welding

• Precision component welding

Figure-Eight and Infinity Wobble

Figure-eight and infinity trajectories require repeated changes in angular velocity and direction.

The actuator therefore needs good dynamic response and low backlash.

These trajectories may be used when engineers want to create more complex heat distribution or additional molten pool stirring.

For automated production equipment, the ability to accurately reproduce the same trajectory from one workpiece to the next becomes particularly important.

Transverse Wobble

Transverse motion moves the laser beam across the welding direction.

This approach can be useful when a wider effective heat input is required.

A rotary actuator can convert controlled angular motion into the required mechanical beam movement through an appropriate optical or mechanical linkage.

The final design depends on the relationship between actuator rotation, optical geometry, and beam displacement.

Where Are Harmonic Rotary Actuators Used in Laser Welding Equipment?

The value of a harmonic rotary actuator becomes clearer when looking at actual equipment requirements.

EV Battery and Battery Pack Welding

Battery manufacturing is one of the important applications for automated laser welding.

Battery cells, tabs, busbars, terminals, and other conductive components may require precise and repeatable laser welding.

In these systems, the welding head may need compact beam oscillation while maintaining stable weld quality over long production cycles.

A harmonic rotary actuator can provide:

• Compact rotary motion

• Low backlash

• High repeatability

• High torque density

• Encoder feedback

• Stable reversing motion

This makes it suitable for mechanical wobble mechanisms used in battery welding equipment.

Busbar and Electrical Connection Welding

Copper and aluminum components are widely used in electrical power systems and EVs.

Because these materials have challenging thermal and optical characteristics, controlling laser energy distribution can be important.

A wobble mechanism can help distribute energy over the required welding area, while the rotary actuator ensures that the programmed beam trajectory is reproduced accurately.

For automated busbar welding equipment, this combination creates a complete chain:

Precision Rotary Motion → Controlled Beam Trajectory → Controlled Energy Distribution → Consistent Electrical Connection

Precision Electronics Welding

Electronic components often require compact welding heads and controlled heat input.

In these applications, excessive heat can damage nearby components, while insufficient weld area can compromise mechanical or electrical performance.

A high-precision rotary actuator can help the wobble mechanism produce a controlled beam trajectory within a small processing area.

This is particularly useful when the welding head needs to be compact enough to fit into a highly integrated automated production machine.

Medical Device Manufacturing

Medical components often require high process repeatability and precise energy control.

Laser welding can be used for small metal components, tubes, housings, and other precision parts.

A mechanical wobble mechanism driven by a high-precision rotary actuator can provide controlled beam movement while maintaining repeatable positioning.

The actuator itself does not determine weld quality, but it can contribute to the mechanical accuracy and repeatability of the overall welding system.

Robotic Laser Welding

Robotic welding systems can integrate laser welding heads with multi-axis robot platforms.

The robot controls the overall position of the welding head, while the internal wobble mechanism performs high-frequency beam movement.

This creates two different levels of motion:

Robot Motion: Large-scale positioning

Wobble Head Motion: High-precision local beam movement

A compact harmonic rotary actuator can serve as the local rotary motion module when the wobble mechanism requires higher torque and rigidity than a lightweight mirror scanning mechanism.

Aerospace and Precision Metal Components

Aerospace components and other high-value metal parts may require consistent weld geometry and strict process control.

In these applications, mechanical motion accuracy can become an important part of the overall welding system.

A harmonic rotary actuator can provide a compact high-precision rotary axis for specialized welding heads or positioning mechanisms where repeatable angular movement is required.

Harmonic Rotary Actuator vs. Direct Drive in Laser Wobble Applications

A harmonic rotary actuator should not be considered a universal replacement for direct-drive motors or galvo scanners.

Different motion architectures are optimized for different loads and speeds.

Direct-drive motors are particularly attractive when the moving load is lightweight and extremely high dynamic response is required.

Galvo scanners are widely used for high-speed laser beam steering because they move lightweight mirrors with very low inertia.

A harmonic rotary actuator becomes more attractive when the mechanical wobble mechanism requires:

• Higher Output Torque

• Higher Load Capacity

• High Rigidity

• Low Backlash

• Compact Integration

• Precise Rotary Positioning

• Large or Higher-Inertia Rotating Loads

Therefore, the correct selection depends on the actual mechanical architecture.

If the system only needs to move a very lightweight optical mirror at extremely high frequency, a galvo or direct-drive solution may be more appropriate.

If the system needs to drive a larger mechanical or optical assembly through a precision rotary transmission, a harmonic rotary actuator can provide a stronger combination of torque, rigidity, compactness, and positioning performance.

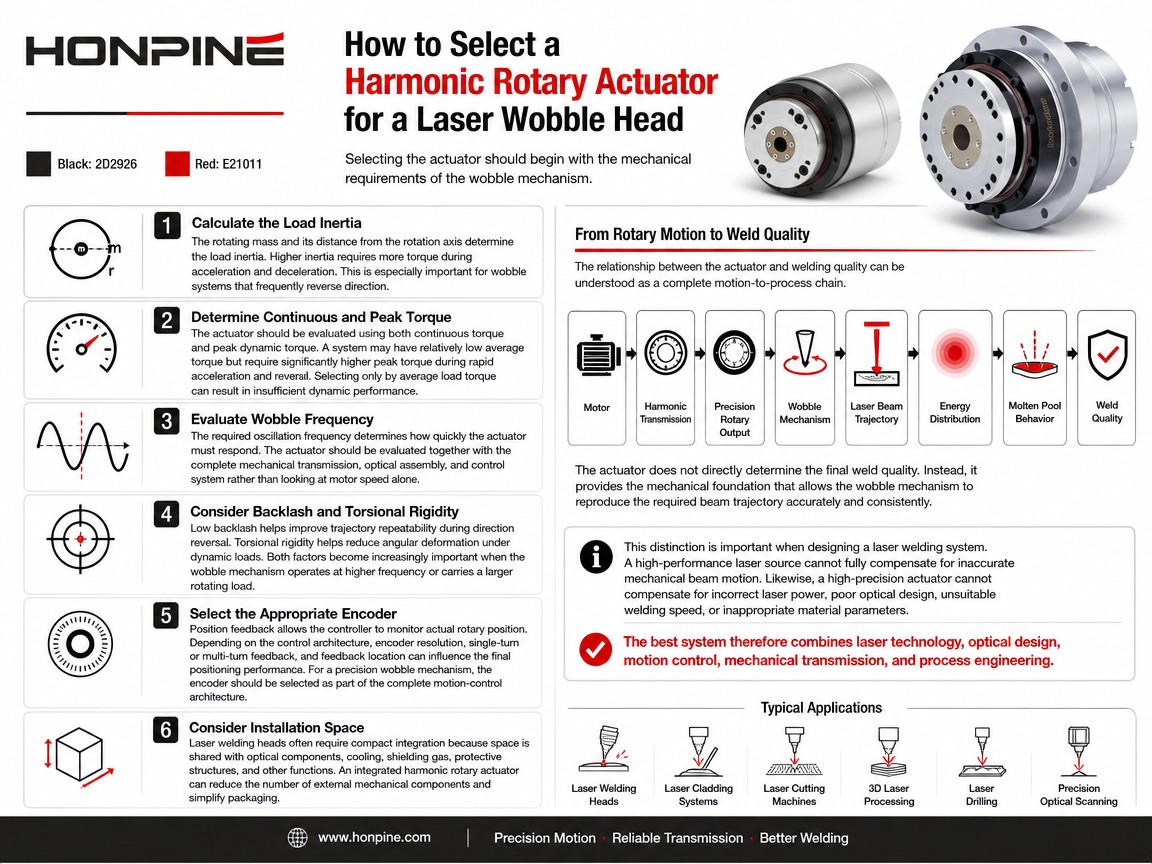

How to Select a Harmonic Rotary Actuator for a Laser Wobble Head?

Selecting the actuator should begin with the mechanical requirements of the wobble mechanism.

Calculate the Load Inertia

The rotating mass and its distance from the rotation axis determine the load inertia.

Higher inertia requires more torque during acceleration and deceleration.

This is especially important for wobble systems that frequently reverse direction.

Determine Continuous and Peak Torque

The actuator should be evaluated using both continuous torque and peak dynamic torque.

A system may have relatively low average torque but require significantly higher peak torque during rapid acceleration and reversal.

Therefore, selecting an actuator only according to average load torque can result in insufficient dynamic performance.

Evaluate Wobble Frequency

The required oscillation frequency determines how quickly the actuator must respond.

The actuator should be evaluated together with the complete mechanical transmission, optical assembly, and control system rather than looking at motor speed alone.

Consider Backlash and Torsional Rigidity

Low backlash helps improve trajectory repeatability during direction reversal.

Torsional rigidity helps reduce angular deformation under dynamic loads.

Both factors become increasingly important when the wobble mechanism operates at higher frequency or carries a larger rotating load.

Select the Appropriate Encoder

Position feedback allows the controller to monitor actual rotary position.

Depending on the control architecture, encoder resolution, single-turn or multi-turn feedback, and feedback location can influence the final positioning performance.

For a precision wobble mechanism, the encoder should be selected as part of the complete motion-control architecture.

Consider Installation Space

Laser welding heads often require compact integration because space is shared with optical components, cooling, shielding gas, protective structures, and other functions.

An integrated harmonic rotary actuator can reduce the number of external mechanical components and simplify packaging.

From Rotary Motion to Weld Quality

The relationship between the actuator and welding quality can be understood as a complete motion-to-process chain.

Motor

↓

Harmonic Transmission

↓

Precision Rotary Output

↓

Wobble Mechanism

↓

Laser Beam Trajectory

↓

Energy Distribution

↓

Molten Pool Behavior

↓

Weld Quality

The actuator does not directly determine the final weld quality.

Instead, it provides the mechanical foundation that allows the wobble mechanism to reproduce the required beam trajectory accurately and consistently.

This distinction is important when designing a laser welding system.

A high-performance laser source cannot fully compensate for inaccurate mechanical beam motion.

Likewise, a high-precision actuator cannot compensate for incorrect laser power, poor optical design, unsuitable welding speed, or inappropriate material parameters.

The best system therefore combines laser technology, optical design, motion control, mechanical transmission, and process engineering.

Why Integrated Motion Solutions Matter for Laser Equipment Manufacturers？

For laser equipment manufacturers, the engineering challenge is not only achieving technical performance.

The complete system must also be compact, reliable, easy to assemble, and suitable for mass production.

Using separate motors, reducers, couplings, bearings, encoders, and mounting structures can increase the number of components and mechanical interfaces.

An integrated harmonic rotary actuator can simplify this architecture.

This can provide several engineering benefits:

Simplified Mechanical Design: Fewer independent transmission components are required.

Compact Packaging: The rotary system can occupy less installation space.

Reduced Assembly Complexity: Fewer alignment procedures may be required.

Standardized Motion Module: The same actuator platform can be adapted to different wobble mechanisms.

Integrated Feedback: Encoder integration can simplify closed-loop control.

For OEM manufacturers of laser welding heads and automated welding equipment, these factors can be just as important as torque and positioning accuracy.

When Should You Consider a Harmonic Rotary Actuator for Laser Wobble Welding?

A harmonic rotary actuator is worth considering when the laser wobble mechanism has a combination of demanding mechanical requirements.

It can be particularly attractive when the application requires:

• A compact rotary motion module

• High output torque from limited installation space

• Low backlash during repeated reversal

• High torsional rigidity

• Precise angular positioning

• Encoder-based feedback

• Stable motion under dynamic load

• A relatively large optical or mechanical rotating load

In contrast, if the application primarily requires extremely high-frequency movement of a very lightweight mirror, a galvo scanner or direct-drive motor may be the better architecture.

The actuator should therefore be selected according to the actual load and motion requirements rather than simply choosing the technology with the highest nominal speed or resolution.

HONPINE Harmonic Rotary Actuator for Precision Laser Motion

For laser equipment manufacturers developing mechanical wobble heads, the rotary actuator should be treated as a precision motion module rather than simply a gearbox.

A suitable solution needs to consider the complete relationship between motor performance, harmonic transmission, output bearing capacity, encoder feedback, mechanical rigidity, load inertia, and control requirements.

HONPINE's harmonic rotary actuator solutions can be considered for applications where a compact rotary axis needs to combine high torque density, low backlash, high rigidity, and precise position control.

Depending on the machine architecture, the actuator can be integrated into the laser wobble head itself or used as a precision rotary axis for related positioning and beam-control mechanisms.

The key advantage is the ability to create a more compact and integrated motion architecture while maintaining the mechanical characteristics required for precision automated equipment.

Conclusion

The performance of a laser wobble welding system depends on much more than laser power and beam parameters.

When beam oscillation is generated by a mechanical rotary mechanism, the actuator becomes an important part of the welding system.

Low backlash helps maintain accurate reversing motion. High torque density allows the actuator to drive larger loads within limited installation space. High rigidity helps maintain angular stability during acceleration and deceleration. Encoder feedback enables closed-loop position control. Integrated construction can simplify the mechanical architecture of compact welding heads.

These characteristics make a harmonic rotary actuator particularly relevant to laser welding applications involving battery components, EV busbars, electrical connections, precision electronics, medical devices, robotic welding, aerospace components, and customized automated welding equipment.

The correct solution is not necessarily the fastest motor or the highest-resolution encoder.

The better approach is to match the rotary motion architecture to the actual requirements of the wobble mechanism:

Load Inertia → Torque → Frequency → Acceleration → Backlash → Rigidity → Feedback → Installation Space

When these parameters are evaluated together, a harmonic rotary actuator can become more than a transmission component. It can serve as the precision rotary motion platform that enables a mechanical laser wobble head to reproduce its programmed beam trajectory accurately and consistently.

For laser equipment manufacturers moving toward more compact, automated, and high-precision welding systems, integrating the right rotary motion technology into the wobble mechanism can be an important step toward improving machine performance and simplifying equipment design.
