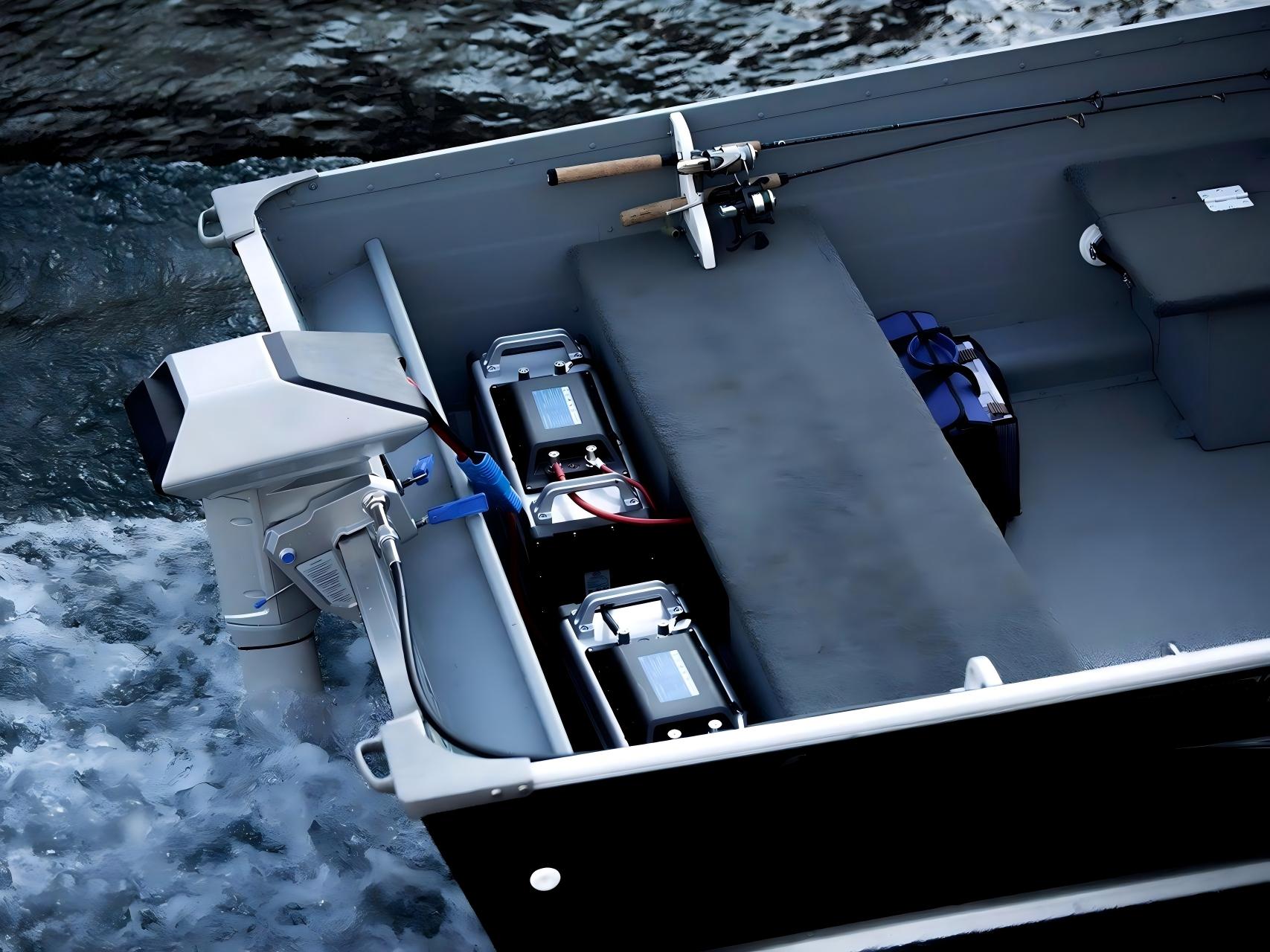

When Does Outboard Motor Steering Require a Harmonic Rotary Actuator?

Introduction

Electric outboard motor steering is becoming an important motion-control function in electric boats, autonomous surface vessels, unmanned surface vehicles, marine robotics, and other smart marine systems. As propulsion systems become increasingly electrified and automated, steering is no longer simply a mechanical mechanism for changing direction. It has become a precision motion-control task that requires accurate angular positioning, sufficient steering torque, predictable response, and reliable operation under continuously changing marine loads.

This creates a different set of requirements for the steering transmission. A conventional motor and gearbox may provide enough force to rotate an outboard motor, but applications involving autonomous navigation, closed-loop steering, frequent direction changes, or limited installation space may require much higher transmission precision and better integration.

This is where a precision rotary actuator can become valuable. A harmonic rotary actuator combines motor-driven rotation with precision harmonic transmission, providing high reduction ratios, low backlash, high torque density, and compact mechanical integration. These characteristics make it particularly interesting for electric outboard motor steering when the system needs to combine torque, precision, and compactness.

However, a harmonic rotary actuator is not automatically required for every outboard motor. The correct solution depends on the steering load, required positioning accuracy, operating cycle, installation space, control architecture, and environmental conditions.

The more important question is therefore not simply whether a harmonic rotary actuator can be used for outboard steering, but when precision transmission and controlled rotary motion make a harmonic rotary actuator the better engineering choice.

1. Electric Outboard Motor Steering Is Becoming a Precision Motion-Control Application

In a conventional boat, steering can be controlled mechanically by a steering wheel, cable, hydraulic system, or other transmission mechanism. The primary objective is to transfer the operator's input to the outboard motor.

Electric and autonomous vessels introduce a different requirement.

The steering command may originate from an electronic controller rather than directly from a human operator. The controller may continuously calculate the required steering angle according to heading, trajectory, speed, wind, current, and vessel dynamics.

This means that the steering actuator needs to convert an electrical command into a controlled mechanical position.

The system therefore becomes a combination of:

Electronic Control + Electric Motor + Precision Transmission + Position Feedback + Mechanical Steering Structure

In this architecture, the transmission system is no longer only responsible for increasing torque. It also affects steering accuracy, response, repeatability, and stability.

For this reason, precision transmission technology is becoming increasingly relevant to electric outboard motor steering.

2. What Makes Outboard Motor Steering Different From Ordinary Rotary Motion?

An outboard motor does not simply rotate freely like an industrial rotary table.

The actuator must rotate the propulsion unit around a steering axis while dealing with external mechanical resistance and changing hydrodynamic forces.

The steering load can be influenced by the mass of the outboard motor, propeller thrust, water resistance, friction, mounting structure, vessel speed, and operating conditions.

At the same time, the steering system may need to operate within a limited angular range rather than continuously rotate through multiple revolutions.

This combination creates a specific motion-control requirement.

The actuator must provide enough torque to move the outboard motor, sufficient stiffness to maintain the required position, appropriate output speed for steering response, and enough positioning accuracy for the control system.

A suitable steering actuator therefore needs to be evaluated as part of the complete propulsion and control system rather than as an isolated motor.

3. When Does Precision Transmission Become Important?

Precision transmission becomes particularly important when the steering system needs to repeatedly convert small motor movements into predictable output-angle changes.

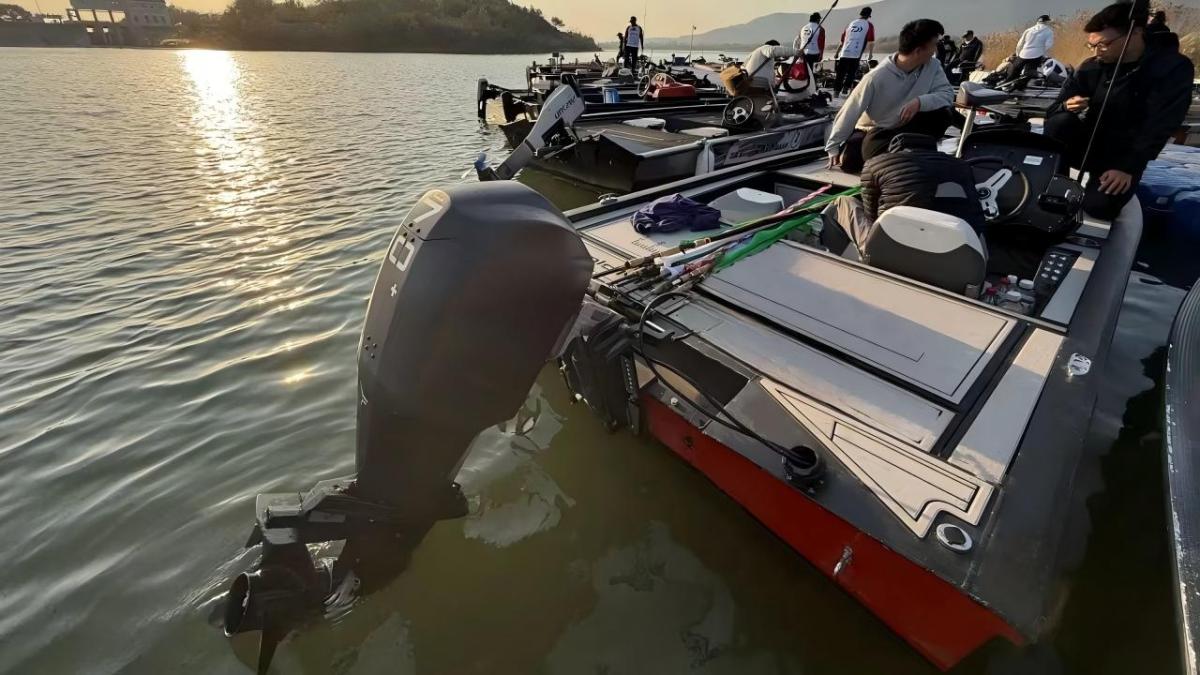

Consider an autonomous surface vessel maintaining a straight course.

The navigation controller may continuously make small corrections to the steering angle. The actuator may repeatedly move slightly in one direction, return toward the center position, and then make another correction.

If the transmission contains excessive mechanical clearance, the motor can move without producing an immediate corresponding output movement.

This creates a dead zone between the motor and the steering output.

For basic manual steering, such mechanical play may be acceptable.

For closed-loop autonomous steering, however, excessive backlash can reduce positioning consistency and make the control system more difficult to tune.

This is one of the situations where precision transmission becomes more important than simply selecting a motor with higher torque.

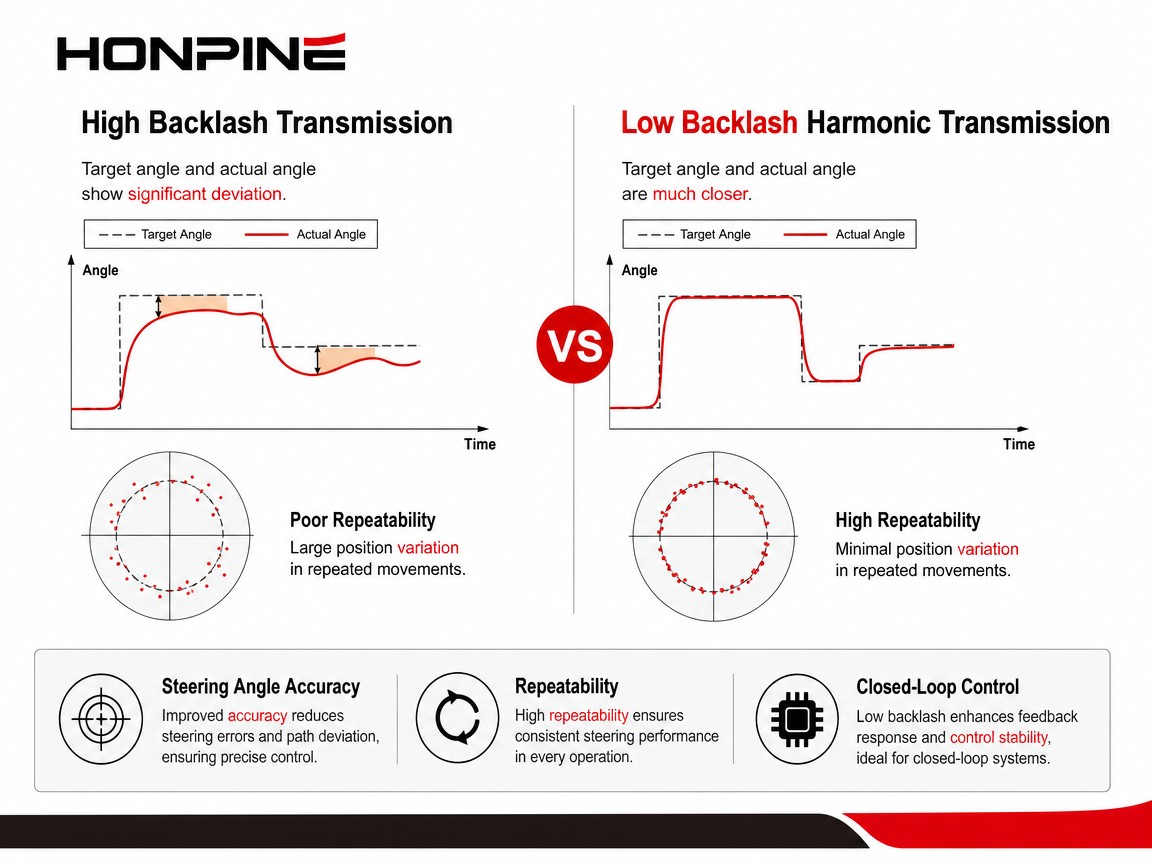

4. Low Backlash Is Important for Steering Angle Control

Backlash is one of the most important transmission parameters in precision steering applications.

A low-backlash transmission reduces the amount of free movement between the input and output sides of the transmission. This allows changes in motor position to be transferred more directly to the steering output.

Harmonic transmission is well known for its low-backlash characteristics.

For an electric outboard steering system, this can help maintain a closer relationship between the commanded steering angle and the actual steering angle.

This is particularly useful for:

• Autonomous surface vessels

• Unmanned boats

• Electric boats

• Marine robotics

• Remote-controlled vessels

• and other applications that use electronic steering control.

The goal is not to achieve the lowest possible backlash regardless of cost. Instead, the transmission should provide a backlash level appropriate for the required steering accuracy and control performance.

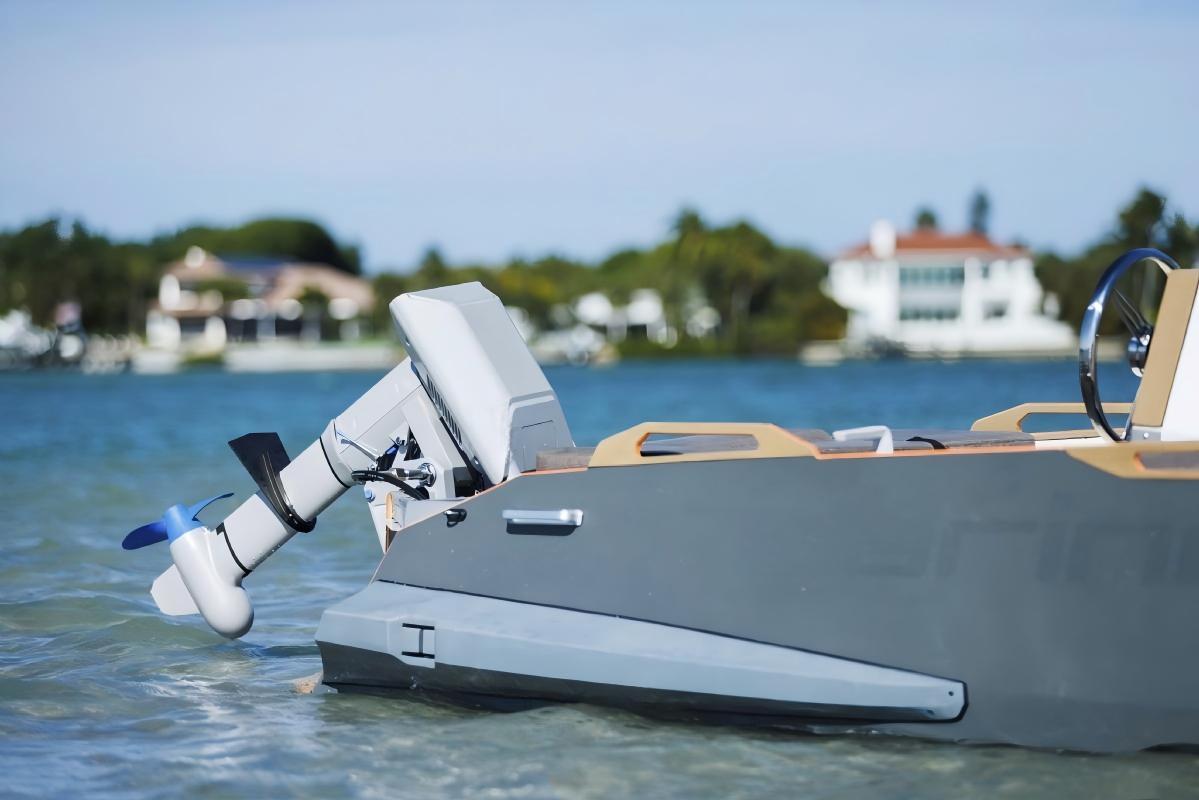

5. High Reduction Ratio Converts Motor Speed Into Steering Torque

Electric motors are generally more efficient when operating at relatively high rotational speeds, while an outboard steering mechanism normally requires slower and more controlled rotary movement.

A precision gearbox therefore plays an important role in converting motor speed into useful steering torque.

Harmonic transmission can provide a high reduction ratio within a compact structure.

This allows the motor to operate at an appropriate speed while the output side generates the torque required to rotate the outboard motor.

The advantage becomes particularly relevant when the steering system has limited installation space.

Instead of using a large low-speed motor, a smaller high-speed motor combined with a high-ratio precision transmission can provide a more compact motion solution.

The actual reduction ratio still needs to be selected according to the required steering speed and torque. A higher ratio is not always better if it compromises the response characteristics of the steering system.

6. High Torque Density Helps When Installation Space Is Limited

Marine propulsion systems often have strict limitations on weight and installation volume.

An electric outboard motor already integrates the propulsion motor, power electronics, cooling components, propeller system, housing, and mechanical mounting structure.

The steering actuator needs to fit into the remaining mechanical space without unnecessarily increasing the total mass of the propulsion unit.

High torque density therefore becomes an important design consideration.

A harmonic rotary actuator can combine a motor with a compact harmonic transmission mechanism to provide relatively high output torque within a limited volume.

This makes the technology particularly interesting for compact electric propulsion systems, autonomous boats, small unmanned surface vessels, and marine robotic platforms.

The benefit is not simply a smaller actuator.

A more compact actuator can also provide greater freedom when designing the steering axis, mounting structure, cable routing, and surrounding propulsion components.

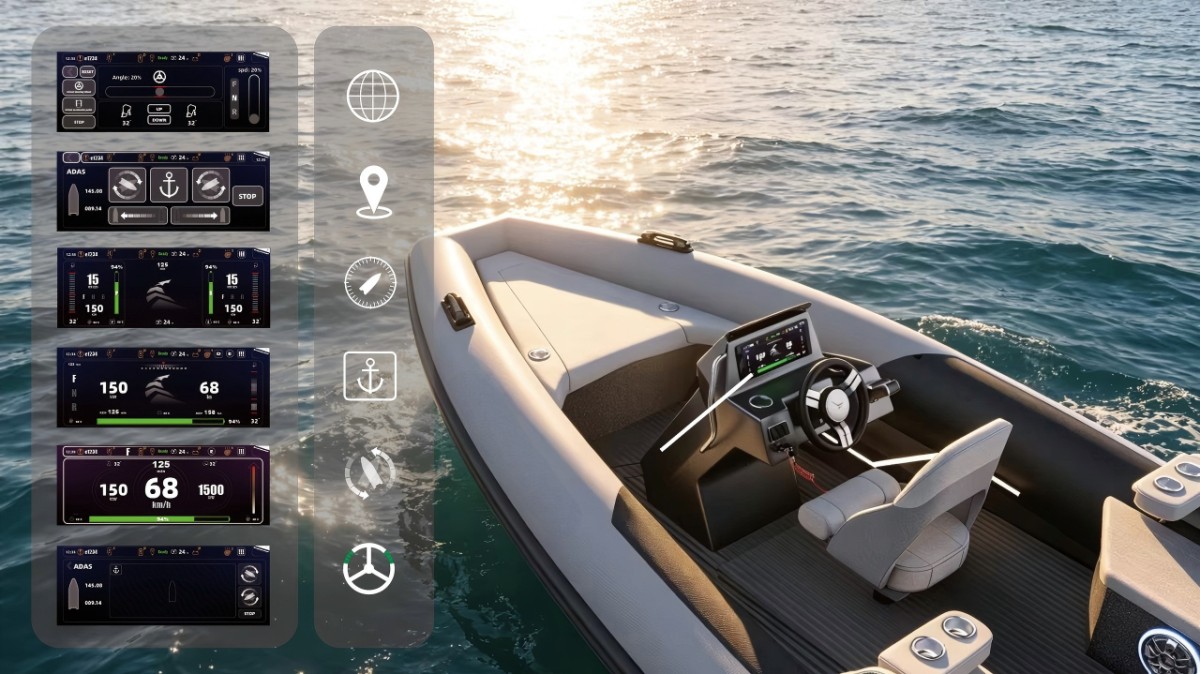

7. Closed-Loop Steering Requires More Than a Motor

For an autonomous marine system, the steering actuator normally operates as part of a closed-loop control system.

The navigation controller determines a target heading or steering angle.

The steering controller converts this command into a motor command.

The actuator generates rotary motion.

An encoder measures the actual position.

The control system then compares the target position with the measured position and adjusts the actuator accordingly.

This process requires a predictable relationship between motor movement and output movement.

If the transmission has excessive backlash, compliance, or uncontrolled mechanical movement, the controller may need to compensate for these characteristics.

A precision transmission with low backlash and appropriate stiffness can make the mechanical side of the control system more predictable.

For this reason, the combination of precision transmission and position feedback can be more important than the motor itself when designing high-performance electric steering.

8. Encoder Feedback Improves Steering Position Feedback

The actuator's transmission performance and encoder configuration should be considered together.

A high-resolution encoder can provide detailed information about motor or output position, depending on where the encoder is installed.

For applications requiring accurate outboard steering angle control, output-side position feedback can be particularly valuable because it directly measures the position that matters to the steering system.

This can help the controller detect the actual steering position rather than relying entirely on motor-side information.

A suitable control architecture may therefore combine:

• Precision Transmission

• Low Backlash

• High-Resolution Position Feedback

• Closed-Loop Motion Control

This combination is particularly relevant to autonomous navigation, marine robotics, and electronically controlled electric propulsion systems.

9. Frequent Reversing Makes Transmission Backlash More Noticeable

Electric outboard steering can involve frequent changes in direction.

An autonomous vessel maintaining its course may repeatedly make small left and right steering corrections.

During these reversals, the mechanical clearance inside the transmission becomes more apparent.

With a high-backlash gearbox, the motor can reverse direction before the steering output begins to move.

This can introduce a delay or dead zone into the steering response.

Low-backlash precision transmission reduces this effect and can improve the consistency of small-angle steering corrections.

This is one reason harmonic transmission can be particularly relevant to autonomous marine applications rather than only conventional rotary machinery.

10. Compact Integration Can Reduce the Number of Mechanical Components

A conventional electric steering system may require a motor, gearbox, coupling, bearings, brackets, position sensor, and other mechanical components.

Every additional component creates another mechanical interface that needs to be designed, aligned, assembled, and maintained.

An integrated rotary actuator can combine several of these functions into a compact unit.

For electric outboard motor steering, this can simplify the connection between the motor-driven transmission and the steering axis.

A more integrated actuator architecture can also reduce the need for external couplings and transmission stages.

This is especially useful when designing compact electric boats and autonomous marine platforms where space, weight, and installation complexity need to be controlled.

11. Hollow Rotary Structures Can Simplify Cable Routing

Electrical wiring is another consideration in an integrated steering system.

An electric outboard motor may require motor cables, encoder wiring, communication cables, steering sensors, and other electrical connections.

When these components are located around a rotating steering axis, cable routing can become difficult.

A hollow rotary actuator can provide a central passage for wiring when the actuator design and installation configuration support this function.

This can help reduce external cable loops and potential interference between moving mechanical components and electrical wiring.

For compact marine propulsion systems, hollow-shaft or hollow-rotary designs can therefore provide an additional mechanical integration advantage.

The actual cable-routing solution must still be evaluated according to the actuator's hollow diameter, rotation range, sealing structure, connector configuration, and environmental requirements.

12. When Does a Harmonic Rotary Actuator Become the Preferred Solution?

A harmonic rotary actuator becomes particularly attractive when several requirements exist at the same time.

The steering system may require relatively high output torque while maintaining a compact mechanical envelope.

It may need low backlash because the controller performs frequent small-angle corrections.

It may require accurate output positioning for autonomous navigation.

It may need encoder feedback for closed-loop steering.

It may also require high torque density because the propulsion system has strict weight and volume constraints.

When these requirements overlap, the advantages of harmonic transmission become more meaningful.

The technology is therefore not selected simply because it is a harmonic gearbox.

It is selected because the combination of precision transmission, low backlash, high reduction ratio, high torque density, and compact integration matches the system-level requirements.

13. Harmonic Rotary Actuator Applications in Marine Automation

Electric outboard motor steering is only one potential application for this type of precision rotary motion technology.

Autonomous surface vessels can use rotary actuators for electronically controlled propulsion steering.

Unmanned surface vehicles can use compact actuators for remote or autonomous steering systems.

Electric boats can integrate rotary actuators into electronically controlled propulsion architectures.

Marine robots may require compact rotary positioning for propulsion units, sensors, cameras, or other payload systems.

Underwater or marine inspection platforms may also require controlled rotary motion for positioning sensing equipment, although environmental protection requirements become especially important in these applications.

The common requirement across these systems is controlled rotary movement within a limited mechanical space.

This makes precision transmission technology relevant beyond robotics and factory automation.

14. Precision Transmission Is Also Relevant to Marine Robotics

Marine robotics is becoming increasingly dependent on compact motion-control systems.

A marine robot may need to control propulsion direction, camera orientation, sensor position, robotic mechanisms, or other rotary functions.

These systems often combine limited installation space with strict requirements for weight, response, and positioning.

A precision transmission can provide a mechanical foundation for accurate rotary positioning.

Harmonic transmission is one option for these applications because of its high reduction ratio and low-backlash characteristics.

However, marine robotics introduces an additional engineering consideration that is less critical in indoor industrial automation: environmental protection.

Water exposure, humidity, salt spray, corrosion, vibration, temperature changes, and sealing requirements must all be considered during actuator selection.

Therefore, the transmission's precision performance should always be evaluated together with its environmental suitability.

15. Electric Marine Propulsion Requires System-Level Actuator Selection

An electric outboard steering actuator cannot be selected independently from the propulsion system.

The motor, transmission, steering axis, mounting structure, encoder, controller, power supply, and vessel dynamics all influence the final performance.

The required steering torque should be calculated from the actual mechanical and hydrodynamic loads.

The required steering speed should be determined from the vessel's maneuverability requirements.

The transmission ratio should then be selected to balance motor speed, output torque, and steering response.

Backlash and stiffness should be evaluated according to the required steering precision.

The encoder and control interface should be selected according to the closed-loop control architecture.

Finally, the actuator's thermal performance and environmental protection should be validated under realistic operating conditions.

This system-level approach is more reliable than selecting an actuator based only on a nominal torque value.

16. When a Harmonic Rotary Actuator May Not Be Necessary？

Not every electric outboard motor needs precision harmonic transmission.

For a small recreational boat with manual or low-precision steering, a conventional electric steering mechanism may already provide sufficient performance.

If the application has low positioning requirements, limited steering cycles, sufficient installation space, and strong cost constraints, a simpler motor and gearbox combination may be more appropriate.

The purpose of precision transmission is not to make every steering system unnecessarily sophisticated.

Instead, harmonic rotary actuator technology becomes valuable when the application genuinely requires a combination of compactness, torque density, low backlash, positioning accuracy, and controlled rotary motion.

This distinction is important when selecting a practical engineering solution.

17. How to Select a Harmonic Rotary Actuator for Outboard Steering？

The selection process should begin with the steering mechanism rather than the actuator catalog.

First, determine the required continuous and peak steering torque under realistic operating conditions.

Then define the required steering speed and maximum steering angle.

Next, evaluate the mechanical loads acting on the actuator, including radial loads, axial loads, and external moments generated around the steering axis.

The transmission should then be evaluated according to reduction ratio, backlash, stiffness, efficiency, and expected service life.

The motor should be matched to the required speed and torque characteristics.

Encoder resolution and installation position should be selected according to the desired steering accuracy and feedback architecture.

Electrical parameters, including supply voltage, communication interface, and controller compatibility, should also be confirmed.

Finally, evaluate thermal performance, sealing, corrosion resistance, vibration resistance, and other environmental requirements according to the actual marine application.

A good actuator selection process therefore considers the complete motion system rather than a single specification.

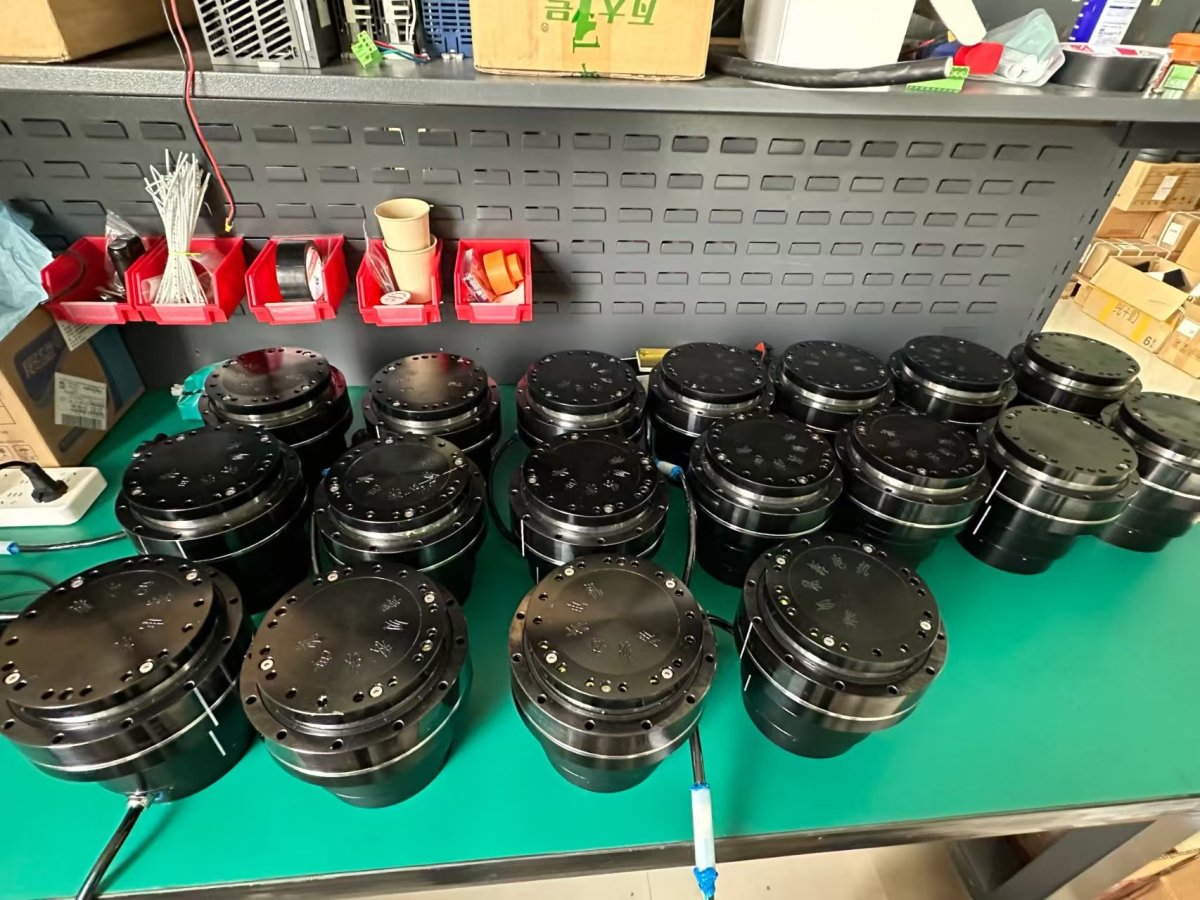

18. HONPINE Harmonic Rotary Actuator for Precision Marine Motion

HONPINE develops harmonic transmission and integrated rotary motion solutions for applications that require compact mechanical integration, high torque density, precision transmission, and controlled rotary movement.

For electric outboard motor steering, a HONPINE harmonic rotary actuator can be considered when the steering system requires more than basic motor-driven rotation.

Applications involving autonomous navigation, electronic steering, frequent angle correction, compact propulsion systems, and closed-loop position control can benefit from the characteristics of precision harmonic transmission.

Depending on the selected actuator configuration, features such as low backlash, high reduction ratio, encoder feedback, integrated motor design, and hollow rotary structures can contribute to a more compact and controllable steering architecture.

However, the correct actuator should always be selected according to the actual steering torque, output speed, operating cycle, mechanical loads, installation dimensions, feedback requirements, and marine environmental conditions.

HONPINE can support engineers in evaluating the appropriate rotary motion solution according to the complete steering system rather than selecting a model based on torque alone.

19. Beyond Outboard Steering: Precision Rotary Motion for Smart Marine Systems

The demand for compact precision motion is expanding across the marine industry.

• Electric propulsion systems require controlled steering.

• Autonomous surface vessels require precise heading control.

• Marine robots require compact positioning mechanisms.

• Remote-controlled boats require reliable electronic steering.

Smart marine systems may require actuators for sensors, cameras, propulsion units, and other rotating mechanisms.

In each application, the required combination of torque, speed, accuracy, size, feedback, and environmental protection will be different.

This is why precision rotary actuator technology should be considered as part of a broader motion-control architecture rather than as a single-purpose component.

Conclusion

The question is not whether every outboard motor should use a harmonic rotary actuator.

The more important question is whether the steering system requires the characteristics that precision harmonic transmission can provide.

When an electric outboard steering system needs accurate angular positioning, low backlash, frequent direction changes, high torque density, compact integration, and closed-loop control, a harmonic rotary actuator can become a highly attractive solution.

These requirements are increasingly common in autonomous surface vessels, unmanned boats, electric marine propulsion, marine robotics, and smart marine systems.

For simpler manual or low-precision steering applications, a conventional motor and gearbox may be sufficient.

For advanced electric and autonomous steering systems, however, the combination of precision transmission, low backlash, high reduction ratio, torque density, and integrated rotary motion can provide a significant engineering advantage.

HONPINE's harmonic rotary actuator solutions are designed for precision rotary motion applications where torque, compactness, positioning, and system integration need to work together. For electric outboard motor steering, the appropriate configuration should be determined from the actual steering load, speed, duty cycle, mechanical structure, feedback requirements, and environmental conditions.

The best actuator is not necessarily the largest or most powerful one. It is the actuator whose precision transmission, torque, speed, feedback, and mechanical integration match the requirements of the complete marine steering system.
