Why Electric Robot Joint Actuators Are Replacing Hydraulic Systems in Humanoid Robots？

Humanoid robots are entering a new stage of development. As robotic platforms move from laboratory demonstrations toward industrial deployment, the requirements for their joint actuation systems are changing rapidly.

For decades, hydraulic systems have been valued for their high power density and ability to handle large dynamic loads. However, the development of humanoid robots is creating a different set of priorities: compact size, high efficiency, precise motion control, low maintenance, integrated electronics, and compatibility with battery-powered systems.

This is driving increasing interest in electric robot joint actuators.

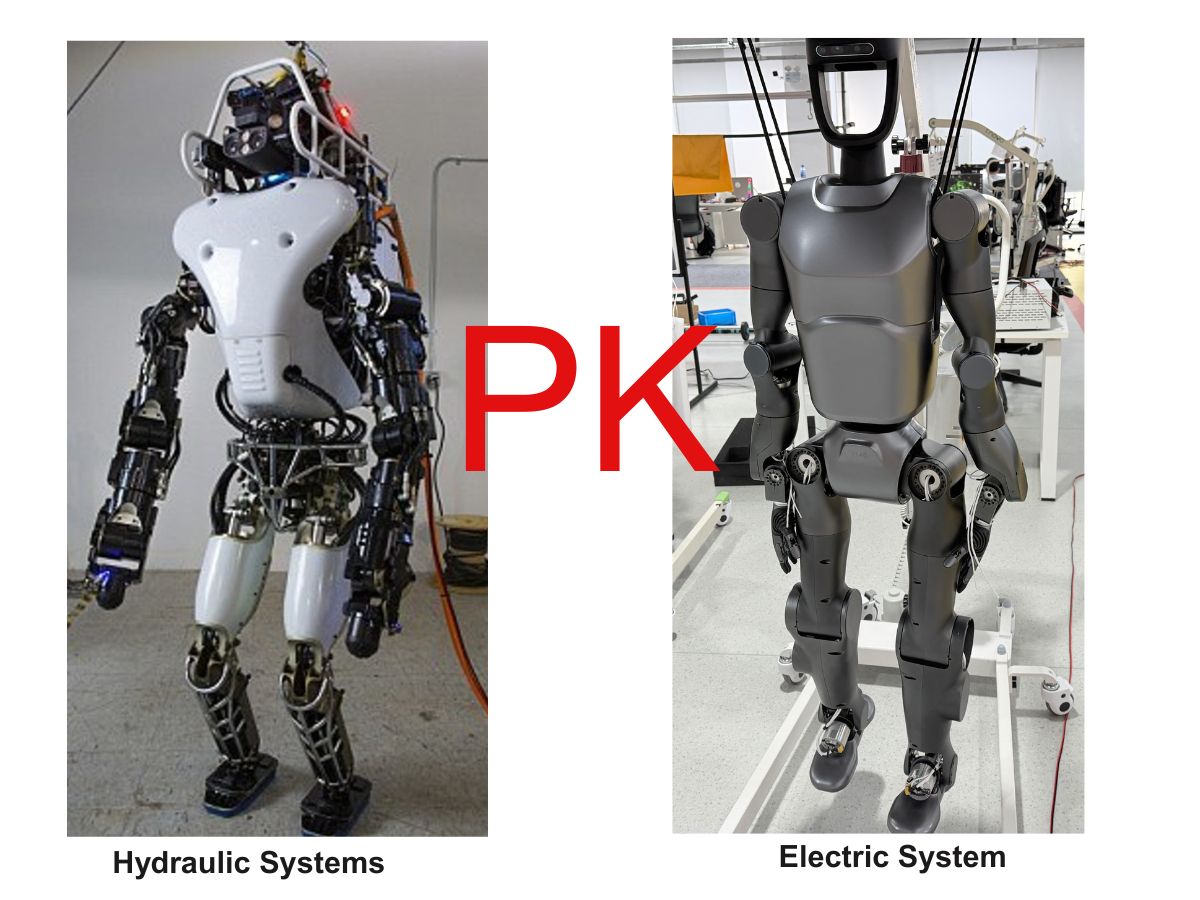

The transition can already be seen in leading humanoid robot platforms. Boston Dynamics retired its hydraulic Atlas and introduced a fully electric version designed for real-world applications. The company states that the electric Atlas is intended to provide greater strength and a broader range of motion while moving toward commercial deployment.

For humanoid robot manufacturers, the question is no longer simply whether electric or hydraulic actuation can generate enough force. The more important question is which technology can provide the best combination of power, precision, efficiency, integration, reliability, and scalability.

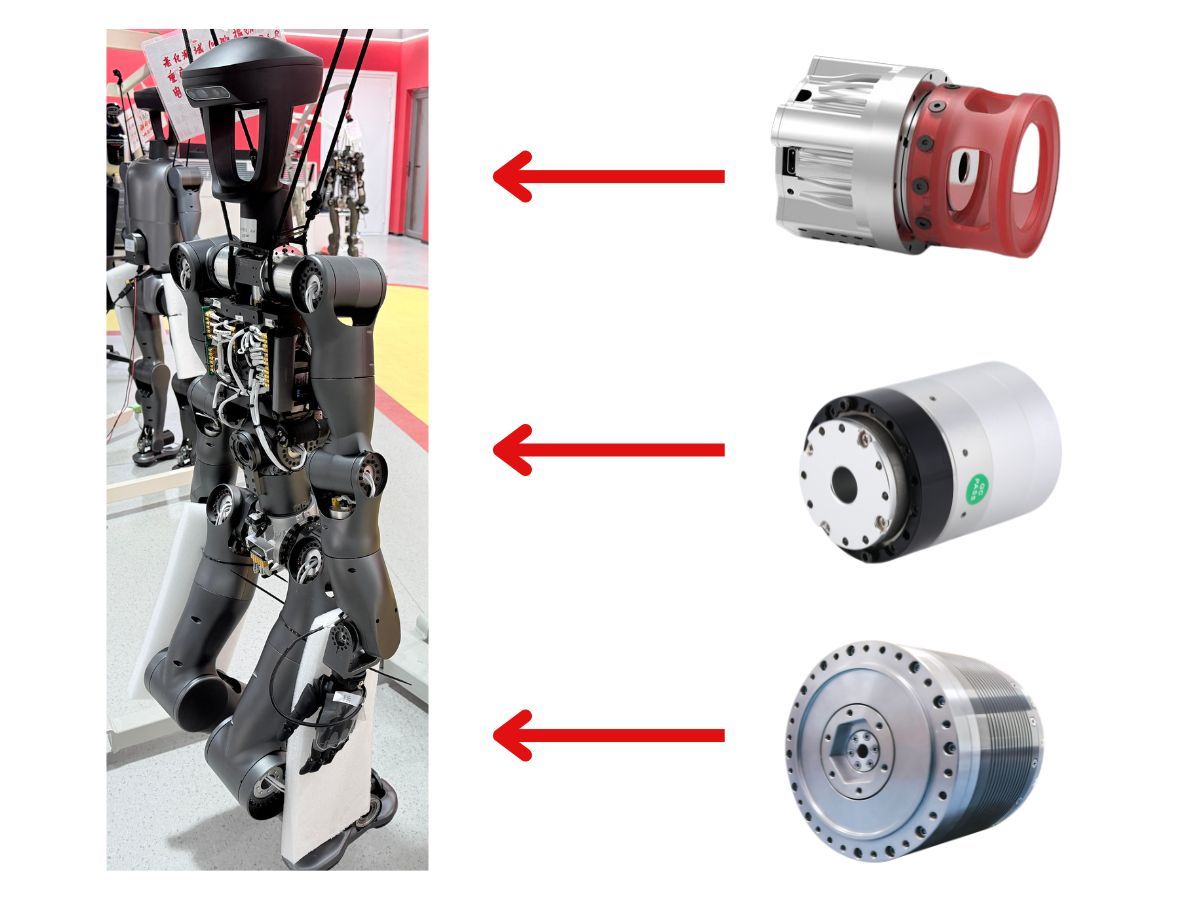

What Is a Humanoid Robot Joint Actuator?

A robot joint actuator is the mechanical and electromechanical system that generates controlled movement at a robot joint.

In an electric humanoid robot, a typical joint actuator may integrate several components:

Motor + Precision Reducer + Encoder + Driver + Bearing + Brake or Torque Sensor

Depending on the joint architecture, different transmission technologies can be used.

For rotary joints, common solutions include harmonic reducers, planetary gearboxes, and frameless torque motors.

For linear joints, manufacturers may use planetary roller screws, ball screws, rack-and-pinion mechanisms, or other rotary-to-linear transmission systems.

This distinction is important because humanoid robots do not use one single actuator architecture for every joint.

The shoulder, elbow, wrist, hip, knee, and ankle may use rotary actuators, while some leg or arm mechanisms can use linear actuators to convert motor rotation into linear movement.

Why Are Humanoid Robots Moving Toward Electric Actuation?

The shift toward electric actuation is not because hydraulic systems have suddenly become unsuitable for robotics.

Hydraulics still provide excellent power density, high force output, and strong resistance to certain external loads. Research on electro-hydrostatic actuators also continues because EHA systems can combine hydraulic power with local electric control and high integration.

However, humanoid robots introduce several requirements that favor electric systems.

Higher Energy Efficiency

A humanoid robot is usually powered by an onboard battery.

This makes energy efficiency much more important than in many stationary hydraulic machines.

A conventional hydraulic architecture requires energy to drive a pump and maintain fluid pressure. It also requires additional components such as valves, reservoirs, hoses, and hydraulic circuits.

An electric joint actuator can convert electrical energy directly into controlled mechanical motion through the motor and transmission system.

This simplified energy path can be advantageous for battery-powered humanoid robots, particularly when many joints must operate simultaneously.

More Compact System Integration

Hydraulic robots require more than the hydraulic cylinder itself.

A complete system may include pumps, valves, fluid reservoirs, pipes, seals, and other hydraulic components.

These components create additional packaging and maintenance requirements.

An electric robot joint actuator can integrate the motor, reducer, encoder, driver, and other components much closer to the joint.

This distributed architecture is particularly attractive for humanoid robots because the actuator can be designed around the robot's actual joint geometry.

Instead of building one centralized power system and distributing hydraulic pressure throughout the robot, manufacturers can install compact electric actuators directly into individual joints.

Electric vs. Hydraulic Actuators for Humanoid Robots

The important point is that electric actuation does not simply replace hydraulic power with an electric motor.

For humanoid robots, the transmission system becomes equally important.

A high-performance electric joint requires a motor capable of generating sufficient speed and torque, together with a precision transmission system that converts that motor output into usable joint motion.

The Role of Precision Reducers in Electric Robot Joint Actuators

The electric motor itself is usually not enough to directly drive a humanoid robot joint.

Electric motors are typically most efficient at relatively high rotational speeds, while robot joints often require much lower output speeds and substantially higher torque.

A precision reducer bridges this gap.

For example:

High-Speed Motor → Precision Reducer → Low-Speed High-Torque Joint Output

The choice of reducer therefore has a direct influence on the size, torque density, backlash, efficiency, and dynamic response of the robot joint.

This is why harmonic reducers and planetary gearboxes are important components in electric humanoid robot joint actuators.

Harmonic Reducers for Rotary Humanoid Robot Joints

Harmonic reducers are particularly suitable for compact precision rotary joints.

Their high reduction ratio allows a relatively small motor to generate a high output torque without requiring multiple conventional gear stages.

The low-backlash characteristics of harmonic transmission are also valuable for joints that require accurate positioning and frequent direction changes.

Typical applications include:

Humanoid robot wrists, elbows, shoulders, neck joints, and other compact rotary joints.

For highly integrated designs, a harmonic reducer can be combined with a frameless torque motor, encoder, bearing, and driver to create a compact electric robot joint.

For smaller joints, HONPINE's miniature harmonic reducers can also address applications where installation diameter and weight are particularly restricted.

Planetary Gearboxes for High-Speed and High-Load Robot Joints

Planetary gearboxes offer a different performance balance.

Their high transmission efficiency, high load capacity, and ability to handle relatively high input speeds make them suitable for many industrial motion applications.

In humanoid robots, planetary transmission can be considered when the joint requires a combination of:

high torque, high efficiency, high rotational speed, and robust load capacity.

This makes planetary gearboxes particularly relevant to certain leg, arm, and other high-load electric joint designs.

The optimal solution therefore depends on the requirements of the individual joint rather than simply choosing one reducer technology for the entire humanoid robot.

Why Integrated Electric Joint Actuators Matter for Humanoid Robots？

Humanoid robots contain a large number of independently controlled joints.

If every joint requires separate external motors, gearboxes, drivers, sensors, and wiring, the overall robot becomes larger and more difficult to assemble.

Integrated robot joint actuators address this challenge by bringing multiple functions into a single mechanical module.

A typical integrated electric joint can combine:

Motor + Reducer + Encoder + Driver + Bearing

Additional functions such as brake, torque sensing, STO, CAN/CANopen, or EtherCAT communication can also be integrated depending on the actuator architecture.

This reduces external wiring and simplifies mechanical integration.

For humanoid robot manufacturers, integration can also improve assembly efficiency and make the actuator easier to standardize across different robot joints.

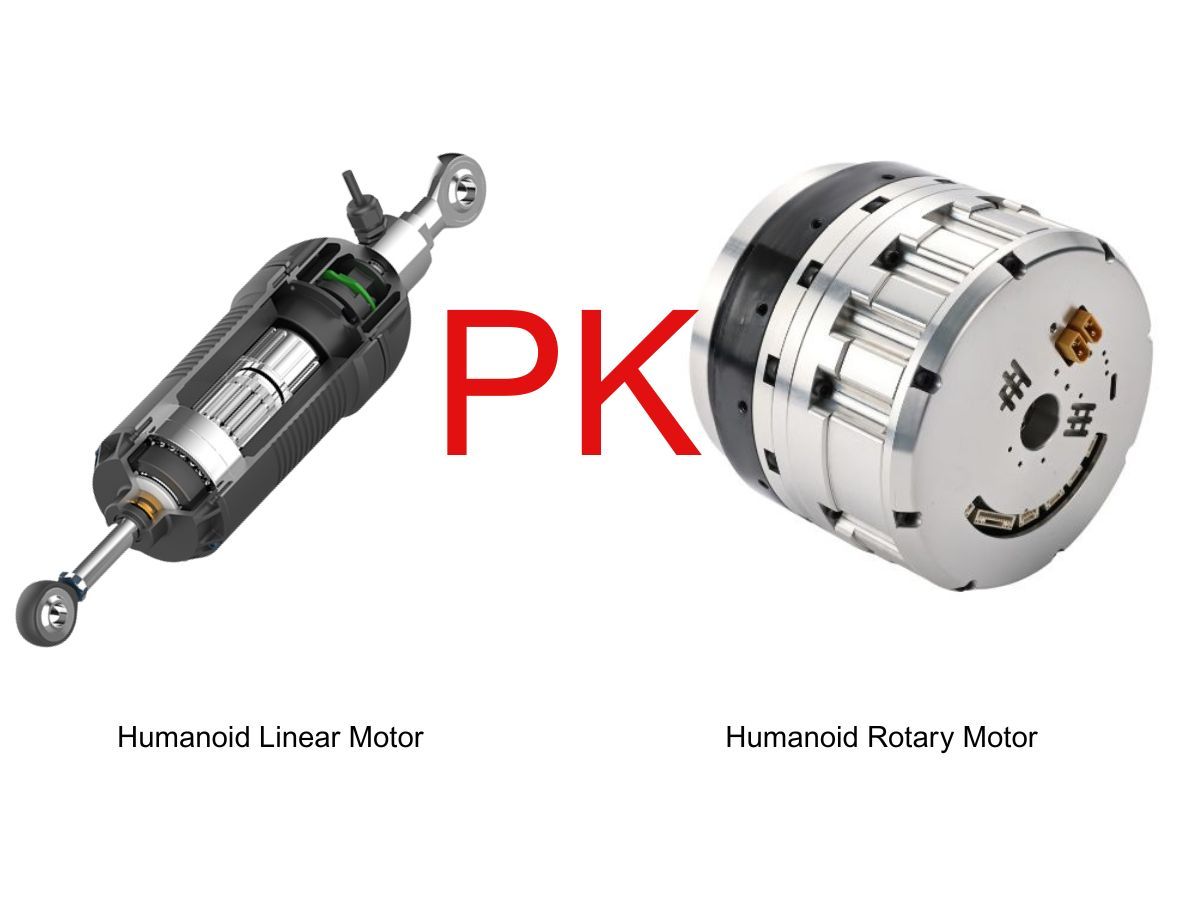

Electric Actuation Is Not Limited to Rotary Joints

Although harmonic and planetary gearboxes are important for rotary robot joints, humanoid robots also require linear motion.

A linear joint can be created by converting motor rotation into linear movement through a transmission mechanism.

One important technology is the planetary roller screw, which provides high load capacity and high precision in a relatively compact structure.

This type of mechanism is particularly relevant to humanoid robot legs and other applications where linear force and compact packaging are required.

Therefore, the future humanoid robot actuator architecture is unlikely to rely on one transmission technology alone.

Instead, manufacturers may combine:

Rotary Electric Actuators + Harmonic Reducers + Planetary Gearboxes + Linear Electric Actuators + Planetary Roller Screws

according to the mechanical requirements of each joint.

What Makes a Good Electric Robot Joint Actuator?

For humanoid robots, actuator selection should go beyond rated torque.

Engineers typically need to evaluate:

Torque density, peak torque, continuous torque, output speed, backlash, efficiency, thermal performance, joint inertia, encoder resolution, mechanical stiffness, communication interface, and overall actuator size and weight.

For example, a humanoid wrist may prioritize compactness and low backlash, while a knee or hip joint may require significantly higher peak torque and thermal capacity.

A dexterous hand requires another level of miniaturization and precision.

This means the ideal robot joint actuator is application-specific rather than a universal design.

Where Electric Robot Joint Actuators Are Most Suitable？

The advantages of electric actuation become particularly clear in humanoid robots designed for commercial deployment.

Humanoid Robot Arms

Electric rotary actuators can provide precise position and torque control for shoulder, elbow, and wrist joints while maintaining a compact mechanical structure.

Humanoid Robot Legs

Hip, knee, and ankle joints require high torque, dynamic response, and efficient energy use. Electric actuators combined with suitable precision transmissions can provide a compact alternative to centralized hydraulic systems.

Humanoid Robot Hands

The hand requires much smaller actuators and highly precise motion. Miniature harmonic reducers and compact electric motors can be integrated into finger joints where installation space is extremely limited.

Industrial Humanoid Robots

For robots operating in factories and logistics environments, electric actuation offers advantages in integration, maintenance, cleanliness, and compatibility with digital control architectures.

This is particularly relevant as humanoid robots move from research platforms toward industrial applications. Boston Dynamics, for example, has positioned the new electric Atlas toward real-world industrial use, with Hyundai as an initial application partner.

Why Electric Robot Joint Actuators Are Becoming a Key Technology？

The evolution of humanoid robots is changing what manufacturers expect from a joint actuator.

Hydraulic systems remain valuable when extremely high force density and dynamic power are the primary requirements. Pneumatic systems can also be useful for compliant and specialized applications.

However, for battery-powered humanoid robots intended for large-scale deployment, electric actuation offers a compelling combination of efficiency, controllability, compact integration, cleanliness, and scalability.

The transition of Atlas from hydraulic to fully electric actuation is a clear example of this direction in the industry.

At the same time, electric actuation does not mean that every humanoid joint should use the same motor or reducer.

The future architecture is more likely to be a combination of different electric transmission technologies optimized for different joints.

HONPINE Electric Robot Joint Actuators for Humanoid Robotics

HONPINE develops integrated robot joint actuator solutions based on precision motors, harmonic transmission, planetary transmission, encoders, and integrated control technologies.

For rotary humanoid joints, harmonic-based joint modules provide a compact solution where low backlash, high torque density, and precise positioning are critical.

For applications requiring different torque, speed, and load characteristics, planetary-based joint solutions provide an alternative transmission architecture.

HONPINE also develops actuator solutions with integrated electronics and communication interfaces, helping robot manufacturers reduce system complexity and simplify joint integration.

This approach allows the actuator architecture to be adapted to different humanoid robot applications, from shoulder and elbow joints to wrists, hips, knees, ankles, and compact robotic hands.

Conclusion

The move from hydraulic to electric actuation is one of the important developments in humanoid robot engineering.

Hydraulics remain powerful and capable, but electric robot joint actuators offer advantages that become increasingly important as humanoid robots move toward battery operation, compact mechanical design, precise digital control, industrial deployment, and mass production.

The key to this transition is not simply replacing a hydraulic cylinder with an electric motor. High-performance electric humanoid joints require a carefully matched combination of motor, precision reducer, encoder, driver, bearing, sensing, and control technology.

For rotary joints, harmonic reducers and planetary gearboxes provide different performance characteristics. For linear joints, technologies such as planetary roller screws provide another route to high-force electric actuation.

As humanoid robots become more capable and commercially viable, electric robot joint actuators will increasingly become a core building block of humanoid robot motion systems.

HONPINE's integrated harmonic and planetary joint solutions are designed to support this transition with compact, precise, and scalable motion components for next-generation humanoid robots.
