Hollow Rotary Table vs. Harmonic Rotary Actuator: How to Choose for High-Precision Industrial Automation

Rotary motion is widely used in modern industrial automation, from 3C electronics assembly and semiconductor inspection to CNC machining, lithium battery production, and precision testing equipment. As machines become faster and more precise, the choice of rotary transmission and positioning components becomes increasingly important.

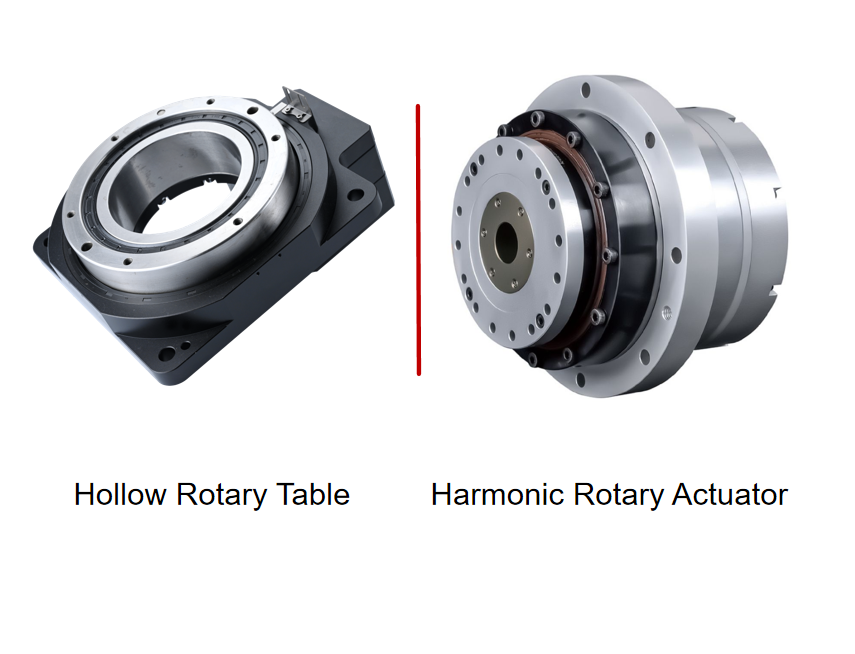

A hollow rotary table and a harmonic rotary actuator can both provide accurate rotary motion, but they are designed for different mechanical requirements. A hollow rotary table is generally built around a rigid rotary platform, making it suitable for indexing, positioning, and carrying relatively large loads. A harmonic rotary actuator integrates a motor with a precision harmonic transmission system, making it suitable for compact servo-controlled rotary axes.

The right choice therefore depends on more than torque or positioning accuracy. Engineers should consider load inertia, acceleration, radial and axial loads, positioning accuracy, backlash, hollow diameter, installation space, and system integration before selecting a solution.

This article compares hollow rotary tables and harmonic rotary actuators from the perspective of high-precision industrial automation and explains which solution is better suited to different applications.

What Is a Hollow Rotary Table?

A hollow rotary table is a precision rotary positioning mechanism designed to rotate and accurately position a workpiece, fixture, or machine platform. Its most recognizable feature is the central through-hole, which allows cables, pneumatic tubes, vacuum lines, shafts, or other components to pass through the rotating assembly.

This structure is particularly useful in automated equipment where wiring and utilities need to pass through the center of a rotating platform.

Typical applications include:

• 3C electronics assembly equipment

• Lithium battery production equipment

• Semiconductor inspection systems

• Precision assembly machines

• CNC rotary positioning systems

• Automated indexing stations

• Vision inspection equipment

• Medical and laboratory equipment

For multi-station automation, a hollow rotary table can support several fixtures around a rotating platform while allowing utilities to be routed through the center.

What Is a Harmonic Rotary Actuator?

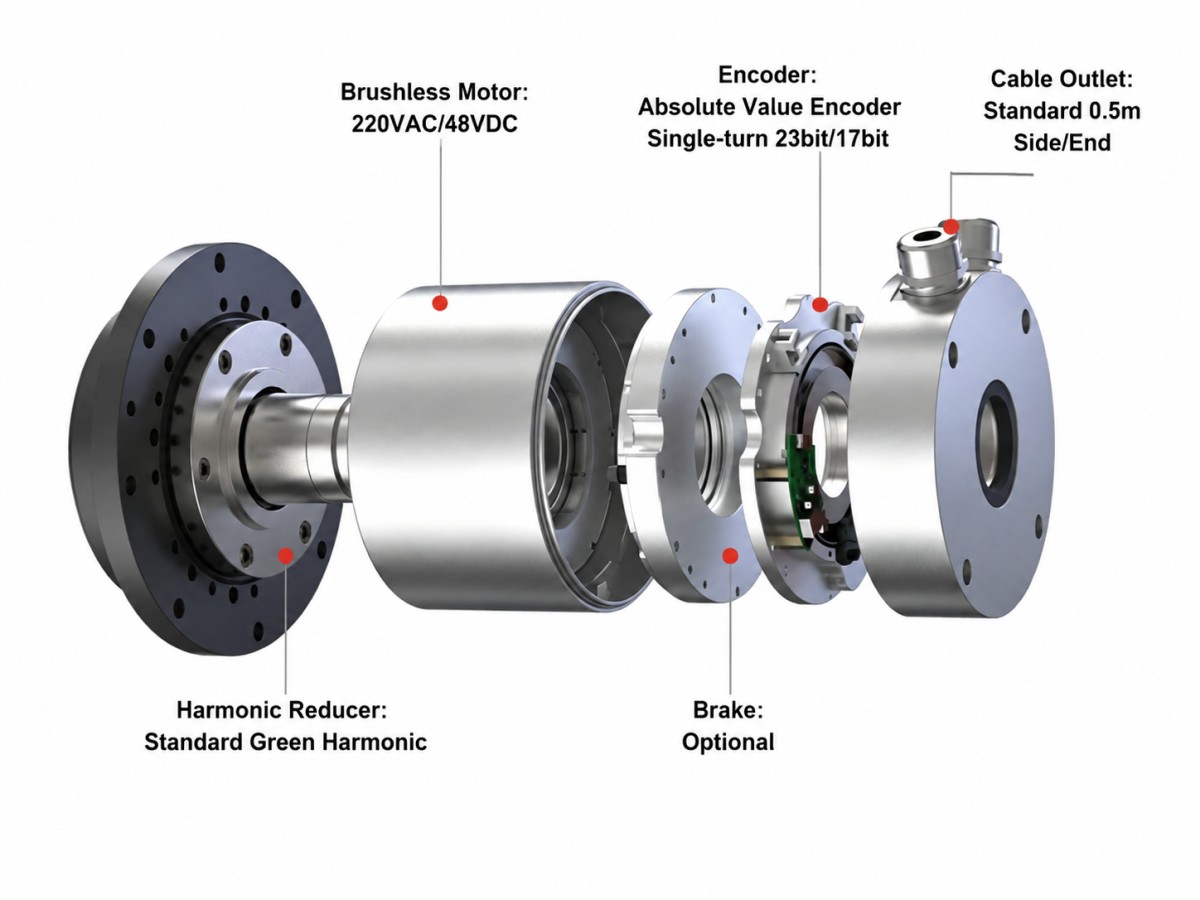

A harmonic rotary actuator is an integrated rotary drive that combines a motor with a precision harmonic transmission mechanism. Depending on the model, it may also integrate an encoder, brake, driver, or other feedback components.

The harmonic transmission provides a high reduction ratio, low backlash, and high positioning accuracy within a compact mechanical package.

Unlike a conventional rotary table, which is primarily designed as a load-bearing positioning platform, a harmonic rotary actuator is designed as a complete precision rotary drive.

This makes it suitable for industrial applications such as:

• Precision rotary axes

• Semiconductor equipment

• 3C automation

• Optical inspection systems

• Precision dispensing machines

• Automated assembly equipment

• CNC auxiliary rotary mechanisms

• High-precision positioning systems

The important distinction is that the two products solve different mechanical problems even though both are capable of precision rotary motion.

Hollow Rotary Table vs. Harmonic Rotary Actuator: Key Differences

The fundamental difference is the design priority.

A hollow rotary table emphasizes platform rigidity, load support, indexing, and central cable routing. A harmonic rotary actuator emphasizes precision transmission, low backlash, servo control, and integrated rotary drive performance.

This comparison shows why it is not meaningful to simply ask which product has better performance. The better question is which architecture matches the machine's mechanical requirements.

Load Capacity and Rotational Inertia

Load capacity is one of the first parameters to evaluate in industrial rotary equipment. However, the total load mass alone is not enough. The distribution of the load also affects the required torque.

For a rotary system, total rotational inertia can be estimated as:

Jtotal = Jtable + Jworkpiece + Jfixture

For a solid circular rotary platform, the platform inertia can be approximated by:

J = 1/2 × m × r²

where m is mass and r is the rotational radius.

The farther the load is from the rotation center, the greater its influence on inertia.

This is especially important in 3C assembly machines, battery indexing systems, and multi-station inspection equipment. A rotary platform carrying several fixtures near its outer circumference can have a much higher inertia than a compact workpiece mounted close to the center.

A hollow rotary table is often advantageous when the rotating platform itself must support a substantial load. A harmonic rotary actuator may be preferable when the load is part of a compact rotary axis and high torque density is more important than supporting a large platform.

Acceleration Torque and Motion Cycle

After calculating inertia, the next step is to determine acceleration torque.

The basic relationship is:

Tacc = J × α

where:

• Tacc is acceleration torque

• J is total rotational inertia

• α is angular acceleration

The actual torque requirement should also consider friction, external loads, unbalanced loads, and an appropriate safety factor.

For an indexing machine, the motion profile is particularly important. A machine that rotates 45° every two seconds has very different requirements from a rotary axis that continuously rotates at a fixed speed.

For example, a battery sorting or inspection table may need to accelerate quickly, move to a precise position, settle, perform the process, and then repeat. In this situation, acceleration, deceleration, settling time, and repeatability are more important than simply looking at the maximum output torque.

For servo-driven precision axes, harmonic rotary actuators can provide a compact transmission solution with low backlash and precise feedback.

Positioning Accuracy and Repeatability

Positioning accuracy is often one of the most important specifications in precision automation, but it should not be evaluated in isolation.

Three parameters should be considered separately:

• Positioning accuracy

• Repeatability

• Backlash

Positioning accuracy describes how close the actual position is to the commanded position. Repeatability describes how consistently the mechanism returns to the same position. Backlash represents mechanical angular play within the transmission system.

A machine may require excellent repeatability without requiring extremely high absolute positioning accuracy.

For example, a 3C assembly machine may repeatedly position components at the same angular location, while a semiconductor inspection system may require both high repeatability and extremely small angular errors.

Harmonic transmission systems are particularly attractive for precision applications because their low-backlash characteristics can improve the accuracy and consistency of servo-controlled rotary motion.

A hollow rotary table can also provide high positioning accuracy, but the final performance depends on its transmission mechanism, bearings, encoder, manufacturing tolerances, and control system.

Hollow Diameter and Internal Cable Routing

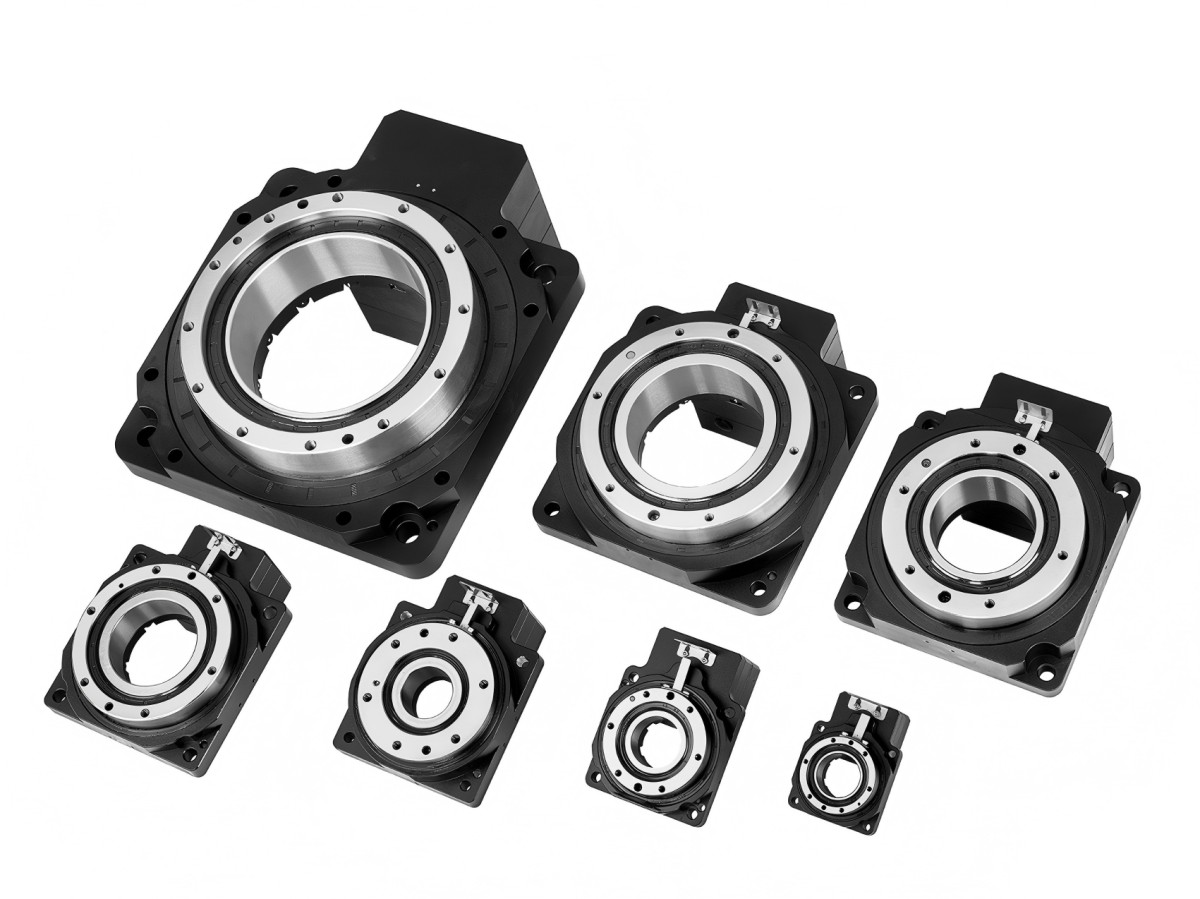

One of the strongest reasons to choose a hollow rotary table is its large central opening.

Industrial equipment frequently needs to route multiple utilities through the center of a rotating mechanism, including:

• Servo cables

• Encoder cables

• Pneumatic tubes

• Vacuum lines

• Cooling lines

• Optical cables

• Mechanical shafts

A large through-hole can simplify the machine layout and reduce the need to route cables around the outside of the rotary axis.

However, the largest possible hollow diameter is not necessarily the best choice.

The central opening must be balanced with:

• Structural rigidity

• Bearing size

• Load capacity

• Overall dimensions

• Required torque

• Installation space

For this reason, the required cable bundle and tubing should be defined during the mechanical design stage rather than after the rotary table has already been selected.

Radial Load, Axial Load and Overturning Moment

Industrial rotary platforms are often subjected to more than pure rotational torque.

A workpiece may be mounted at a distance from the rotation center, creating radial forces and an overturning moment. These loads can become significant in inspection equipment, dispensing systems, assembly machines, and CNC rotary positioning systems.

For example, if a heavy fixture is mounted near the outer edge of a rotary table, the bearing system must withstand the resulting moment while maintaining the required positioning accuracy.

This is an area where a hollow rotary table can be particularly useful because its mechanical structure is designed around supporting a rotary platform.

For a harmonic rotary actuator, engineers should evaluate the actuator's output bearing capacity, allowable radial and axial loads, and permissible overturning moment according to the manufacturer's specifications.

Torque capacity alone should never be used as a substitute for a complete load analysis.

System Integration

Another major difference is the way the two solutions are integrated into a machine.

A conventional rotary table may use a configuration such as:

Servo motor → reducer → rotary table → load

The motor, drive, encoder, and controller may therefore need to be selected and installed separately.

A harmonic rotary actuator can integrate several components into a single assembly:

Motor + Harmonic Reducer + Encoder + Housing + Optional Brake/Driver

This can reduce the number of mechanical interfaces and simplify the design of precision rotary axes.

For industrial equipment manufacturers, integration can also reduce assembly work and make the overall rotary mechanism more compact.

However, an integrated actuator is not automatically the better solution. If the machine requires a large rotary platform, multiple fixtures, a large central opening, and significant overturning-load capacity, a dedicated hollow rotary table may still be the more appropriate architecture.

Hollow Rotary Table vs. Harmonic Rotary Actuator for 3C Automation

3C manufacturing equipment often requires fast indexing, accurate positioning, compact machine layouts, and reliable cable routing.

A hollow rotary table is particularly suitable for multi-station assembly equipment where several workpieces or fixtures are mounted around a rotating platform.

For example, an automated assembly table may have eight stations. Each station can perform a different process while the platform indexes to the next position.

The central hollow structure can also simplify the routing of pneumatic and electrical connections.

A harmonic rotary actuator becomes attractive when the machine requires a compact precision rotary axis with continuous servo control and very low backlash.

For this reason, the choice depends on whether the rotary mechanism is primarily a load-bearing indexing platform or a precision servo axis.

Hollow Rotary Table vs. Harmonic Rotary Actuator for Semiconductor Equipment

Semiconductor equipment places particularly demanding requirements on motion systems. Depending on the process, the rotary axis may need high repeatability, low vibration, precise positioning, compact installation, and reliable cable management.

A hollow rotary table can be advantageous for larger positioning platforms or mechanisms where cables and utilities need to pass through the center.

A harmonic rotary actuator may be more suitable for compact precision axes where low backlash and servo-controlled angular positioning are critical.

For semiconductor applications, engineers should also consider:

• Positioning repeatability

• Angular accuracy

• Mechanical rigidity

• Vibration

• Thermal stability

• Cable routing

• Installation space

• Duty cycle

The final selection should be based on the complete motion architecture rather than one specification.

Hollow Rotary Table vs. Harmonic Rotary Actuator for CNC Applications

CNC equipment requires stable and predictable rotary motion. Depending on the machine structure, the rotary mechanism may need to support a substantial workpiece, tooling, or fixture.

A hollow rotary table can be a strong choice for applications involving large workpieces, high structural loads, and a large through-hole.

A harmonic rotary actuator can be considered for compact auxiliary rotary axes or precision positioning mechanisms where low backlash and servo integration are important.

The most important selection parameters include:

• Workpiece mass

• Rotational inertia

• Cutting or process forces

• Radial and axial loads

• Overturning moment

• Positioning accuracy

• Repeatability

• Maximum speed

• Duty cycle

In CNC applications, rigidity and load capacity should be evaluated together with positioning performance.

Hollow Rotary Table vs. Harmonic Rotary Actuator for Precision Inspection

Precision inspection equipment often requires accurate angular positioning combined with smooth motion and repeatability.

For a large inspection platform carrying cameras, sensors, fixtures, or multiple workpieces, a hollow rotary table may offer advantages in load support and cable routing.

For a compact optical or measurement axis, a harmonic rotary actuator may provide a more integrated solution.

The key consideration is the relationship between the moving mass, required angular accuracy, settling time, and external loads.

A high-resolution encoder alone cannot compensate for excessive mechanical backlash, structural deformation, or insufficient rigidity.

Hollow Rotary Table vs. Harmonic Rotary Actuator for Lithium Battery Equipment

Lithium battery manufacturing equipment often uses rotary indexing systems for assembly, inspection, sorting, and testing.

These systems may carry multiple cells or fixtures simultaneously, creating considerable rotational inertia.

For example, an eight-station indexing table with a 300 mm diameter platform must be evaluated based on:

• Platform weight

• Workpiece weight

• Fixture weight

• Load distribution

• Indexing angle

• Acceleration time

• Positioning accuracy

• Hollow diameter

A hollow rotary table can be particularly suitable when the application combines a relatively large rotating platform, multiple stations, and central cable or pneumatic routing.

A harmonic rotary actuator is more suitable when the rotary axis is compact and the primary requirement is precise servo-controlled motion rather than supporting a large indexing platform.

How to Choose the Right Solution

A practical selection process can be divided into five steps.

Step 1: Define the Load

Determine the total mass, load distribution, maximum radius, radial load, axial load, and possible eccentric loading.

Step 2: Calculate Rotational Inertia

Calculate the inertia of the rotary platform, workpieces, fixtures, and other moving components.

Then determine the required acceleration torque based on the actual motion profile.

Step 3: Define Accuracy Requirements

Specify the required positioning accuracy, repeatability, backlash, encoder resolution, and settling time.

Do not select a product solely because it has a higher accuracy specification than the process requires.

Step 4: Determine the Hollow Diameter

If cables, pneumatic lines, vacuum tubes, or shafts need to pass through the center, determine the required through-hole diameter before selecting the model.

Allow sufficient space for installation and future maintenance.

Step 5: Evaluate the Mechanical Architecture

Finally, determine whether the machine needs a rotary platform or a precision rotary actuator.

If the primary requirement is load support, indexing, large hollow diameter, and platform rigidity, a hollow rotary table may be the better choice.

If the primary requirement is low backlash, precision servo motion, compact integration, and high torque density, a harmonic rotary actuator may be more suitable.

Which Is Better for High-Precision Industrial Automation?

Neither solution is universally better. The appropriate choice depends on the machine architecture.

A hollow rotary table is generally a better fit when the rotary mechanism needs to carry a substantial platform or fixture, support radial and overturning loads, provide a large central opening, and perform repeated indexing or positioning.

A harmonic rotary actuator is generally a better fit when the application requires a compact precision rotary axis, low backlash, high positioning accuracy, high reduction ratio, and integrated servo control.

For industrial automation, the selection can be summarized as follows:

The final selection must be confirmed against the manufacturer's load, bearing, speed, and accuracy specifications.

HONPINE Precision Rotary Motion Solutions

HONPINE provides precision motion components for industrial automation, CNC equipment, semiconductor equipment, 3C manufacturing, inspection systems, and other high-precision applications.

Its harmonic transmission and rotary actuator solutions are designed for applications requiring precise angular positioning, low backlash, compact mechanical integration, and reliable servo motion.

For engineers comparing a hollow rotary table with a harmonic rotary actuator, the selection should begin with the actual operating conditions rather than the product name. Load inertia, acceleration, positioning accuracy, radial and axial loads, hollow diameter, installation space, and duty cycle should all be evaluated before choosing the final configuration.

When these parameters are clearly defined, it becomes much easier to determine whether a hollow rotary table or a harmonic rotary actuator provides the better solution for a specific industrial automation system.

Conclusion

Hollow rotary tables and harmonic rotary actuators can both be used in high-precision industrial automation, but they are optimized for different requirements.

A hollow rotary table is particularly valuable when the machine needs a rigid rotating platform, large central through-hole, high load capacity, and reliable indexing performance.

A harmonic rotary actuator is more suitable when the machine requires a compact precision rotary axis with low backlash, high reduction ratio, accurate servo control, and integrated motion components.

For 3C automation, semiconductor equipment, CNC machinery, lithium battery production, and precision inspection systems, the correct choice should be based on load, inertia, accuracy, rigidity, hollow diameter, motion profile, and system integration requirements.

The goal is not to select the most powerful rotary component. It is to select the rotary motion architecture that provides the required performance without unnecessary size, cost, or complexity.
