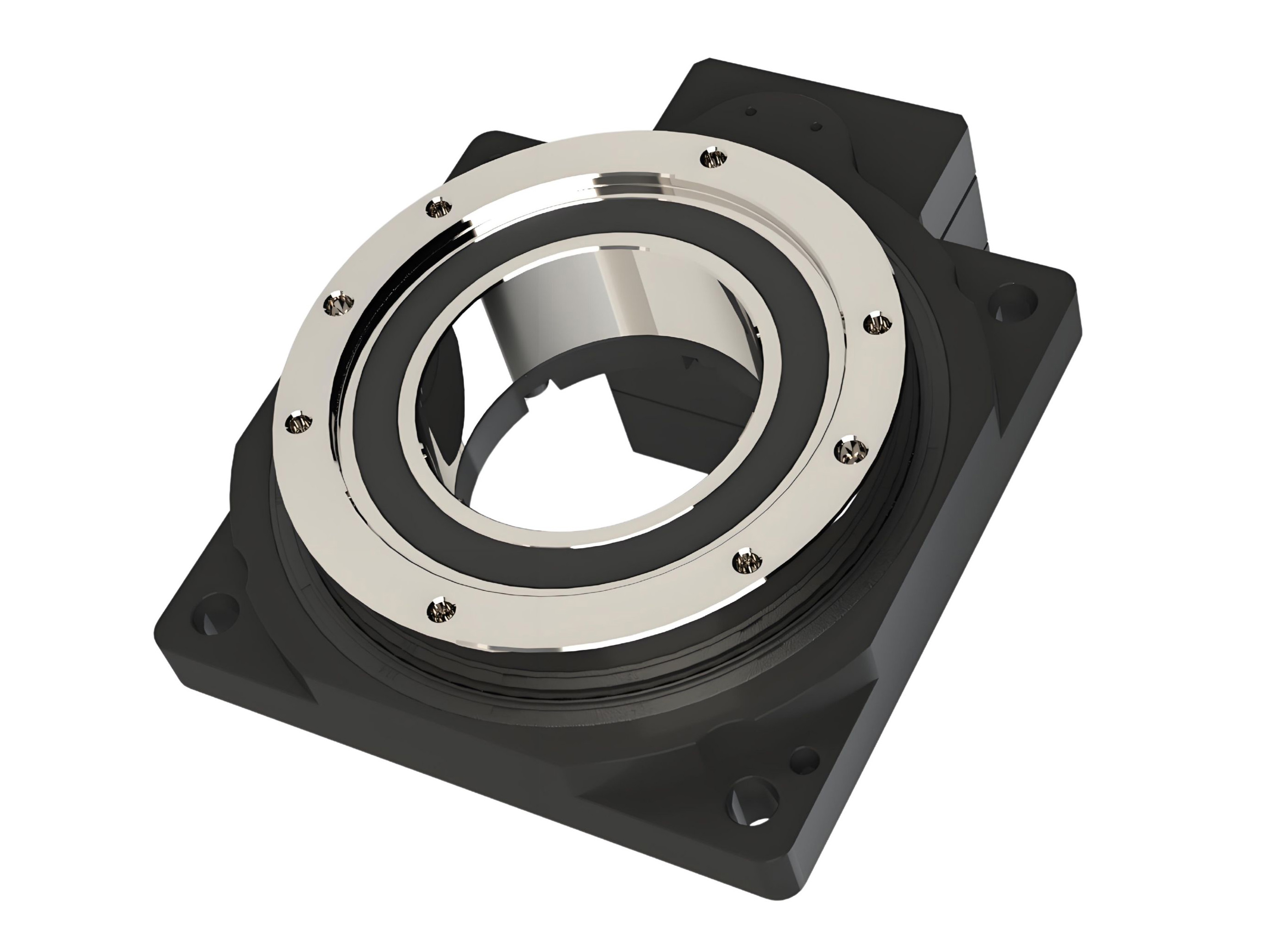

Serve Motor Drive High Precision Standard Hollow Rotary Platform

  • Serve Motor Drive High Precision Standard Hollow Rotary Platform

●  Introduction

The standard hollow rotary platform is an integrated device combining precision transmission and positioning functions. Its core design features a hollow structure, allowing pipelines (such as tubes and wires) to pass through the center of the rotating table. It can be directly connected to a servo motor. Driven by a servo motor and utilizing gear reduction, this platform achieves high-precision angular control and boasts characteristics such as high rigidity and high repetitive positioning accuracy. It can serve as a replacement for DD motors and cam dividers.
Contact Us

Features

● Hollow Structure Design

  • Central hollow channel allows media transmission (air/liquid/electrical), simplifying equipment layout.

  • Side-mounted motor interface avoids interference between pipelines and moving components.


● High-Rigidity Support
Precision cross roller bearings with 90° staggered preloaded rollers withstand radial, axial, and overturning loads, offering 5-10x higher rigidity than conventional bearings.


● Ultra-High Rotational Accuracy

  • Turntable undergoes secondary grinding to ensure strict geometric tolerances (coaxiality, parallelism), achieving micrometer-level rotational accuracy.

  • Repeat positioning accuracy ≤5 arc-seconds for select models, meeting precision alignment requirements.


● Flexible Compatibility

  • Compatible with any brand of servo/stepper motors; customizable flanges and shaft-bore interfaces.

  • Modular design supports horizontal/vertical installation for enhanced scalability.


● High-Reliability Transmission

  • Single-stage helical gear reducer (precision class ≤5) with adjustable backlash design minimizes transmission error.

  • Precision bevel gear system enables infinite angular adjustment.

Specification

Sheet 1

Standard Hollow Rotary Actuators
Model
60K-051085K-051018110K-0510130K-061018170K-0510200K-1018280K-10
Output Platform
Cross Roller BearingCross Roller BearingCross Roller Bearing



Cross Roller Bearing






Rotation Rangedeg0-360°
（Continuous）		0-360°
（Continuous）		0-360°
（Continuous）



0-360°
（Continuous）






Compatible Motor（size）mm50-100W
φ8-φ30-φ45-M3 Servo Motor		50-100W
φ8-φ30-φ45-M3 Servo Motor		100-200W
φ8-φ30-φ45-M3 Servo Motor



100-200W
φ8-φ30-φ45-M3 Servo Motor






Reduction Ratio
51051018510610181018101818
Hollow Boremmφ28φ33φ35φ62φ33φ72φ100φ150
Rated TorqueN·m5N·m6.5N·m18N·m14N·m18N·m35N·m35N·m43N·m34N·m25N·m55N·m45N·m112N·m85N·m85N·m
Max SpeedRPM200rpm200rpm200rpm200rpm200rpm200rpm200rpm
RepeatabilityArcsec±15arcsec±15arcsec±15arcsec±15arcsec±15arcsec±15arcsec±15arcsec
Axial LoadN250N250N500N500N2000N2000N3000N4000N4000N
Radial LoadN125N125N250N250N1200N1200N2000N2500N2500N
Parallelismmm0.02mm0.02mm0.02mm0.02mm0.02mm0.02mm0.02mm
Face Runoutmm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mm
Face Runoutmm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mm
Inertiakg·m2735x10-7kg·m21203x10-6kg·m21483x10-6kg·m21203x10-6kg·m227619x10-6kg·m227619x10-6kg·m2361220x10-7kg·m2
AccuracyArcsec≤30arcsec≤30arcsec≤30arcsec≤30arcsec≤30arcsec≤30arcsec≤30arcsec
Temp. Range°C-10°C~90°C-10°C~90°C-10°C~90°C-10°C~90°C-10°C~90°C-10°C~90°C-10°C~90°C
Service Lifeh20000h20000h20000h20000h20000h20000h20000h
IP RatingIPIP40IP40IP40IP40IP40IP40IP40
Noise LeveldB≤65dB≤65dB≤65dB≤65dB≤65dB≤65dB≤65dB
