In recent years, modern agricultural equipment has gradually replaced traditional machinery, including agricultural harvesting robots, precision seeding and fertilization equipment, agricultural spraying and variable-rate application systems, automated pruning and shaping equipment, agricultural inspection and monitoring equipment, and automated sorting and agricultural product processing equipment. Harmonic joint modules are helping drive the upgrading of agricultural equipment.

Why Harmonic Joint Modules Are Suitable for Agricultural Equipment？

The core advantages of harmonic joint modules are precise control, high torque output, compact structure, and high reliability. Agricultural functions such as precision weeding, intelligent harvesting, precision seeding, and variable-rate spraying require exactly this type of transmission system. At the same time, the highly integrated nature of harmonic joint modules is also beneficial for rapid assembly and the development of new agricultural equipment.

One of HONPINE Customer: Agricultural Weeding Machine

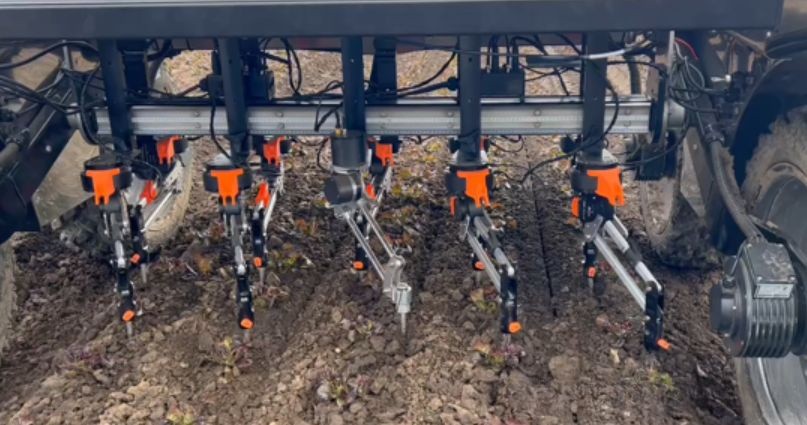

High-precision intelligent weeding machines focus on improving the accuracy, flexibility, and environmental adaptability of weeding operations. By installing high-performance harmonic joint modules at the end of the weeding machine and combining them with AI vision recognition systems, the core objectives of “precise recognition, flexible operation, and efficient weeding” can be achieved.

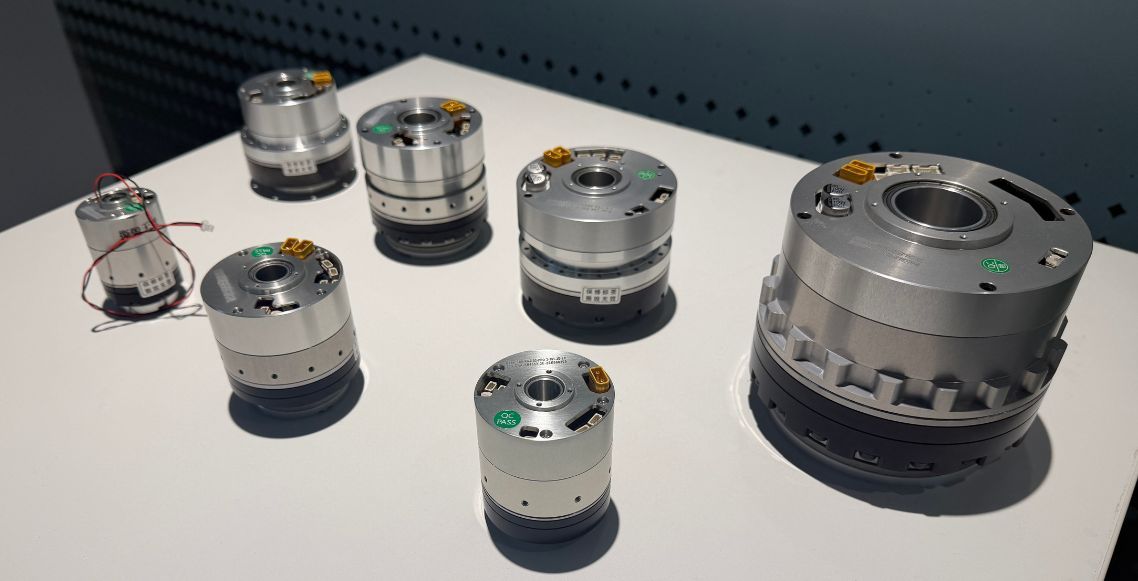

The intelligent weeding machine is equipped at the end with our HPJM-RE30-40-PRO-XX harmonic joint module.
Reduction ratio: 51 / 101
Peak torque: 3.3 / 4.8 N·m
Average load torque: 1.8 / 2.4 N·m

This harmonic joint module has a diameter of only 4 mm and weighs only 0.19 kg. Although small in size, it integrates a harmonic reducer, motor, encoder, driver, and brake. The main advantages of the harmonic joint motor are high integration, lightweight design, and high torque output. It can also be customized with a brake (the brake is locked when power is off and released before motion). The joint module can operate at extreme low temperatures down to -40°C, and the motor protection level can reach IP67 or IP68, making even deep-water operation possible. The absolute positioning accuracy can reach 0.05°, and the repeat positioning accuracy can reach 0.005°.

Intelligent weeding machines equipped with harmonic joint modules achieve more than 40 times the efficiency of manual weeding, with a single machine capable of completing weeding work on an average of 60 mu per day, far exceeding traditional manual efficiency. In actual testing, efficiency increased by 40% compared with traditional weeding machines. At the same time, the new intelligent weeding equipment supports all-weather operation. With protection levels of IP67 or IP68, it can operate continuously even during the rainy season, completely solving the problem of weeding during wet weather.

By equipping the end of intelligent weeding equipment with harmonic joint modules and AI vision systems, weeding efficiency is greatly improved, and the problems of missed weeding and incorrect weeding common in traditional machines are significantly reduced. High-precision equipment enables an absolute positioning accuracy of 0.05° and repeat positioning accuracy of 0.005°. At the same time, the use of chemical herbicides is reduced by 60%, resulting in clear improvements in crop growth and soil conditions.

Why Harmonic Joint Modules Are Reshaping Agricultural Equipment?

With the development of AI and robotics technology, agricultural equipment is entering a new revolution. Agricultural machinery is evolving from single-function machines to multi-functional systems, from whole-field operations to single-plant operations, and from mechanical drives to servo drives. Traditional transmission systems can no longer fully meet these requirements. Harmonic joint modules are participating in this transformation with their advantages of high precision, high torque, and compact size.

If you are a technical engineer involved in the development of agricultural equipment, we would be very pleased to discuss with you the transmission requirements of new agricultural equipment.
