Industrial Robot Joint Servo Motor RV Cycloidal Reducer Gear Box
Standard RV Reducer
Standard RV (Rotary Vector) Reducer is a reduction device specially designed for precision machinery. It adopts a two-stage enclosed differential gear mechanism composed of a cycloidal pinwheel and a planetary gear set. The reducer itself is an open-type structure; therefore, during application, flange sealing and filling with dedicated RV grease are required.
In the field of industrial robots, for robotic arms with an end payload of 20 kg or less, RV reducers are mainly applied to the base and high-load joints of the robot (typically joints 1 to 4). For robotic arms with an end payload exceeding 20 kg, all six joints (degrees of freedom) are equipped with RV reducers. The RV reducer is a core transmission component that ensures the positioning accuracy of robotic arms.
According to structural characteristics, standard RV reducers can be classified into:Standard E Series: solid-shaft structure,Standard C Series: hollow-shaft structure
Brief Usage Instructions
Both the Standard E Series and Standard C Series are open structures without flange sealing. After purchase, customers are required to perform flange sealing and inject dedicated RV lubricating grease. In addition, the solid input shaft supplied from the factory must be re-machined (shaft boring and keyway machining) according to the customer’s motor input shaft specifications.
Our company can provide custom secondary machining services for the input shaft based on the drawings supplied by the customer.
![Solid Output Shaft Planetary Gear Transmission RV Reducer for Heavy Duty Robotic Arms]( "Solid Output Shaft Planetary Gear Transmission RV Reducer for Heavy Duty Robotic Arms")
Solid Output Shaft Planetary Gear Transmission RV Reducer for Heavy Duty Robotic ArmsThe Standard RV Reducer E Series is a precision reduction device featuring a two-stage closed differential gear system composed of a cycloid pinwheel and planetary gears, with a solid output shaft. It is widely used in industrial robotics applications.
For robotic arms with end loads ≤20 kg, RV reducers are primarily employed in base-to-high-load joints (typically Joints 1-4).
For robotic arms with end loads >20 kg, all six joints typically utilize RV reducers.
RV reducers serve as the core transmission component ensuring robotic arm positioning accuracy.Details![Precision Mechanical Hollow Output Shaft RV Reducer for Industrial Robotics]( "Precision Mechanical Hollow Output Shaft RV Reducer for Industrial Robotics")
Precision Mechanical Hollow Output Shaft RV Reducer for Industrial RoboticsThe Standard RV Reducer C Series is a precision mechanical reduction device designed with a two-stage closed differential gear system, combining a cycloid pinwheel and planetary gear structure. It features a hollow output shaft and is widely used in industrial robotics.For robotic arms with end loads ≤20 kg, RV reducers are primarily used in base-to-high-load joints (typically Joints 1-4).For robotic arms with end loads >20 kg, all six joints typically use RV reducers.RV reducers are critical transmission components ensuring robotic arm positioning accuracy.Details
Flange RV Reducer
Flange-Integrated RV (Rotary Vector) Reducer is a reduction device specifically designed for precision machinery. It adopts a two-stage enclosed differential gear mechanism composed of a cycloidal pinwheel and a planetary gear set. The reducer is factory-assembled with an integrated flange-sealed structure and pre-filled with dedicated RV lubricating grease, allowing customers to use it directly with a servo motor out of the box.
In the field of industrial robots, for robotic arms with an end payload of 20 kg or less, RV reducers are mainly applied to the base and high-load joints of the robot (typically joints 1 to 4). For robotic arms with an end payload exceeding 20 kg, all six joints (degrees of freedom) are equipped with RV reducers. The RV reducer is a core transmission component that ensures the positioning accuracy of robotic arms.
The flange-integrated RV reducer is a customized model developed by adding flange sealing to the standard RV reducer. According to the same classification characteristics as standard RV reducers, flange-integrated RV reducers can be divided into:Flange-Integrated E Series: solid-shaft structure,Flange-Integrated C Series: hollow-shaft structure
![High Precision Two Stage Serve Motor Flange RV Reducer]( "High Precision Two Stage Serve Motor Flange RV Reducer")
High Precision Two Stage Serve Motor Flange RV ReducerThe Flange-Integrated RV Reducer E Series represents a precision-engineered speed reduction solution designed for high-performance mechanical applications. This advanced transmission system features a two-stage enclosed differential gear mechanism combining cycloidal pin gear and planetary gear configurations, with a solid output shaft design. The unit comes factory-assembled with flange sealing and pre-lubricated with specialized RV grease, enabling immediate integration with servo motors upon installation.
Industrial Robotics Applications:
For robotic arms with end-effector payloads ≤20kg: Primarily deployed in base-to-high-load joints (typically J1-J4)
For robotic arms with end-effector payloads >20kg: All six joints utilize RV reducers
As the critical transmission component, RV reducers ensure exceptional positioning accuracy in robotic systems.Details![Hollow Output Shaft Flange Integrated Cycloid RV Robot Gearbox]( "Hollow Output Shaft Flange Integrated Cycloid RV Robot Gearbox")
Hollow Output Shaft Flange Integrated Cycloid RV Robot GearboxThe Flange-Integrated RV Reducer C Series is a precision reduction device specifically designed for mechanical applications. It features a two-stage closed differential gear system consisting of cycloid pinwheels and planetary gears, with a hollow output shaft. The unit comes factory-sealed with flanges and pre-filled with specialized RV lubricating grease, allowing direct installation with servo motors upon unboxing.
In industrial robotics applications:
For robotic arms with end-effector loads ≤20kg, RV reducers are primarily used in base-to-high-load joints (typically Joints 1-4)
For robotic arms with end-effector loads >20kg, all six joints typically employ RV reducers
RV reducers serve as the core transmission component ensuring robotic arm positioning accuracy.Details

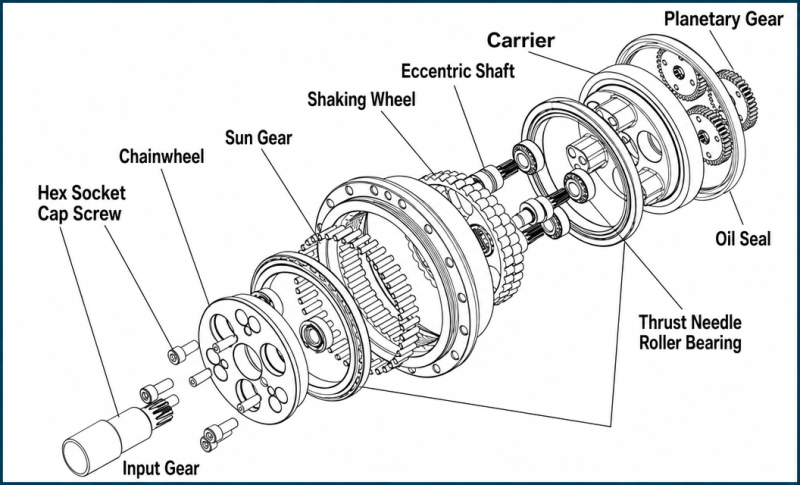

How does an RV Reducer Work?
An RV reducer is a two-stage precision gearbox designed to convert the high-speed, low-torque output of a servo motor into low-speed, high-torque rotary motion with excellent accuracy and rigidity.
The first stage uses a planetary gear system. The motor drives the sun gear, which rotates the planet gears and the planet carrier. This stage provides an initial reduction ratio, typically between 3:1 and 4:1, while transmitting power to the second stage.
The second stage is a cycloidal pin gear mechanism, which generates the main reduction ratio. An eccentric crankshaft drives one or two cycloidal discs inside a fixed ring of pins. Because the pin count is always one greater than the number of lobes on the cycloidal disc, the disc rotates slightly in the opposite direction during each revolution. This slow reverse motion is transferred to the output flange, producing a high reduction ratio with outstanding positioning accuracy.
The total reduction ratio equals the product of the two stages. For example, a 3:1 planetary stage combined with a 40:1 cycloidal stage produces an overall reduction ratio of 120:1.
The key advantage of an RV reducer is its multiple-tooth engagement, where many teeth share the load simultaneously. This provides significantly higher rigidity, load capacity, and shock resistance than many other precision reducers. In addition, two cycloidal discs mounted 180° apart effectively balance vibration and ensure smooth operation.
Thanks to their high torque density, excellent stiffness, and long service life, RV reducers are widely used in industrial robot bases, shoulder joints, CNC machine tools, rotary tables, and other heavy-duty precision automation equipment.
RV Reducers vs. Harmonic Reducers vs. Planetary Reducers: What's the Difference?
RV reducers, harmonic reducers, and planetary reducers are the three most widely used precision gear reduction technologies in modern motion control systems. Each offers distinct technical advantages and is designed for different performance requirements and application scenarios.
RV reducers typically employ a two-stage transmission design consisting of a planetary gear stage followed by a cycloidal pin gear stage. This unique configuration delivers exceptionally high torsional rigidity, outstanding shock resistance, and excellent load-carrying capacity, with rated output torque reaching several thousand newton-meters. In addition, RV reducers provide long service life and stable performance under heavy-duty operating conditions. These characteristics make them the preferred choice for the base, shoulder, and other high-load joints of industrial robots. However, RV reducers are complex to manufacture and require extremely high standards for materials, heat treatment, machining, and assembly accuracy, resulting in relatively high production costs. Consequently, the global high-end RV reducer market has long been dominated by a small number of Japanese manufacturers.
Harmonic reducers, also known as strain wave gear reducers, feature a much simpler yet highly sophisticated structure composed of only three core components: a circular spline, a flexspline, and a wave generator. Their operating principle relies on the controlled elastic deformation of the flexspline to achieve precise tooth engagement and high reduction ratios. This design enables harmonic reducers to offer compact dimensions, lightweight construction, zero backlash, and exceptionally high positioning accuracy. In many precision motion applications, their positioning error can be as little as one-quarter that of conventional gear transmissions. As a result, harmonic reducers are widely used in robot wrists, end-effectors, semiconductor equipment, medical devices, and other applications that demand high precision and compact size. Because the flexspline undergoes continuous elastic deformation during operation, however, fatigue life and load capacity are inherently limited compared with RV reducers. Similar to the RV market, the high-end harmonic reducer industry has traditionally been led by Japanese manufacturers.
Planetary reducers consist of a sun gear, multiple planet gears, and an internal ring gear. Compared with RV and harmonic reducers, planetary gearboxes feature a simpler mechanical structure while providing high transmission efficiency through power sharing among multiple planet gears. They offer a well-balanced combination of torque capacity, efficiency, reliability, and cost-effectiveness. Thanks to these advantages, planetary reducers are widely used not only in industrial robots but also in CNC machine tools, factory automation equipment, packaging machinery, material handling systems, and smart home automation. Their versatility and competitive pricing make them the most broadly applied type of precision reducer across the automation industry.
Overall, there is no universally superior reducer technology. The optimal choice depends entirely on the specific application requirements, including load capacity, positioning accuracy, stiffness, speed, available installation space, and cost considerations.
In industrial robot design, RV reducers are typically selected for large joints such as the base and shoulder to withstand heavy loads and high impact forces. Harmonic reducers are commonly used in wrist and end-effector joints where compact size and ultra-high positioning accuracy are critical. Planetary reducers, meanwhile, provide an excellent balance between performance and affordability, making them the preferred solution for a wide range of general automation applications.
Rather than competing directly, RV reducers, harmonic reducers, and planetary reducers each serve distinct roles. Together, they form the foundation of modern precision power transmission systems and enable the diverse motion control requirements found across today's industrial automation industry.
Why Choose HONPINE RV Reducer Gearbox
1,With proprietary tooth profile design, modification technology, and strong technical support, we can mass-produce core components with rational force distribution, self-adaptation to manufacturing errors, strong damage resistance, smooth transmission, and low noise levels.
2,HONPINE possesses world-class high-precision CNC production equipment, customized to ensure stability and efficiency in high-precision batch machining.
3,Our self-developed machining processes, along with high-precision and high-efficiency clamping fixtures, guarantee product accuracy, stability, and production efficiency.
4,We independently developed specialized batch inspection tools, testing instruments, and test benches to achieve rapid batch testing with automatic data entry into the database.
5,Our self-developed assembly tools and tolerance allocation methods enhance both efficiency and precision in batch assembly operations.
6,In collaboration with partners, we developed dedicated heat treatment equipment to ensure superior and consistent material properties in mass-produced components. Precise heat treatment control guarantees stable reducer quality.
7,Equipped with a professional testing platform (benchmarked against national evaluation centers), we can evaluate the overall performance of RV reducer gearboxes and provide official test reports.
Application of Precision RV Reducer Gearbox
RV (Rotary Vector) reducers deliver ultra-high torque capacity, exceptional rigidity, and outstanding shock resistance in heavy-duty applications. Their unique two-stage reduction structure ensures high precision and minimal backlash under demanding conditions.
Designed for industrial robots, machine tools, automation systems, and other high-precision applications requiring robust performance under extreme loads.
We also offer flange-integrated models for direct motor mounting, simplifying installation and improving system integration.
Choose our RV series for reliable performance, long service life, and customized solutions tailored to your industrial needs.
RV (Rotary Vector) reducers deliver ultra-high torque capacity, exceptional rigidity, and outstanding shock resistance in heavy-duty applications. Their unique two-stage reduction structure ensures high precision and minimal backlash under demanding conditions.
‹
›
RV Reducer Gearboxes - FAQ
RV Reducer Gearbox Important Parameter
Selecting an RV reducer is a systematic engineering process that focuses on matching the motor–reducer–load system. The selection should comprehensively consider load characteristics, operating conditions, and system accuracy requirements. The key selection parameters can be categorized as follows:
1. Torque Parameters (Core Selection Criteria)
Rated Output Torque (Tn)
The rated output torque is the torque that the reducer can continuously transmit at its rated output speed. It serves as the primary selection criterion and should exceed the system's average load torque with an appropriate safety margin.
Peak / Maximum Torque (Tp)
Peak torque includes the permissible start/stop torque (Ts1), typically 2.5 times the rated torque, and the maximum instantaneous torque (Ts2), typically 5 times the rated torque. These values must satisfy the transient torque requirements during acceleration, deceleration, and emergency stopping to prevent overload damage.
Average Load Torque (Tm)
The average load torque represents the average torque over one complete operating cycle and is primarily used for reducer life verification.
2. Speed and Reduction Ratio Parameters
Reduction Ratio (i)
The reduction ratio is defined as the ratio of input speed to output speed:
i = n_in / n_out
It should be selected according to the motor's rated speed and the required system output speed, while considering the relationship between reduction ratio and output torque:
T_out = T_in × i × η
where η represents the transmission efficiency.
Permissible Output Speed (N₀)
This refers to the maximum no-load output speed of the reducer. Since allowable speed is affected by temperature and load conditions, the average operating speed should remain below this limit to prevent overheating and premature wear.
3. Inertia and Torque Matching Parameters
Load Inertia (JL)
Load inertia, converted to the reducer output shaft, directly influences the dynamic acceleration and deceleration performance of the system.
Acceleration and Deceleration Torque
Acceleration and deceleration torque are calculated based on the load inertia and the system's angular acceleration. These values should be multiplied by an application (service) factor—typically 1.5 to 2.5—to determine the required reducer torque for reliable operation.
4. Accuracy and Rigidity Parameters
Backlash (Lost Motion)
Backlash is defined as the angular displacement under zero torque or the width of the hysteresis curve under rated torque. High-precision RV reducers typically maintain backlash below 1 arc-minute. The allowable backlash should be selected according to the required positioning accuracy of the system. Higher positioning accuracy demands lower backlash.
Torsional Rigidity
Torsional rigidity represents the torque required to produce a unit angular deformation, reflecting the reducer's resistance to torsional deflection. For applications involving frequent start-stop cycles or high-inertia loads, higher torsional rigidity minimizes elastic deformation and vibration, resulting in improved positioning stability.
5. Service Life and Operating Conditions
Service Life (Lh)
The theoretical service life of an RV reducer is typically 6,000 operating hours under rated torque and rated speed. Actual service life should be evaluated based on the system's operating hours, start-stop frequency, and impact loading to ensure that the reducer meets the overall equipment design life.
Service Factor (Application Factor)
The service factor is a correction coefficient that accounts for load characteristics (uniform, moderate shock, or heavy shock), daily operating hours, ambient temperature, and start-stop frequency. It is applied to the calculated torque to ensure reliable reducer performance under actual operating conditions.
RV Reducer Selection Procedure
The selection process generally follows these steps:
Calculate the theoretical torque based on the load inertia and the required acceleration/deceleration time.
Multiply the calculated torque by the appropriate service factor to obtain the required reducer torque.
Determine the reduction ratio according to the required output speed and the motor's rated speed.
Verify that the selected RV reducer satisfies the required peak torque, backlash, torsional rigidity, and service life under the system's maximum operating conditions.
