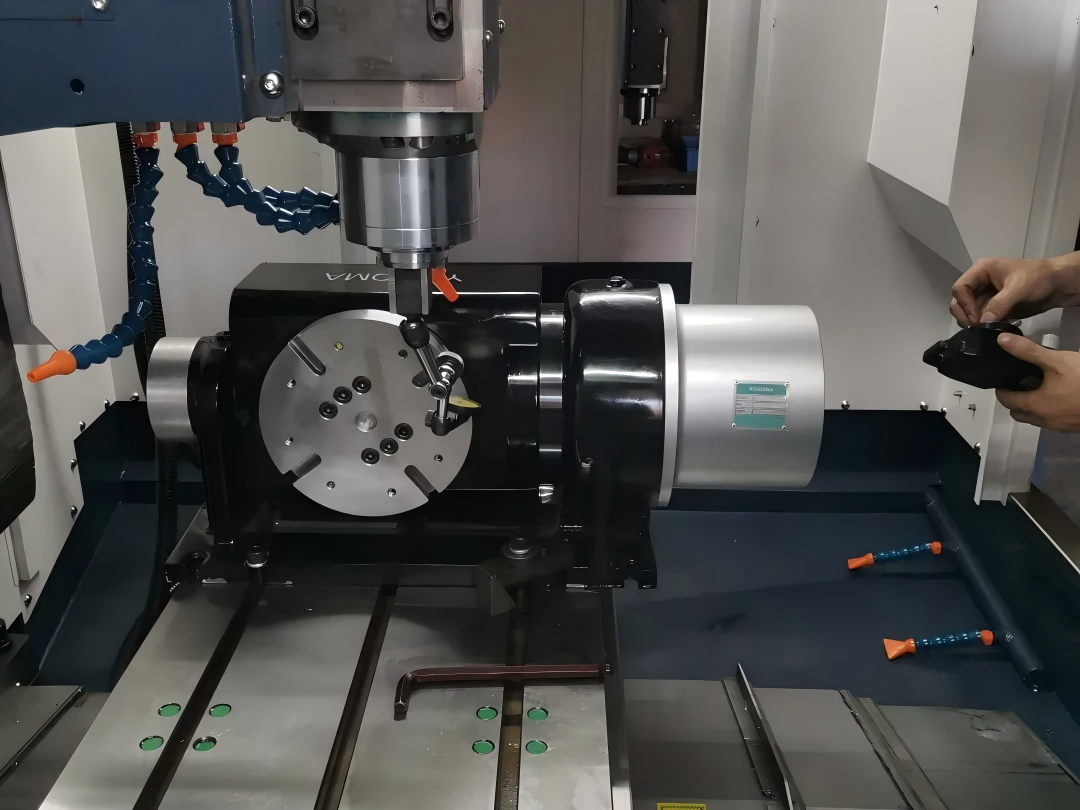

Harmonic Rotary Actuator for High Precision Positioning: What Really Determines Positioning Accuracy?

Introduction

When engineers search for a harmonic rotary actuator for high precision positioning, the first question is often simple: How accurate is the actuator?

However, positioning accuracy cannot be determined by one specification alone.

A harmonic rotary actuator may use a high-precision harmonic reducer, a high-resolution encoder and a high-performance servo motor, but the final positioning result of the machine still depends on how these components work together. Reducer transmission error, backlash, torsional stiffness, encoder feedback, bearing support, load inertia, control parameters and external disturbances can all influence the final position of the load.

This is particularly important in applications such as semiconductor equipment, precision automation, robot joints, optical alignment systems, CNC rotary axes, laser processing equipment and automated inspection machines. In these applications, the question is not simply whether the actuator can rotate to a commanded angle. The real requirement is whether the load can repeatedly reach the required position under actual operating conditions.

That is why selecting a harmonic rotary actuator for high precision positioning should be approached as a system-level engineering decision rather than a comparison of individual product specifications.

This article explains what really determines positioning accuracy, why some machines lose accuracy after installation, and how engineers can select a harmonic rotary actuator platform that matches their actual positioning requirements.

High Precision Positioning Is More Than Low Backlash

Harmonic transmission technology is widely used in precision rotary motion because it can provide high reduction ratios, compact dimensions and extremely low backlash.

However, one common misconception should be clarified first.

A harmonic reducer should not automatically be described as having absolutely zero backlash.

In engineering practice, harmonic reducers are better described as having near-zero backlash or extremely low backlash. Manufacturing tolerances, assembly conditions, elastic deformation and operating load can all influence the actual transmission behavior. Some suppliers use the term “zero backlash” as a marketing description, but this should not be interpreted as meaning that the output system has mathematically zero positioning deviation under every operating condition.

More importantly, even if a reducer had no measurable mechanical backlash, the complete rotary system could still experience positioning error.

For example, the actuator may reach the correct theoretical output angle according to the motor-side encoder, while the actual load position is affected by torsional deformation, bearing deflection or structural flexibility. This means that a machine can have excellent reducer specifications while still producing positioning errors at the end effector.

For this reason, engineers evaluating a harmonic rotary actuator for high precision positioning need to look beyond backlash and understand the entire motion chain.

Positioning Accuracy Begins with the Difference Between Command Position and Actual Position

The fundamental purpose of a precision rotary actuator is to reduce the difference between the commanded position and the actual output position.

In a simple system, the controller sends a motion command, the servo drive generates motor torque, the motor rotates, the harmonic transmission reduces the speed and increases the output torque, and the final output structure moves the load.

Every stage can introduce error.

The motor encoder may measure rotation accurately, but the transmission can experience elastic deformation. The reducer may have very low backlash, but the output bearing may deflect under an eccentric load. The actuator itself may have excellent repeat positioning performance, but the external mechanical structure may vibrate or twist.

As a result, high precision positioning is usually determined by the combined performance of several factors, including transmission accuracy, backlash characteristics, torsional stiffness, encoder resolution and accuracy, control-loop performance, bearing support, load conditions and mechanical installation quality.

This is why two machines using the same harmonic rotary actuator can achieve different positioning results.

The actuator is part of the positioning system, but the machine structure determines how much of the actuator's theoretical performance can actually be transferred to the application.

Why Harmonic Reducer Accuracy Still Matters？

Although positioning accuracy is a system-level result, the harmonic reducer remains one of the most important mechanical components in a precision rotary actuator.

Backlash Is Only One Part of Transmission Accuracy

The reducer determines how motor motion is transmitted to the output.

A high-quality harmonic transmission can help provide a compact structure with a high reduction ratio while reducing the mechanical play that would otherwise appear during direction reversal. This is particularly valuable in applications involving repeated indexing, short-angle movement, bidirectional positioning and frequent start-stop motion.

However, engineers should distinguish between several different concepts.

Backlash describes mechanical lost motion when the direction of rotation changes. Positioning accuracy describes how closely the output reaches a commanded position. Repeat positioning accuracy describes how consistently the system can return to the same position over repeated cycles.

These specifications are related, but they are not identical.

A system may have excellent repeat positioning accuracy because it consistently stops at nearly the same location, while its absolute positioning accuracy is influenced by transmission error or encoder offset. Similarly, a reducer may have extremely low backlash while the machine still experiences position deviation under changing loads because of elastic deformation.

For applications that require highly consistent bidirectional positioning, engineers should therefore consider the complete transmission behavior rather than focusing on a single “zero backlash” claim.

Torsional Stiffness Can Be Just as Important as Backlash

Why Mechanical Deformation Affects the Final Position?

In many high-load precision applications, the largest positioning problem does not come from traditional mechanical backlash.

It comes from deformation.

When torque is applied to a rotary system, the motor shaft, reducer components, output structure and machine frame can all experience elastic deformation. If the system is not sufficiently rigid, the commanded position and the actual load position may temporarily differ.

This becomes particularly important when the application involves rapid acceleration, frequent direction changes or large variations in load torque.

Consider a robotic arm carrying a changing payload. The actuator may receive the same position command under two different loads, but the mechanical deformation of the joint can be different. The result is that the actual output position may vary even though the control system is operating normally.

The same issue can appear in semiconductor equipment, precision handling systems and large optical positioning platforms. The actuator may provide excellent no-load performance, but real operating accuracy depends on how the complete structure responds under load.

For this reason, torsional stiffness is an important selection parameter for a harmonic rotary actuator used in high precision positioning.

Higher stiffness helps reduce angular deformation under torque, improving the relationship between the actuator output position and the actual load position.

This is also why high precision positioning should never be evaluated only under no-load conditions.

Encoder Feedback Determines What the Control System Can Actually See

Motor-Side Encoder vs. Output-Side Feedback

A servo system cannot accurately correct an error that it cannot detect.

The encoder therefore plays a central role in precision positioning.

The encoder converts mechanical motion into feedback information that the controller uses to close the position loop. However, the location of the encoder is often just as important as its resolution.

A motor-side encoder measures the position of the motor. The controller then calculates the theoretical output position based on the reduction ratio.

This approach works effectively for many applications, especially when the transmission system is sufficiently rigid and the positioning requirements are moderate.

However, the actual output position can differ from the theoretical position when the transmission experiences elastic deformation, extremely low but non-zero backlash, structural compliance or load disturbance.

For higher-performance applications, output-side feedback or dual-encoder architecture can provide additional advantages.

How Dual Encoders Improve Feedback Quality?

A dual-encoder system can use one encoder for motor-side feedback and another to monitor the actual output position. The difference between these two feedback signals can provide useful information about transmission deformation and mechanical compliance.

This is particularly valuable for robot joint motors operating under changing payloads and dynamic motion.

It is important to note that a dual-encoder system does not magically eliminate every mechanical error. Instead, it gives the control system better information about what is actually happening between the motor and the output.

For a harmonic rotary actuator for high precision positioning, the correct encoder architecture should therefore be selected according to the application rather than simply choosing the highest encoder resolution available.

High Encoder Resolution Does Not Automatically Mean High Positioning Accuracy

Resolution Is Not the Same as Accuracy

Encoder specifications are sometimes misunderstood during actuator selection.

A high-resolution encoder can divide one revolution into a very large number of measurement increments. This improves the controller's ability to detect small changes in position.

However, resolution is not the same as accuracy.

An encoder can theoretically provide extremely fine position increments while the complete mechanical system still experiences positioning error caused by installation eccentricity, temperature variation, magnetic interference, structural deformation or transmission error.

For this reason, engineers should consider several characteristics together, including encoder accuracy, repeatability, environmental stability, installation method and control-system compatibility.

In robot joints and industrial automation equipment, the final positioning performance depends on whether the feedback information remains reliable during real operation.

A high-resolution encoder installed in an unstable mechanical environment may not produce better machine performance than a slightly lower-resolution encoder integrated into a more stable system.

The engineering goal is not to select the encoder with the largest number on the specification sheet. The goal is to select a feedback system that provides reliable information for the required motion task.

Repeat Positioning Accuracy and Absolute Positioning Accuracy Should Not Be Confused

Different Applications Require Different Accuracy Priorities

This distinction is particularly important when selecting a rotary actuator.

Repeat positioning accuracy describes how consistently the actuator can return to the same position after repeated movements. This is extremely important in automated production equipment where the same motion cycle is repeated thousands or millions of times.

Absolute positioning accuracy describes how close the actual output position is to the commanded target.

An automated assembly machine may require exceptional repeatability because it performs the same indexing operation continuously. An optical calibration system may place greater emphasis on absolute positioning accuracy because each commanded angle must correspond closely to the actual physical angle.

A harmonic rotary actuator for high precision positioning should therefore be selected according to the dominant error requirement of the application.

If the machine repeatedly returns to several fixed positions, repeatability may be the primary concern. If the machine follows multiple programmed angles or performs precision scanning, absolute accuracy and calibration performance may become more important.

Understanding this difference can prevent unnecessary overspecification and help engineers select a more cost-effective actuator solution.

Load Inertia Can Change the Real Positioning Performance

Torque Alone Is Not Enough for Actuator Selection

An actuator that performs perfectly with a small load may behave very differently when connected to a large rotating structure.

Load inertia directly affects acceleration, deceleration and control stability.

If the load inertia is too large relative to the actuator's designed operating range, rapid motion may create overshoot, vibration and longer settling time. The actuator may eventually reach the commanded position, but the time required to stabilize can become unacceptable for high-speed production.

This is particularly relevant for semiconductor equipment, CNC indexing mechanisms, robotic arms and automated inspection platforms.

A harmonic rotary actuator should therefore be evaluated together with the actual load inertia, center of gravity and required acceleration profile.

The best actuator is not necessarily the one with the highest torque.

An oversized actuator may increase weight and cost, while an actuator selected only according to nominal torque may not provide the desired dynamic response.

For high precision positioning, engineers should evaluate the complete relationship between output torque, load inertia, acceleration requirements and required settling time.

Bearing Support and External Loads Can Affect Accuracy

Why Overturning Moment Matters?

The output bearing system plays an important role in converting actuator performance into machine performance.

Even if the motor and harmonic transmission provide excellent rotational control, external radial loads, axial loads and overturning moments can cause mechanical deflection.

This is especially important when the load is mounted away from the actuator centerline.

A long robotic link, large fixture or eccentric workpiece can generate significant overturning moments. If the supporting structure is not sufficiently rigid, the output angle may change slightly under load.

For applications involving heavy fixtures or large external loads, engineers should evaluate not only output torque but also the actuator's ability to support the required mechanical loads.

The selection process should include the actual mounting structure, load center of gravity and expected operating forces.

This is why an actuator selected for a lightweight optical platform may not be suitable for a heavy robotic joint, even if the required torque appears similar.

Torque alone does not describe the complete mechanical requirement.

Control Tuning Determines How Well Mechanical Performance Is Used

Mechanical Precision and Servo Performance Must Work Together

Mechanical precision creates potential. Control tuning determines how effectively that potential is used.

A harmonic rotary actuator may have high stiffness, excellent feedback and a precision transmission system, but poor servo tuning can still produce overshoot, oscillation or slow settling.

For high precision positioning, the control system must balance response speed and stability.

Increasing control-loop gain may improve response in some conditions, but excessive gain can create vibration. Heavy filtering may improve stability, but it can reduce dynamic response.

The optimal solution depends on the mechanical characteristics of the application.

A lightweight robotic joint, for example, may require different control parameters from a high-inertia semiconductor handling axis. A flexible machine structure may need a different control strategy from a highly rigid precision positioning platform.

This is another reason integrated actuator platforms are becoming increasingly important.

When the motor, transmission, encoder and drive system are designed as a coordinated solution, engineers can reduce the amount of compatibility testing required between independent components.

The Installation Structure Can Destroy the Accuracy You Paid For

The Actuator Is Only One Part of the Precision System

One of the most common engineering problems is investing in a high-precision actuator and then losing its performance through the external mechanical design.

An actuator may be installed on a thin mounting plate. The load may be supported by a flexible bracket. Fastening surfaces may not be sufficiently flat. Cable routing may introduce external forces into the moving structure.

In these situations, improving the actuator specification may not solve the actual problem.

The positioning error is no longer coming primarily from the actuator.

It is coming from the machine.

For this reason, high precision positioning should be evaluated from the actuator output to the final working point. Engineers should consider the stiffness of mounting interfaces, the geometry of connecting components and the distance between the actuator and the final load.

A compact and highly integrated actuator can help simplify this problem by reducing the number of separate mechanical interfaces in the motion chain.

Why Integrated Harmonic Rotary Actuators Can Simplify Precision System Design？

Reducing Interfaces Can Reduce Integration Complexity

Traditional rotary systems often combine a separate servo motor, harmonic reducer, coupling, encoder and external drive components.

This architecture can provide flexibility, but every additional mechanical and electrical interface introduces additional integration work.

Alignment must be controlled. Couplings must be selected. Feedback systems must be connected. Cables must be routed. Communication must be configured.

For high precision positioning, these integration steps can influence the final system result.

An integrated harmonic rotary actuator combines key rotary motion components into a more compact platform, helping reduce the complexity of system integration.

For equipment manufacturers, this can provide several advantages.

The overall mechanical architecture can become more compact. The number of component interfaces can be reduced. Electrical integration can be simplified. The actuator can be easier to install into a robot joint or precision automation system.

This is one reason integrated actuator technology is increasingly used in new robot architectures and compact automation equipment.

At HONPINE, different integrated actuator platforms are designed for different application requirements, allowing engineers to select solutions based on factors such as torque, integration level, communication architecture, hollow-shaft requirements and mechanical installation conditions rather than treating every robot or automation project as the same.

Hollow-Shaft Design Can Improve More Than Mechanical Packaging

Internal Cable Routing Supports Compact Machine Design

When engineers search for a hollow harmonic rotary actuator, they are often focused on cable routing.

That is certainly an important advantage.

Power cables, encoder cables, communication lines, pneumatic lines or other components can potentially pass through the center of the actuator rather than being routed around the outside of the rotating structure.

However, the engineering value can extend beyond a cleaner appearance.

External cable routing can influence robot motion, create additional bending stress and introduce cable-management problems during continuous rotation.

A hollow-shaft architecture can help create a more compact rotary system and reduce the complexity of the surrounding mechanical design.

In robot joints, this can be particularly valuable because cable routing often becomes more difficult as the number of joints increases.

For high precision positioning equipment, internal routing can also help simplify the overall machine structure and reduce external interference around the rotating axis.

How to Select a Harmonic Rotary Actuator for High Precision Positioning?

Start with the Application, Not the Product Catalog

The selection process should begin with the application rather than the actuator catalog.

First, define the real positioning requirement. Determine whether the application is primarily concerned with absolute positioning accuracy, repeat positioning accuracy, settling time or trajectory stability.

Then evaluate the mechanical load. This should include not only required torque but also load inertia, radial load, axial load and overturning moment.

Next, consider the motion profile. Frequent short-angle positioning, continuous rotation, high-speed indexing and rapid bidirectional movement can create very different requirements.

The feedback architecture should then be matched to the required performance level. A motor-side encoder may be sufficient for many applications, while output feedback or dual-encoder architecture may provide advantages where load deformation and transmission compliance have a significant influence.

Finally, evaluate the complete machine structure.

The actuator should not be selected as an isolated component. Its mounting, load connection and surrounding mechanical structure are all part of the positioning system.

This solution-oriented approach is usually more effective than simply comparing maximum torque, reduction ratio or encoder bit count.

Typical Applications for High Precision Harmonic Rotary Actuators

Different Applications Require Different Solutions

A harmonic rotary actuator for high precision positioning can be used in many types of equipment, but the engineering requirement changes from one application to another.

In semiconductor equipment, the focus may include compact installation, smooth low-speed motion and highly repeatable positioning for wafer handling, inspection or precision processing.

In industrial automation equipment, the main requirement may be reliable repeated indexing during continuous production.

In robotic joints, the actuator may need to balance torque density, compact dimensions, feedback capability and dynamic response.

In optical alignment systems, low-speed smoothness and fine angular control may be particularly important.

In CNC and laser processing equipment, positioning performance must be considered together with machine rigidity, vibration and process requirements.

This is why there is no single “best” harmonic rotary actuator.

The correct solution depends on what the machine is actually required to achieve.

From Component Selection to Motion System Design

Choosing the Right Actuator Architecture for Each Application

The market for precision automation is gradually moving away from simple component-based thinking.

Engineers increasingly need motion solutions that reduce development time while providing predictable system performance.

For a precision machine, the question should not only be, “Which harmonic reducer has the highest specification?”

A more useful question is, “Which actuator architecture allows the complete machine to achieve the required positioning performance?”

This shift is particularly important for robot manufacturers.

Modern robot designs must balance precision with torque density, weight, cable routing, communication, sensing and manufacturability. Selecting individual components separately can increase development complexity and create additional integration risks.

Integrated solutions, including harmonic joint modules, planetary joint modules and other robot joint motor platforms, allow manufacturers to choose different drive architectures according to the requirements of different joints.

A high-precision robot wrist does not necessarily require the same actuator architecture as a high-torque base joint. A compact special-purpose robot may have completely different requirements from a large industrial manipulator.

The future of precision motion design is therefore not about choosing one technology for every application.

It is about choosing the right joint and actuator architecture for the real mechanical problem.

Conclusion

A harmonic rotary actuator for high precision positioning should never be evaluated using a single specification.

Low backlash is important, but harmonic reducers should realistically be described as providing near-zero or extremely low backlash, rather than absolute zero backlash under all operating conditions. Positioning accuracy is also influenced by transmission error, torsional stiffness, encoder feedback, bearing support, load inertia, control tuning and the mechanical structure surrounding the actuator.

The best solution is therefore a balanced one.

For some applications, a high-repeatability harmonic rotary actuator with motor-side feedback may be sufficient. For more demanding robotic or precision automation systems, output-side feedback or dual-encoder architecture may provide better control of real load position. For compact machines, integrated and hollow-shaft actuator designs can further simplify mechanical and electrical integration.

At HONPINE, the goal is not simply to provide a harmonic rotary actuator with impressive individual specifications. The more important objective is to help equipment manufacturers select an actuator architecture that fits the actual positioning, load, integration and control requirements of their machine.

Because in high precision motion, the actuator does not determine performance alone.

The complete system does.
