Small Size DD Motor for Precision Rotary Motion and Industrial Automation

Introduction: Why Small Size DD Motors Are Becoming Important in Industrial Automation

As industrial automation equipment continues to become smaller, faster, and more precise, rotary motion systems face increasingly demanding requirements. In applications such as 3C electronics manufacturing, semiconductor equipment, laser processing, precision inspection, medical equipment, and machine tools, rotary axes must provide accurate positioning and fast dynamic response while occupying limited installation space.

Traditional rotary drive systems often combine a servo motor with a mechanical transmission mechanism such as a gearbox, coupling, and additional mounting components. This architecture can provide high output torque and is suitable for many industrial applications, but the additional transmission components can increase system size, mechanical complexity, and reflected inertia.

A small size DD motor, or Direct Drive Motor, provides a different approach. Instead of transmitting motor torque through a reduction gearbox, the motor directly drives the load. This direct-drive architecture can reduce the number of mechanical transmission components and is particularly suitable for rotary applications that require high-speed response, precise motion control, and compact machine design.

However, direct drive is not always the best solution. When an application requires very high output torque, high torque density, or a large reduction ratio within a compact package, a harmonic servo actuator can provide important advantages. Understanding the differences between these two technologies is therefore essential when selecting a rotary motion solution.

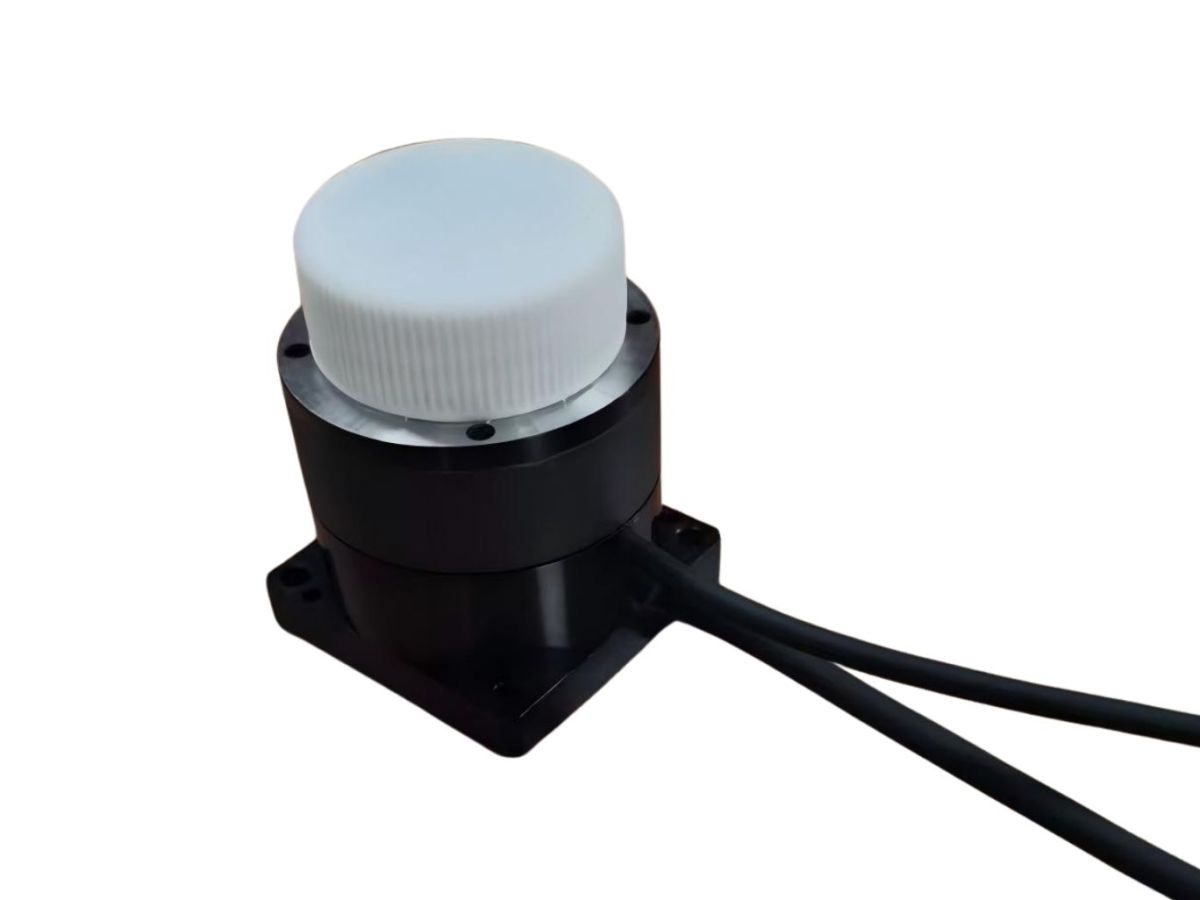

What Is a Small Size DD Motor?

A small size DD motor is a compact direct-drive motor designed to rotate a load without requiring a conventional reduction gearbox between the motor and the driven mechanism.

Unlike a servo motor combined with a gearbox, the output of a DD motor can be connected directly to the rotary load. The motor therefore becomes an integral part of the rotary motion system, reducing the number of mechanical transmission stages between the electromagnetic source of torque and the final load.

This architecture is particularly useful in compact automation equipment where installation space is limited. The available space around a rotary axis may also need to accommodate bearings, encoders, cables, fixtures, optical components, sensors, and other mechanisms. Reducing the size and number of transmission components can therefore provide greater freedom during machine design.

Depending on the system architecture, a small DD motor can be combined with a high-resolution encoder, precision bearings, motor driver, and motion controller to create a compact and responsive rotary axis.

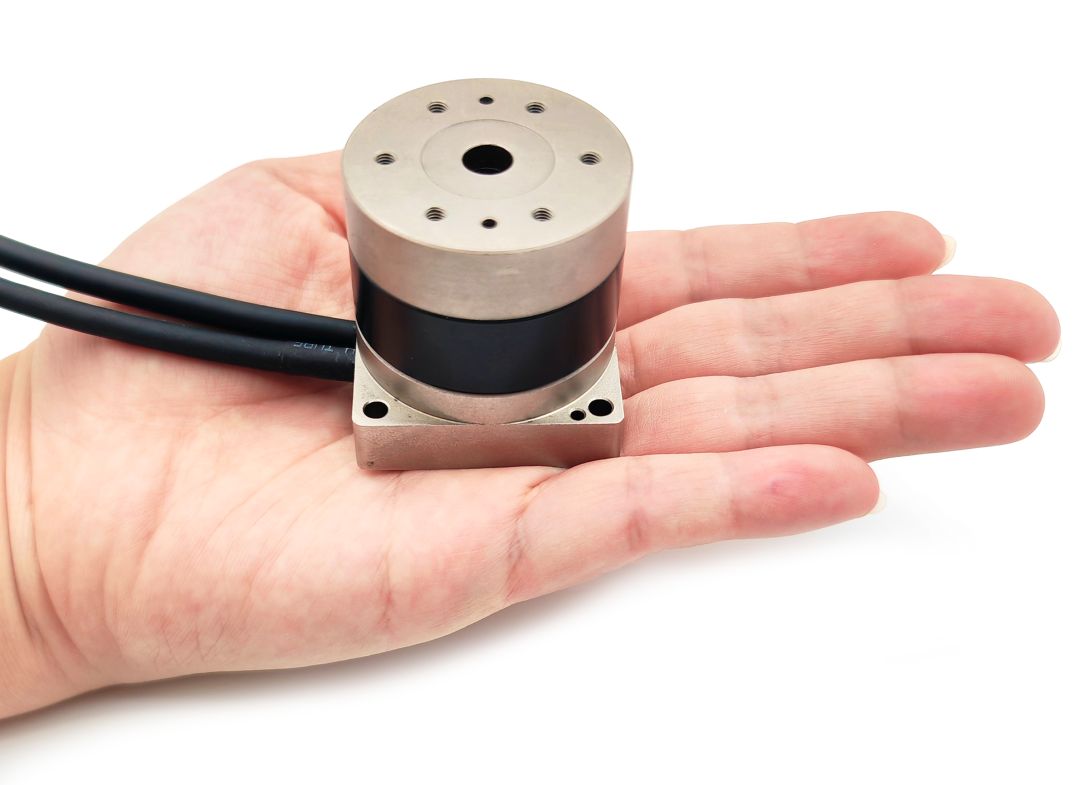

Why Choose a Small Direct Drive Motor?

Compact Architecture for Space-Constrained Equipment

One of the most important advantages of a small DD motor is its direct mechanical architecture.

A conventional servo system with a gearbox requires additional space for the reducer, coupling, mounting structure, and related components. A direct-drive motor eliminates the need for a traditional reduction stage, allowing engineers to design a more integrated rotary mechanism.

This can be particularly valuable in semiconductor equipment, 3C automation, optical inspection systems, medical equipment, and other machines where every millimeter of installation space can influence the overall mechanical architecture.

Direct Torque Transmission

In a direct-drive system, motor torque is transmitted directly to the load rather than through a gear reduction mechanism.

This eliminates the gear mesh between the motor and the output shaft and reduces the number of mechanical transmission components. As a result, the motion system can have a more direct relationship between motor torque and load movement.

This architecture is particularly attractive for applications involving frequent acceleration and deceleration, high-speed scanning, indexing, and rapid changes in rotational speed.

High Dynamic Response for High-Speed Automation

Without a conventional reduction gearbox, a DD motor can provide a direct torque path between the motor and the load.

This can be advantageous in applications that require rapid acceleration, deceleration, start-stop operation, or frequent changes in rotational direction. High dynamic response is particularly important in high-speed inspection equipment, scanning mechanisms, electronic manufacturing equipment, and precision positioning systems.

The actual dynamic performance, however, depends on the motor, drive system, load inertia, controller, encoder, bearings, mechanical stiffness, and overall system design.

High-Precision Rotary Motion with Direct Drive Technology

Eliminating Gearbox Backlash

Backlash is an important consideration in precision rotary motion.

Traditional gear transmission systems can introduce mechanical backlash caused by the clearance between mating gears. Even precision gearboxes require engineers to consider transmission accuracy, assembly tolerances, elastic deformation, and long-term mechanical behavior.

A DD motor does not use a conventional reduction gearbox between the motor and the load. Therefore, there is no gear-mesh backlash in the direct-drive transmission path.

This does not mean that every DD motor system automatically provides higher positioning accuracy. The final accuracy of a rotary axis also depends on encoder resolution, bearing accuracy, mechanical stiffness, thermal deformation, installation errors, control algorithms, and load conditions.

The main advantage is that the direct-drive architecture removes one potential source of mechanical transmission error.

High-Resolution Position Feedback

Position feedback is another critical component of precision rotary motion.

A high-resolution encoder can provide detailed angular position information to the motion controller, allowing the system to continuously monitor the position of the rotary axis and make corrections based on the commanded trajectory.

Depending on the application, incremental or absolute encoders can be used. Absolute position feedback can also be valuable in applications where the machine needs to retain or immediately determine the position of the rotary axis after power interruption.

Therefore, encoder selection should be considered together with the motor, driver, controller, mechanical structure, and required system accuracy.

Frameless Torque Motor for Flexible Machine Integration

What Is a Frameless Torque Motor?

A frameless torque motor is a motor component that typically consists of the stator and rotor without the conventional motor housing, shaft, and complete mechanical assembly found in a standard servo motor.

This allows machine builders to integrate the motor directly into their own mechanical structures.

For example, a frameless torque motor can be integrated with a custom rotary shaft, precision bearing arrangement, encoder, and machine structure to create a highly customized rotary axis.

This architecture provides greater mechanical design flexibility and can be particularly useful when standard motor dimensions do not match the requirements of a specialized machine.

Why Are Frameless Motors Suitable for Compact Rotary Axes?

A frameless motor allows the machine designer to define the mechanical relationship between the motor, bearing, shaft, encoder, and load.

Instead of adapting the machine around a complete motor housing, engineers can integrate the motor into the existing mechanical architecture.

This can be valuable for compact rotary stages, robot joints, optical equipment, semiconductor machinery, inspection systems, and other applications where space and mechanical integration are critical.

For small-size DD motor applications, a frameless torque motor can therefore provide an effective foundation for developing a customized direct-drive rotary axis.

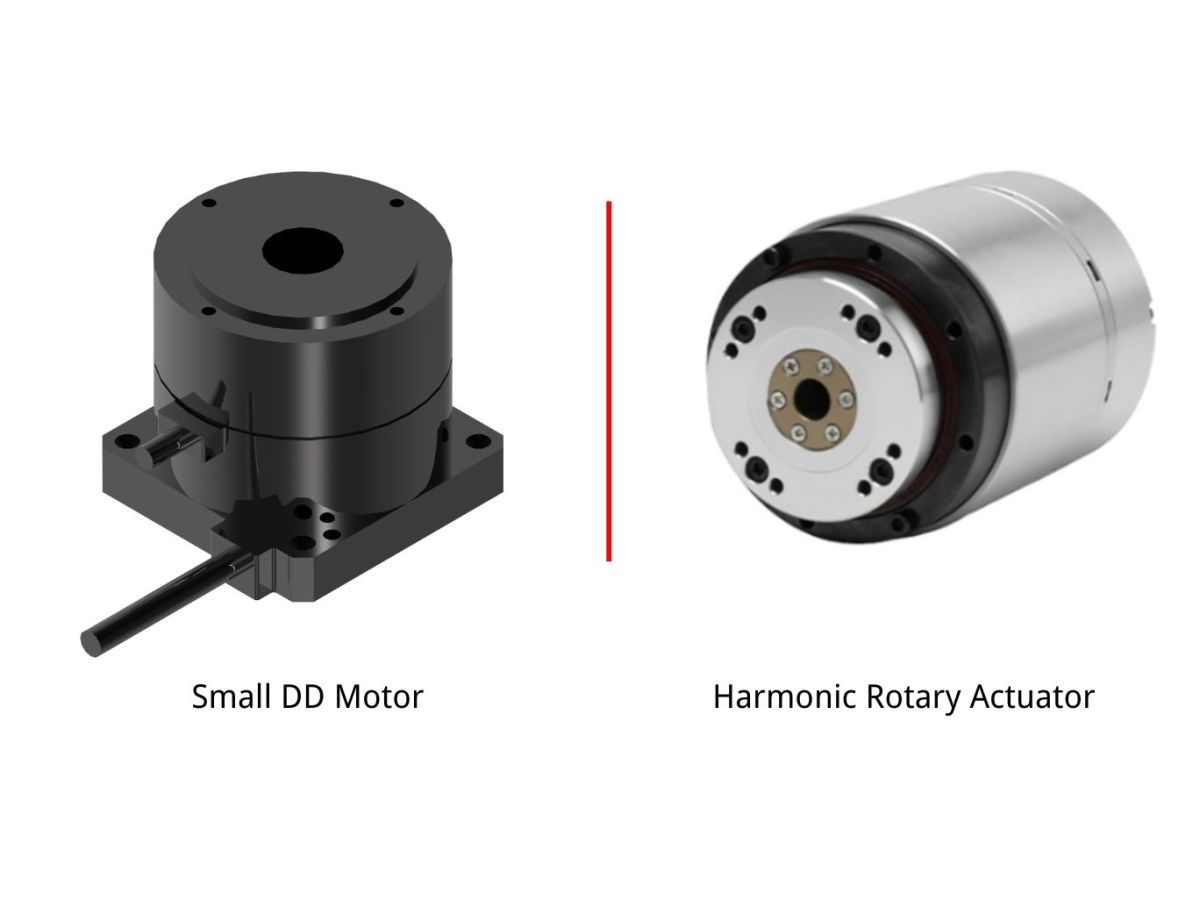

Small Size DD Motor vs. Harmonic Servo Actuator

DD motors and harmonic servo actuators can both be used for precision rotary motion, but they use fundamentally different transmission architectures.

A DD motor directly drives the load, while a harmonic servo actuator combines a servo motor with a harmonic reduction mechanism and position feedback system. The choice between them depends largely on the required speed, output torque, torque density, mechanical architecture, and available installation space.

DD Motor: Direct Drive and High Dynamic Response

The main characteristic of a DD motor is direct load driving.

Because there is no conventional reduction gearbox between the motor and the load, the system can achieve a direct torque transmission path and avoid gear-mesh backlash.

This makes DD motors particularly attractive for high-speed rotary applications, rapid indexing, scanning mechanisms, precision inspection equipment, and rotary axes where dynamic response is more important than high reduction ratio.

The trade-off is that the motor must generate the required load torque directly. For a large or heavy load, the required motor size can therefore increase significantly.

Harmonic Servo Actuator: High Output Torque and Compact Integration

A harmonic servo actuator uses a reduction mechanism between the motor and output shaft. The reduction ratio allows the actuator to convert motor speed into higher output torque while maintaining a compact mechanical structure.

This makes harmonic servo actuators particularly suitable for applications that require high output torque, high torque density, compact dimensions, and precise angular positioning.

Harmonic servo actuators are widely applicable to robotic joints, rotary axes, precision positioning systems, and other mechanisms where the output load requires considerably more torque than the motor can efficiently provide directly.

Because the motor, harmonic reducer, encoder, and other components can be integrated into a single actuator assembly, the overall system can also be easier to integrate into equipment compared with designing every transmission component separately.

How to Choose Between a DD Motor and a Harmonic Servo Actuator?

The decision should begin with the actual motion requirements rather than simply comparing motor specifications.

If the rotary axis requires high rotational speed, rapid acceleration and deceleration, direct torque response, and a simple transmission path, a DD motor can be a strong candidate.

If the application requires high output torque, high torque density, significant torque multiplication, or a compact robotic joint architecture, a harmonic servo actuator may be more suitable.

The comparison can be summarized around several engineering parameters: DD motors generally emphasize direct drive, high-speed operation, and dynamic response, while harmonic servo actuators emphasize output torque, torque density, reduction capability, and integrated mechanical architecture.

Neither technology is universally superior. The appropriate choice depends on the load, speed, inertia, space, accuracy, duty cycle, and mechanical requirements of the application.

DD Motor and Harmonic Servo Actuator Selection by Application

High-Speed Precision Rotary Axes

For rotary axes that require high rotational speed, rapid acceleration, and frequent changes in motion, a DD motor can provide a direct and responsive drive architecture.

Applications may include scanning systems, inspection platforms, high-speed indexing mechanisms, and certain semiconductor manufacturing systems.

High-Torque Compact Rotary Axes

When the rotary axis must generate high output torque while maintaining a compact overall structure, a harmonic servo actuator may be a better solution.

The reduction mechanism allows the motor to operate at a higher rotational speed while producing higher torque at the output shaft. This architecture is especially useful when installation space is limited but the load torque requirement is relatively high.

Robot Joint Applications

Robot joints often require a combination of high torque, compact dimensions, position feedback, mechanical stiffness, and controlled motion.

For many robotic joint applications, a harmonic servo actuator provides a practical integrated architecture because the motor, reducer, encoder, and other components can be packaged together.

DD motors can also be used in robot joints when direct drive, high-speed movement, or specific dynamic characteristics are more important and the required joint torque can be achieved without mechanical reduction.

Precision Inspection and Semiconductor Equipment

Semiconductor and precision inspection equipment often requires compact rotary mechanisms with controlled angular positioning and stable motion performance.

DD motors are well suited to high-speed scanning and positioning applications where direct drive and dynamic response are important.

Harmonic servo actuators can be considered when the rotary mechanism requires higher output torque or when the actuator needs to provide a highly integrated drive solution within a limited installation space.

Applications of Small Direct Drive Motors in Industrial Automation

3C Electronics Manufacturing

3C manufacturing equipment typically requires compact mechanical structures, high production speed, and repeatable motion.

Small DD motors can be used in electronic component positioning, rotary indexing, inspection, assembly, and other automated mechanisms where fast and precise rotary movement is required.

The direct-drive architecture can help reduce transmission components and simplify the mechanical structure of compact equipment.

Semiconductor Manufacturing Equipment

Semiconductor equipment often combines high precision with strict requirements for equipment size, stability, and motion control.

Rotary mechanisms can be found in wafer handling, inspection, positioning, optical systems, and other semiconductor processes.

A small DD motor can provide a compact direct-drive solution for applications where high-speed rotary motion and responsive positioning are required.

Laser Processing Systems

Laser cutting, laser welding, laser marking, and other laser processing systems may use rotary axes for workpiece positioning, angular adjustment, scanning, or coordinated motion.

A DD motor can be used where rapid angular movement and direct torque control are important.

The motor can also be combined with an encoder and motion controller to create a closed-loop rotary motion system.

Machine Tools and Precision Rotary Tables

Precision rotary tables and machine tool rotary axes require stable motion across different speed and load conditions.

DD motors can be used in rotary tables, indexing mechanisms, inspection stages, and other rotary systems where high-speed response and direct drive are important.

For applications requiring very high output torque or substantial torque multiplication, a geared actuator may provide a more appropriate architecture.

Medical and Optical Equipment

Medical and optical equipment often requires compact and controlled rotary mechanisms.

Examples include optical positioning, lens adjustment, sample rotation, inspection platforms, and precision scanning mechanisms.

Small DD motors can provide direct rotary motion while allowing equipment manufacturers to optimize the motor, bearing, encoder, and mechanical structure around the specific application.

How to Select the Right Small Size DD Motor？

Calculate Continuous and Peak Torque Requirements

The first step in DD motor selection is to determine the actual torque required by the load.

Continuous torque determines whether the motor can operate under the required load for an extended period, while peak torque is related to acceleration, deceleration, starting, stopping, and transient load conditions.

A motor should not be selected only according to its peak torque. The continuous operating point and thermal limitations must also be considered.

Evaluate Load Inertia

Load inertia is one of the most important parameters in direct-drive motor selection.

A high-inertia load requires greater torque during acceleration and deceleration. This is particularly important for rotary tables, fixtures, large-diameter loads, and mechanisms that frequently change speed or direction.

The required acceleration, deceleration, motion profile, and cycle time should therefore be considered together with load inertia.

Check the Torque-Speed Curve

Motor torque and speed are closely related.

Instead of selecting a motor based only on its rated torque, engineers should evaluate the torque-speed curve at the actual operating speed.

For high-speed applications, factors such as supply voltage, back EMF, winding design, driver capability, and thermal limitations should also be considered.

Consider Encoder and Position Feedback Requirements

Encoder selection should be based on the required motion control performance.

A high-resolution encoder provides more detailed position feedback, but encoder resolution should not be confused with the final positioning accuracy of the machine.

Mechanical stiffness, bearing accuracy, thermal deformation, installation tolerance, control algorithms, vibration, and load conditions can all affect the final system accuracy.

Consider Thermal Management

Thermal management becomes particularly important when a compact DD motor needs to produce high continuous torque.

The motor's installation structure, heat dissipation path, ambient temperature, duty cycle, and allowable temperature rise should all be evaluated.

For compact equipment, engineers may need to balance motor size, torque output, operating speed, and heat dissipation capacity.

Common Mistakes When Selecting a Compact DD Motor

Choosing a Motor Only by Physical Size

A smaller motor is not necessarily the right motor for an application.

Selecting a motor based only on outer diameter or length while ignoring torque, speed, load inertia, and duty cycle can result in insufficient system performance.

The selection process should begin with the actual motion profile and load requirements.

Looking Only at Peak Torque

Peak torque usually represents short-term capability rather than continuous operating performance.

If the machine needs to operate continuously, rated continuous torque and thermal performance can be more important than peak torque.

Both continuous and dynamic operating conditions should therefore be analyzed.

Ignoring Load Inertia

If load inertia is not properly evaluated, a motor may appear to have sufficient torque but still fail to achieve the required acceleration or deceleration.

This is particularly important for large rotary tables, fixtures, and high-inertia loads.

Assuming Encoder Resolution Equals Machine Accuracy

Encoder resolution is only one part of a motion control system.

A high-resolution encoder can provide detailed position feedback, but mechanical deformation, vibration, bearing accuracy, installation errors, and thermal effects can still limit actual machine accuracy.

The entire motion system should therefore be evaluated when determining positioning performance.

Selecting the Motor Without Considering the Complete Motion System

A DD motor does not operate independently.

The motor, driver, encoder, controller, bearings, mechanical structure, and load must work together as one motion system.

For this reason, motor selection should consider electrical compatibility, feedback requirements, control protocol, mechanical installation, load characteristics, and thermal conditions.

Future Trends in Small Direct Drive Motor Technology

As industrial automation equipment continues to move toward smaller machine architectures, higher production speeds, and more integrated motion systems, compact direct-drive technology is likely to become increasingly important.

Future small DD motors may focus on higher torque density, improved thermal performance, higher-resolution feedback, more flexible mechanical integration, and greater system integration.

Frameless torque motors may also be increasingly combined with absolute encoders, integrated motor drivers, and advanced motion controllers to create compact rotary drive systems.

At the same time, direct-drive technology will continue to coexist with geared actuator technologies such as harmonic servo actuators. Rather than replacing reduction-based actuators in every application, DD motors and harmonic actuators will continue to serve different motion requirements.

For machine builders, the key consideration is therefore not simply selecting the smallest motor, but designing the motor, feedback system, controller, bearings, and mechanical structure as a complete rotary motion system.

FAQ About Small Size DD Motors

What Is a Small Size DD Motor?

A small size DD motor is a compact direct-drive motor that connects directly to the rotary load without using a conventional reduction gearbox.

It is particularly suitable for applications requiring compact mechanical structures, high-speed rotation, rapid dynamic response, and precise rotary motion control.

What Is the Difference Between a DD Motor and a Servo Motor?

A DD motor directly drives the load, while a conventional servo motor may be combined with a gearbox or other transmission mechanism to obtain the required output torque and speed.

DD motors are generally more attractive for high-speed direct-drive applications, while servo systems with reduction mechanisms can be more suitable when high output torque or torque multiplication is required.

Is a DD Motor More Accurate Than a Geared Motor?

Not necessarily.

A DD motor eliminates gear-mesh backlash from the transmission path, which can be beneficial for precision motion. However, final machine accuracy also depends on the encoder, bearing system, mechanical stiffness, installation accuracy, control algorithm, thermal effects, and load conditions.

The complete motion system should therefore be evaluated rather than comparing motor types alone.

What Is the Difference Between a DD Motor and a Harmonic Servo Actuator?

A DD motor directly drives the load, while a harmonic servo actuator uses a harmonic reduction mechanism between the motor and output.

DD motors are generally better suited to applications emphasizing high speed, direct torque transmission, and dynamic response.

Harmonic servo actuators are generally better suited to applications requiring high output torque, high torque density, compact reduction, and integrated rotary actuation.

Are Small DD Motors Suitable for 3C Manufacturing?

Yes.

Small DD motors can be used in electronic component positioning, inspection, rotary indexing, assembly equipment, and other 3C automation applications where compact dimensions and responsive rotary motion are important.

Can Small DD Motors Be Used in Semiconductor Equipment?

Yes.

Small DD motors can be used in semiconductor inspection, positioning, wafer handling, optical systems, scanning mechanisms, and other rotary motion applications.

The specific motor should be selected according to torque, speed, load inertia, encoder requirements, environmental conditions, and the complete machine architecture.

What Is a Frameless Torque Motor?

A frameless torque motor is a motor component that typically includes the stator and rotor without a conventional motor housing and complete shaft assembly.

It allows machine builders to integrate the motor directly into their own mechanical structures, making it suitable for customized rotary axes, robot joints, precision stages, and compact automation equipment.

When Should I Choose a Small DD Motor Instead of a Harmonic Servo Actuator?

Choose a small DD motor when the application prioritizes high rotational speed, rapid acceleration and deceleration, direct drive, and high dynamic response.

Choose a harmonic servo actuator when the application requires higher output torque, high torque density, reduction capability, and a compact integrated actuator structure.

The final decision should be based on the actual torque, speed, inertia, accuracy, duty cycle, and installation requirements.

How Do I Choose the Right Small Direct Drive Motor?

Start by calculating the required continuous torque, peak torque, operating speed, load inertia, acceleration, deceleration, and duty cycle.

Then evaluate the torque-speed curve, encoder requirements, thermal conditions, mechanical installation, driver compatibility, and overall motion control architecture.

For demanding applications, the motor should be evaluated together with the complete mechanical and control system rather than selected from motor specifications alone.

Conclusion

Small size DD motors provide a compact and direct approach to precision rotary motion in industrial automation.

By eliminating the conventional reduction gearbox, a DD motor can provide a direct torque transmission path, avoid gear-mesh backlash, and deliver responsive rotary motion. These characteristics make small direct-drive motors attractive for high-speed inspection, 3C manufacturing, semiconductor equipment, laser processing, precision rotary tables, optical systems, and other space-constrained automation applications.

However, direct drive is not the ideal solution for every rotary axis. When an application requires high output torque, high torque density, substantial torque multiplication, or a highly integrated robotic joint, a harmonic servo actuator can offer significant advantages.

The right choice should therefore be based on the complete motion requirements rather than simply comparing motor size or rated torque.

For machine builders, the key is to match the drive architecture with the application: DD motors for direct drive, high speed, and dynamic response; harmonic servo actuators for compact high-torque and high-torque-density rotary motion.

By evaluating torque, speed, inertia, encoder feedback, mechanical stiffness, thermal performance, and installation space together, engineers can select a rotary drive architecture that provides the right balance of precision, responsiveness, compactness, and system integration.
