TDB-170-125-NH-B direct drive DD torque motor, with its outstanding structural design and stable control performance, is widely used in CNC rotary tables, semiconductor equipment, robotic joints, precision inspection, and other fields. This model adopts an outer rotor structure (all TDB series feature outer rotor design), which structurally makes it easier to achieve higher moment of inertia and a larger output radius, making it suitable for high dynamic response and high-load applications. It is designed for drive solutions that do not require Hall sensors for startup and is well compatible with most industrial servo drives, facilitating easy commissioning and deployment.

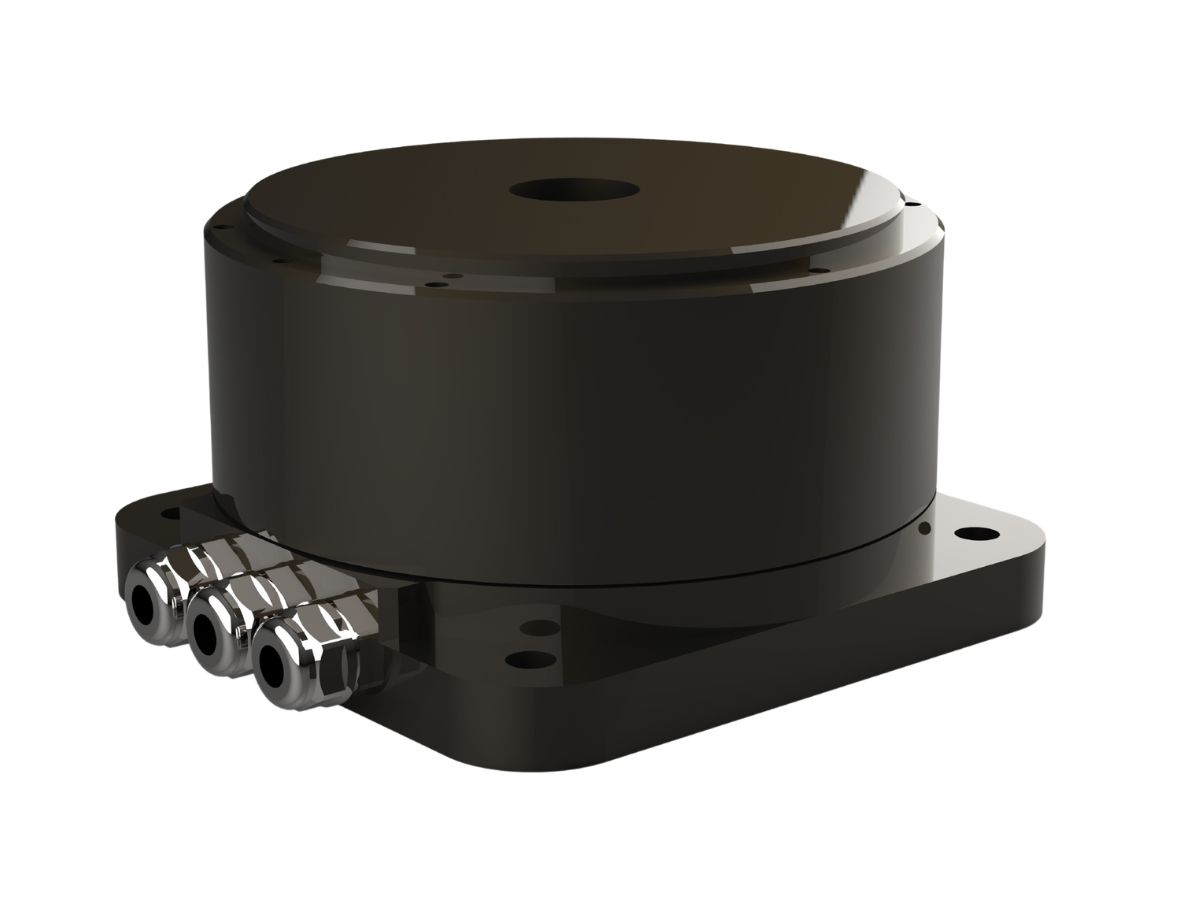

The TDB-112-065-NH-A direct-drive motor is structurally composed of four main parts: the stator (stationary part), the rotor (rotating part), the bearings, and the encoder (a sensor used to detect rotational position). The motor has a diameter of 112 mm, a height of 65 mm, and a weight of 2.8 kg. It delivers a continuous torque of 3 N·m and a peak torque of up to 9 N·m, with a rated power of 110 W, a continuous current of 2.5 Arms, and a peak current of 7.5 Arms. Its key features include high dynamic performance, high precision, optimal speed control, ultra-compact structure, excellent MTBF, and reduced maintenance requirements.

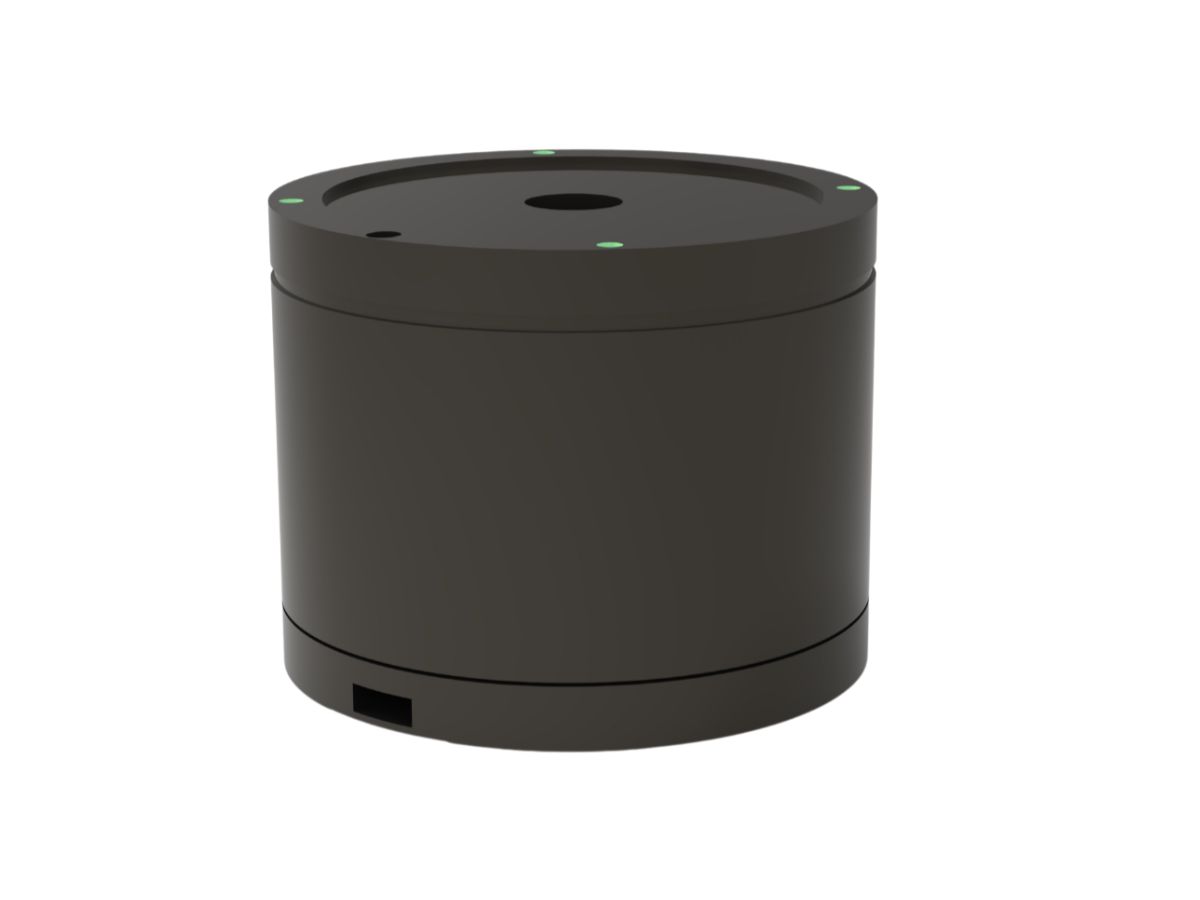

The TDB-080-067-NH-A-T DD torque motor is a high-precision, low-speed, high-torque DC motor, suitable for applications such as robotic joints, precision motion platforms, and automated equipment. This model has a diameter of 80 mm, a height of 67 mm, and weighs only 1.6 kg. It features a 22-pole design, delivering a continuous torque of 1 N·m and a peak torque of up to 3.5 N·m, with a continuous current of 1.7 Arms, a peak current of 5.9 Arms, and a rated power of 32 W. The TDB series torque motors are characterized by a compact structure, high torque density, and precise control performance, making them an ideal choice for precision automation and intelligent equipment applications.
