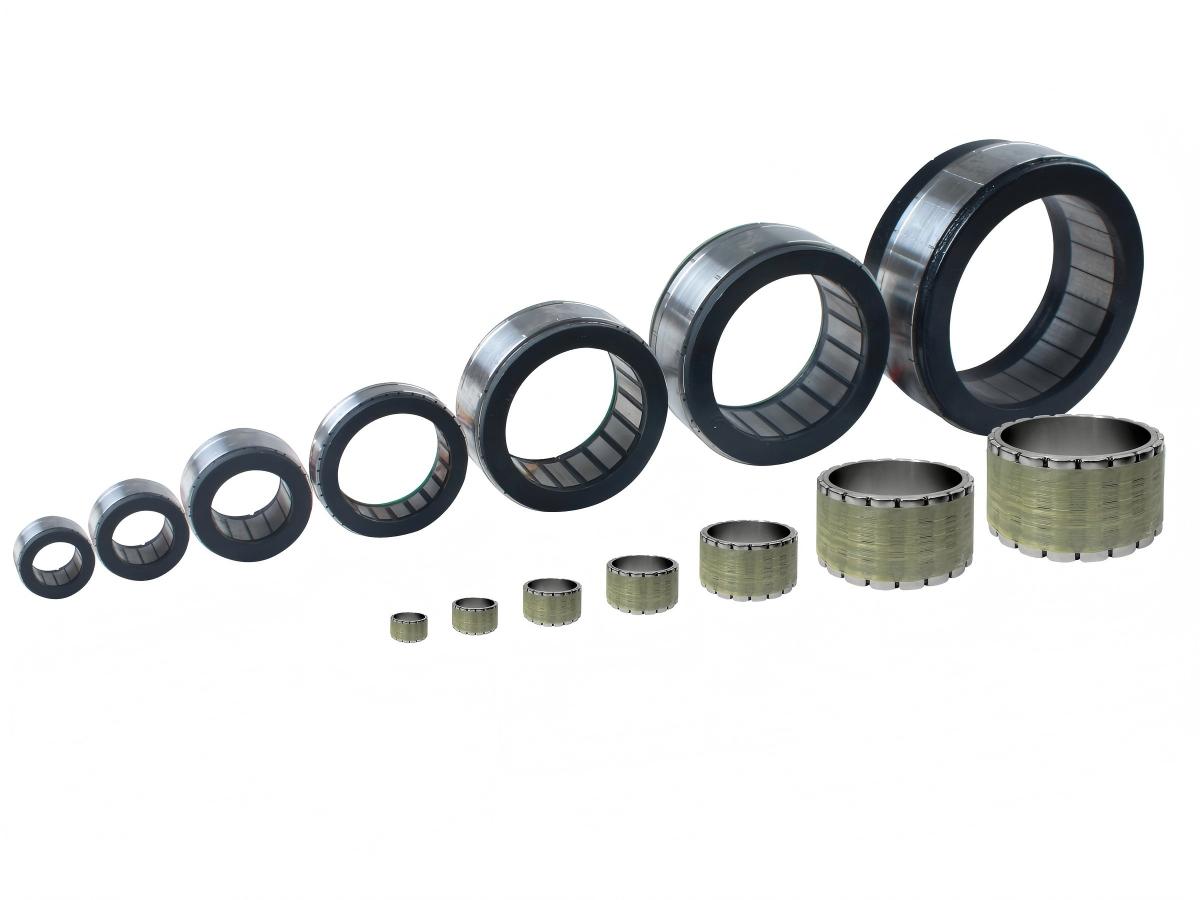

FMK1 Cost Effective Frameless Brushless DC (BLDC) Motors

Name: FMK1 Cost Effective Frameless Brushless DC (BLDC) Motors
SKU: -1

● Introduction

HONPINE FMK1 Frameless Brushless DC (BLDC) Motors are compact, high-performance, and cost-effective products. Available in four sizes (φ50mm–φ115mm), with rated speeds ranging from 650 rpm to 5250 rpm, torque from 0.3 Nm to 9.32 Nm, and power from 165 W to 920 W. Rated voltages range from 24 V to 70 V, with optional Hall sensors, temperature sensors, and wiring configurations. They are widely used in collaborative robots, humanoid robots, quadruped robots, and medical rehabilitation robots.

Features

●Ultra-High Torque Density

Torque increases by 10% under the same input current, leading the industry.

●Extended Endurance

Optimized magnetic circuits and material selection reduce motor losses and prolong operational time.

●Ultra-Compact Structure

Removal of the housing and redundant components reduces volume by 40–50% compared to industry standards, better suited for high-density layouts.

●Ultra-Low Inertia

Lightweight design and innovative use of composite materials enable rapid dynamic response, ideal for high-frequency start-stop scenarios.

●Ultra-Low Temperature Rise

Optimized magnetic circuit design reduces motor losses by 20%, significantly improving energy conversion efficiency.

●Easy Integration

Compact design allows flexible installation and seamless embedding into various mechanical systems, accelerating development and improving performance.

Specification

FMK1 Frameless Torque Motor Selection Reference



Standard FM1	FM1-05008	0.3	6500	6.60	24-70	165
	FM1-05014	0.5	5000	6.56	24-70	191
	FM1-07010	0.62	5000	6.67	24-70	237
	FM1-07018	1.22	4800	13.3	24-70	256
	FM1-08513	1.41	4000	12.4	24-70	458
	FM1-08523	2.51	4000	21.2	24-70	920
	FM1-11525	3.2	2000	15.5	24-70	603
	FM1-11550	9.51	1500	32.2	24-70	617

FM1 050



Product Specification	Rated Power (w)	Rated Voltage (VDC)	Rated Current (A)	Rated Torque (Nm)	Maximum Torque (Nm)	Rated Speed (rpm)	Voltage Constant (V/krpm)	Torque Constant (Nm/A)	Inertia (kgm²*10-4)	Weight (kg)
08	165	48	6.60	0.3	0.9	5250	3.36	0.056	0.088	0.089
14	191	48	6.56	0.5	1.5	3650	5.51	0.091	0.12	0.139

FM1 070



Product Specification	Rated Power (w)	Rated Voltage (VDC)	Rated Current (A)	Rated Torque (Nm)	Maximum Torque (Nm)	Rated Speed (rpm)	Voltage Constant (V/krpm)	Torque Constant (Nm/A)	Inertia (kgm²*10-4)	Weight (kg)
10	237	48	6.67	0.62	1.86	3650	6.5	0.108	0.32	0.216
18	256	48	13.3	1.22	3.66	2000	6.45	0.107	0.49	0.332

FM1 085



Product Specification	Rated Power (w)	Rated Voltage (VDC)	Rated Current (A)	Rated Torque (Nm)	Maximum Torque (Nm)	Rated Speed (rpm)	Voltage Constant (V/krpm)	Torque Constant (Nm/A)	Inertia (kgm²*10-4)	Weight (kg)
13	458	48	12.4	1.41	4.23	3100	7.71	0.128	0.93	0.396
23	920	48	21.2	2.51	7.52	3500	8	0.132	1.4	0.629

FM1 115



Product Specification	Rated Power (w)	Rated Voltage (VDC)	Rated Current (A)	Rated Torque (Nm)	Maximum Torque (Nm)	Rated Speed (rpm)	Voltage Constant (V/krpm)	Torque Constant (Nm/A)	Inertia (kgm²*10-4)	Weight (kg)
25	603	48	15.5	3.2	9.6	1800	13.4	0.222	5.2	1.17
50	617	48	32.2	9.51	28.5	620	18.7	0.309	8.7	2.09
