Wide Reduction Ratio High Torque Capacity Precision Planetary Gearbox

Name: Wide Reduction Ratio High Torque Capacity Precision Planetary Gearbox
SKU: -1

● Introduction

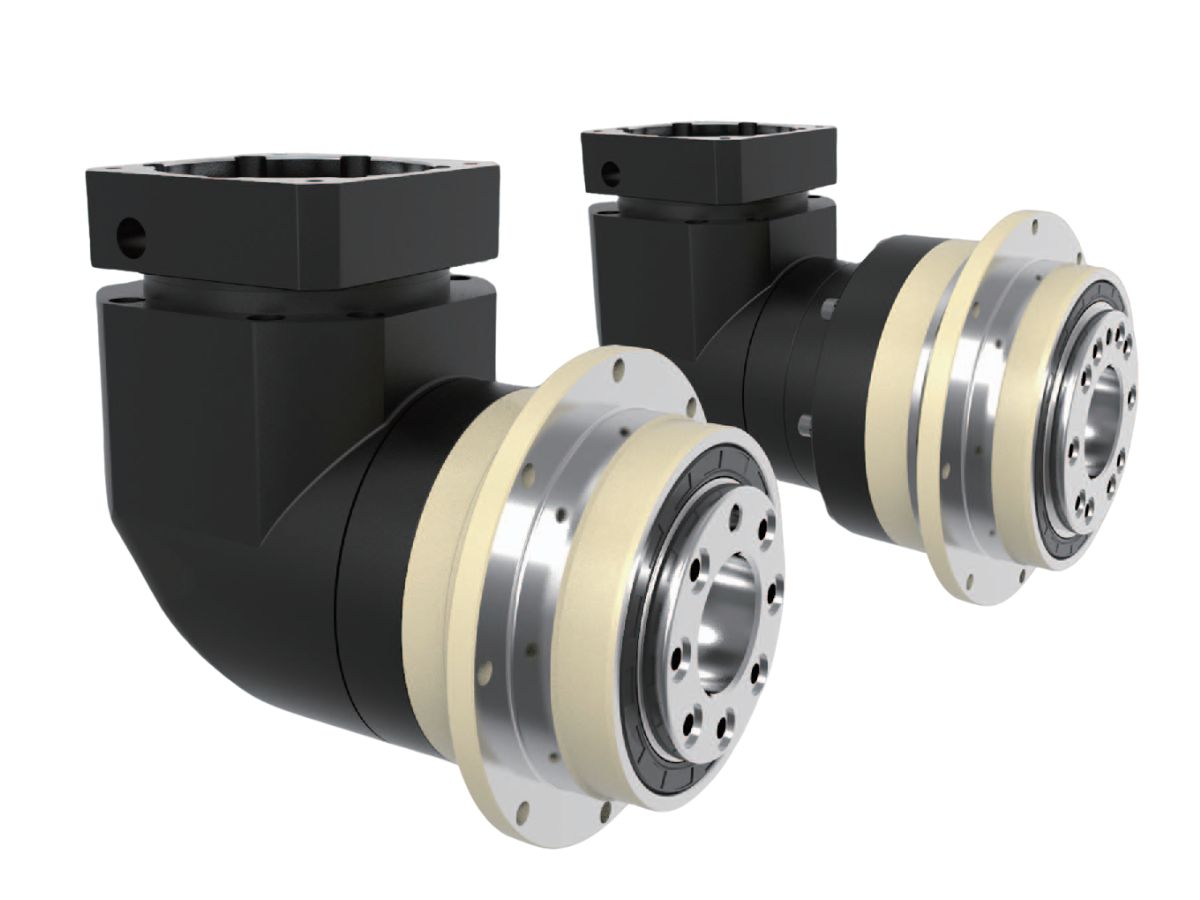

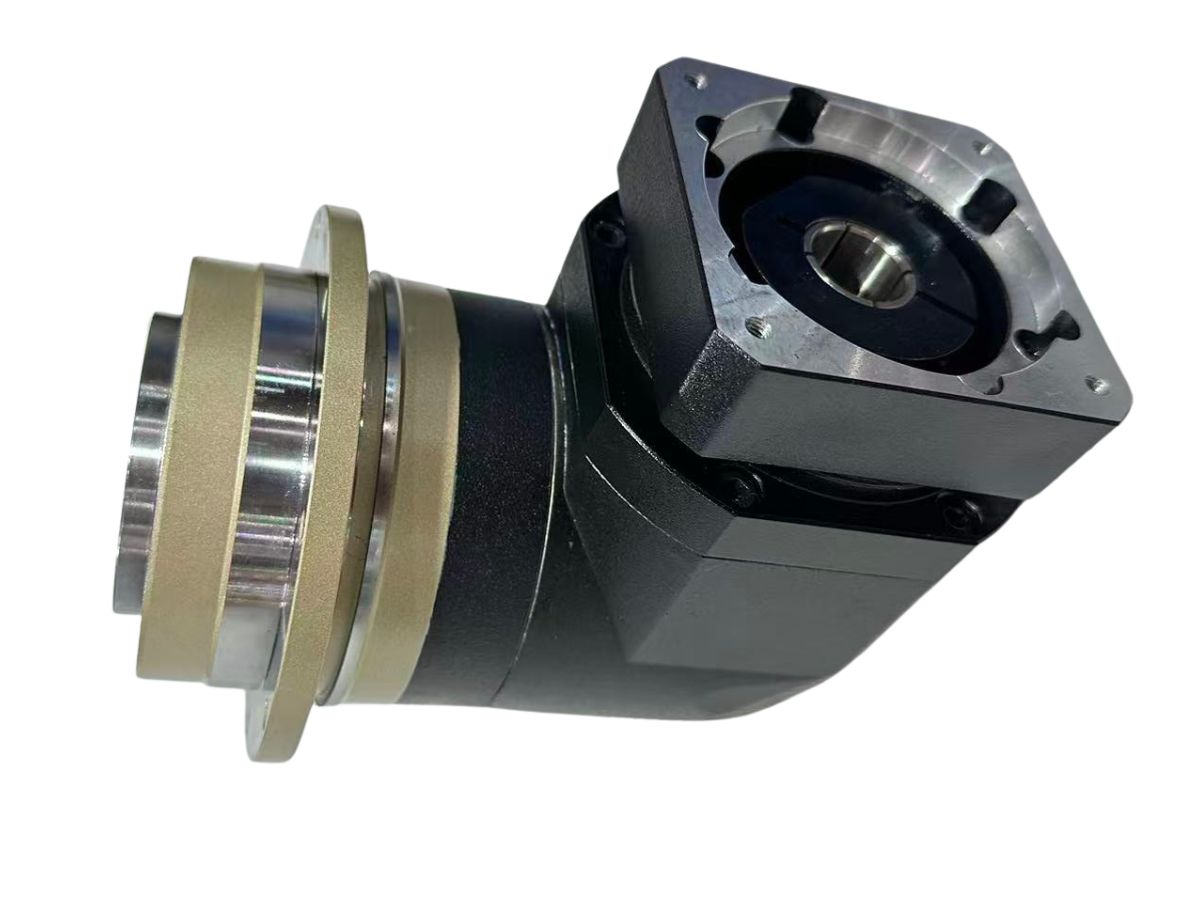

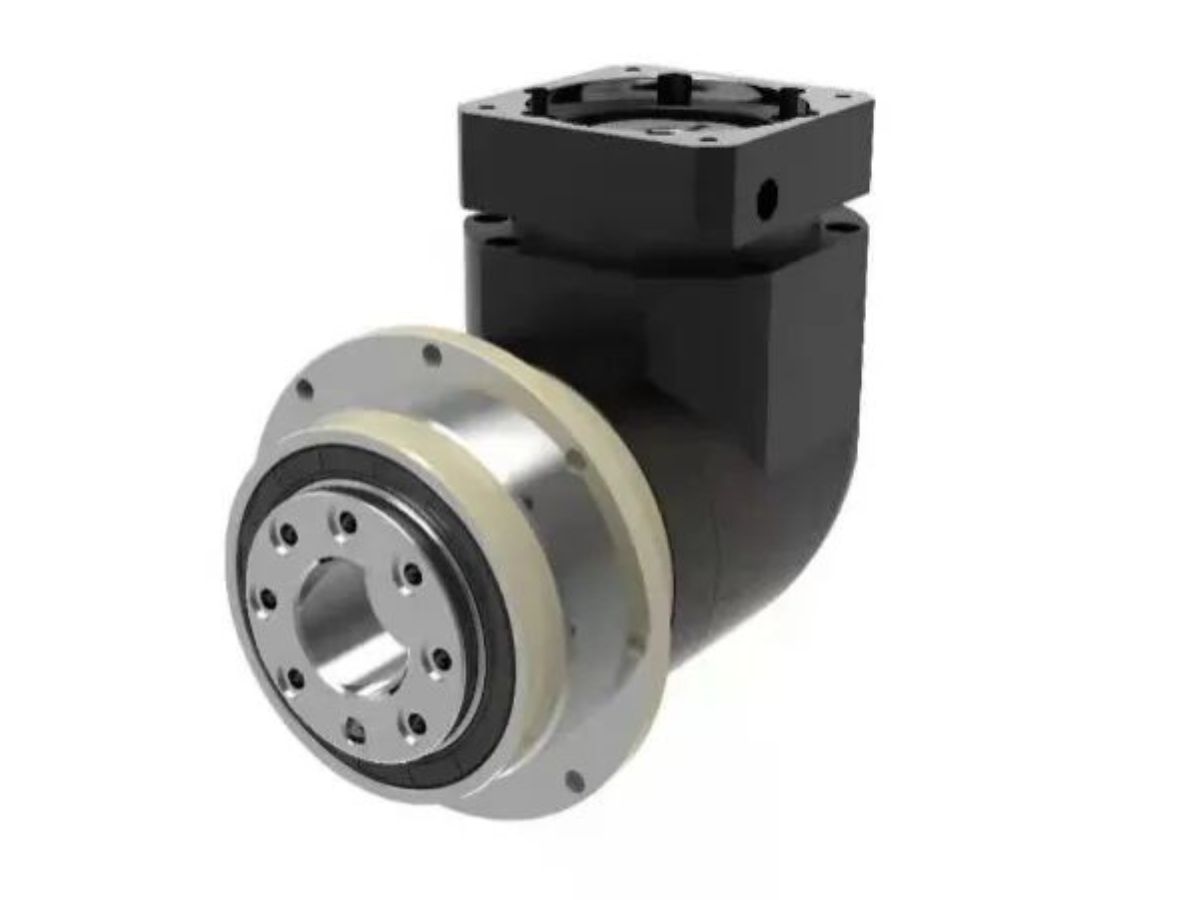

The HONPINE MYDR Series Precision Planetary Gearbox features a high-rigidity flange output design, combining a wide reduction ratio range, high torque capacity, and reliable transmission performance for industrial motion control applications. Available in seven frame sizes from 47 mm to 255 mm, it offers reduction ratios from 4:1 to 200:1 and rated output torque from 14 Nm to 2000 Nm, making it suitable for a wide range of servo motor systems.
With backlash of ≤2 arcmin for single-stage models and ≤4 arcmin for two-stage models, the MYDR Series delivers excellent positioning accuracy, high transmission efficiency, and long-term durability. Ideal for industrial automation, packaging machinery, assembly systems, conveyor equipment, and other OEM applications, it provides flexible, reliable power transmission for demanding motion control systems.

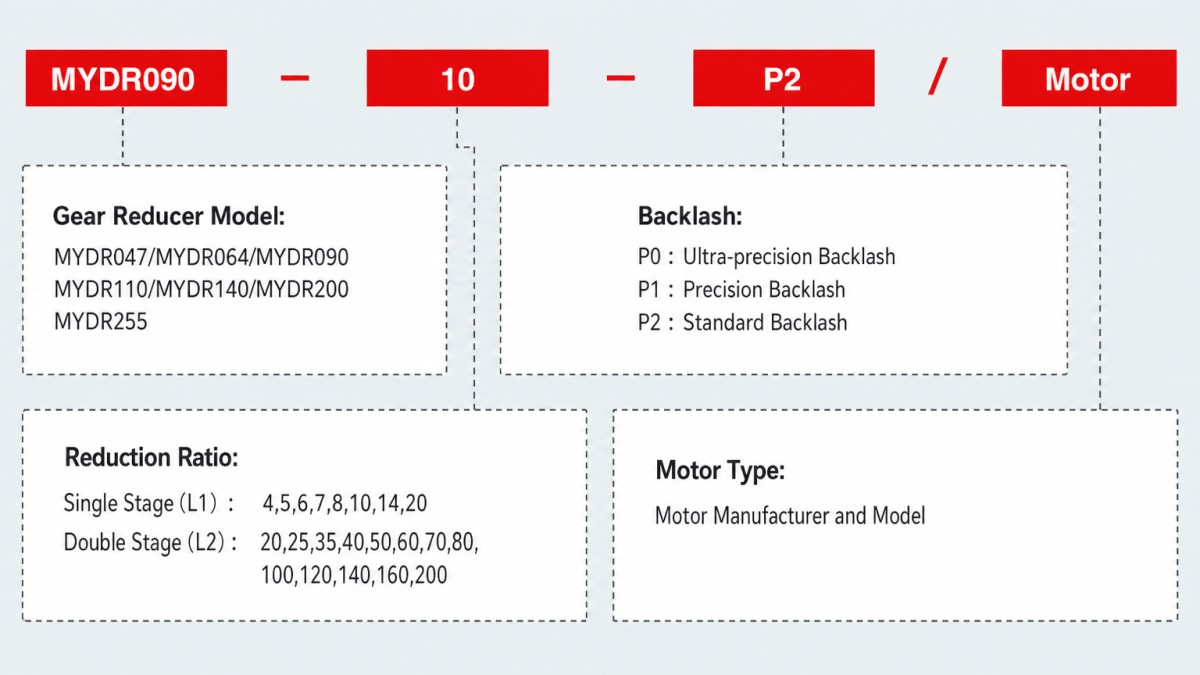

Model Selection

Specification

Sheet 1



Specification	Unit	Stages	Gear Ratio¹	MYDR047	MYDR064	MYDR090	MYDR110	MYDR140	MYDR200	MYDR255
Rated Output Torque T₂N	Nm	1	4	19	48	130	270	560	1,100	1,700
			5	22	60	160	330	650	1,200	2,000
			6	-	55	150	310	600	-	-
			7	19	50	140	300	550	1,100	1,800
			8	17	48	130	270	560	1,000	1,600
			10	14	60	160	330	650	520	1,220
			14	-	50	140	300	550	1,100	1,800
			20	-	40	100	230	450	520	1,220
		2	20	19	48	130	270	560	1,100	1,700
			25	22	60	160	330	650	1,200	2,000
			35	22	60	160	330	650	1,200	2,000
			40	22	48	130	270	560	1,200	2,000
			50	22	60	160	330	650	1,200	2,000
			60	-	55	150	310	600	-	-
			70	22	60	160	330	650	1,200	2,000
			80	-	48	130	270	560	一
			100	22	60	160	330	650	1,200	2,000
			120	-	-	150	310	600	-	一
			140	-	-	140	300	550	1,100	1,800
			160	-	-	120	260	500	-	-
			200	-	-	100	230	450	520	1,220
Maximum Output Torque T₂B	Nm	12	4~200	3 × Rated Output Torque
Rated Input Speed n₁	rpm	12	4~200	5,000	5,000	4,000	4,000	3,000	3,000	2,000
Maximum Input Speed n₁B	rpm	12	4~200	10,000	10,000	8,000	8,000	6,000	6,000	4,000
Ultra Precision Backlash (P0)	arcmin	1	4~20	-	-	≤2	≤2	≤2	≤2	≤2
Ultra Precision Backlash (P0)	arcmin	2	20~200	-	-	≤4	≤4	≤4	≤4	≤4
Precision Backlash (P1)	arcmin	1	4~20	≤4	≤4	≤4	≤4	≤4	≤4	≤4
Precision Backlash (P1)	arcmin	2	20~200	≤7	≤7	≤7	≤7	≤7	≤7	≤7
Standard Backlash (P2)	arcmin	1	4~20	≤6	≤6	≤6	≤6	≤6	≤6	≤6
Standard Backlash (P2)	arcmin	2	20~200	≤9	≤9	≤9	≤9	≤9	≤9	≤9
Torsional Rigidity		12	4~200	7	13	31	82	151	440	1,006
Maximum Bending Moment M₂KB²	Nm	12	4~200	42.5	125	235	430	1,300	3,064	5,900
Permissible Radial Load F₂rB²	N	12	4~200	1,080	2,110	2,310	4,800	6,200	5,450	10,600
Service Life	hr	12	4~200	20,000*
Efficiency η	%	1	4~20	≥95%
Efficiency η	%	2	20~200	≥92%
Weight	kg	1	4~20	1.1	2.1	5.9	10.5	21.9	50.9	85.4
Weight	kg	2	20~200	1.4	1.9	4.5	9.8	20.1	45.4	85.9
Operating Temperature	℃	12	4~200	-10℃~+90℃
Lubrication		12	4~200	Synthetic Grease
Protection Class		12	4~200	IP65
Mounting Position		12	4~200	Mounting Orientation
Noise Level (n₁ = 3000 rpm)	dB	12	4~200	≤61	≤63	≤65	≤68	≤70	≤72	≤74

Sheet 2



Specification	Stage	Gear Ratio¹	MYDR047	MYDR064	MYDR090	MYDR110	MYDR140	MYDR200	MYDR255
Moment of Inertia J₁ kg ·cm²	1	4~7	0.09	0.35	2.25	6.84	23.4	68.9	135.4
		8~10	0.09	0.07	1.87	6.25	21.8	65.6	119.8
		14~20	一	0.07	1.87	6.25	21.8	65.6	119.8
	2	20~40	0.09	0.09	0.35	2.25	6.84	23.4	68.9
		50	一	0.09	0.31	1.87	6.25	21.8	65.6
		60	一	0.09	0.35	2.25	6.84	一	一
		70~100	一	0.09	0.31	1.87	6.25	21.8	65.6
		120~200	一	一	0.31	1.87	6.25	21.8	65.6
