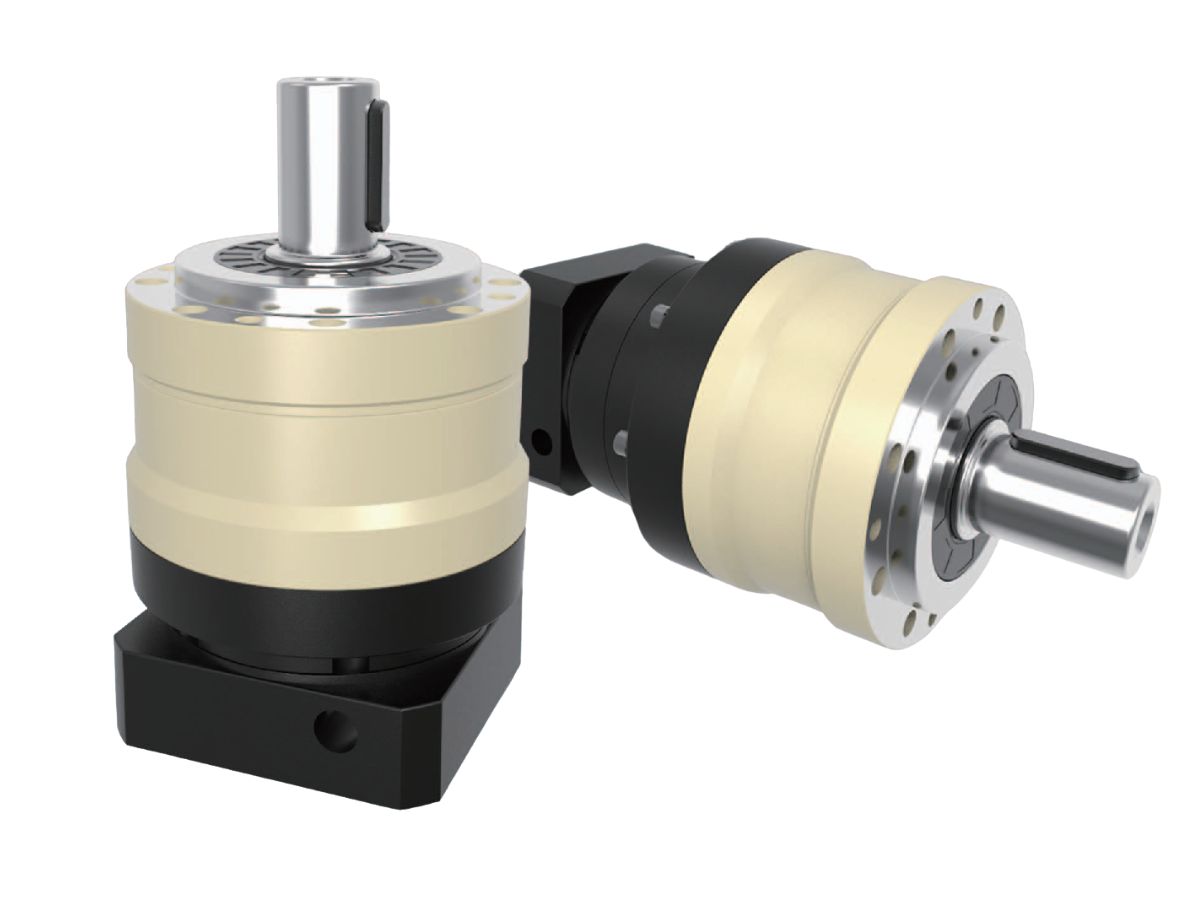

High Torque Precision Planetary Gearbox for Heavy-duty Applications

Name: High Torque Precision Planetary Gearbox for Heavy-duty Applications
SKU: -1

● Introduction

The HONPINE MYB-E Series Precision Planetary Gearbox is built for medium and large industrial machinery requiring high torque, excellent load capacity, and reliable performance. Available in six frame sizes from 70 mm to 235 mm, it offers reduction ratios from 3:1 to 100:1 and rated output torque from 40 Nm to 2000 Nm. Its robust design provides high torsional rigidity, shock resistance, and efficient power transmission.
With backlash of ≤5 arcmin for single-stage models and ≤7 arcmin for two-stage models, the MYB-E Series delivers smooth motion and accurate positioning. Ideal for servo motor systems, it is widely used in packaging machinery, conveyor systems, woodworking equipment, material handling, and industrial automation applications, providing dependable and cost-effective motion control.

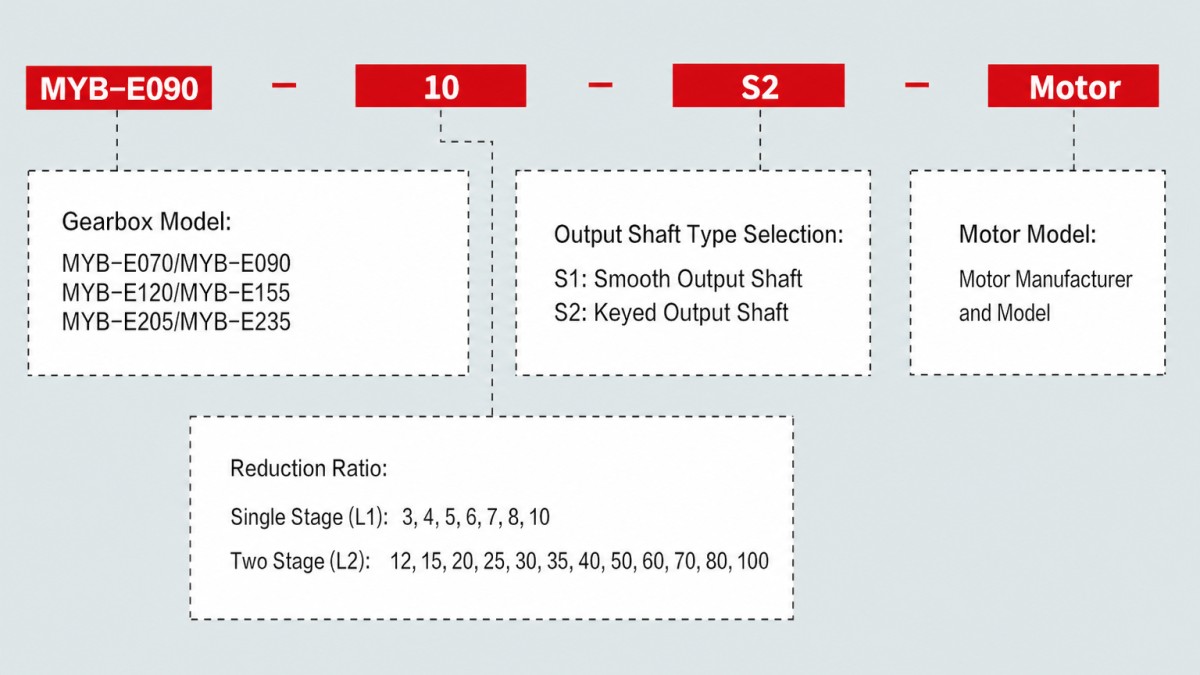

Model Selection

Specification

Sheet 1



Specification	Unit	Stages	Gear Ratio¹	MYB-E070	MYB-E090	MYB-E120	MYB-E155	MYB-E205	MYB-E235
Rated Output Torque T₂N	Nm	1	3	55	130	208	342	588	1,140
			4	50	140	290	542	1,050	1,700
			5	60	160	330	650	1,200	2,000
			6	55	150	310	600	-	-
			7	50	140	300	550	1,100	1,800
			8	45	120	260	500	1,000	1,600
			10	40	100	230	450	520	1,220
		2	12	55	130	208	342	-	-
			15	55	130	208	342	588	1,140
			20	50	140	290	542	1,050	1,700
			25	60	160	330	650	1,200	2,000
			30	50	130	208	342	1,200	2,000
			35	60	160	330	650	1,200	2,000
			40	50	140	290	542	1,200	2,000
			50	60	160	330	650	1,200	2,000
			60	55	150	310	600	-	-
			70	50	140	300	550	1,100	1,800
			80	45	120	260	500	1,000	1,600
			100	40	100	230	450	520	1,220
Maximum Output Torque T₂B	Nm	12	3~100	3 × Rated Output Torque
Rated Input Speed n₁	rpm	12	3~100	5,000	4,000	4,000	3,000	3,000	2,000
Maximum Input Speed n₁B	rpm	12	3~100	10,000	8,000	8,000	6,000	6,000	4,000
Backlash	arcmin	1	3~10	≤5	≤5	≤5	≤5	≤5	≤5
Backlash	arcmin	2	12~100	≤7	≤7	≤7	≤7	≤7	≤7
Torsional Rigidity	Nm/arcmin	12	3~100	7	14	25	50	145	225
Permissible Radial Load F₂rB²	N	12	3~100	1,530	3,250	6,700	9,400	14,500	50,000
Permissible Axial Load F₂a1B²	N	12	3~100	630	1,300	3,000	4,000	6,200	35,000
Permissible Axial Load F₂a2B²	N	12	3~100	765	1,625	3,350	4,700	7,250	25,000
Service Life	hr	12	3~100	20,000*
Efficiency η	%	1	3~10	≥97%
Efficiency η	%	2	12~100	≥94%
Weight	kg	1	3~10	1.3	3.7	7.8	14.5	29	48
Weight	kg	2	12~100	1.9	4.1	9	17.5	33	60
Operating Temperature	℃	12	3~100	-10℃~+90℃
Lubrication		12	3~100	Synthetic Grease
Protection Class		12	3~100	IP65
Mounting Position		12	3~100	Mounting Orientation
Noise Level (n₁ = 3000 rpm)	dB	12	3~100	≤58	≤60	≤63	≤65	≤67	≤70

Sheet 2



Specification	Stage	Gear Ratio¹	MYB-E070	MYB-E090	MYB-E120	MYB-E155	MYB-E205	MYB-E235
Moment of Inertia J₁ kg ·cm²	1	3	0.16	0.61	3.25	9.21	28.98	69.61
		4	0.14	0.48	2.74	7.54	23.67	54.37
		5	0.13	0.47	2.71	7.42	23.29	53.27
		6	0.13	0.45	2.65	725	22.75	51.72
		7	0.13	0.45	2.62	7.14	22.48	50.97
		8	0.13	0.44	2.58	7.07	22.59	50.84
		10	0.13	0.44	2.57	7.03	22.51	50.56
	2	12	0.03	0.13	0.47	2.71	7.42	23.29
		15	0.03	0.13	0.47	2.71	7.42	23.29
		20	0.03	0.13	0.47	2.71	7.42	23.29
		25	0.03	0.13	0.47	2.71	7.42	23.29
		30	0.03	0.13	0.47	2.71	7.42	23.29
		35	0.03	0.13	0.47	2.71	7.42	23.29
		40	0.03	0.13	0.47	2.71	7.42	23.29
		50	0.03	0.13	0.44	2.57	7.03	22.51
		60	0.03	0.13	0.44	2.57	7.03	22.51
		70	0.03	0.13	0.44	2.57	7.03	22.51
		80	0.03	0.13	0.44	2.57	7.03	22.51
		100	0.03	0.13	0.44	2.57	7.03	22.51
