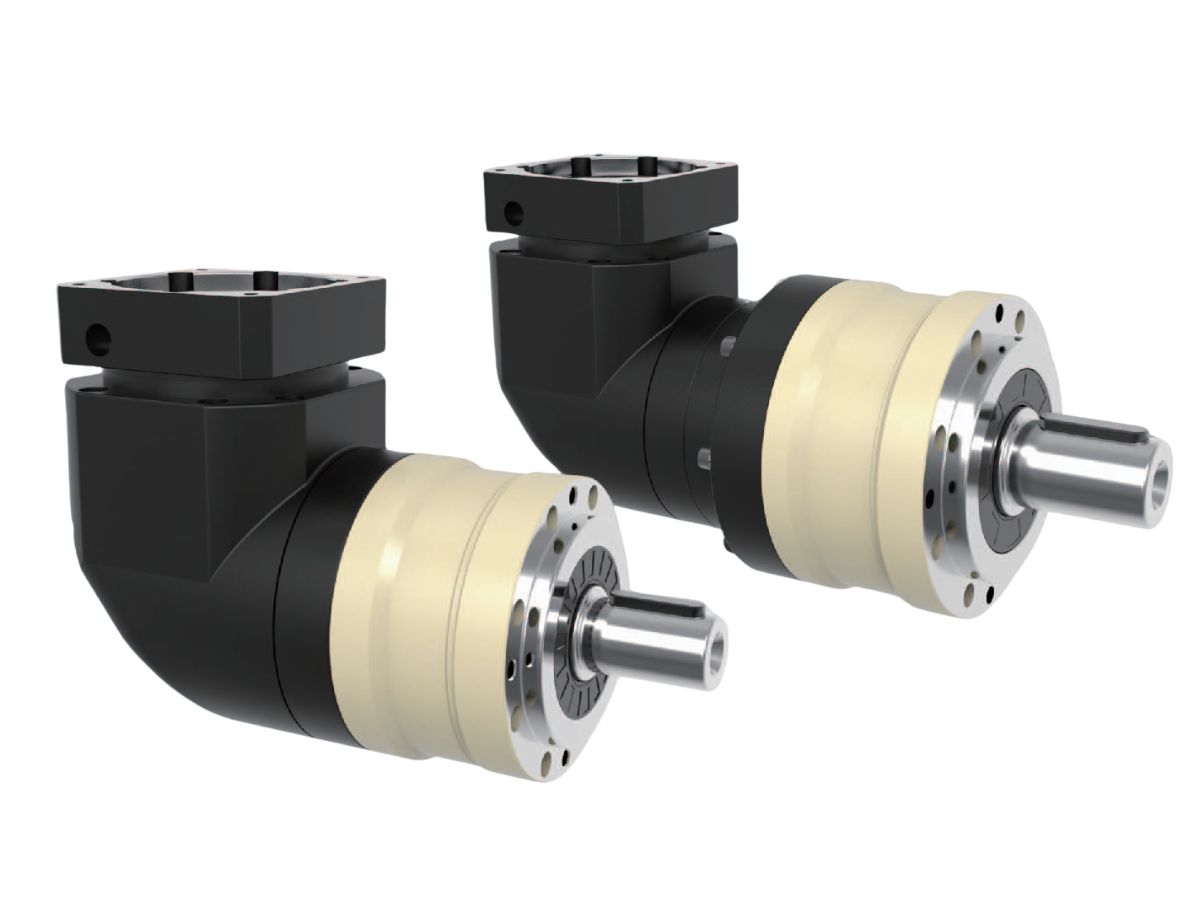

High Torque Output Right Angle Planetary Gearbox for Industrial Machinery

Name: High Torque Output Right Angle Planetary Gearbox for Industrial Machinery
SKU: -1

● Introduction

The HONPINE MYBR-E Series Right Angle Planetary Gearbox is designed for medium and large industrial machinery requiring high torque, flexible speed reduction, and compact installation. Available in six frame sizes from 70 mm to 155 mm, it offers reduction ratios from 3:1 to 200:1 and rated output torque from 40 Nm to 2000 Nm, making it suitable for both light-duty and heavy-duty servo motor applications.
Its compact 90° right angle design maximizes installation flexibility while delivering high transmission efficiency, excellent load capacity, and reliable long-term performance. With backlash of ≤6 arcmin for single-stage models and ≤9 arcmin for two-stage models, the MYBR-E Series ensures smooth motion and accurate positioning. Ideal for packaging machinery, conveyor systems, woodworking equipment, material handling, and industrial automation, it provides dependable, high-performance right angle power transmission.

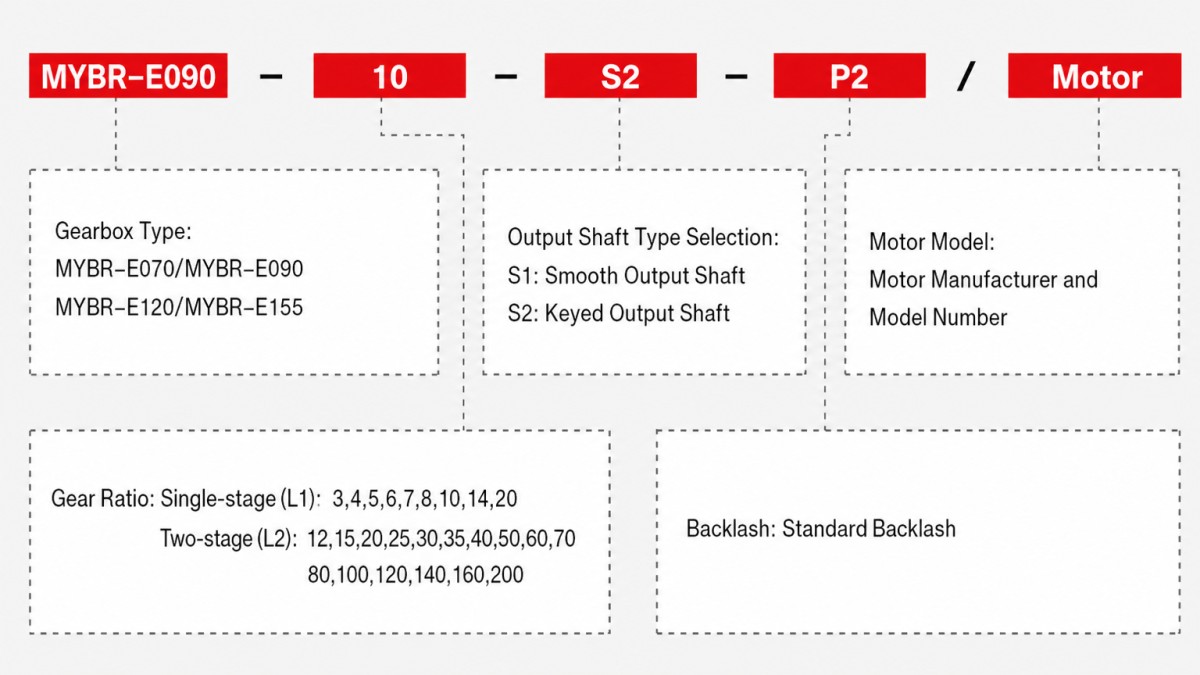

Model Selection

Specification

Sheet 1



Specification	Unit	Stages	Gear Ratio¹ MYBR-E070 MYBR-E090 MYBR-E120 MYBR-E155
Rated Output Torque T₂N	Nm	1	3	55	130	208	342
			4	50	140	290	542
			5	60	160	330	650
			6	55	150	310	600
			7	50	140	300	550
			8	50	140	290	542
			10	60	160	330	650
			14	50	140	300	550
			20	40	100	230	450
		2	12	55	130	208	342
			15	55	130	208	342
			20	50	140	290	542
			25	60	160	330	650
			30	55	130	208	342
			35	60	160	330	650
			40	50	140	290	542
			50	60	160	330	650
			60	55	150	310	600
			70	60	160	330	650
			80	50	140	290	542
			100	60	160	330	650
			120		150	310	600
			140		140	300	550
			160		120	260	500
			200		100	230	450
Maximum Output Torque T₂B	Nm	12	3~200	3 × Rated Output Torque
Rated Input Speed n₁	rpm	12	3~200	5,000	4,000	4,000	3,000
Maximum Input Speed n₁B	rpm	12	3~200	10,000	8,000	8,000	6,000
Backlash	arcmin	1	3~20	≤6	≤6	≤6	≤6
Backlash	arcmin	2	12~200	≤9	≤9	≤9	≤9
Torsional Rigidity	Nm/arcmin	12	3~200	7	14	25	50
Permissible Radial Load F₂rB²	N	12	3~200	1,530	3,250	6,700	9,400
Permissible Axial Load F₂a1B²	N	12	3~200	630	1,300	3,000	4,000
Permissible Axial Load F₂a2B²	N	12	3~200	765	1,625	3,350	4,700
Service Life	hr	12	3~200	20,000*
Efficiency η	%	1	3~20	≤95%
Efficiency η	%	2	12~200	≤92%
Weight	kg	1	3~20	2.1	6.4	13	24.5
Weight	kg	2	12~200	2.5	7.8	14.2	27.5
Operating Temperature	℃	12	3~200	-10℃~+90℃
Lubrication		12	3~200	Synthetic Grease
Protection Class		12	3~200	IP65
Mounting Position		12	3~200	Mounting Orientation
Noise Level (n₁ = 3000 rpm)	dB	12	3~200	≤63	≤65	≤68	≤70

Sheet 2



Specification	Stage	Gear Ratio¹	MYBR-E070	MYBR-E090	MYBR-E120	MYBR-E155
Moment of Inertia J₁ kg ·cm²	1	3~7	0.35	2.25	6.84	23.4
		8~10	0.07	1.87	6.25	21.8
		14~20	0.07	1.87	6.25	21.8
	2	12~40	0.09	0.35	2.25	6.84
		50	0.09	0.31	1.87	6.25
		60	0.09	0.35	2.25	6.84
		70~100	0.09	0.31	1.87	6.25
		120～200		0.31	1.87	6.25
