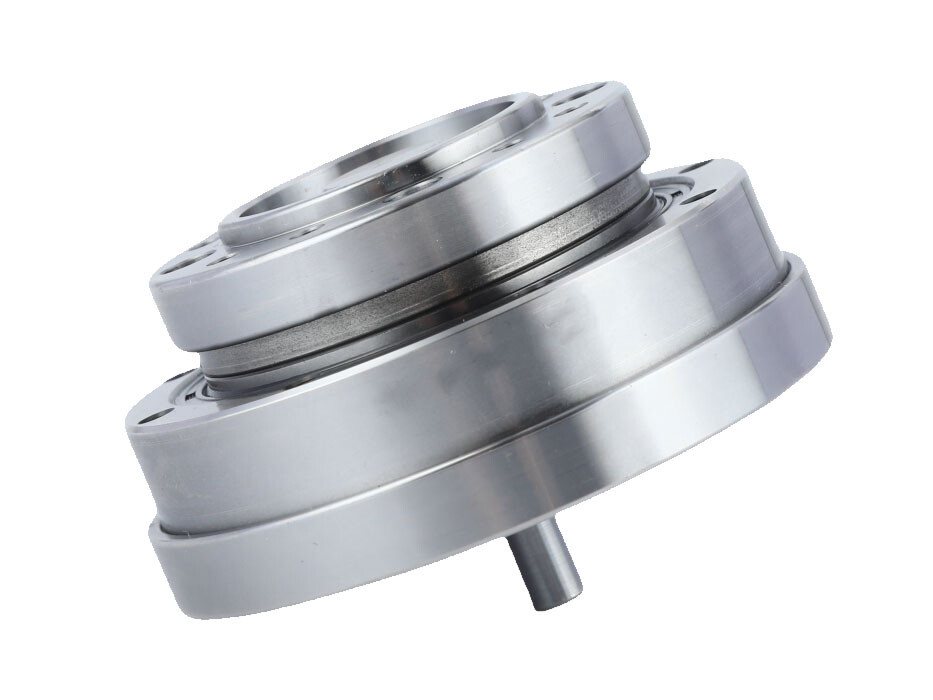

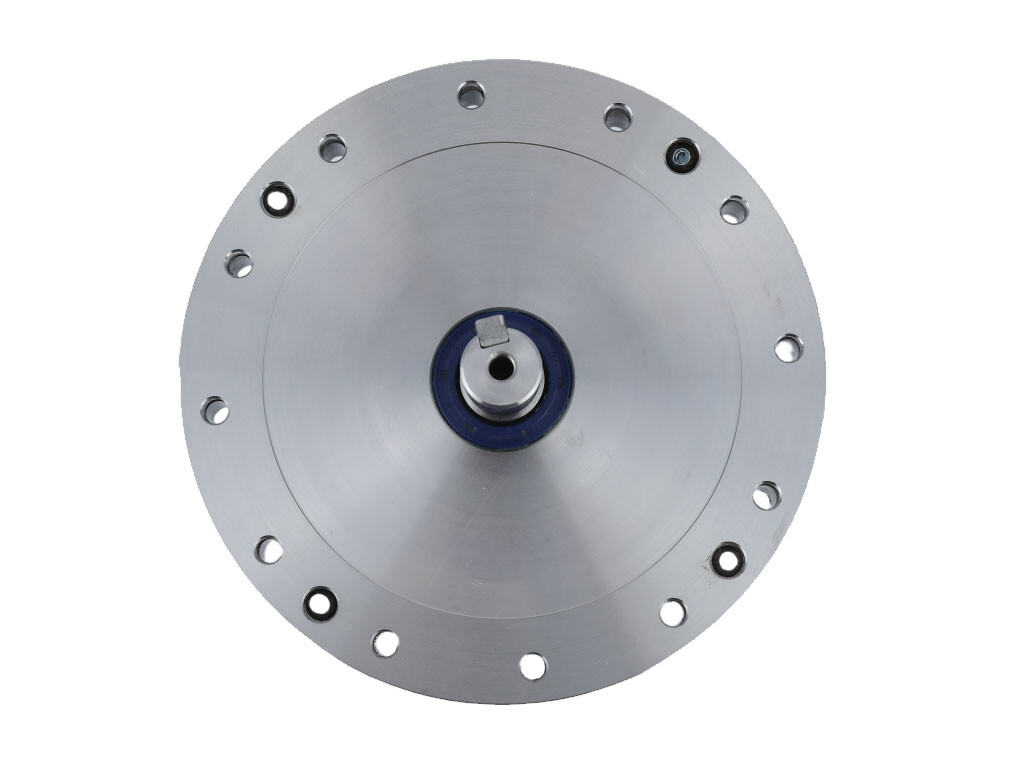

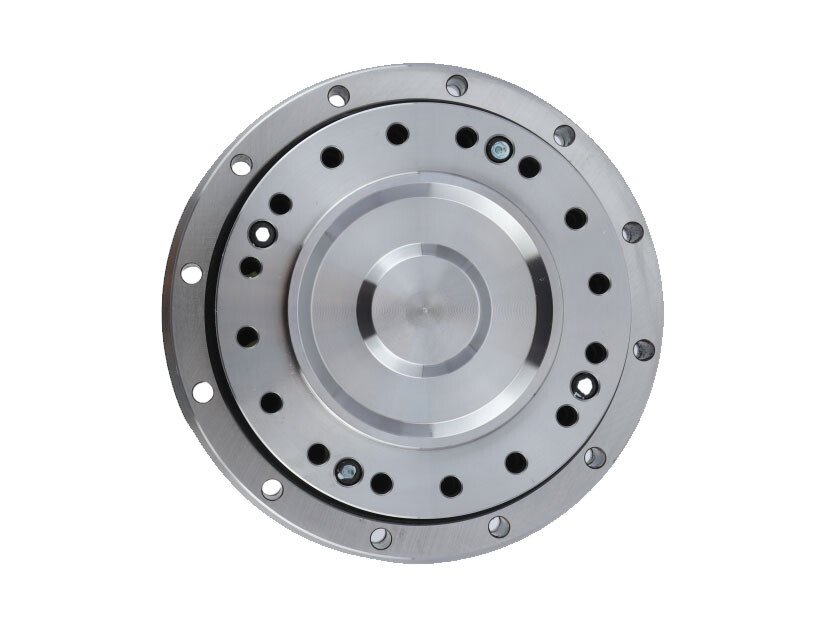

Sealed Flange Structure Input Shaft Harmonic Drive

● Introduction

The FHG-IV series harmonic drive features an input shaft configuration. It adopts an integrated sealed flange structure that combines harmonic drive components into a single unit, internally filled with specialized lubricating grease for simplified equipment integration. A high-rigidity cross roller bearing (main bearing) is integrated within the assembly. It is typically configured with either fixed circular spline and flexspline output or fixed flexspline and circular spline output.

Features

● Versatile input shaft design with multiple connection options

● Fully sealed unit pre-filled with specialized lubricant

● Timing pulley or gear shaft input connections

● High-precision rotation and accurate positioning

● High torque capacity

● Enhanced structural rigidity

● Inline input/output alignment

Specification

Sheet 1



Starting torgue of FHG series							unit:cNm
Type Reduction ratio	11	14	17	20	25	32	40
50	一	8.8	27	36	56	85	136
80	一	7.5	25	33	50	74	117
100	一	6.9	24	32	49	72	112
120	一	6.9	24	31	48	68	110
160	一	一	一	31	47	67	105

Sheet 2



Moment load table of FHT(FHG)series
Model	Design value	Instant permissible value
FHG-14	Mbdi 41Nm	Mb max 80Nm
	Ftdi270N	Ft max 490N
	Fa di 270N	F a max 490N
	Fa di 270N	F a max 490N
FHG-17	M bdi 72Nm	Mb max 140Nm
	Ftdi400N	Ft max 700N
	Fa di 400N	F a max 700N
FHG-20	M bdi 140Nm	Mb max 280Nm
	Ftdi650N	Ft max 1150N
	Fa di 650N	F a max 1150N
FHG-25	M bdi 243Nm	Mb max 480Nm
	Ft di 900N	Ft max 1600N
	Fa di900N	Fa max 1600N
FHG-32	M bdi 460Nm	Mb max 900Nm
	Ftdi 1350N	Ftmax 2300N
	Fa di 1350N	Fa max 2300N
	Fa di 1350N	Fa max 2300N
FHG-40	M bdi 600Nm	Mb max 1200Nm
	Ft di 2000N	Ftmax 3500N
	Fa di 2000N	F a max 3500N

Sheet3



Model	Reduction ratio	Rated torque at 2000r/min input		Permissible peak torque at start and stop		Permissible maximum value for average load torque		Permissible maximum value for average load torque		Permissible maximum input rotational speed(Grease)		Backlash	weight	Desian life
Model	Reduction ratio	Nm	kgfm	Nm	kgfm	Nm	kgfm	Nm	kgfm	r/min	r/min	Arc Sec	kg	Hour
14	50	7	0.7	23	2.3	9	0.9	46	4.7	8500	3500	≤20	FHG-I/II:0.40 FHG-III:0.7 FHG-IV:0.66 FHG-V:0.40	10000
	80	10	1.0	30	3.1	14	1.4	61	6.2					15000
	100	10	1.0	36	3.7	14	1.4	70	7.2					15000
	120	10	1.0	36	3.7	14	1.4	70	7.2					15000
17	50	21	2.1	44	4.5	34	3.4	91	9	7300	3500	≤20	FHG-I/II:0.54 FHG-III:0.99 FHG-IV:0.90 FHG-V:0.62	10000
	80	29	2.9	56	5.7	35	3.6	113	12					15000
	100	31	3.2	70	7.2	51	5.2	143	15					15000
	120	31	3.2	70	7.2	51	5.2	112	11					15000
20	50	33	3.3	73	7.4	44	4.5	127	13	6500	3500	≤20	FHG-I/II:0.72 FHG-III:1.32 FHG-IV:1.29 FHG-V:0.82	10000
	80	44	4.5	96	9.8	61	6.2	165	17					15000
	100	52	5.3	107	10.9	64	6.5	191	20					15000
	120	52	5.3	113	11.5	64	6.5	191	20					15000
	160	52	5.3	120	12.2	64	6.5	191	20					15000
25	50	51	5.2	127	13	72	7.3	242	25	5600	3500	≤20	FHG-I/II:1.22 FHG-III:2.02 FHG-IV:1.99 FHG-V:1.40	10000
	80	82	8.4	178	18	113	12	332	34					15000
	100	87	8.9	204	21	140	14	369	38					15000
	120	87	8.9	217	22	140	14	395	40					15000
32	50	99	10	281	29	140	14	497	51	4800	3500	≤20	FHG-I/II:2.54 FHG-IIV:4.20 FHG-IV:4.00 FHG-V:2.70	10000
	80	153	16	395	40	217	22	738	75					15000
	100	178	18	433	44	281	29	841	86					15000
	120	178	18	459	47	281	29	892	91					15000
40	50	178	18	523	53	255	26	892	91	4000	3000	≤20	FHG-I/IV:4.40 FHG-III:7.20 FHG-IV:7.00 FHG-V:4.06	10000
	80	268	27	675	69	369	38	1270	130					15000
	100	345	35	738	75	484	49	1400	143					15000
	120	382	39	802	82	586	60	1530	156					15000
