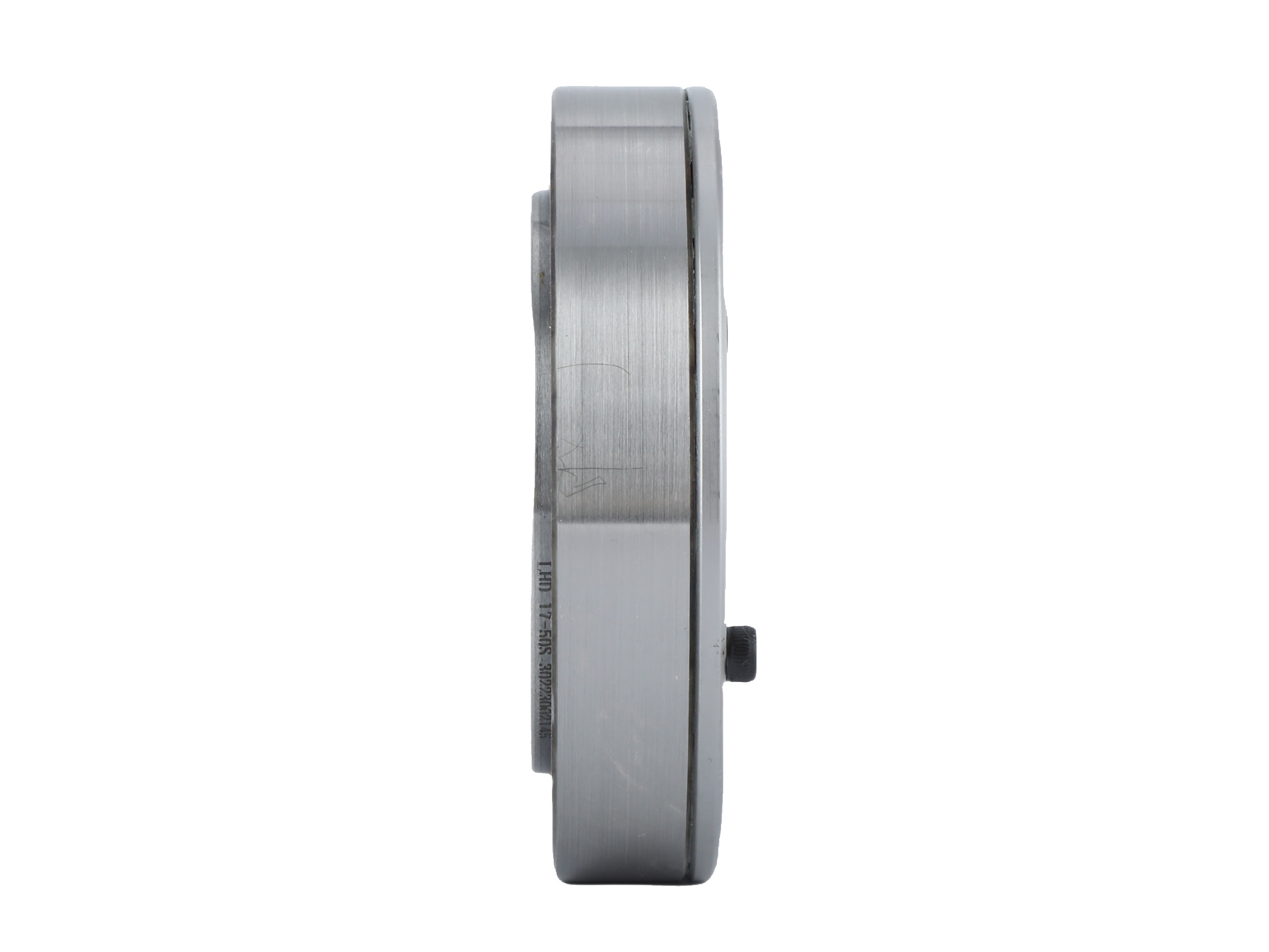

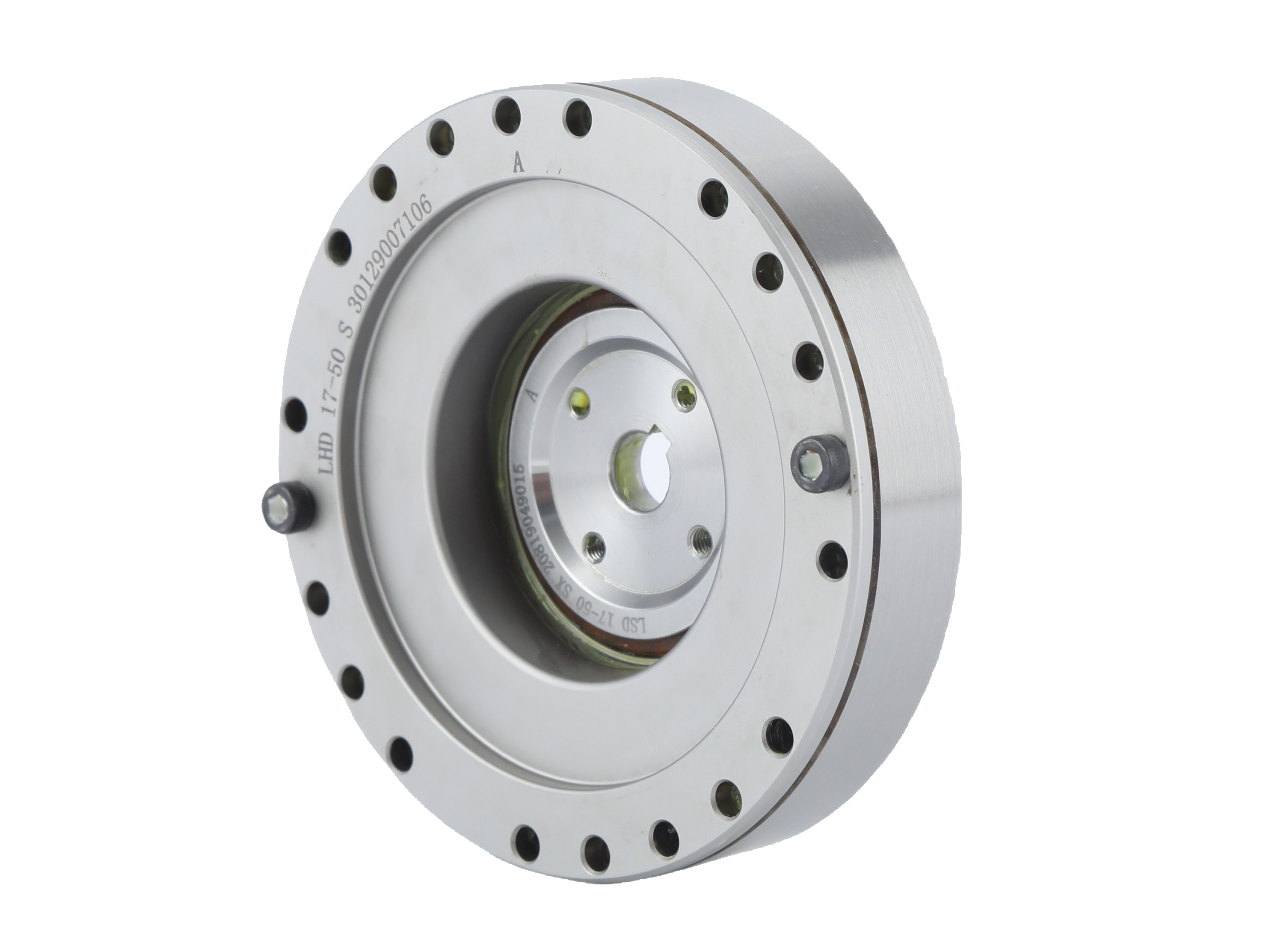

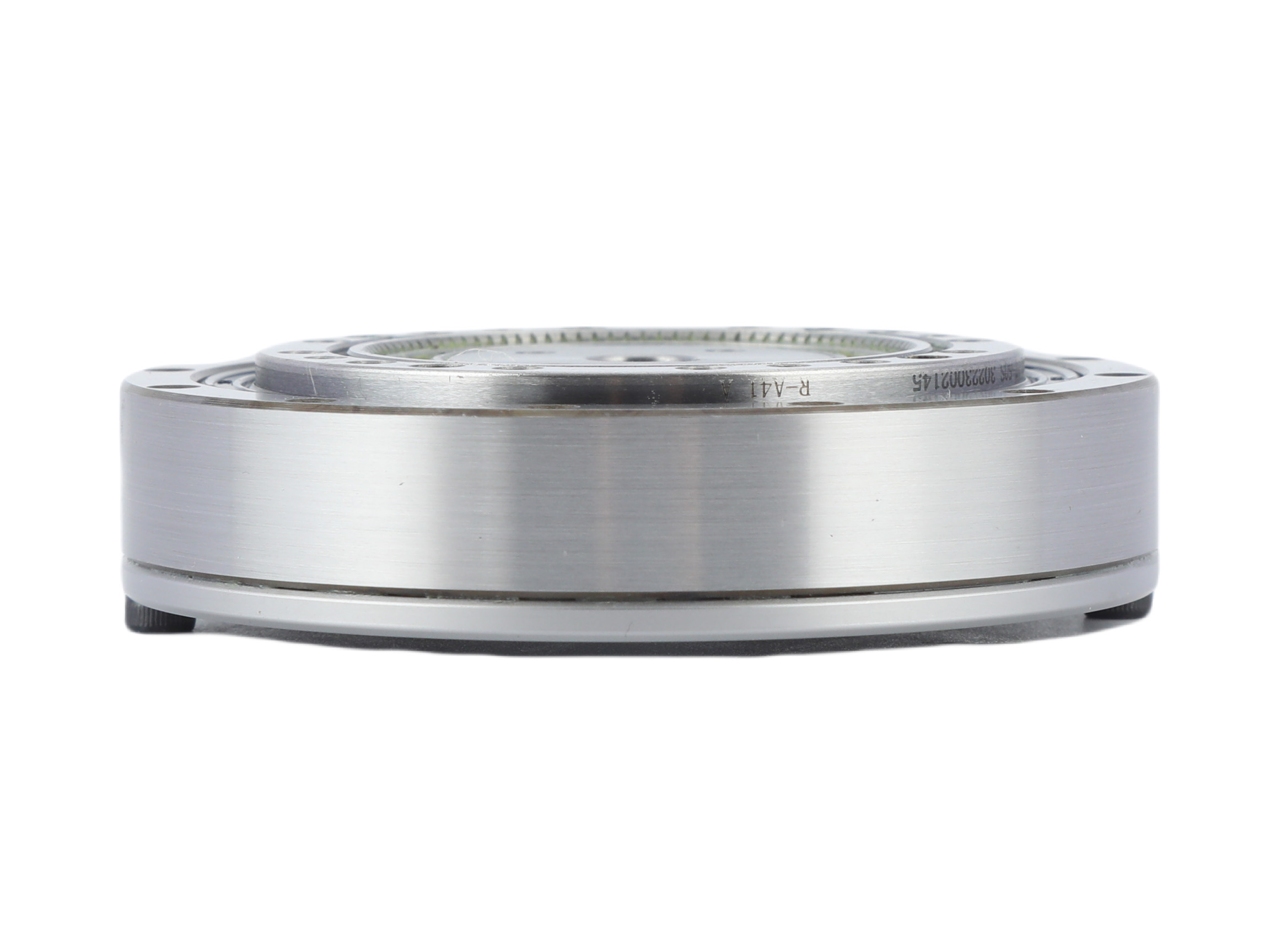

Ultra Thin Compact Design Hat Shape Light Weight Harmonic Reducer

● Introduction

The FHD Series harmonic reducer employs an ultra-short top-hat flexspline design, designed for applications demanding extreme compactness and lightweight performance.The FHD Combined Type pursues the ultimate flat-profile design. Compared to the FHG series, its axial length is reduced by approximately 50%. Equipped with high-rigidity cross roller bearings on the output side, it is ideally suited for applications requiring space-constrained designs.

Features

● Ultra-thin profile with hollow structure

● Compact and streamlined design

● High torque capacity

● High rigidity, zero backlash

● Coaxial input/output

Specification

Sheet 1



Starting torgue of FHD series					unit:cNm
Type Reduction ratio	14	17	20	25	32
50	6.2	19	25	39	60
80	5	16	23	36	55
100	4.8	17	22	34	50

Sheet 2



Model	Value	Instant permissible value
FHD-14	Mb di41Nm	Mb max 80Nm
	Ft di 270N	Ft max 490N
	Fa di270N	Fa max 490N
FHD-17	Mb di59Nm	Mb max 140Nm
	Ftdi 330N	Ftmax 570N
	Fa di330N	Fa max 570N
FHD-20	Mbdi117Nm	Mb max 230Nm
	Ftdi 550N	Ft max 975N
	Fa di 550N	Fa max975N
FHD-25	Mb di213Nm	Mb max 420Nm
	Ftdi790N	Ft max 1400N
	Fa di790N	Fa max 1400N
FHD-32	Mb di400Nm	Mb max800Nm
	Ftdi1240N	Ft max2100N
	Fa di 1240N	Fa max 2100N

Sheet3



Model	Reduction ratio	Rated torque at 2000r/min input	Permissible peak torque at start and stop	Permissible maximum value for average load torque	Permissible maximum momentary torque	Permissible maximum input rotational speed(Grease)	Permissible average input rotational speed(Greaae)	Backlash	Weight	Desian life
Model	Reduction ratio	Nm	Nm	Nm	Nm	r/min	r/min	Arc Sec	Kg	Hour
14	50	3.7	12	4.8	23	8500	3500	≤20	FHD-I:0.34 FHD-II:0.64	9000
	80	5.1	15	6.2	29					10000
	100	5.4	19	7.7	35					10000
17	50	11	23	18	48	7300	3500	≤20	FHD-I:0.42 FHD-II:0.87	9000
	80	14	29	21	54					10000
	100	16	37	27	71					10000
20	50	17	39	24	69	6500	3500	≤20	FHD-I:0.54 FHD-II:1.14	9000
	80	23	49	28	78					10000
	100	28	57	34	95					10000
25	50	27	69	38	127	5600	3500	≤20	FHD-I:0.95 FHD-II:1.75	9000
	80	42	91	62	157					10000
	100	47	110	75	184					10000
32	50	53	151	75	268	4800	3500	≤20	FHD-I:1.90 FHD-II:3.56	9000
	80	79	202	126	350					10000
	100	96	233	151	420					10000
