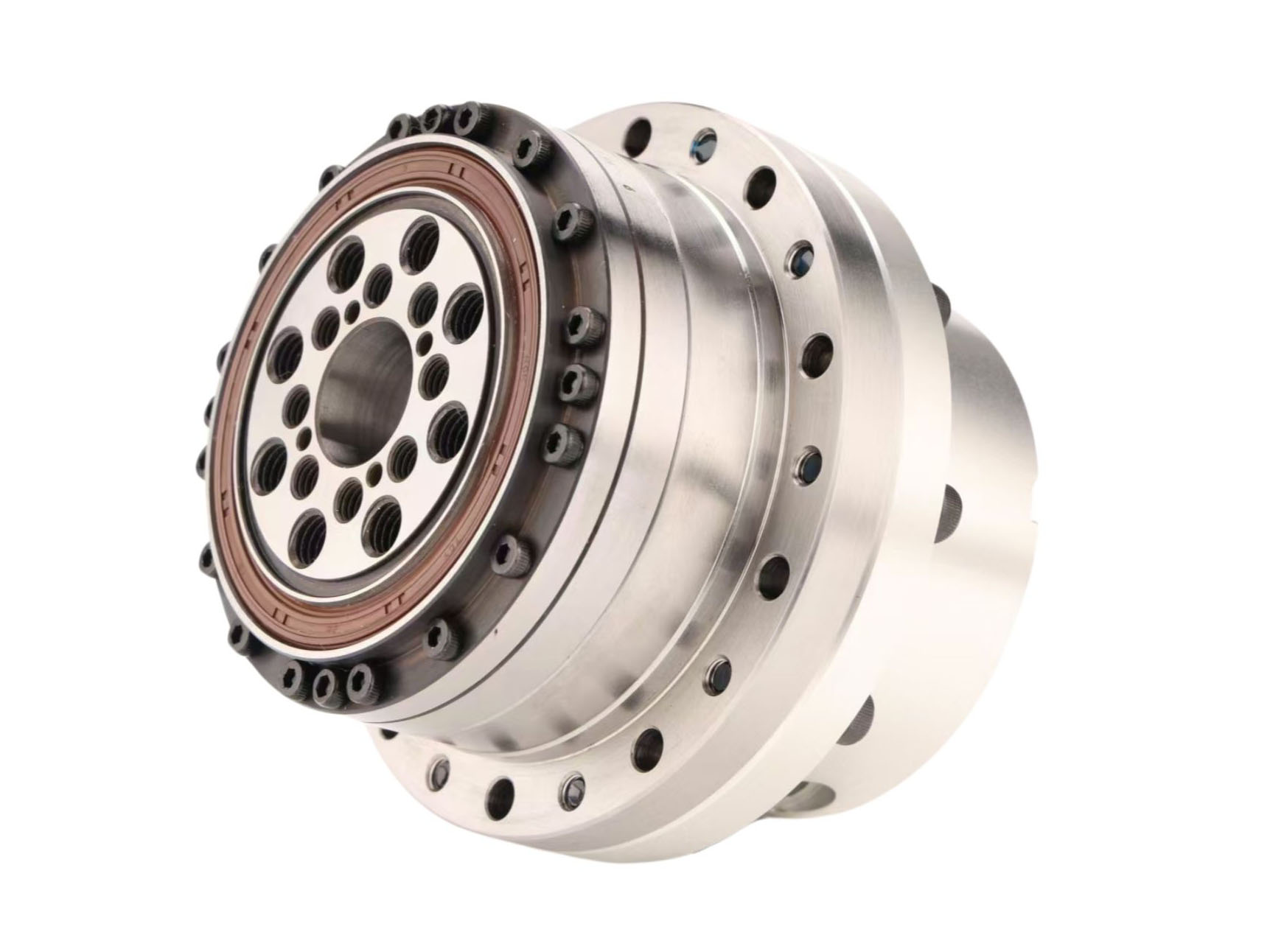

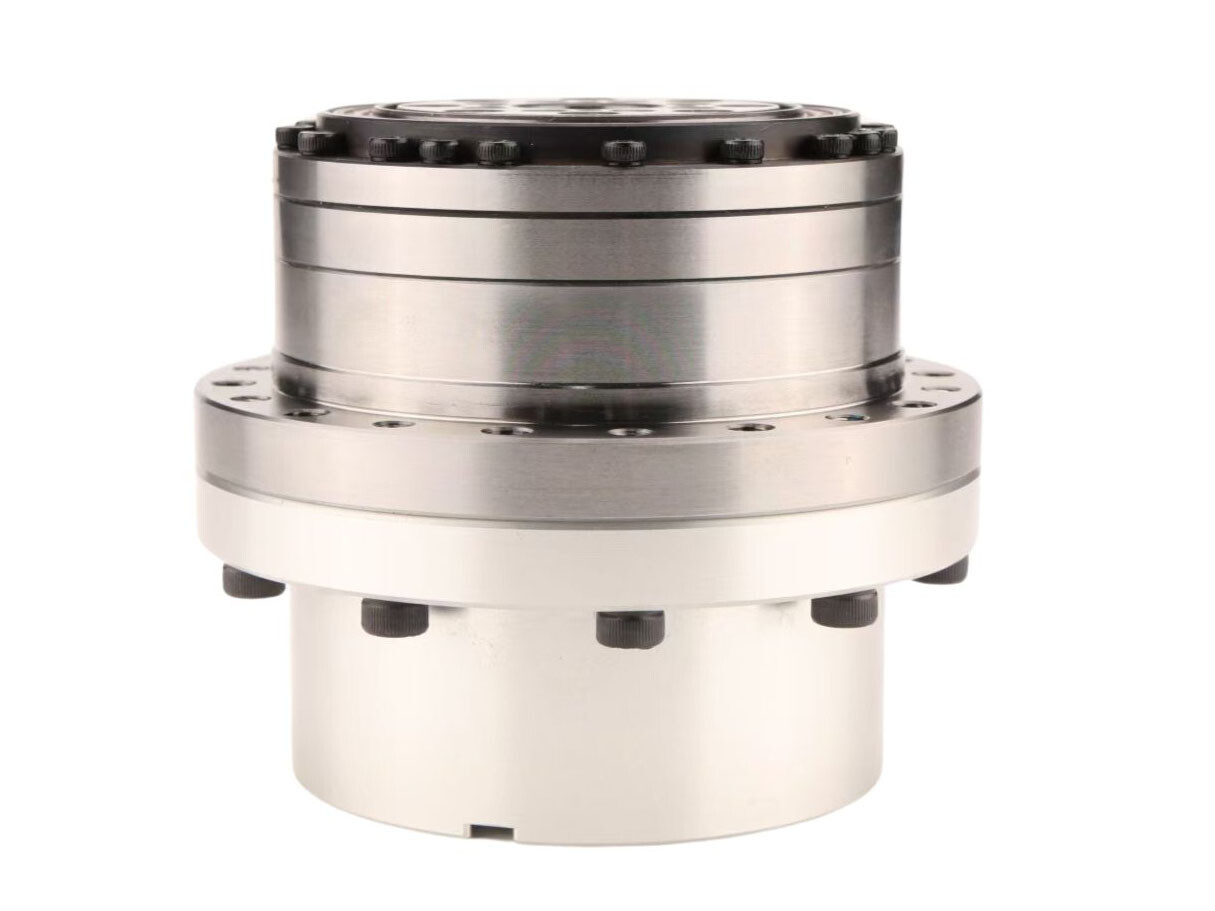

Direct Motor Connection Flange Harmonic Reduction Gear

Name: Direct Motor Connection Flange Harmonic Reduction Gear
SKU: 0

● Introduction

The LCSG-RDB harmonic reduction gear series is designed based on the FSG-I platform to facilitate direct motor connection for customers. It features pre-designed motor shaft connection holes and motor mounting flanges, with the gear reducer internally sealed with special lubricating grease at the factory. This series typically employs a fixed circular spline end and an output flexspline end directly coupled to the motor during operation. It provides exceptional convenience for applications requiring direct motor connection and custom sealing flanges - customers can simply secure the motor connection with screws for immediate use after procurement. This design streamlines integration while maintaining sealing integrity for users with direct-drive requirements.

Features

● Features a sealed flange and pre-machined motor shaft connection holes based on the FSG series design

● Greatly simplifies customer installation by eliminating the need for custom flange fabrication

● Delivers excellent rotational and positional accuracy

● Coaxial input and output configuration

Specification

Sheet 1



Starting Torque c N m
Reduction ratio	Model	14	17	20	25	32	40	50	58
50		8.8	27	43	56	85	136	-	-
80		7.5	25	36	50	74	117	179	244
100		6.9	24	32	49	72	112	171	231
120		-	24	31	48	68	110	-	-
160		-	-	31	47	67	105	-	-

Sheet 2



LCSG Series Harmonic Speed Reducer Bending Moment Load Table
Model	Use Allowed Values	Instantaneous allowable value
LCSG-14	Mb di 20Nm	Mb max 40Nm
	Ft di 180N	Ft max 320N
	F a di 180N	F a max320N
LCSG-17	Mb di30Nm	Mb max 60Nm
	Ft di 230N	Ft max 40ON
	F a di230N	F a max 400N
LCSG-20	Mb di 42Nm	Mb max 80Nm
	Ft di 270N	Ft max 480N
	F a di 270N	F a max 480N
LCSG-25	Mb di 80Nm	Mb max160Nm
	Ft di 440N	Ft max 770N
	F a di 440N	F a max 770N
LCSG-32	Mb di 220Nm	Mb max 440Nm
	Ft di 90ON	Ft max 160ON
	F a di 90ON	F a max 160ON
LCSG-40	Mb di 320Nm	Mbmax 650Nm
	Ft di 1000N	Ft max 1750N
	F a di 100ON	F a max 1750N

Sheet3



Item Model	Reduction ratio	Rated torque at input 2000r/min	Maximum allowable torque when starting and stopping	Average load torque Maximum allowable value	Maximum instantaneous permissible torque	Maximum allowable input speed	Allowable average input speed	Backlash	Maximum tension of synchronous belt	Weight	Design Lifespan
Item Model	Reduction ratio	N m	N m	Nm	Nm	r/min	r/min	Arc sec	N	Kg	Hour
14	50	6.6	23	8.6	43	8000	3500	≤20	≤77	0.72	10000
	80	9.6	29	13.5	57			≤10			15000
	100	9.6	34	13.5	66			≤10			15000
17	50	19.8	42	32	86	7000	3500	≤20	≤92	1.0	10000
	80	27.5	53	33	108			≤10			15000
	100	30	66	49	134			≤10			15000
	120	30	66	49	107			≤10			15000
20	50	32	69	42	121	6000	3500	≤20	≤136	1.38	10000
	80	42	91	58	158			≤10			15000
	100	50	102	61	182			≤10			15000
	120	50	108	61	182			≤10			15000
	160	50	113	61	182			≤10			15000
25	50	48	121	68.5	230	5500	3500	≤20	≤147	2.15	10000
	80	78	169	107	315			≤10			15000
	100	84	194	133	351			≤10			15000
	120	84	207	133	376			≤10 ≤10			15000
	160	84	217	133	388			≤10 ≤10			15000
32	50	94	267	133	472	4500	3500	≤20	≤154	4.3	10000
	80	146	376	206	702			≤10			15000
	100	169	411	267	800			≤10			15000
	120	169	436	267	848			≤10			15000
	160	169	459	267	848			≤10			15000
40	50	169	497	242	847	4000	3000	≤10	≤294	7.8	10000
	80	255	641	351	1210			≤10			15000
	100	328	702	460	1334			≤10			15000
	120	363	762	557	1458			≤10			15000
	160	363	800	557	1458			≤10			15000
50	80	459	1163	641	2297	3000	2500	≤10	≤373	14.5	15000
	100	580	1211	823	2545			≤10			15000
	120	654	1334	1004	2545			≤10			15000
	160	654	1458	1041	3025			≤10			15000
58	80	678	1828	951	3026	3000	2200	≤10	≤1300	20.0	15000
	100	860	1964	1309	3927			≤10			15000
	120	921	2124	1470	4113			≤10			15000
	160	921	2272	1494	4236			≤10			15000
