Worm Gear Transmission Planetary Hollow Rotary Table

  • Worm Gear Transmission Planetary Hollow Rotary Table
  • Worm Gear Transmission Planetary Hollow Rotary Table

●  Introduction

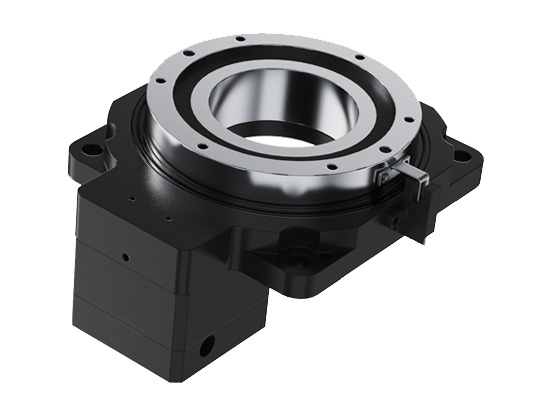

A planetary hollow rotary table is an integrated system combining a planetary gear reducer with a hollow rotary platform, offering a wider range of gear ratios tailored to specific applications. Its core design features a hollow structure, allowing pipelines (e.g., air tubes, electrical cables) to pass through the center of the turntable, eliminating the cable entanglement issues common in traditional rotary mechanisms. Driven by a servo motor, the platform achieves high-precision angular control through gear reduction or worm gear transmission, delivering exceptional rigidity and repeat positioning accuracy.
Contact Us

Features

● Hollow Structure Design

  • Central hollow channel enables media transmission (air/liquid/electrical), simplifying equipment layout.

  • Side-mounted motor interface prevents interference between pipelines and moving components.


● Integrated Planetary Gear Reducer
Offers multiple gear ratio options to match specific application requirements.


● High-Rigidity Support
Precision cross roller bearings with 90° staggered preloaded rollers withstand radial, axial, and overturning loads, delivering 5-10x higher rigidity than conventional bearings.


● High Rotational Accuracy
Turntable undergoes secondary grinding to ensure strict geometric tolerances (coaxiality, parallelism), achieving superior rotational precision.


● Flexible Compatibility

  • Compatible with any brand of servo/stepper motors; supports custom flanges and shaft-bore interfaces.

  • Modular design enables horizontal/vertical installation for enhanced scalability.

Specification

Sheet 1

Planetary Hollow Rotary Actuators
Model
85A-0585A-10110A-05110A-10130A-6/10170A-10200A-10280A-10
Stage Ratio
555101055510106101010101010101010101010101010
Planetary Ratio
5710710571071055710357103571035710
Total Reduction Ratio
2535507010025355070100305070100305070100305070100305070100
Hollow Bore Diametermmφ33φ33φ35φ35φ62φ72φ100φ150
Rated Output TorqueN·m18N·m14N·m35N·m35N·m43N·m34N·m112N·m112N·m120N·m
Maximum SpeedRPM200rpm200rpm200rpm200rpm200rpm200rpm200rpm250rpm
Repeat Positioning AccuracyArcsec±15arcsec±15arcsec±15arcsec±15arcsec±15arcsec±15arcsec±15arcsec±15arcsec
Allowable Axial LoadN500N500N2000N2000N2000N3000N4000N7000N
Allowable Radial LoadN250N250N1200N1200N1200N2000N2500N3500N
Table Parallelismmm0.02mm0.02mm0.02mm0.02mm0.02mm0.02mm0.02mm0.02mm
Face Runoutmm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mm
OD Runoutmm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mm0.01mm
Moment of Inertiakg·m21203x10-6kg·m21203x10-6kg·m21483x10-6kg·m21483x10-6kg·m22272x10-6kg·m227619x10-6kg·m227619x10-6kg·m2361220x10-7kg·m2
Positioning AccuracyArcsec≤30arcsec≤30arcsec≤30arcsec≤30arcsec≤30arcsec≤30arcsec≤30arcsec≤30arcsec
Operating Temperature°C-10°C~90°C-10°C~90°C-10°C~90°C-10°C~90°C-10°C~90°C-10°C~90°C-10°C~90°C-10°C~90°C
Service Lifeh20000h20000h20000h20000h20000h20000h20000h20000h
Protection RatingIPIP40IP40IP40IP40IP40IP40IP40IP40
Noise LeveldB≤65dB≤65dB≤65dB≤65dB≤65dB≤65dB≤65dB≤65dB
